CHIP MONOLITHIC CERAMIC CAPACITOR FOR GENERAL
GRM31CF50J107ZE01_ (1206, Y5V, 100uF, 6.3Vdc)
_: packaging code
1.Scope
Reference Sheet
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.
2.MURATA Part NO. System
(Ex.)
GRM
31
(1)L/W
Dimensions
C
(2)T
Dimensions
F5
(3)Temperature
Characteristics
0J
(4)DC Rated
Voltage
107
Z
E01
L
(5)Nominal (6)Capacitance
Tolerance
Capacitance
(7)Murata’s (8)Packaging
Code
Control Code
3. Type & Dimensions
L
W
T
e
g
e
(1)-1 L
3.2±0.2
(1)-2 W
1.6±0.2
(2) T
1.6±0.2
e
0.3 to 0.8
(Unit:mm)
g
1.5 min.
4.Rated value
(3) Temperature Characteristics
(Public STD Code):Y5V(EIA)
Temp. coeff
Temp. Range
or Cap. Change
(Ref.Temp.)
(4)
DC Rated
Voltage
(6)
(5) Nominal
Capacitance
Capacitance
Tolerance
Specifications and Test
Methods
(Operationg
Temp. Range)
-82 to 22 %
-30 to 85 °C
(25 °C)
6.3 Vdc
100 uF
+80/-20 %
-30 to 85 °C
5.Package
mark
L
K
(8) Packaging
f180mm
Reel
EMBOSSED W8P4
f330mm
Reel
EMBOSSED W8P4
Packaging Unit
2000 pcs./Reel
6000 pcs./Reel
Product specifications in this catalog are as of Jan.26,2013,and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering.
Please read rating and !Cautions first.
GRM31CF50J107ZE01-01
1
■SPECIFICATIONS
AND TEST METHODS
No
Item
1 Operating
Temperature Range
Specification
B1,B3,F1 : -25°C to 85°C
R1,R7,D7 : -55°C to 125°C
C6,R6 : -55°C to 85°C
C7,E7 : -55°C to 125°C
C8,D8 : -55°C to 105°C
F5 : -30°C to 85°C
See the previous pages.
Test Method
Standard Temperature : 20°C
(R6,R7,C6,C7,C8,D7,D8,E7,F5 : 25°C)
2 Rated Voltage
The rated voltage is defined as the maximum voltage which may be
applied continuously to the capacitor.
When AC voltage is superimposed on DC voltage, V
P-P
or V
O-P
,
whichever is larger, should be maintained within the rated voltage range.
Visual inspection.
Using calipers. (GRM02 size is based on Microscope)
No failure should be observed when 250% of the rated voltage is
applied between the terminations for 1 to 5 seconds, provided the
charge/discharge current is less than 50mA.
The insulation resistance should be measured with a DC voltage not
exceeding the rated voltage at Standard Temperature and 75%RH max.
and within 1 minutes of charging, provided the charge/discharge current
is less than 50mA.
The capacitance / D.F. should be measured at Standard Temperature
at the frequency and voltage shown in the table.
Capacitance
*1 C≦10μF
(10V min.)
*2 C≦10μF
(6.3V max.)
C＞10μF
Frequency
1±0.1kHz
1±0.1kHz
120±24Hz
Voltage
1.0±0.2Vrms
0.5±0.1Vrms
0.5±0.1Vrms
3 Appearance
4 Dimension
5 Dielectric Strength
No defects or abnormalities.
Within the specified dimensions.
No defects or abnormalities.
6 Insulation
Resistance
More than 50Ω
∙
F
7 Capacitance
8 Dissipation Factor
(D.F.)
Within the specified tolerance.
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7 : 0.1 max.
*Table 1
D8,GRM31CR60J107 : 0.15 max
GRM033 B3/R6 1A 123 to 823
F1,F5 : 0.2 max
GRM033 B3/R6 1A
104
GRM31CR71E106 : 0.125 max
GRM155 B3/R6 1A 124 to 105
GRM185 B3/R6 1C/1A 105
GRM185 C8/D7 1A 105
GRM188 B3/R6 1C/1A 225
GRM188 R7/C8/D7 1A 225
GRM188 B3/R6 1A 335
GRM219 B3/R6 1C/1A 475
GRM219 C8
1A 475
GRM219 B3/R6 1A 106
GRM21B B3/R6 1C/1A 106
GRM21B R7/C8 1A 106
GRM319 B3/R6 1C/1A 106
*1 For items listed in Table 1 on the left, the capacitance should be
measured using a voltage of 0.5±0.1Vrms instead of 1.0±0.2Vrms.
*2 For item GRM188R70J105, the capacitance should be
measured using a voltage of 1.0±0.2Vrms instead of 0.5±0.1Vrms.
9
Capacitance
Temperature
Characteristics
No bias
B1,B3
R1,R7
R6
F1
C6
C7
C8
E7
D7
D8
F5
: Within ±10%
: Withn ±15%
: Within ±15%
: Within +30/-80%
: Within ±22%
: Within±22%
: Within ±22%
: Within +22/-56%
: Within +22/-33%
: Within +22/-33%
: Within +22/-82%
(-25°C to +85°C)
(-55°C to +125°C)
(-55°C to +85°C)
(-25°C to +85°C)
(-55°C to +85°C)
(-55°C to +125°C)
(-55°C to +105°C)
(-55°C to +125°C)
(-55°C to +125°C)
(-55°C to +105°C)
(-30°C to +85°C)
The capacitance change should be measured after 5min. at each
specified temp.stage.
The ranges of capacitance change compared with the Standard
Temperature value over the temperature ranges shown in the table
should be within the specified ranges.
In case of applying voltage, the capacitance change should be
measured after 1 more min. with applying voltage in equilibration
of each temp. stage.
· Measurement Voltage
GRM152 B3 0J 104/224, GRM155 B1 0J 124 to 334,
GRM155 B3 0J 394 to 824, GRM155 B3 1A 124 to 105,
GRM188 B1 0G 106, GRM21B B1 0J 106, GRM32R C6 0G 157,
GRM32R D8 0E 157 only
: 0.2±0.05Vrms
GRM188
R7 1C 105 K/M E15, GRM21B R7 1A/1C 475 K/M E51,
GRM219 R7 1A/1C 225 only : 0.5±0.1Vrms
GRM43 B1/B3/R6 0J/1A 336/476 only : 1.0±0.2Vrms
GRM188 R6 1H 474 only
: 1.5±0.3Vrms
Step
1
2
3
4
5
Temperature(C)
Applying Voltage(V)
20±2*
-55±3(for R1,R6,R7,C6,C7,C8,E7,D7,D8)
-25±3(for B1,B3,F1)
No bias
-30±3(for F5)
*R6,R7,C6,C7,C8,D7,
20±2*
D8,E7,F5 : 25±2C
85±3(for B1,B3,F1,F5,R6,C6)
125±3(for R1,R7,C7,E7,D7)
105±3(for C8,D8)
20±2
-55±3(for R1)/
-25±3(for B1,F1)
50% of the rated
voltage
20±2
125±3(for R1)/
85±3(for B1,F1)
50% of B1: Within +10/-30%
the rated R1: Within +15/-40%
voltage F1: Within +30/-95%
6
7
8
· Initial measurement
Perform a heat treatment at 150+0/-10°C for one hour and then set
at room temperature for 24±2 hours.
Perform the initial measurement.
10 Adhesive Strength of
Termination
No removal of the terminations or other defect should occur.
Solder the capacitor on the test jig (glass epoxy board) shown in Fig.3
using an eutectic solder.
Then apply 10N* force in parallel with the test jig for 10+/-1sec.
The soldering should be done either with an iron or using the reflow
method and should be conducted with care so that the soldering
is uniform and free of defects such as heat shock.
*1N : GRo02,2N : GRo03,5N : GRo15/GRM18,
JEMCGS-0052AK
2
■SPECIFICATIONS
AND TEST METHODS
No
Item
11 Vibration
Appearance
Resistance
Capacitance
D.F.
Specification
No defects or abnormalities.
Within the specified tolerance.
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7 : 0.1 max.
D8,GRM31CR60J107
: 0.15 max
GRM31CR71E106
: 0.125 max
F1,F5
: 0.2 max
No defects or abnormalities.
Within ±10%
Test Method
Solder the capacitor on the test jig (glass epoxy board) in the
same manner and under the same conditions as (10).
The capacitor should be subjected to a simple harmonic
motion having a total amplitude of 1.5mm, the frequency
being varied uniformly between the approximate limits of 10
and 55Hz. The frequency range, from 10 to 55Hz and return
to 10Hz, should be traversed in approximately 1 minute. This
motion should be applied for a period of 2 hours in each 3
mutually perpendicular directions(total of 6 hours).
Solder the capacitor on the test jig (glass epoxy board)
shown in Fig.1 using an eutectic solder. Then apply a force
in the direction shown in Fig 2 for 5+/-1 sec. The soldering
should be done by the reflow method and should be
conducted with care so that the soldering is uniform and free
of defects such as heat shock.
Immerse the capacitor in a solution of ethanol (JIS-K-8101)
and rosin (JIS-K-5902) (25% rosin in weight propotion) .
Preheat at 80 to 120℃ for 10 to 30 seconds.
After preheating, immerse in an eutectic solder solution for
2+/-0.5 seconds at 230+/-5℃ or Sn-3.0Ag-0.5Cu solder
solution for 2+/-0.5 seconds at 245+/-5.
Preheat the capacitor at 120 to 150℃ for 1 minute.
Immerse the capacitor in an eutectic solder solution* or
Sn-3.0Ag-0.5Cu solder solution at 270+/-5℃ for
10+/-0.5 seconds. Set at room temperature for 24+/-2
hours, then measure.
*Not apply to GRM02
· Initial measurement
Perform a heat treatment at 150+0/-10°C for one hour and then set at room
temperature for 24±2 hours.
Perform the initial measurement.
I.R.
12 Deflection
Appearance
Capacitance
Change
13 Solderability
of Termination
75% of the terminations is to be soldered evenly
and continuously.
14
Resistance to
Soldering Heat
Appearance
Capacitance
Change
No defects or abnormalities.
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7,D8
:
Within ±7.5%
GRM188B30J106M
: Within ±12.5%
F1,F5
: Within ±20%
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7 : 0.1 max.
D8,GRM31CR60J107
: 0.15 max
GRM31CR71E106
: 0.125 max
F1,F5
: 0.2 max
More than 50Ω
∙
F
D.F.
*Preheating for GRM32/43/55
Dielectric
Strength
No defects.
Step
1
2
Temperature
100C to 120C
170C to 200C
Time
1 min.
1 min.
15
Temperature
Sudden
Change
Appearance
Capacitance
Change
No defects or abnormalities.
B1,R1,B3,R6,R7,C6,C7,C8,D7,D8 : Within ±7.5%
E7
: Within
±30%
F1,F5
: Within ±20%
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7 : 0.1 max.
D8,GRM31CR60J107
: 0.15 max
GRM31CR71E106
: 0.125 max
F1,F5
: 0.2 max
Fix the capacitor to the supporting jig in the same
manner and under the same conditions as (10).
Perform the five cycles according to the four heat
treatments shown in the following table.
Set for 24+/-2 hours at room temperature, then measure.
Step
Temp.(C)
Min.
Operating Temp.+0/-3
Room Temp
Max.
Operating Temp.+3/-0
Room Temp
Time (min)
30±3
2 to 3
30±3
2 to 3
D.F.
1
2
3
4
I.R.
More than 50Ω
∙
F
・Initial
measurement
Perform a heat treatment at 150+0/-10°C for one hour and then set
at room temperature for 24±2 hours.
Perform the initial measurement.
Dielectric
Strength
No defects.
GRM188B30J106M:
Measurement after test
Perform a heat treatment and then let sit for 24+/-2 hours at room
temperature, then measure.
No defects or abnormalities.
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7,D8 : Within ±12.5%
F1,F5
: Within ±30%
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7,D8 : 0.2 max.
F1,F5
: 0.4 max
Apply the rated voltage at 40+/-2℃ and 90 to 95%
humidity for 500+/-12 hours. The charge/discharge
current is less than 50mA.
・Initial
measurement
Perform a heat treatment at 150+0/-10°C for one hour and then let sit
for 24±2 hours at room temperature.
Perform the initial measurement.
・Measurement
after test
Perform a heat treatment and then let sit for 24+/-2 hours at room
temperature, then measure.
Apply 150% of the rated voltage for 1000+/-12 hours at
the maximum operating temperature +/-3℃.
The charge/ discharge current is less than 50mA.
・Initial
measurement
Perform a heat treatment at 150+0/-10°C for one hour and then let sit
for 24±2 hours at room temperature.
Perform the initial measurement.
・Measurement
after test
Perform a heat treatment and then let sit for 24+/-2 hours at room
temperature, then measure.
16
High
Temperature
High
Humidity
(Steady)
Appearance
Capacitance
Change
D.F.
I.R.
More than 12.5Ω
∙
F
No defects or abnormalities.
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7,D8 : Within ±12.5%
F1,F5
: Within ±30%
17 Durability
Appearance
Capacitance
Change
D.F.
B1,R1,B3,R6,R7,C6,C7,C8,E7,D7,D8 : 0.2 max.
F1,F5
: 0.4 max
More than 25Ω ∙ F
I.R.
JEMCGS-0052AK
3
■SPECIFICATIONS
AND TEST METHODS
Adhesive Strength of Termination,Vibration Resistance,
Test method : Deflection
・Test
substrate
Material
: Copper-clad laminated sheets for PCBs
(Glass fabric base, epoxy resin)
Thickness : 1.6mm(GRM02/03/GR□15: t:0.8mm)
Copper foil thickness : 0.035mm
Gray colored part of Fig.1: Solder resist
（Coat
with heat resistant resin for solder）
Temperature Sudden Change,High Temperature High Humidity(Steady) ,Durability
・Test
substrate
Material
: Copper-clad laminated sheets for PCBs
(Glass fabric base, epoxy resin)
Thickness : 1.6mm(GRM02/03/GR□15: t:0.8mm)
Copper foil thickness : 0.035mm
c
*1,2：2.0±0.05
φ1.5
+0.1
-0
4.0±0.1
＊1
Land
f4.5
b
a
ﾗﾝﾄﾞ
b
c
c
＊2
f4.5
40
a
3.5± 0.05
1.75±0.1
8.0±0.3
b
Ａ
Solder resist
Ｂ
c
Glass epoxy board
Baked electrode or
copper foil
0.05以下
100
t
Fig.1
(in:mm)
Fig.3
(in:mm)
Type
GRM02
GR□03
GR□15
GRM18
GRM21
GRM31
GRM32
GRM43
GRM55
a
0.2
0.3
0.4
1.0
1.2
2.2
2.2
3.5
4.5
Dimension (mm)
b
0.56
0.9
1.5
3.0
4.0
5.0
5.0
7.0
8.0
c
0.23
0.3
0.5
1.2
1.65
2.0
2.9
3.7
5.6
Type
GRM02
GR□03
GR□15
GRM18
GRM21
GRM31
GRM32
GRM43
GRM55
a
0.2
0.3
0.4
1.0
1.2
2.2
2.2
3.5
4.5
Dimension (mm)
b
0.56
0.9
1.5
3.0
4.0
5.0
5.0
7.0
8.0
c
0.23
0.3
0.5
1.2
1.65
2.0
2.9
3.7
5.6
20
50
Pressurization
speed
1.0mm/s
Pressurize
R230
Support
Capacitance meter
Flexure:≦1
45
45
Fig.2
(in:mm)
JEMCGS-0052AK
4
Package
GRM/F Type
1.Tape Carrier Packaging(Packaging Code:D/E/W/F/L/J/K)
1.1 Minimum Quantity(pcs./reel)
φ180mm reel
Paper Tape
Code:D/E
Code:W
15000(W8P2)
30000(W8P1)
Type
GR□02
GR□03
GR□15
Plastic Tape
Code:L
40000 (W4P1)
φ330mm reel
Paper Tape Plastic Tape
Code:J/ F
Code:K
50000(W8P2)
GR□18
GR□21
GR□31
GR□32
GR□43
GR□55
2
20000
3/X
10000
5
(Dimensions Tolerance:±0.05)
10000(W8P2)
5
(Dimensions Tolerance:±0.1min.)
10000
4000
5/6/9
4000
A/B
6/9
4000
M/X
C
5/6/9
4000
A/M
N
C
R/D/E
M
N/C/R/D
E
S
M
N/C/R/D
E
F/X
50000
50000
20000(W8P1)
50000(W8P2)
3000
3000
3000
2000
40000
10000
10000
10000
10000
10000
6000
10000
10000
8000
6000
4000
5000
4000
2000
1500
5000
4000
1500
3000
2000
2000
1000
1000
1000
500
500
1000
1000
500
300

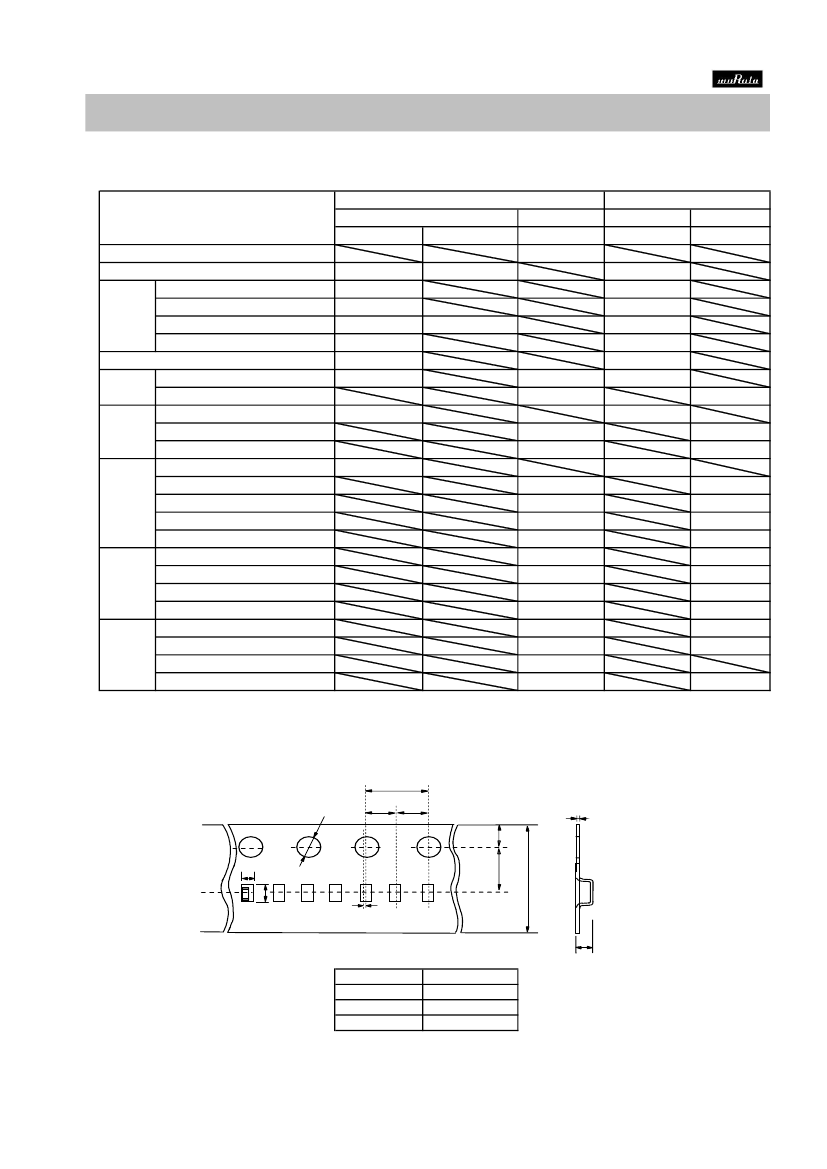

1.2 Dimensions of Tape
(1)GR□02 (W4P1 CODE:L)
*1,2：1.0±0.02
φ0.8±0.04
(in:mm)
0.9±0.05
2.0±0.04
*1
*2
＊1,2：1.0±0.02
0.15½0.4
φ0.8±0.04
1.8±0.02
Ａ
4.0±0.05
Ａ
Ｂ
0.05 max.
Ｂ
0
t
Code
A *3
B *3
½
GR□02
0.23
0.43
0.5 max.
*3 Nominal value
JEMCGP-01796
5
京公网安备 11010802033920号
EEWORLD
