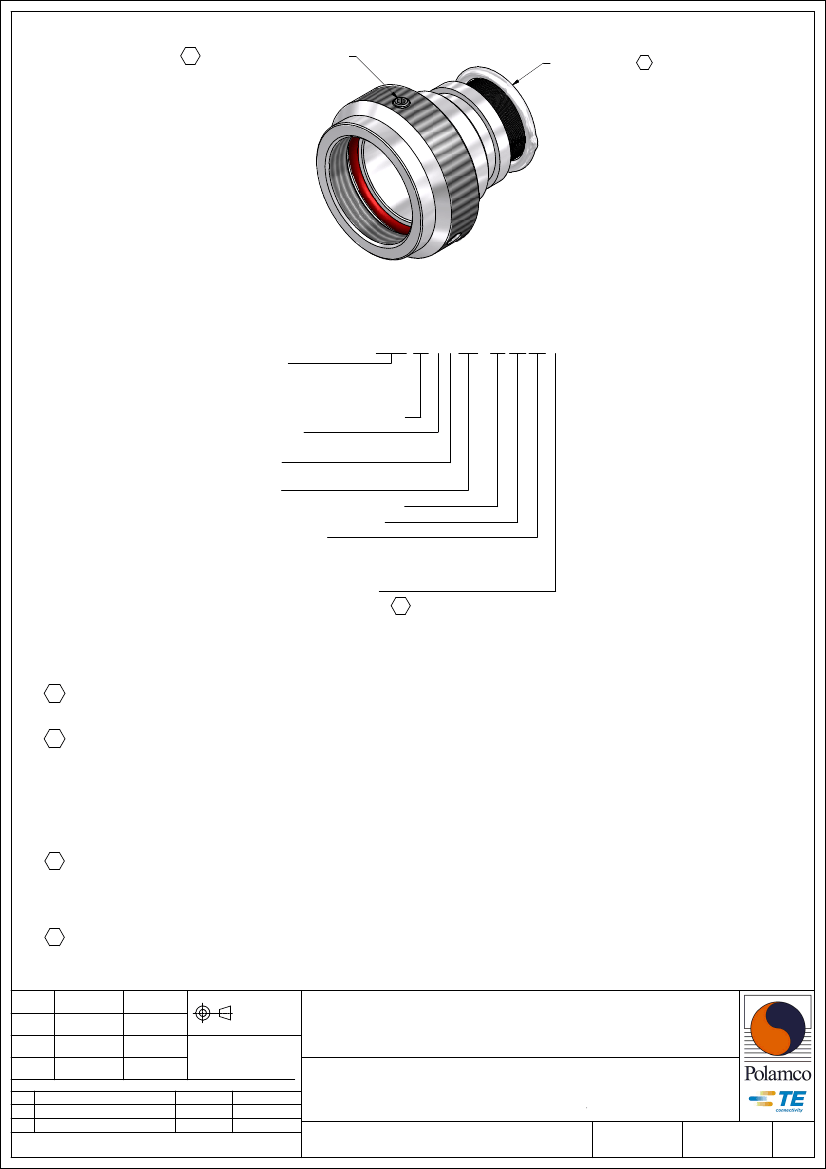

7 ANTI-ROTATIONAL SET SCREW
TINEL LOCK RING 3
CODE 15 - TINEL-LOCK BACKSHELL
TXR15AB00-1608AI-
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
DASH NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
NOTES:
REFER TO CH00-0250-008
2
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR15AB00-1206).
RING SHALL BEAR NO MARKING.
5. IF MAX ENTRY IS EXCEEDED, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO MIL-C-5015, SOLDER CONTACT, MS3100, MS3101, MS3106,
MS3107 AND MS3108 WITH ENDBELL.
7. ANTI-ROTATIONAL SET SCREW, THREE THREADED HOLES 120° ± 5° APART, SINGLE
MATING SET SCREW SUPPLIED.
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
04/12/2014
04/12/2014
11/12/2014
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D
REVISED PER ECO-15-002398
E
REVISED PER ECO-15-009981
DATE
17/02/2015
07/07/2015
APPROVED
H.SMITH
H.SMITH
MIL-C-5015 MS "V" THREAD END BELLS
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR15
E
1
If this document is printed it becomes uncontrolled. Check for the latest revision

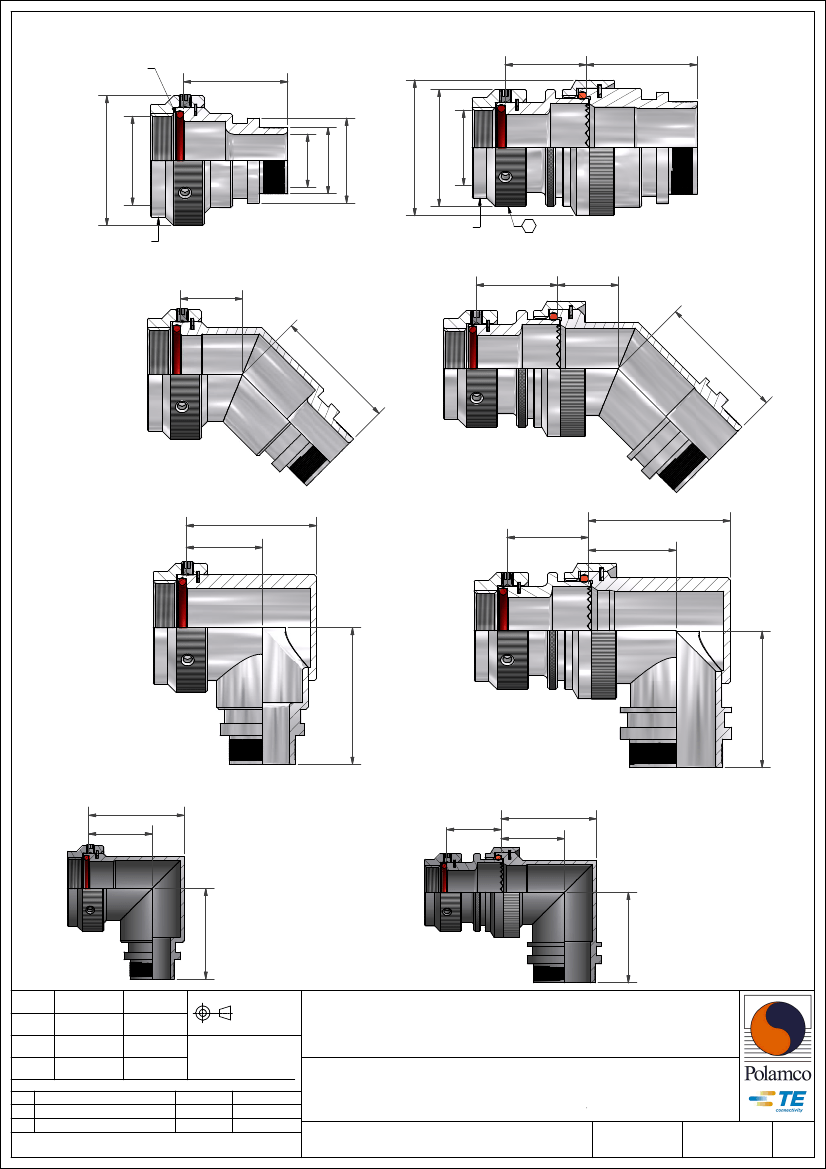

IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
19,50
`
0,50
26,50
SILICONE
O-RING
25,00
A THREAD
A THREAD
ØK
ØB
ØS
ØY
ØZ
ØB
XXXX
XXXX
PART MARK
HERE
PART MARK
HERE
5
STRAIGHT BACKSHELL - TYPE 2
19,50
`
0,50
F
STRAIGHT BACKSHELL - TYPE 1
C
G
D
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
H
19,50
`
0,50
M
W
T
E
90° BACKSHELL - TYPE 1
W
T
19,50
`
0,50
M
H
90° BACKSHELL - TYPE 2
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DATE
04/12/2014
04/12/2014
11/12/2014
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D
REVISED PER ECO-15-002398
E
REVISED PER ECO-15-009981
DATE
17/02/2015
07/07/2015
APPROVED
H.SMITH
H.SMITH
MIL-C-5015 MS "V" THREAD END BELLS
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
J
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR15
E
2
TABLE 1
ORDER
SHELL
A THREAD
NUMBER
SIZE
03
8S & 10S
1/2-28UNEF
10SL,12 & 12S 5/8-24UNEF
04
06
14 & 14S
3/4-20UNEF
08
16 & 16S
7/8-20UNEF
10
18
1-20UNEF
20 & 22
12
1 3/16-18UNEF
16
24 & 28
1 7/16-18UNEF
20
32
1 3/4-18UNS
36
24
2-18UNS
28
40
2 1/4-16UN
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØB
MAX
21,5
25,0
28,0
31,1
35,0
39,0
45,2
54,9
62,0
68,6
MAX
ENTRY
05
07
08
10
12
16
20
24
24
24
C
±0,5
12,6
14,0
15,0
15,6
16,3
17,2
17,9
24,3
26,9
31,8
D
±0,5
27,5
28,0
29,0
29,7
30,5
30,9
32,1
32,1
29,3
30,7
W
±0,5
21,7
24,9
27,9
31,3
34,3
40,4
44,0
50,3
57,8
64,4
T
±0,5
13,0
14,4
15,9
18,3
19,3
22,9
24,0
27,3
31,1
34,5
E
±0,5
28,0
29,5
31,0
32,7
34,3
35,8
38,9
42,8
46,8
51,0
W
±0,5
22,2
25,4
28,4
31,8
34,8
40,9
44,5
50,8
58,3
64,9
T
±0,5
13,0
14,4
15,9
18,3
19,3
22,9
24,0
27,3
31,1
34,5
E
±0,5
28,2
29,7
31,2
32,9
34,3
36,1
39,1
42,8
46,8
51,0
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
ØY
±0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
ØK
MAX
NA
NA
21,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
F
±0,5
NA
NA
12,5
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
G
±0,5
NA
NA
27,5
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
H
±0,5
NA
NA
24,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
M
±0,5
NA
NA
15,5
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
J
±0,5
NA
NA
27,95
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
42,00
46,00
H
±0,5
NA
NA
24,3
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
50,0
53,5
M
±0,5
NA
NA
17,2
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
31,0
33,0
J
±0,5
NA
NA
28,2
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
42,0
46,0
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
04/12/2014
04/12/2014
11/12/2014
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D
REVISED PER ECO-15-002398
E
REVISED PER ECO-15-009981
DATE
17/02/2015
07/07/2015
APPROVED
H.SMITH
H.SMITH
MIL-C-5015 MS "V" THREAD END BELLS
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR15
E
3
