Part Number

Search

2506031217H0

Description
Ferrite Beads MULTILAYER CHIP BEAD Z=120 OHM@100MHz 25%
CategoryPassive components
File Size2MB,3 Pages
ManufacturerFair Rite
Download Datasheet Parametric View All

2506031217H0 Online Shopping

Suppliers Part Number Price MOQ In stock
2506031217H0 - - View Buy Now

2506031217H0 Overview

Ferrite Beads MULTILAYER CHIP BEAD Z=120 OHM@100MHz 25%

2506031217H0 Parametric

Parameter NameAttribute value
Product CategoryFerrite Beads
ManufacturerFair Rite
RoHSDetails
ProductFerrite Chip Beads
Termination StyleSMD/SMT
Package / Case0603 (1608 metric)
Impedance120 Ohms
Maximum DC Current200 mA
Tolerance25 %
Maximum DC Resistance500 mOhms
Operating Temperature Range- 55 C to + 125 C
Length1.6 mm
Width0.8 mm
Height0.8 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
Capacitance-
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity4000
Termination-
Test Frequency100 MHz
TypeMultilayer Ferrite Chip Bead
Unit Weight0.000071 oz

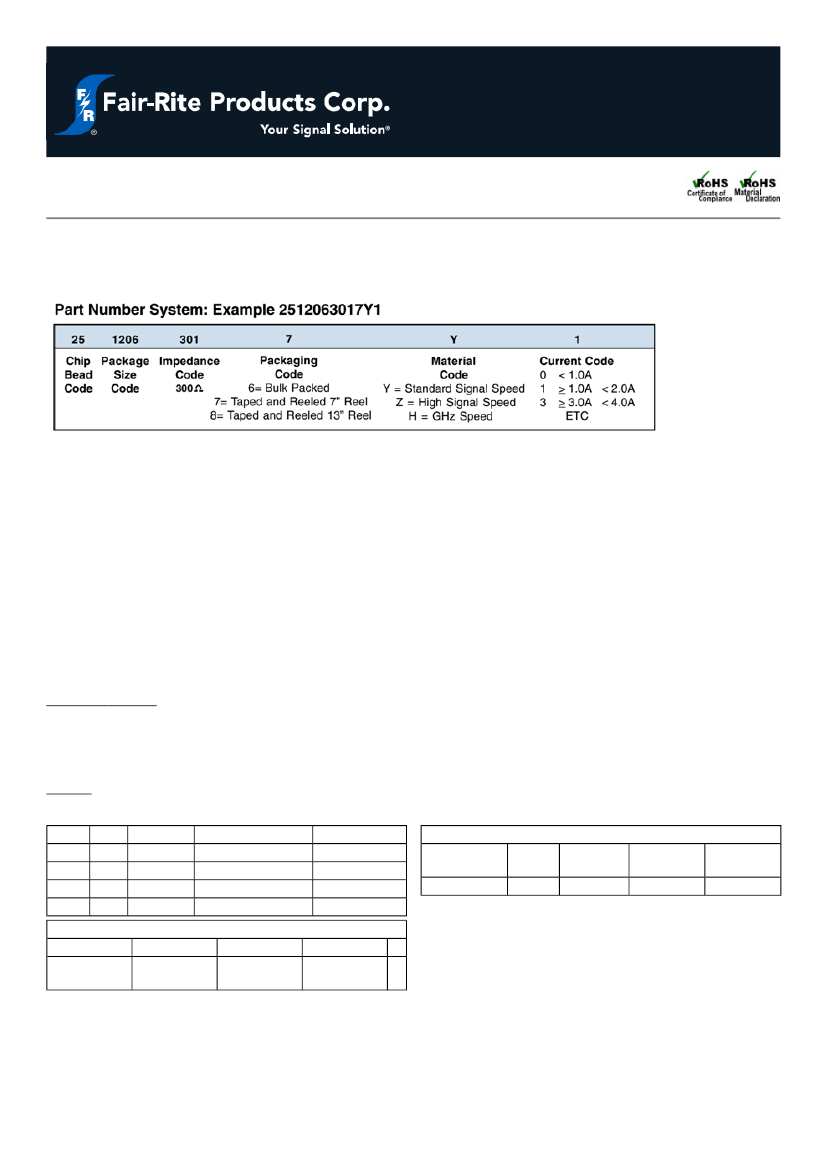

Chip Beads (2506031217H0)
Part Number: 2506031217H0
MULTI- LAYER CHIP BEAD





Fair- Rite offers a broad selection of cost effective multi- layer chip beads to suppress conducted EMI signals. Chip beads can be
used in an array of devices such as cellular phones, computers, laptops, pagers, etc. The small package sizes accommodate
automated placements and allow for a dense packaging of circuit boards.
Chip Beads are available in standard, high and GHz signal speeds.
Packaging Options:
-• All multi- layer chip beads are supplied taped and reeled, if required bulk packed chip beads can be provided.
The suggested land patterns are in accordance to the latest revision of IPC-7351.
Weight: 0.006 (g)
Package Size: 0603 (1608)
Dim mm mm tol
nominal inch
A
0.8 ±0.15
0.031
B
0.8 ±0.15
0.031
C
1.6 ±0.15
0.063
D
0.4 ±0.20
0.016
Land Patterns
V
W
0.60
1.70
(0.024”)
(0.067”)
X
1.00
(0.039”)
inch misc.
_
_
_
_
Y
1.10
(0.043”)
Z
_
Reel Information
Tape Width Pitch
mm
mm
8
4
Parts 7"
Reel
4000
Parts 13"
Reel
10000
Parts 14"
Reel

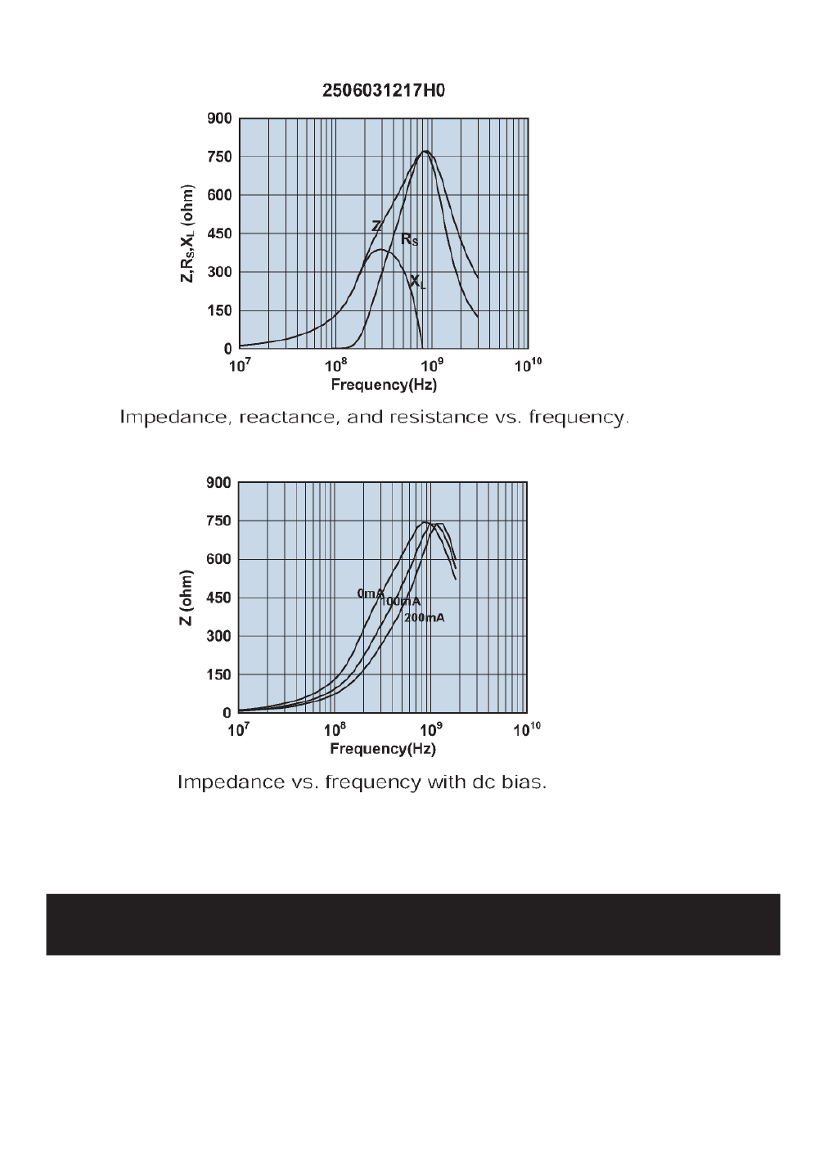

_
