D2TO035C20R00FTE3

Description
Thick Film Resistors - SMD 20 OHM 1% 150PPM 35W
CategoryPassive components
File Size151KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

D2TO035C20R00FTE3 Online Shopping

Suppliers Part Number Price MOQ In stock
D2TO035C20R00FTE3 - - View Buy Now

D2TO035C20R00FTE3 Overview

Thick Film Resistors - SMD 20 OHM 1% 150PPM 35W

D2TO035C20R00FTE3 Parametric

Parameter NameAttribute value
Product CategoryThick Film Resistors - SMD
ManufacturerVishay
Resistance20 Ohms
Power Rating35 W
Tolerance1 %
Temperature Coefficient150 PPM / C
Voltage Rating250 V
Operating Temperature Range- 55 C to + 175 C
TypeHigh Power Resistor
Height4.5 mm
Length10.1 mm
Maximum Operating Temperature+ 175 C
Minimum Operating Temperature- 55 C
Package / CaseTO-263 (D2PAK)
ProductThick Film Resistors SMD
Termination StyleSMD/SMT
Width8.8 mm

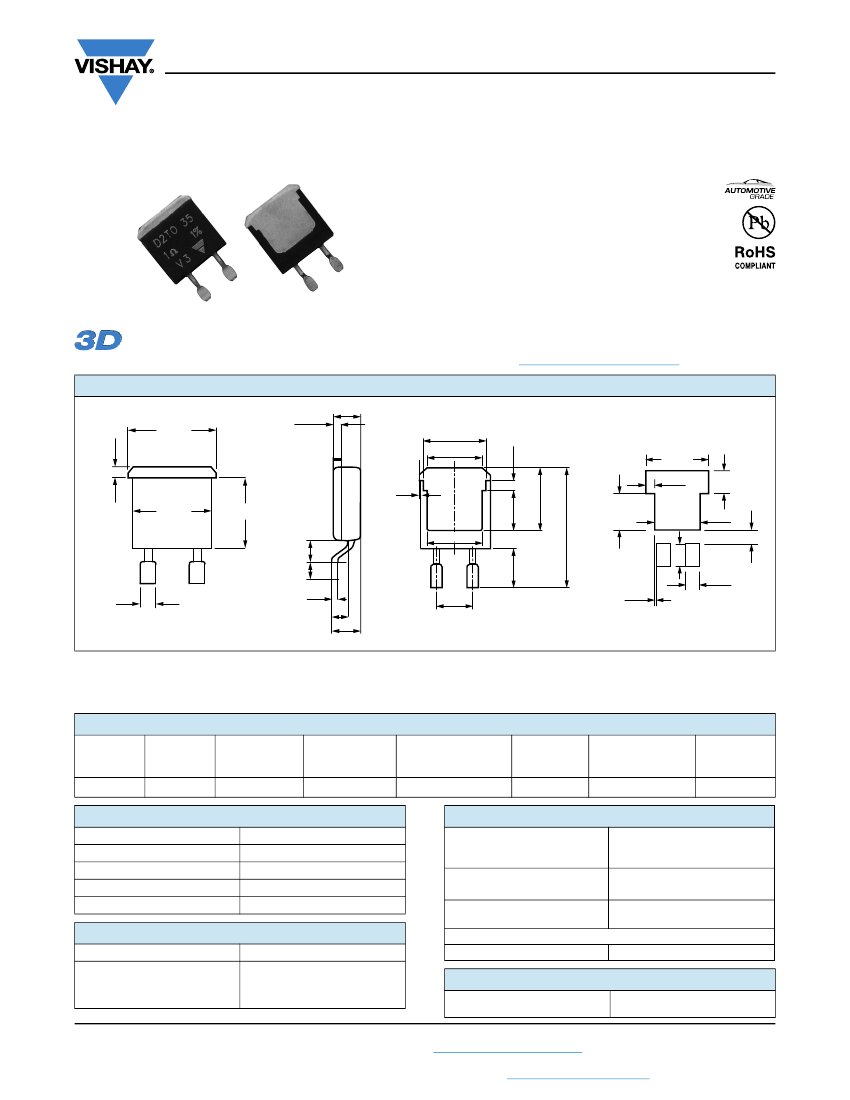

D2TO35
www.vishay.com
Vishay Sfernice
Surface Mount Power Resistor
Thick Film Technology
FEATURES
AEC-Q200 qualified
• 35 W at 25 °C case temperature
• Surface mounted resistor - TO-263 (D
2
PAK)
style package
• Wide resistance range from 0.01
to 550 k
• Non inductive
• Resistor isolated from metal tab
• Solder reflow secure at 270 °C/10 s
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
DIMENSIONS
in millimeters
1.25
10.5
4.5
8.7
7.8 min.
1.6
5.15
8.1
0.2
10.1
8.8
7.6
2.8
2.2
1.6
0.3
2
4.5
5.08
5
2.40
0.26
1.25
Footprint recommendation for
solderable contact area:
11.00
1.50
6.50
15.4
4.00
4.02
8.00
2.49
Tolerance: ± 0.3 mm
Notes
• For the assembly on board, we recommend the lead (Pb)-free thermal profile as per J-STD-020C
• Power dissipation is 3.5 W at an ambient temperature of 25 °C when mounted on a double sided copper board using FR4 HTG, 70 μm of
copper, 39 mm x 30 mm x 1.6 mm, with thermal vias
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
D2TO35
SIZE
TO-263
RESISTANCE
RANGE
0.01 to 550K
RATED POWER LIMITING ELEMENT
TOLERANCE
P
25 °C
VOLTAGE
U
L
±%
W
V
35
500
1, 2, 5, 10
TEMPERATURE
COEFFICIENT
± ppm/°C
150, 250, 700, 1100
CRITICAL
RESISTANCE
7.14K
MECHANICAL SPECIFICATIONS
Mechanical Protection
Resistive Element
Substrate
Connections
Weight
Molded
Thick film
Alumina
Tinned copper
2.2 g max.
TECHNICAL SPECIFICATIONS
Power Rating and
Thermal Resistance
of the Component
Temperature Coefficient
Standard
Dielectric Strength
IEC 60115-1
Insulation Resistance
Inductance
35 W at 25 °C (case
temperature)
R
TH (j - c)
: 4.28 °C/W
See Special Feature table
± 150 ppm/°C
2000 V
RMS
- 1 min - 10 mA max.
(between terminals and board)
10
6
M
0.1 μH
ENVIRONMENTAL SPECIFICATIONS
Temperature Range
Flammability
-55 °C to +175 °C
IEC 60695-11-5
2 applications 30 s
separated by 60 s
DIMENSIONS
Standard Package
TO-263 style
(D
2
PAK)
Revision: 29-Mar-16
Document Number: 51058
1
For technical questions, contact:
sferfixedresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
