572D336X06R3A2T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 572D336X06R3A2T

572D336X06R3A2T: DescriptionTantalum Capacitors - Solid SMD 572D336X06R3A2T; CategoryPassive components capacitor; File Size305KB，20 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

572D336X06R3A2T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	572D336X06R3A2T	-	-	View	Buy Now

572D336X06R3A2T Overview

Tantalum Capacitors - Solid SMD 572D336X06R3A2T

572D336X06R3A2T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 1307
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	33 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	800 mΩ
high	1.3 mm
JESD-609 code	e3
leakage current	0.0021 mA
length	3.2 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	290 mA
size code	1307
surface mount	YES
Delta tangent	0.08
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

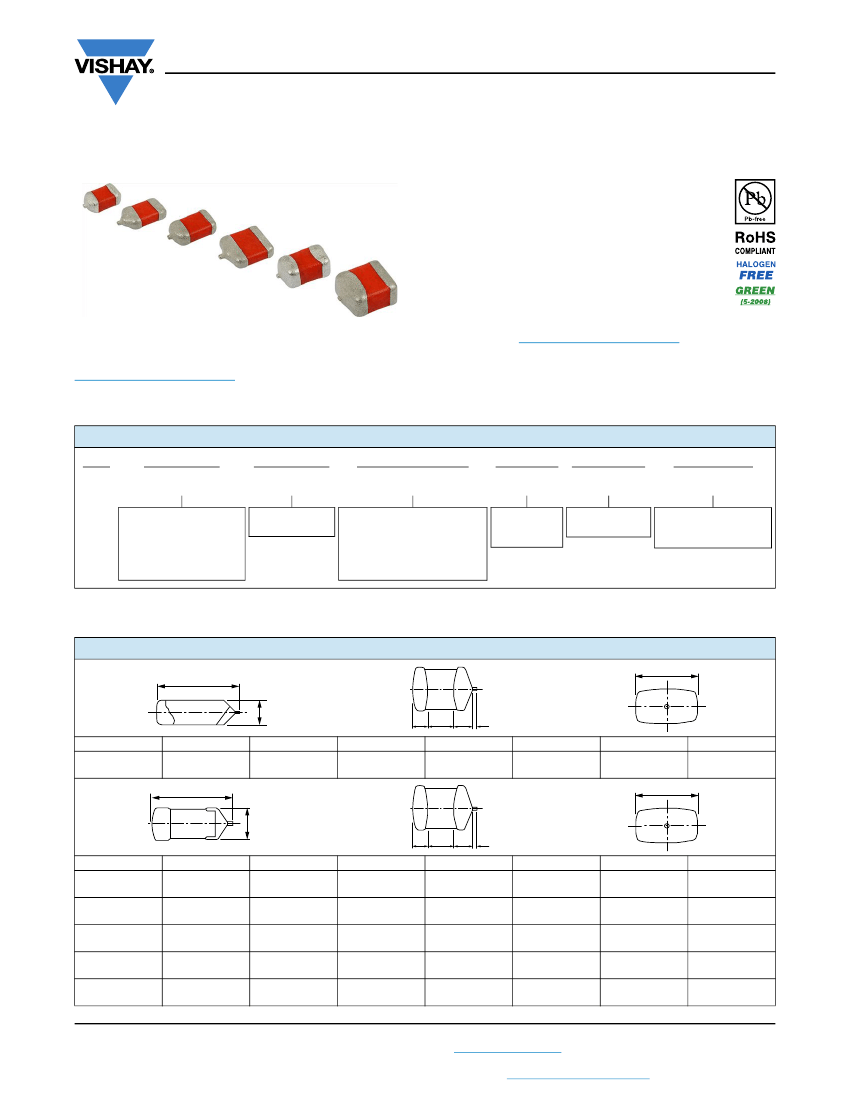

572D

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT

™, Low Profile, Conformal Coated, Maximum CV

FEATURES

•

P case offers single-sided lead (Pb)-free

terminations

• Wraparound lead (Pb)-free terminations: Q, S,

A, B, and T cases

• 8 mm and 12 mm tape and reel packaging

available per EIA-481 and reeling per

IEC 60286-3

7" [178 mm] standard

13" [330 mm] available

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Capacitance Range:

2.2 μF to 220 μF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 V

to 35 V

Images not to scale

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40194

Operating Temperature:

-55 °C to +125 °C

(above 85 °C, voltage derating is required)

ORDERING INFORMATION

572D

TYPE

336

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

6R3

DC VOLTAGE RATING

AT +85 °C

This is expressed in volts. To

complete the three-digit

block, zeros precede the

voltage rating. A decimal

point is indicated by an “R”

(6R3 = 6.3 V).

CASE CODE

TERMINATION

REEL SIZE AND

PACKAGING

T = tape and reel

7" [178 mm] reel

W = 13" [330 mm] reel

This is expressed in

picofarads. The first two

digits are the significant

figures. The third is the

number of zeros to

follow.

See Ratings

and Case

Codes table

2 = 100 % tin

4 = gold plated

Notes

• Preferred tolerance and reel sizes are in bold

• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size

DIMENSIONS

in inches [millimeters]

Single-side

electrodes

(both electrodes at

bottom

side

only)

CASE CODE

0.087 ± 0.012

[2.2 ± 0.3]

0.049 ± 0.012

[1.25 ± 0.3]

0.039 ± 0.008

[1.0 ± 0.2]

0.024 ± 0.012

[0.6 ± 0.3]

B (MIN.)

0.019

[0.5]

0.031 ± 0.012

[0.8 ± 0.3]

D (REF.)

0.008

[0.2]

CASE CODE

0.126 ± 0.008

[3.2 ± 0.2]

0.126 ± 0.012

[3.2 ± 0.3]

0.126 ± 0.012

[3.2 ± 0.3]

0.130 ± 0.012

[3.3 ± 0.3]

0.138 ± 0.008

[3.5 ± 0.2]

0.063 ± 0.008

[1.6 ± 0.2]

0.063 ± 0.012

[1.6 ± 0.3]

0.067 ± 0.012

[1.7 ± 0.3]

0.106 ± 0.012

[2.7 ± 0.3]

0.106 ± 0.008

[2.7 ± 0.2]

0.031 ± 0.008

[0.8 ± 0.2]

0.039 ± 0.008

[1.0 ± 0.2]

0.051 ± 0.012

[1.3 ± 0.3]

0.067 ± 0.012

[1.7 ± 0.3]

0.039 ± 0.008

[1.0 ± 0.2]

0.031 ± 0.008

[0.8 ± 0.2]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.008

[0.8 ± 0.2]

B (MIN.)

0.039

[1.0]

0.035

[0.9]

0.035

[0.9]

0.035

[0.9]

0.039

[1.0]

0.031 ± 0.008

[0.8 ± 0.2]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.043 ± 0.012

[1.1 ± 0.3]

0.043 ± 0.008

[1.1 ± 0.2]

D (REF.)

0.008

[0.2]

0.008

[0.2]

0.008

[0.2]

0.008

[0.2]

0.008

[0.2]

Revision: 28-Nov-17

Document Number: 40064

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

572D336X06R3A2T Related Products

	572D336X06R3A2T	572D106X9010P2T	572D336X0010P2T	572D686X06R3S2T	572D336X0010A2T	572D227X96R3B2T
Description	Tantalum Capacitors - Solid SMD 572D336X06R3A2T	Tantalum Capacitors - Solid SMD 572D106X9010P2T	Tantalum Capacitors - Solid SMD 33uF 10volts 20% P case Conformal	Tantalum Capacitors - Solid SMD 572D686X06R3S2T	Tantalum Capacitors - Solid SMD 572D336X0010A2T	Tantalum Capacitors - Solid SMD 220uF 6.3volts 10% B case Conformal
Product Category	-	Tantalum Capacitors - Solid SMD	Tantalum Capacitors - Solid SMD	Tantalum Capacitors - Solid SMD	Tantalum Capacitors - Solid SMD	Tantalum Capacitors - Solid SMD
Manufacturer	-	Vishay	Vishay	Vishay	Vishay	Vishay
Capacitance	-	10 uF	33 uF	68 uF	33 uF	220 uF
Voltage Rating DC	-	10 VDC	10 VDC	6.3 VDC	10 VDC	6.3 VDC
Tolerance	-	10 %	20 %	20 %	20 %	10 %
Height	-	1 mm	1 mm	1 mm	1.3 mm	1.7 mm
Minimum Operating Temperature	-	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Maximum Operating Temperature	-	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Length	-	2.2 mm	2.2 mm	3.2 mm	3.2 mm	3.3 mm
Product	-	Tantalum Solid Standard Grade - Other Various	Tantalum Solid Standard Grade - Other Various	Tantalum Solid Standard Grade - Other Various	Tantalum Solid Standard Grade - Other Various	Tantalum Solid Standard Grade - Other Various
Termination Style	-	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Type	-	Conformal Coated	Conformal Coated	Conformal Coated	Conformal Coated	Conformal Coated
Width	-	1.25 mm	1.25 mm	1.7 mm	1.6 mm	2.7 mm
