UUJ1V221MNR1MS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UUJ1V221MNR1MS

UUJ1V221MNR1MS: DescriptionAluminum Electrolytic Capacitors - SMD 220uF 35V 105c 12.5x13.5 20%; CategoryPassive components; File Size1MB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

UUJ1V221MNR1MS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UUJ1V221MNR1MS	-	-	View	Buy Now

UUJ1V221MNR1MS Overview

Aluminum Electrolytic Capacitors - SMD 220uF 35V 105c 12.5x13.5 20%

UUJ1V221MNR1MS Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - SMD
Manufacturer	Nichicon
RoHS	No
Capacitance	220 uF
Voltage Rating DC	35 VDC
Tolerance	20 %
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	12.5 mm
Length	13.5 mm
Product	Aluminum Electrolytic Capacitors
Factory Pack Quantity	200
Termination Style	SMD/SMT

Preview

Download Datasheet

View All

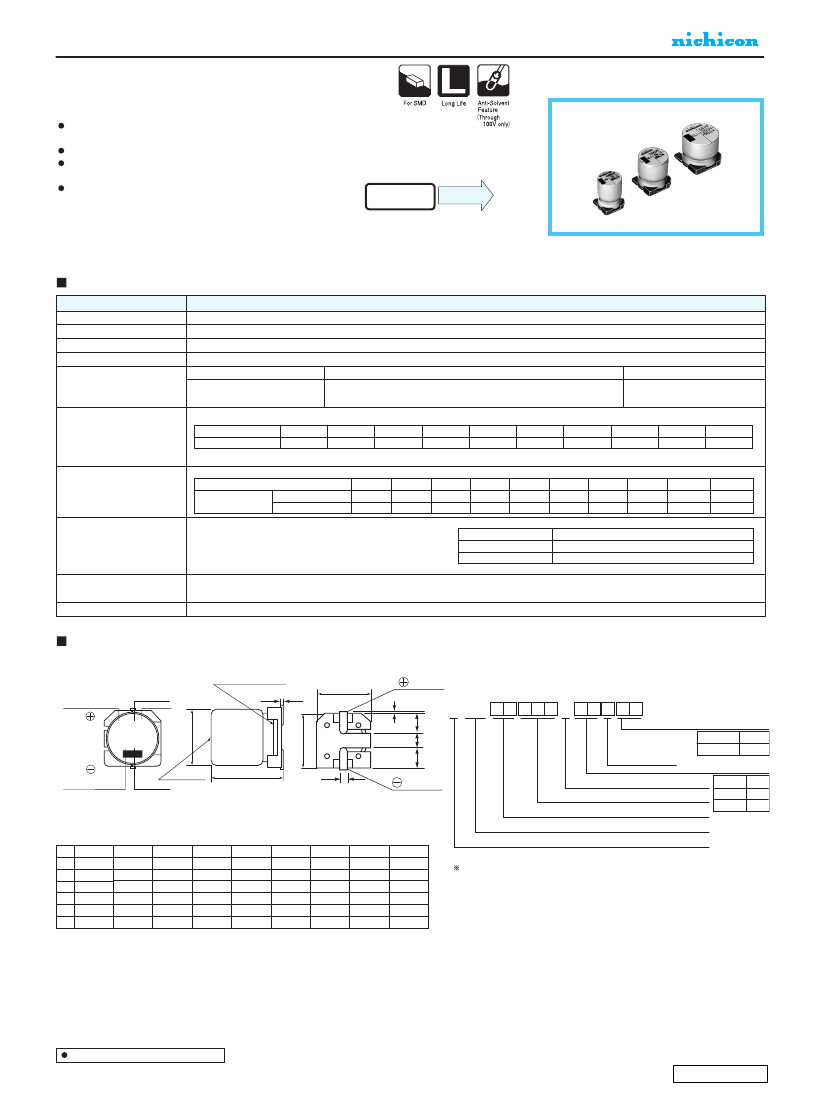

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Higher Capacitance Range

series

Chip Type, higher capacitance in larger case sizes (φ12.5,

φ16, φ18, φ20)

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine fed with carrier

tape and tray.

Compliant to the RoHS directive (2011/65/EU).

Bi-Polarized

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–55 to +105°C (6.3 to 100V), –40 to +105°C (160 to 450V)

6.3 to 450V

3.3 to 6800µF

± 20% at 120Hz, 20°C

Rated voltage (V)

—

6.3 to 100

160 to 450

After 1 minute's application of rated voltage, leakage current is not more

than 0.03CV or 4 (µA), whichever is greater.

= 0.04CV+100 ( µA) max.

(1 minute's)

Measurement frequency : 120Hz at 20°C

Tangent of loss angle (tan

δ)

Rated voltage (V)

tan

(MAX.)

6.3

0.26

0.22

0.18

0.16

0.14

0.12

0.10

100

0.08

160 to 250 400

•

450

0.20

0.15

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Measurement frequency: 120Hz

Rated voltage (V)

Stability at Low Temperature

Impedance ratio Z–25°C / Z+20°C

ZT / Z20 (MAX.) Z–40°C / Z+20°C

6.3

100

160 to 250 400

•

450

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 5000 hours at 105°C.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Black print on the case top.

Chip Type

Plastic platform

Trade mark

nichicon

Type numbering system (Example : 50V 330

C ±0.2

0.5 MAX.

0.3 MAX.

Positive

Voltage

Lot No.

330 µF

UJ 50V

H1015

A ±0.2

10 11 12 13 14

Package code

Taping

Configuration

φD

Code

Tray

Size code

Capacitance Tolerance (±20%)

U U J 1 H 3 3 1 M NQ 1 MS

D ±0.5

B ±0.2

Negative

A ±0.2

Pressure

relief vent

Capacitance

Series

L ±1.0

Rated capacitance (330µF) 12.5 to 18

Rated voltage (50V)

Series name

(mm)

φD

12.5×13.5 12.5×16. 12.5×21. 16×16.5. 16×21.5. 18×16.5. 18×21.5. 20×16.5. 20×21.5.

4.8

5.4

6.4

6.2

4.8

13.6

17.1

19.1

21.1

13.6

17.1

19.1

21.1

13.6

4.0

6.3

8.8

4.0

13.5

16.0

16.5

21.5

16.5

21.5

16.5

21.5

21.0

H 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.3 to 1.7 1.3 to 1.7

Type

The vibration structure-resistant product is also available upon request,

please ask for details.

Dimension table in next page.

CAT.8100D

UUJ1V221MNR1MS Related Products

	UUJ1V221MNR1MS	UUJ2A331MRR1MS	UUJ2A470MNR1MS	UUJ1J680MNR1MS	UUJ1C222MNR1MS	UUJ2E4R7MNR1MS
Description	Aluminum Electrolytic Capacitors - SMD 220uF 35V 105c 12.5x13.5 20%	Aluminum Electrolytic Capacitors - SMD 330uF 100V 105c 20% 20X21.5	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD 68uF 63V 105c 12.5x13.5 20%	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD 4.7uF 250V 105c 12.5x13.5 20%
Product Category	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD	Aluminum Electrolytic Capacitors - SMD
Manufacturer	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon
RoHS	No	No	No	No	No	No
Capacitance	220 uF	330 uF	47 uF	68 uF	2200 uF	4.7 uF
Voltage Rating DC	35 VDC	100 VDC	100 VDC	63 VDC	16 VDC	250 VDC
Tolerance	20 %	20 %	20 %	20 %	20 %	20 %
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 40 C
Maximum Operating Temperature	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C
Diameter	12.5 mm	20 mm	12.5 mm	12.5 mm	18 mm	12.5 mm
Length	13.5 mm	21.5 mm	13.5 mm	13.5 mm	16.5 mm	13.5 mm
Product	Aluminum Electrolytic Capacitors	Aluminum Electrolytic Capacitors	Aluminum Electrolytic Capacitors	Aluminum Electrolytic Capacitors	Aluminum Electrolytic Capacitors	Aluminum Electrolytic Capacitors
Factory Pack Quantity	200	50	200	200	125	200
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
