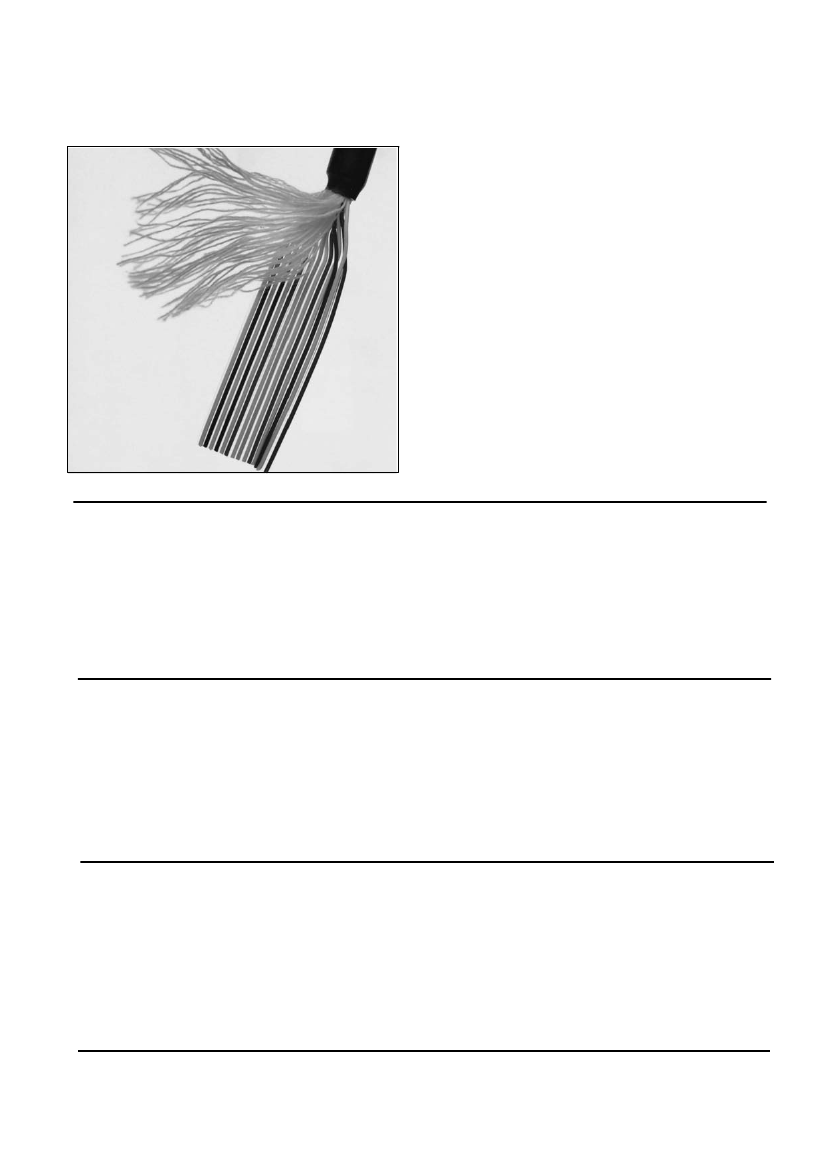

3M .050”/1.27mm Round-Jacketed, Twisted Pair Flat Cable
28 AWG Stranded, Mass Terminatable, PVC/PVC
3783 Series
TM
•
28 AWG stranded wire to provide flexibility
•
Twisted pairs reduce crosstalk for balance drive
applications
•
Wires are colour coded for easy identification
•
Jacket is round for better flexibility
•
Zippable for branching or discrete terminators
•

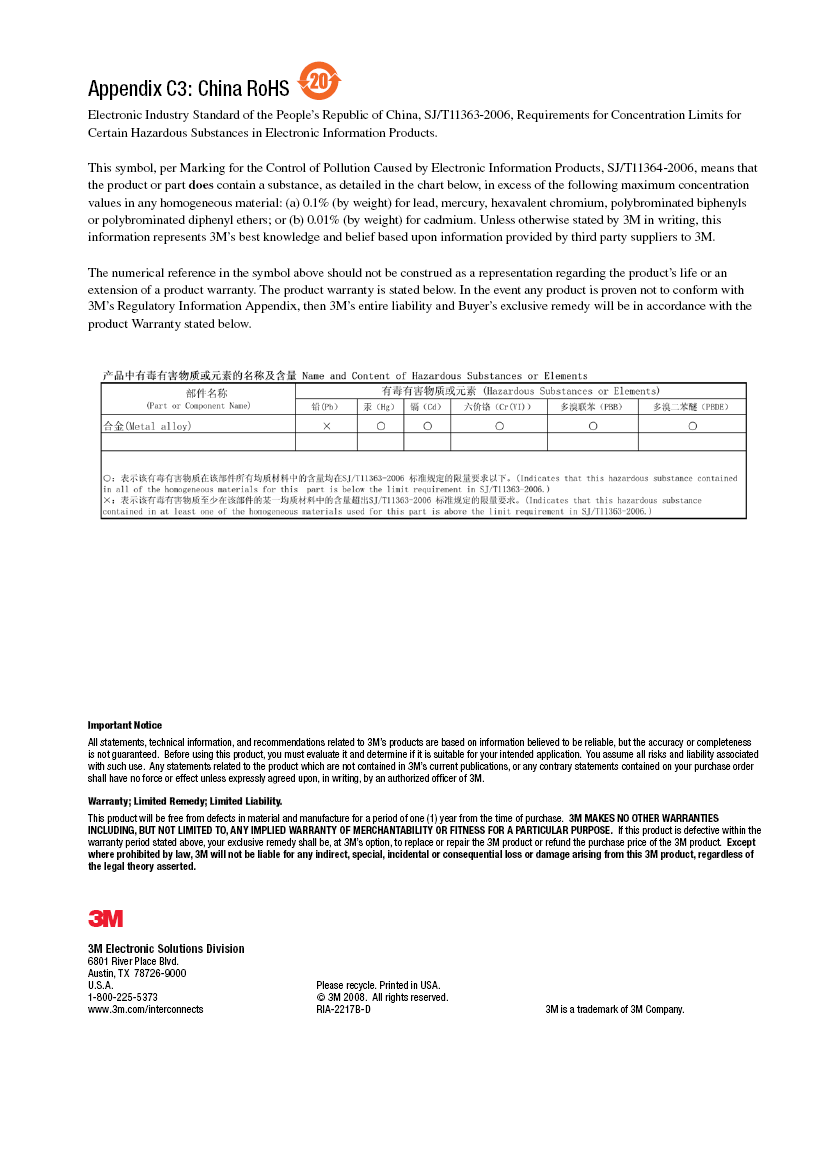

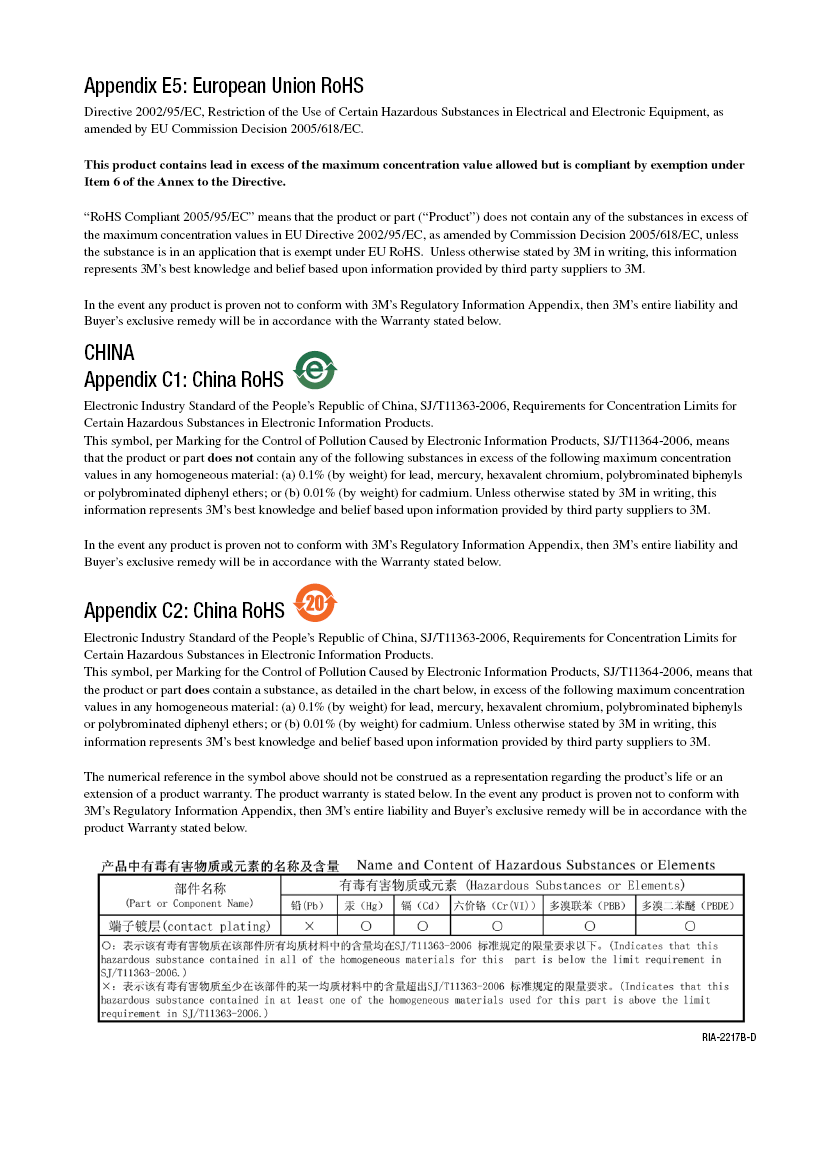

See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: August 13, 2008
169
TS-2249-A
Sheet 1 of 2
Physical
Jacket
Material:
Color:
Primary Material:
Marking
Standard:
Conductors:
UL Style No.:
Polyvinyl Chloride (PVC)
Grey
Polyvinyl Chloride (PVC)
UL AWM 2935 VW-1 300 V 80C E65859 EU<50 V
28 AWG 7 x 36 [ 7 x ø 0.127 ] Tinned Stranded Copper
2935
Electrical
Voltage Rating:
Insulation Resistance:
Characteristic Impedance:
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
USA: 300V
EU: <50V
10
> 1 x 10
Ω/10
ft. [ 3m ]
Balanced:
130
Ω
Balanced:
12.9 pF/ft [ 42.3 pF/m ]
Balanced:
.22 µH/ft [ 0.72 µH/m ]
Balanced:
1.67 ns/ft [ 5.48 ns/m ]
Balanced:
61%
Note: Balanced is measured between signal conductors within a pair.
Environmental
Temperature Ratings:
-20°C to +80°C
Flammability Rating:
UL: VW-1
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information call
800-225-5373
3M .050”/1.27mm Round-Jacketed, Twisted Pair Flat Cable
28 AWG Stranded, Mass Terminatable, PVC/PVC
3783 Series
TM

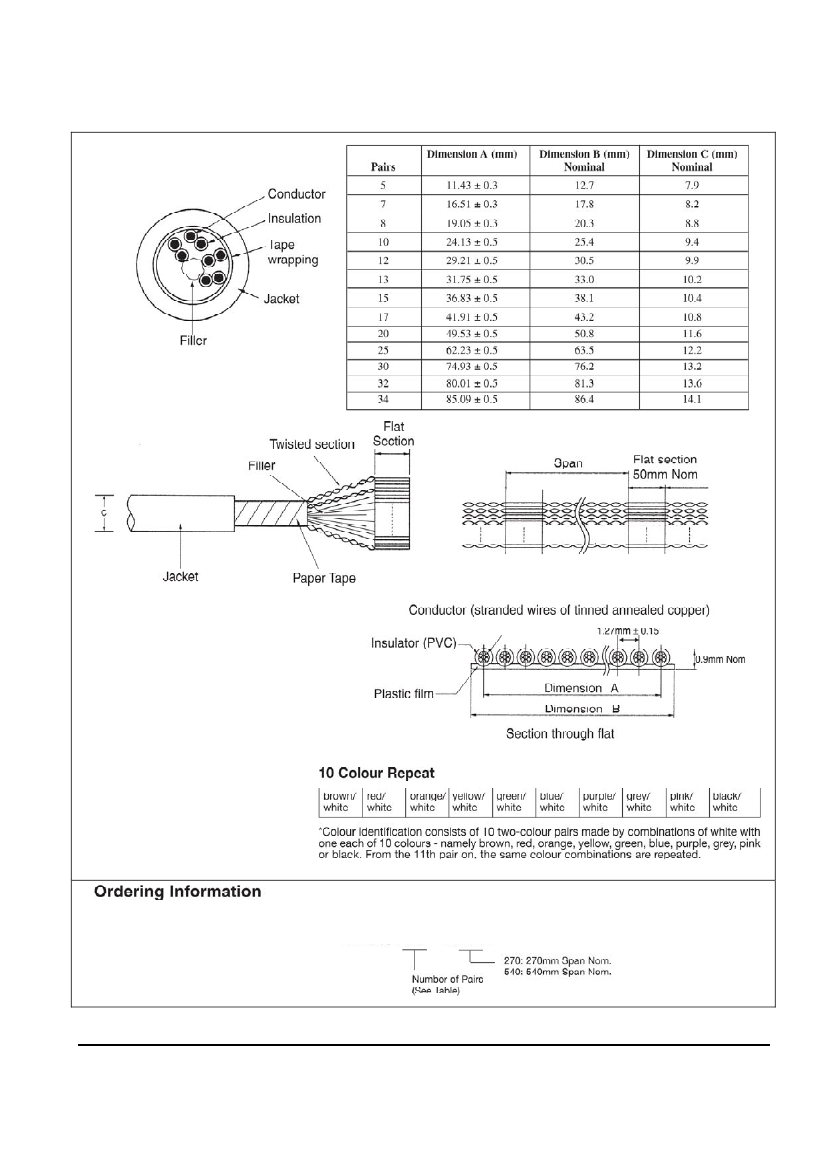

Note:

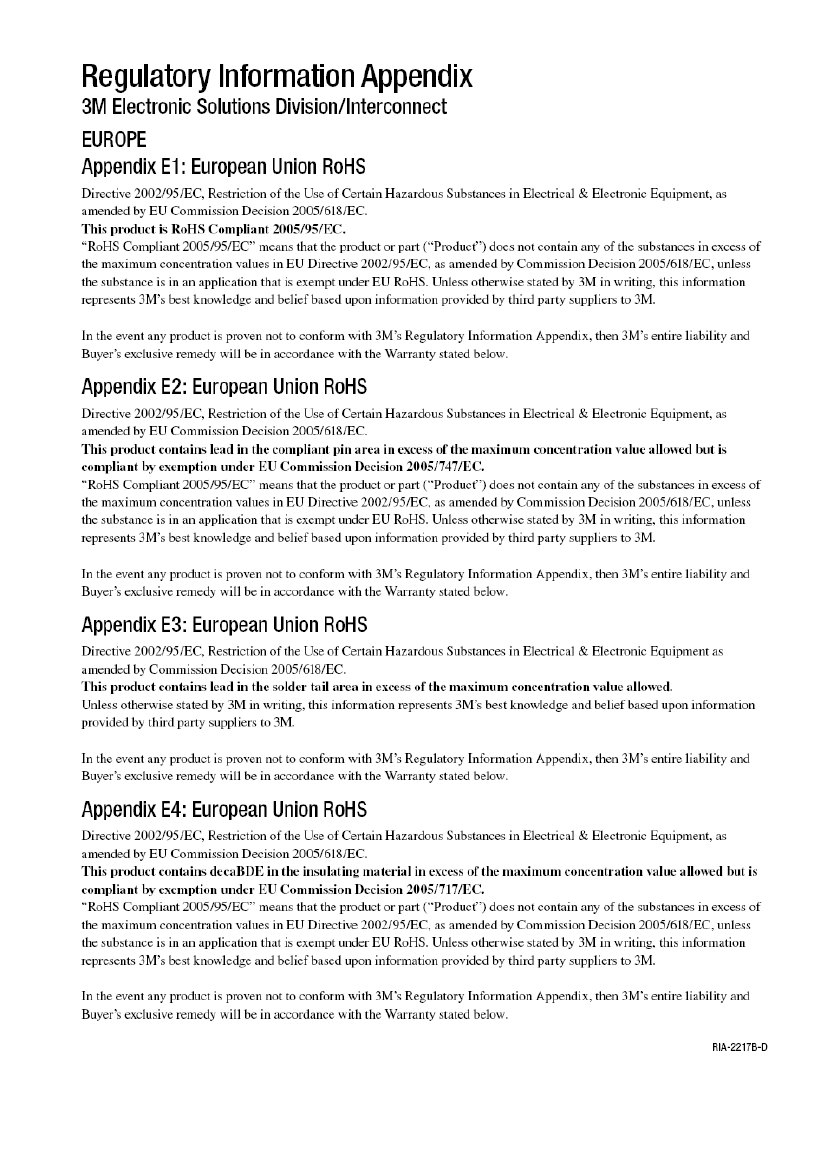

RIA E1 & C1 apply for all cables listed
3783-XXP-XXXA 250ft
TS-2249-A
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information call
800-225-5373
