Low VF/ESD Leaded Schottky Barrier Rectifiers
SB520E-G thru SB5100E-G
Voltage Range:
20
to 100 V
Current:
5.0
A
"-G" : RoHS Device
FEATURES
• Low drop down voltage
• 5.0A operation at T
A
=75°C with no thermal runaway
• For use in low voltage, high frequency invertors free
wheeling and polarity protection
• Silicon epitaxial planar chips
• Electrostatic discharge (ESD) test under IEC61000-4-2
standard: >15KV (air) & 8KV (contact)
• Lead-free part, meet RoHS requirements
DO-201AD
1.0(25.4) Min.
.210(5.3)
.189(4.8)
.375(9.5)
.287(7.3)
MECHANICAL DATA
• Case: Molded plastic body DO-201AD
• Epoxy: UL94-V0 rated flame retardant
• Terminals: Solderable per MIL-STD-750 Method 2026
• Polarity: Color band denotes cathode end
• Mounting Position: Any
• Weight: 0.04 ounces, 1.12 grams
1.0(25.4) Min.
.052(1.3)
.048(1.2)
Unit :inch(mm)
MAXIMUM RATING AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified
Symbols
520E 540E 545E 550E 560E 580E 5100E
Units
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
0.5” (12.7mm) lead length at T
A
=75°C,
See Figure 1
Peak Forward Surge Current
8.3mS single half sine-wave superimp osed on
rated load (JEDEC Me thod) T
L
=110°C
V
RRM
V
RMS
V
DC
20
14
2
0
40
28
40
45
30
45
50
35
50
60
42
60
80
56
80
100
70
100
Volts
Volts
Volts
I
AV
5.0
Amps
I
FSM
V
F
150
0.55
0.70
0.5
50
125
0.85
Amps
Volts
Maximum Forward Voltage at 5.0A (Note 1)
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance (Note 3)
Operating Junction Temperature Range
Storage Temperature Range
T
A
=
25°C
T
A
=100
°C
I
R
C
J
R
θJA
R
θJL
T
J
T
STG
mA
30
pF
500
35.0
15.0
-65 ~ +125
-65 ~ +150
-65 ~ +150
°C/W
°C
°C
Note 1. Pulse test: 300µS pu lse wi dth, 1% du ty cy cle
2. Me asured at 1.0MH z an d ap plied reverse vo ltage of 4.0 Volts
3. Therma l resistance from junction to am bient and from junction to lead P.C.B. mo unted 0. 500” (12.7mm ) lead length wi th 2. 5x2.5” (63.5x63.5mm ) co pper
pad.
MDS0906005A
Page 1
Low VF/ESD Leaded Schottky Barrier Rectifiers

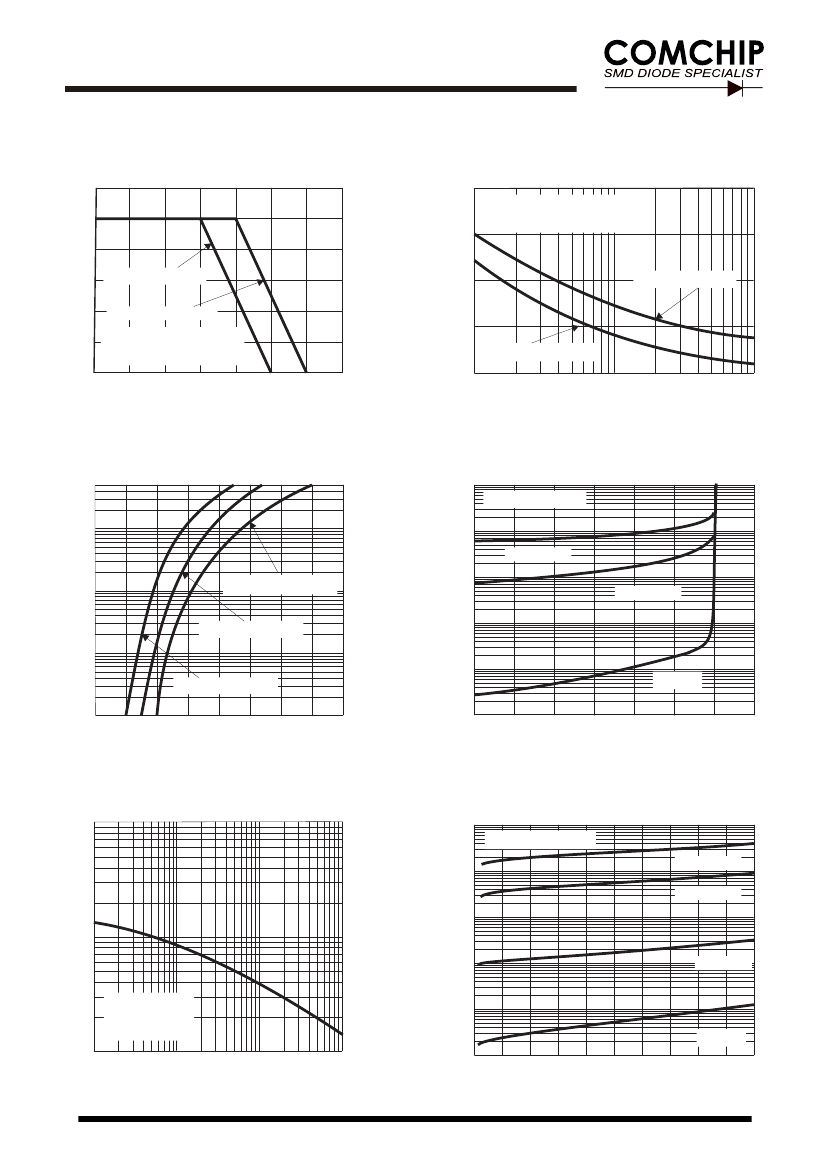

RATINGS AND CHARACTERISTIC CURVES
SB520E-G thru SB5100E-G
Fig.1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak
Forward Surge Current
200
Average Forward Current (A)
6.0
5.0
4.0
SB520E - SB545E
3.0
2.0
1.0
SB550E - SB5100E
single phase half wave 60Hz
resistive or inductive load
3.75”(9.5mm) lead length
Peak Forward Surge Current (A)
T
L
=110°C
8.3mS single half sine-wave
(JEDEC Method)
150
100
SB520E - SB545E
50
SB550E - SB5100E
0
1
10
100
0
25
50
75
100
125
150
175
Lead Temperature ( °C)
Number of Cycles at 60 Hz
50
Instantaneous Reverse Current (mA)
Fig. 3 - Typical Instantaneour Forward
Characteristics
Fig. 4A - Typical Reverse Characteristics
100
SB520E - SB545E
Instantaneous Forward Current (A)
10
10
T
J
=125°C
1.0
0.1
1
SB580E - SB5100E
T
J
=100°C
SB550E - SB560E
0.1
0.01
SB520E - SB545E
0.01
T
J
=25°C
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.001
0
20
40
60
80
100
120
140
Instantaneous Forward Voltage (Volts)
Percent of Rated Peak Reverse Voltage ( %)
Fig. 5 - Typical Junction Capacitance
10,000
Fig. 4B - Typeical Reverse Characteristic
Instantaneous Reverse Current (uA)
10
5
SB550E - SB5100E
10
4
Junction Capacitance (pF)
T
J
=150°C
T
J
=125°C
1,000
10
3
10
2
T
J
=75°C
T
J
=25°C
f=1.0MHz
Vsig=50mVp-p
100
0.1
1.0
10
100
10
1
T
J
=25°C
1
0
20
40
60
80
100
Reverse Voltage (Volts)
Percent of Rated Peak Reverse Voltage ( %)
MDS0906005A
Page 2
