BAS19 / BAS20 / BAS21
SURFACE MOUNT FAST SWITCHING DIODE
Features
•
•
•
•
•
•
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
High Conductance
Lead, Halogen and Antimony Free, RoHS Compliant
“Green” Device (Notes 1 and 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
•
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagram
Weight: 0.008 grams (approximate)

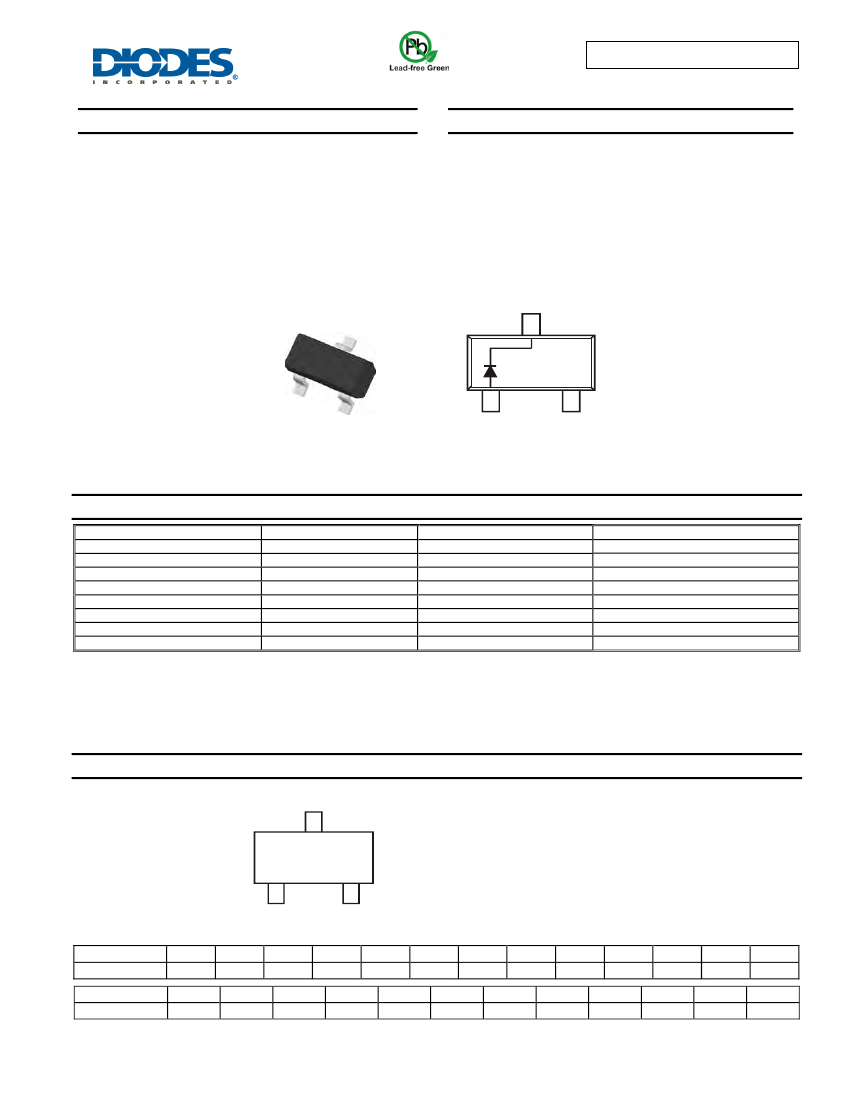

SOT23
Top View
Top View
Internal Schematic
Ordering Information
(Note 3)
Part Number
BAS19-7-F
BAS20-7-F
BAS20-13-F
BAS20Q-13-F
BAS21-7-F
BAS21Q-7-F
BAS21-13-F
BAS21Q-13-F
Notes:
Qualification
Commercial
Commercial
Commercial
Automotive
Commercial
Automotive
Commercial
Automotive
Case
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
1. No purposefully added lead. Halogen and Antimony Free.
2. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
KXX
KXX = Product Type Marking Code
BAS19 Marking: KA8, KT3; KT2
BAS20 Marking: KT2, KT3
BAS21 Marking: KT3
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2000
L
Jan
1
2001
M
Feb
2
2002
N
Mar
3
…..
…..
Apr
4
YM
2009
W
2010
X
Jun
6
2011
Y
2012
Z
Jul
7
2013
A
Aug
8
2014
B
Sep
9
2015
C
Oct
O
2016
D
Nov
N
2017
E
Dec
D
May
5
BAS19 / BAS20 / BAS21
Document number: DS12004 Rev. 21 - 2
1 of 4
www.diodes.com
November 2011
© Diodes Incorporated
BAS19 / BAS20 / BAS21

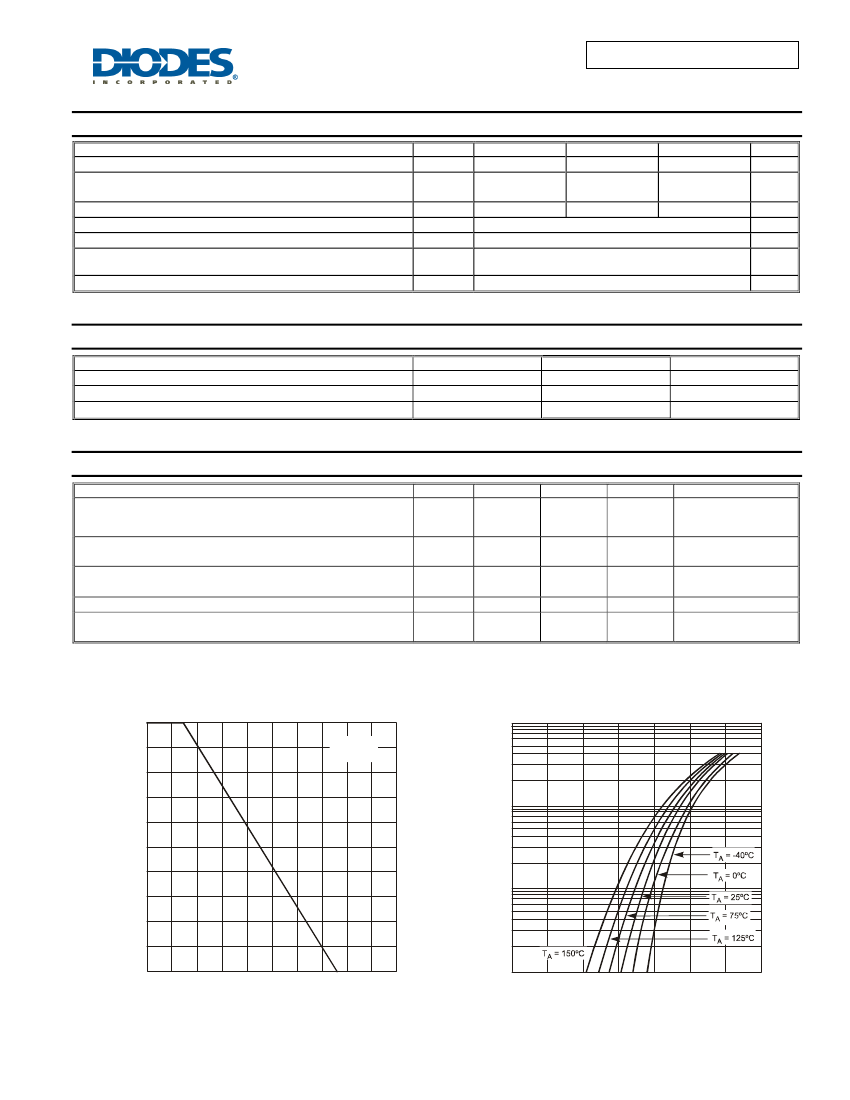

Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 4)
Average Rectified Output Current (Note 4)
Non-Repetitive Peak Forward Surge Current
Repetitive Peak Forward Surge Current (Note 4)
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
@ t = 1.0μs
@ t = 1.0s
I
FSM
I
FRM
BAS19
120
100
71
BAS20
200
150
106
400
200
2.5
0.5
625
BAS21
250
200
141
Unit
V
V
V
mA
mA
A
mA
Thermal Characteristics
Characteristic
Power Dissipation (Note 4)
Thermal Resistance Junction to Ambient Air (Note 4)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
250
500
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 5)
@T
A
= 25°C unless otherwise specified
Symbol
BAS19
BAS20
BAS21
V
(BR)R
V
F
I
R
C
T
t
rr
Min
120
200
250
⎯
⎯
Max
⎯
1.0
1.25
100
15
5.0
50
Unit
V
V
nA
μA
pF
ns
Test Condition
I
R
= 100μA
I
F
= 100mA
I
F
= 200mA
T
J
= 25°C
T
J
= 100°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Forward Voltage
Reverse Current @ Rated DC Blocking Voltage (Note 5)
Total Capacitance
Reverse Recovery Time
Notes:
⎯
⎯
4. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com.
5. Short duration pulse test used to minimize self-heating effect.
Note 4
200
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
250
1
P
D
, POWER DISSIPATION (mW)
0.1
150
100
0.01
50
0
0
160
80
40
120
T
A
, AMBIENT TEMPERATURE (
°
C)

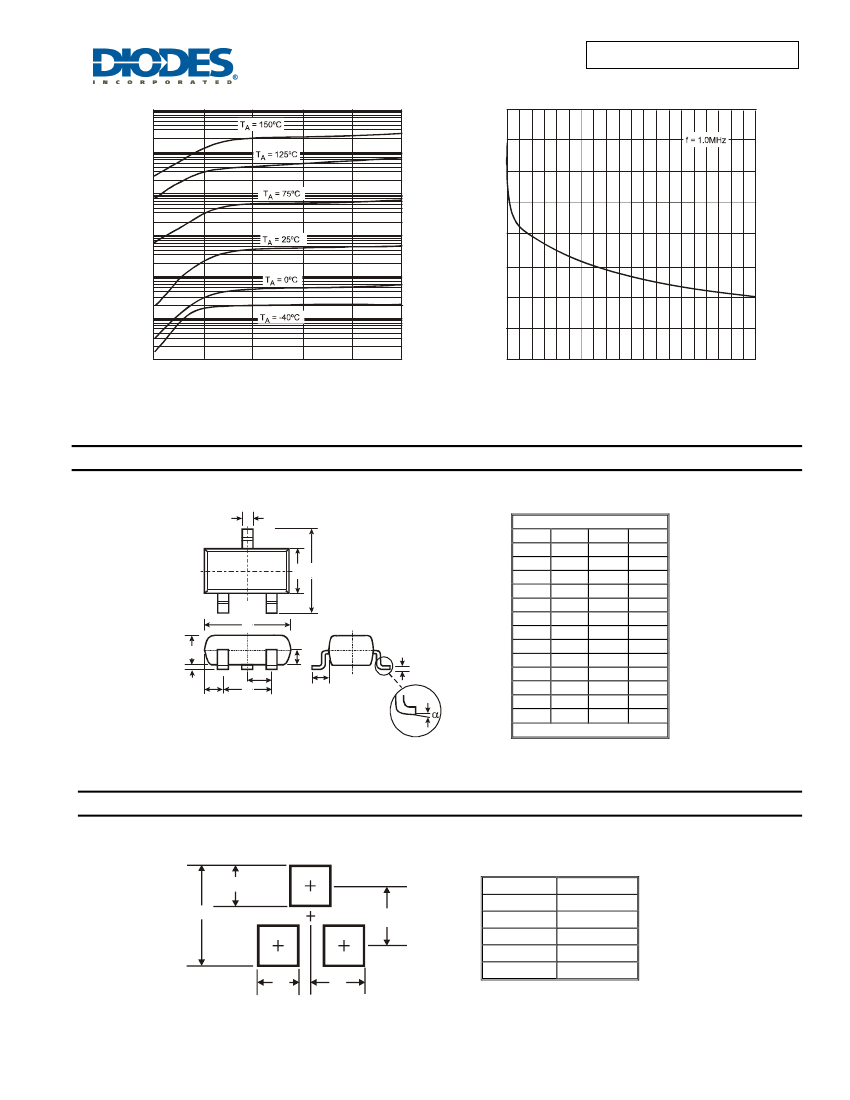

Fig. 1 Power Derating Curve
200
0.001
0
0.2
0.4
0.8
1.0
0. 6
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
BAS19 / BAS20 / BAS21
Document number: DS12004 Rev. 21 - 2
2 of 4
www.diodes.com
November 2011
© Diodes Incorporated
BAS19 / BAS20 / BAS21
I
R
, INSTANTANEOUS REVERSE VOLTAGE (
μ
A)
100
4.0
3.5
C
T
, TOTAL CAPACITANCE (pF)
10
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
1
0.1
0.01
0.001
0.0001
0
150
200
50
100
250
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
Package Outline Dimensions
A
B C
H
K
D
J
F
G
L
M
K1
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.903 1.10
1.00
K1
-
-
0.400
L
0.45
0.61
0.55
M
0.085 0.18
0.11
0°
8°
-
α
All Dimensions in mm
Suggested Pad Layout
Y
Z
C
Dimensions Value (in mm)
Z
X
Y
C
E
X
E
2.9
0.8
0.9
2.0
1.35
