Audio ICs
Double cassette tape recorder dual
preamplifier
BA3416BL
The BA3416BL is a dual preamplifier (for playback only) that has been designed for use with dual-cassette decks. An
internal switch is used to switch the left and right channel inputs between the A and B tape mechanisms.
The playback heads can be directly coupled to the preamplifiers without coupling capacitors, and an internal switch is
provided to switch the equalizer characteristics for metal and chrome tape.
FApplications
Dual-deck stereo radio cassette players
FFeatures
1) Internal tape A / tape B switch for use with dual-cas-
sette decks.
2) Internal switch is provided to switch the equalizer
characteristics for metal tape playback.
3) Input bias circuit does not require coupling capaci-
tors.
4) Wide operating power supply voltage range (V
CC
=
3.5V to 12V).
FBlock
diagram and external component connections
240
Audio ICs

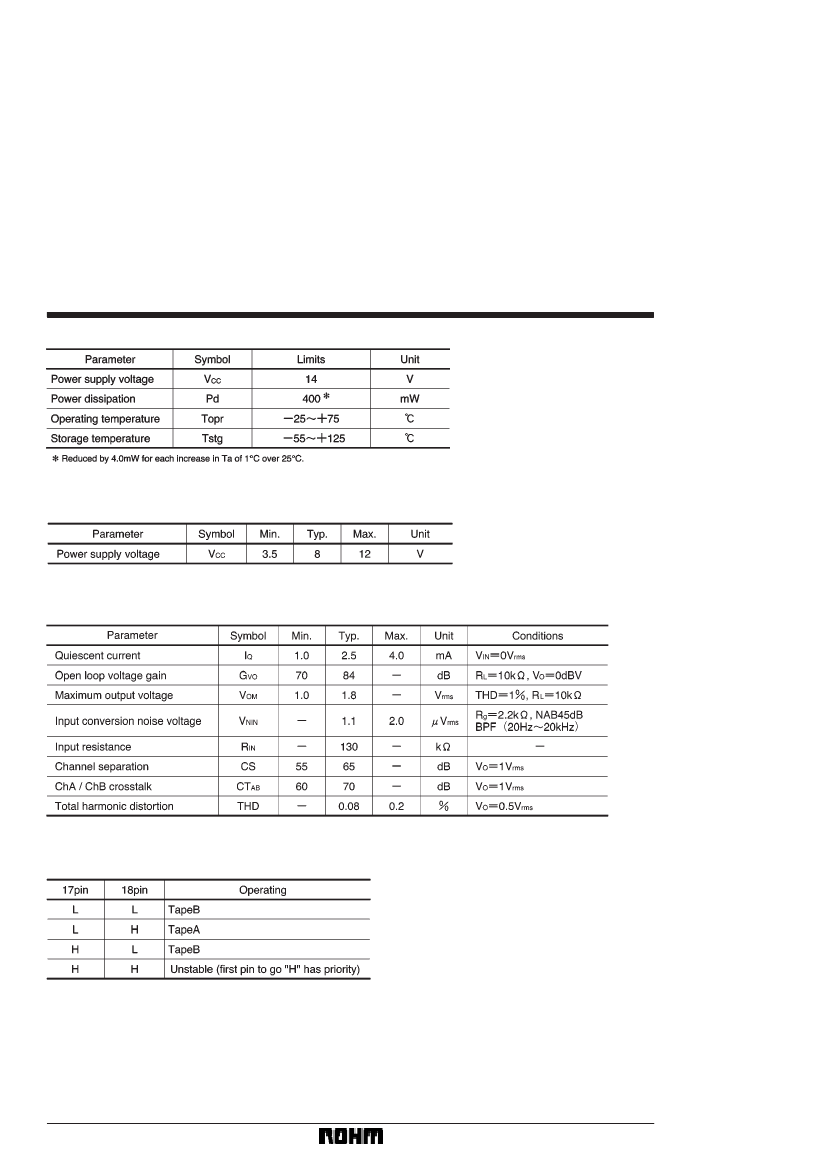

FAbsolute
maximum ratings (Ta = 25_C)
BA3416BL
FRecommended
operating conditions (Ta = 25_C)
FElectrical
characteristics (unless otherwise noted, Ta = 25_C, V
CC
= 8V, f = 1kHz, OUTPUT = pins 13 and 14)
FTape
selection
241
