D-PAK Tape and Reel Data
D-PAK Packaging
Configuration:
Figure 1.0

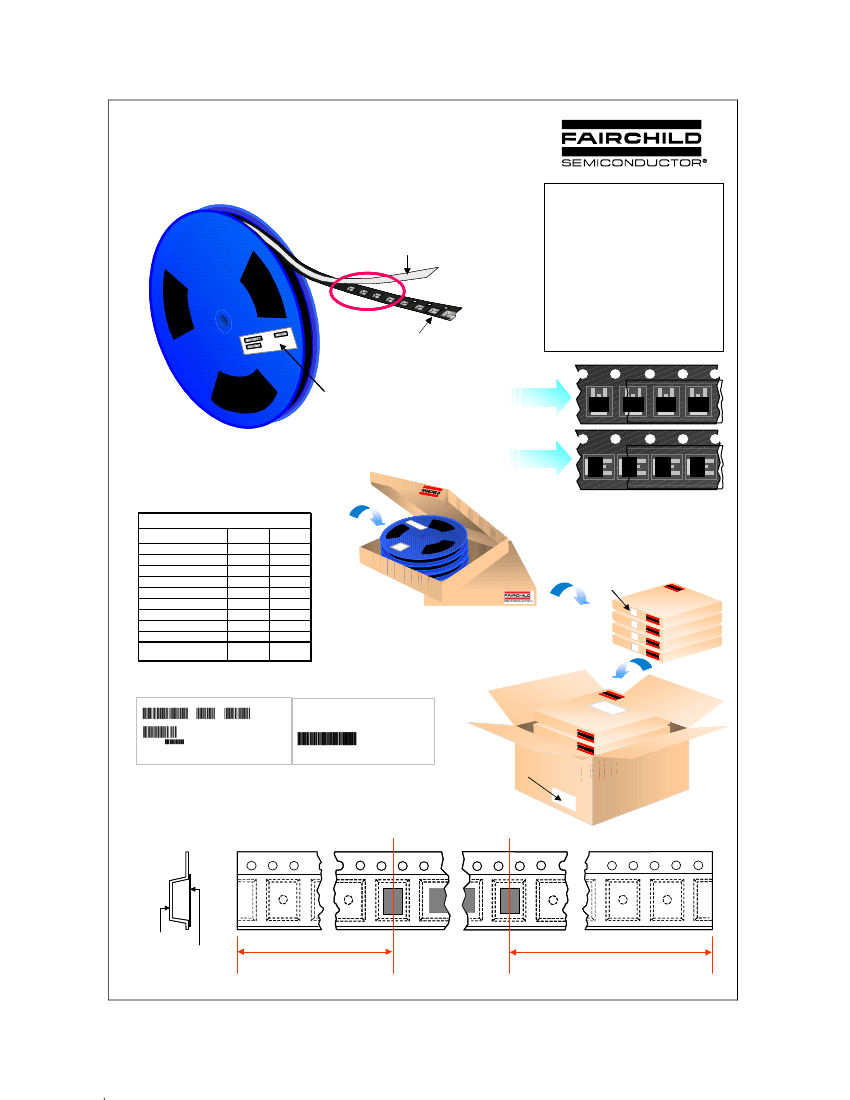

Packaging Description:
D-PAK parts are shipped in tape. The carrier tape is made
from a dissipative (carbon filled) polycarbonate resin. The
cover tape is a multilayer film (Heat Activated Adhesive in
nature) primarily composed of polyester film, adhesive
layer, sealant, and anti-static sprayed agent. These reeled
parts in standard option are shipped with 2500(TM) /
2000(TF) units per 13” or 330cm diameter reel. The reels
are dark blue or black in color and is made of polystyrene
plastic (anti-static coated). This and some other options
are further described in the Packaging Information
table.These full reels are individually barcode labeled and
placed inside a standard intermediate box (illustrated in
figure 1.0) made of recyclable corrugated brown paper.
One box contains three reels maximum. And these boxes
are placed inside a barcode labeled shipping box which
comes in different sizes depending on the number of parts
shipped.
Antistatic Cover Tape
Static Dissipative
Embossed Carrier Tape
FKS Label
FG1N60
XFD
115
FG1N60
XFD
115
FG1N60
XFD
115
3 Reels per box
D-PAK Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/Bag
Reel Size
Inner Box Dimension (mm)
Max qty per Box
Max qty per Box
Weight per unit (gm)
Weight per Reel(kg)
Note/Comments
Standard
( TF / X )
TNR
2,000
13” Dia
339x352x68
6,000
24,000
0.2986
-
Standard
( TM / XM )
TNR
2,500
13” Dia
339x352x68
7,500
30,000
0.2986
-
D-PAK Unit Orientation
FKS Label
Outer Box Dimension (mm)
390x370x310 390x370x310
339mm x 352mm x 68mm
Inner box(6,000cap)
Inner Box Barcode Label Sample
LOT:
PART ID:
D/C1:0211
D/C2:
QTY1:
QTY2:
Outer Box Barcode Label Sample
PART ID :
LOT NO :
QTY
:
0138
2002/ 03 /17
07:30:00
BG:FKS-IT
AR
QTY:
SPEC:
SPEC REV:
CPN:
2002/ 03 /17
07:30:00
BG:SA
M110020004
(BBX)1.0
FAIRCHILD SEMICONDUCTOR CORPORATION.
(F63TNR)3.2
FAIRCHILD SEMICONDUCTOR CORPORATION.
FKS Label
390mm x 370mm x 310mm
Outer box(24,000cap)
D-PAK Tape Leader and Trailer
Configuration:
Figure 2.0
Carrier Tape
Cover Tape
Trailer Tape
360mm minimum or
45 empty pockets
Components
Leader Tape
1520mm minimum or
190 empty pockets
©2003 Fairchild Semiconductor Corporation
September 2003, Rev. C1
FG1N60
XFD
115
TF/X
FG1N60
XFD
115
FG1N60
XFD
115
FG1N60
XFD
115
FG1N60
XFD
115
TM/XM
D-PAK Tape and Reel Data, continued

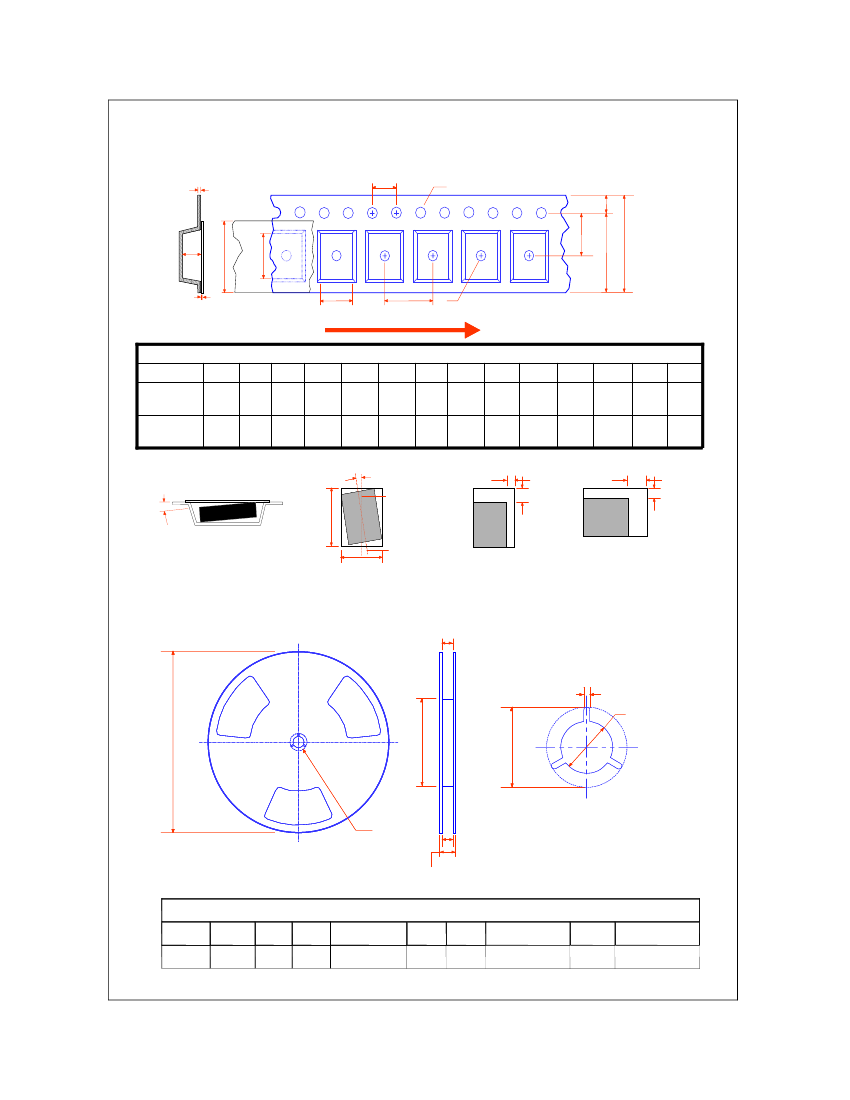

D-PAK Embossed Carrier Tape
Configuration:
Figure 3.0
T
E1
P0
D0
F
K0
Wc
B0
E2
W
Tc
A0
User Direction of Feed
Dimensions are in millimeter
Pkg type
D-PAK TM / XM
(16mm)
D-PAK TF / X
(16mm)
A0
7.10
+/-0.10
P1
D1
B0
10.50
+/-0.10
W
16.0
+/-0.3
D0
1.50
+0.10
/-0.00
1.50
+0.10
/-0.00
D1
1.7
+/-0.10
E1
1.75
+/-0.10
E2
14.25
min
F
7.50
+/-0.10
P1
8.0
+/-0.1
P0
4.0
+/-0.1
K0
2.65
+/-0.10
T
0.30
+/-0.05
Wc
13.3
+/-0.1
Tc
0.10
max
10.80
+/-0.10
7.20
+/-0.10
16.0
+/-0.3
1.7
+/-0.10
1.75
+/-0.10
14.25
min
7.50
+/-0.10
12.0
+/-0.1
4.0
+/-0.1
2.70
+/-0.10
0.30
+/-0.05
13.3
+/-0.1
0.10
max
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
10 deg maximum
Typical
component
cavity
center line
0.8mm
maximum
1.7mm
maximum
B0
10 deg maximum component rotation
1.4mm
maximum
Typical
component
center line
0.9mm
maximum
Sketch A (Side or Front Sectional View)
Component Rotation
A0
Sketch B (Top View)
TM Type
Sketch C (Top View)
TF Type
Sketch C (Top View)
Component lateral movement
Component lateral movement
Component Rotation
D-PAK Reel
Configuration:
Figure 4.0
W1 Measured at Hub
B Min
Dim C
Dim A
max
Dim N
Dim D
min
DETAIL AA
See detail AA
W3
13” Diameter Option
W2 max Measured at Hub
Dimensions are in inches and millimeters
Tape Size
16mm
Reel
Option
13?Dia
Dim A
13.00
330
Dim B
0.059
1.5
Dim C
0.512 +0.020/-0.008
13 +0.5/-0.2
Dim D
0.795
20.2
Dim N
4.00
100
Dim W1
0.646 +0.078/-0.000
16.4 +2/0
Dim W2
0.882
22.4
Dim W3 (LSL-USL)
0.626 ? 0.764
15.9 ? 19.4
September 2003, Rev. C1
