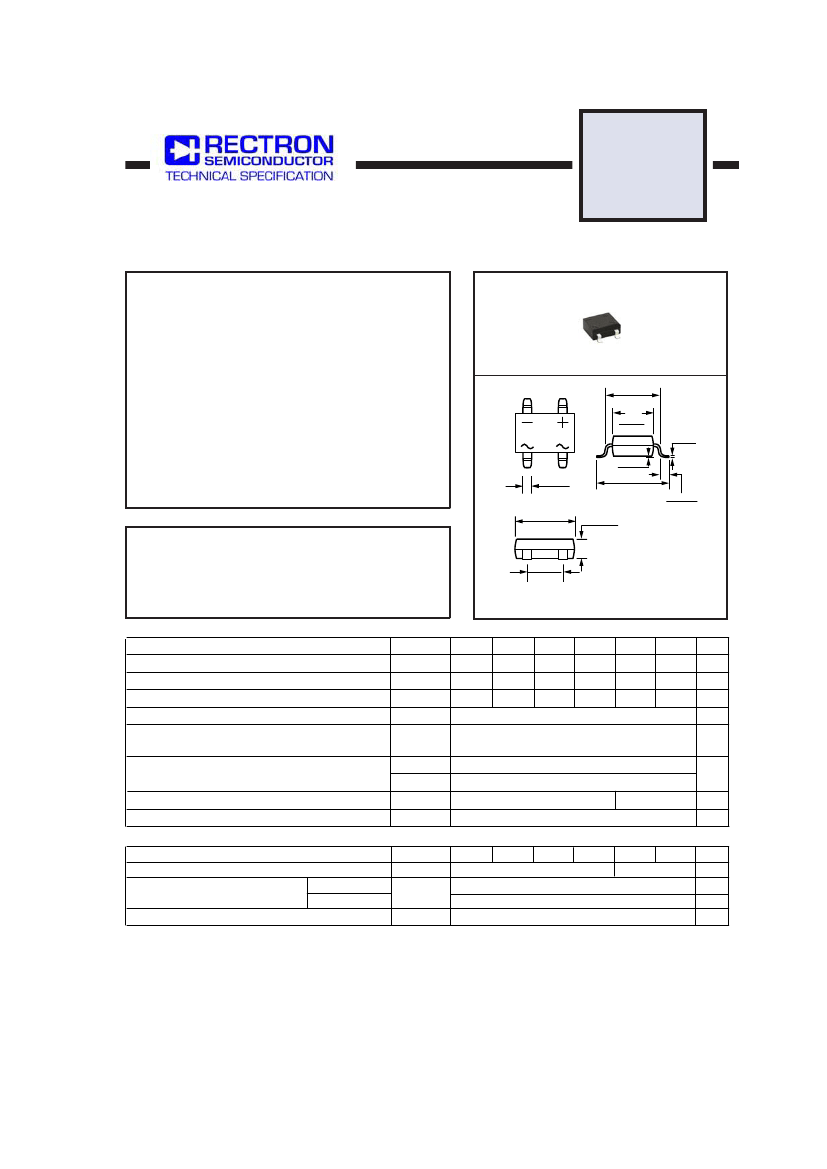

GLASS PASSIVATED SUPER FAST
SILICON SURFACE MOUNT BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 400 Volts CURRENT 1.0 Ampere
FEATURES
*
*
*
*
*
*
*
Surge overload rating - 40 amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizing molded
Glass passivated device
Polarity symbols molded on body
Mounting position: Any
Weight: 1.0 gram
EDB101S
THRU
EDB106S
DB-S
.310 (7.9)
.290 (7.4)
MECHANICAL DATA
.255 (6.5)
.245 (6.2)
.009
(0.229)
.013 (.330)
.042 (1.1)
.038 (1.0)
.003 (.076)
.410 (10.4)
.360 (9.4)
.060 (1.524)
.040 (1.016)
0.135 (3.4)
0.115 (2.9)
* Epoxy: Device has UL flammability classification 94V-O
.346 (8.8)
.307 (7.8)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
.205 (5.2)
.195 (5.0)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS (At T
A
= 25 C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Output Current at T
A
= 55 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 3)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
ELECTRICAL CHARACTERISTICS (At T
A
= 25 C unless otherwise noted)
CHARACTERISTICS
Maximum Forward Voltage at 1.0A DC
Maximum Reverse Current at Rated
DC Blocking Voltage per element
Maximum Reverse Recovery Time (Note 1)
Note: 1.Test Conditions: I
F
=0.5A,I
R
=-1.0A,I
RR
=-0.25A.
2.Measured at 1MHz and applied reverse voltage of 4.0 volts.
3.Thermal Resistance : Mounted on PCB.
@T
A
= 25 C
@T
A
= 100 C
o
o
o
o
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
q
JA
R
q
JL
C
J
T
J,
T
STG
EDB101S
50
35
50
EDB102S EDB103S EDB104S
100
70
100
150
105
150
1.0
30
38
12
15
-55 to + 150
200
140
200
EDB105S EDB106S
300
210
300
400
280
400
UNITS
Volts
Volts
Volts
Amps
Amps
C/W
pF
0
0
10
C
SYMBOL
V
F
I
R
trr
EDB101S
EDB102S EDB103S EDB104S
1.05
5.0
100
50
EDB105S EDB106S
1.35
UNITS
Volts
uAmps
uAmps
nSec
2007-08

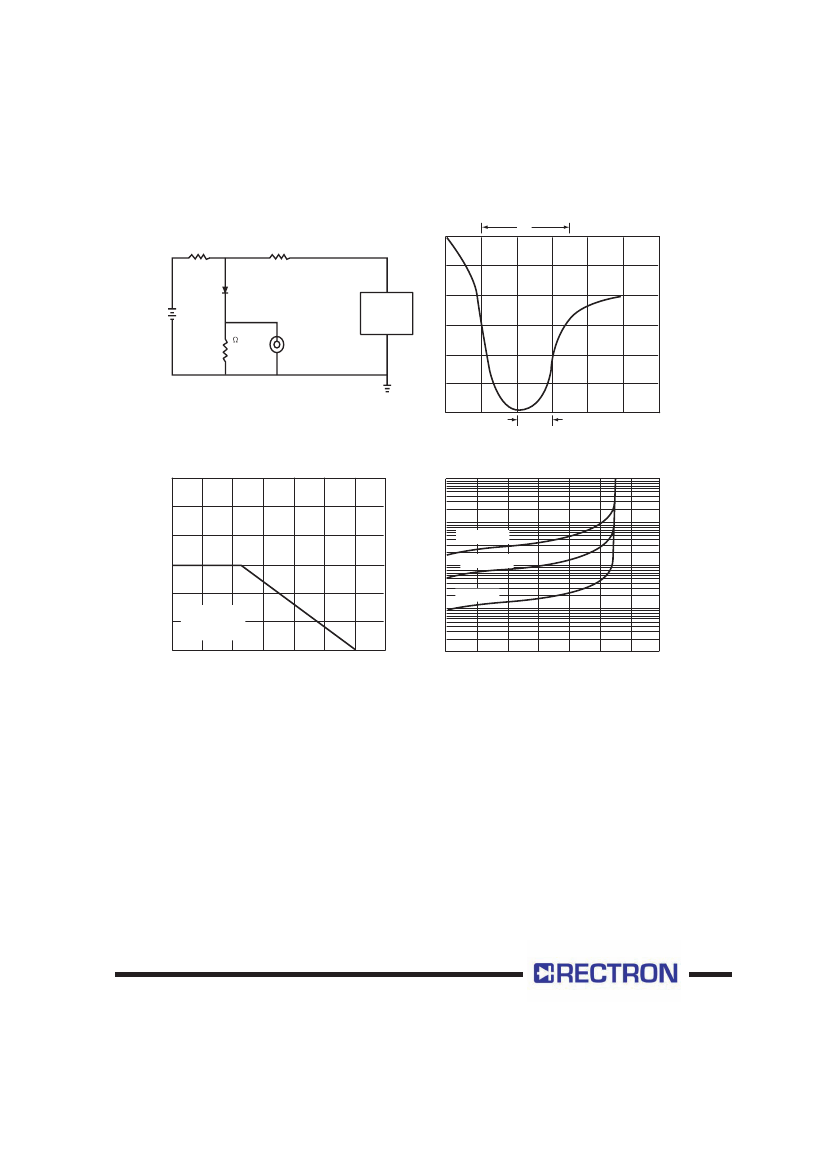

RATING AND CHARACTERISTICS CURVES ( EDB101S THRU EDB106S )
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
+0.5A
trr
(+)
25 Vdc
(approx)
(-)
D.U.T
(-)
PULSE
GENERATOR
(NOTE 2)
0
-0.25A
1
NON-
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
(+)
NOTES: 1 Rise Time = 7ns max. Input Impedance =
1 megohm. 22pF.
2. Rise Time = 10ns max. Source Impedance =
50 ohms.
-1.0A
1cm
SET TIME BASE FOR 20/1 ns/cm
FIG.1 TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
AVERAGE FORWARD CURRENT, (A)
2.0
INSTANTANEOUS REVERSE CURRENT, (uA)
1000
100
T
A
= 100
O
C
1.0
10
T
A
= 75
O
C
T
A
= 25
O
C
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
1.0
0
0
25
50
75
100
O
125
150
175
0.1
0
20
40
60
80
100
120
140
LEAD TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
FIG.2 TYPICAL FORWARD CURRENT
DERATING CURVE
FIG.3 TYPICAL REVERSE
CHARACTERISTICS
RATING AND CHARACTERISTICS CURVES ( EDB101S THRU EDB106S )
INSTANTANEOUS FORWARD CURRENT, (A)
PEAK FORWARD SURGE CURRENT, (A)
100
S
35
30
25
20
15
10
5
0
1
2
5
T
J
= 25 C
O
8.3ms Single Half Sine-Wave
(JEDED Method)
04
B1
ED
0.1
Pulse Width=300mS
1% Duty Cycle
0.01
ED
B1
01
1.0
S~
ED
B1
05
S~
ED
S
10
B1
06
0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
3.2
3.6
10
20
50
100
INSTANTANEOUS FORWARD VOLTAGE, (V)
NUMBER OF CYCLES AT 60Hz
FIG.4 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
200
JUNCTION CAPACITANCE, (pF)
100
60
40
20
10
6
4
2
1
EDB101S~ED
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
B104S
EDB105S~EDB106
S
T
J
= 25
O
C
0.1 0.2
0.4
1.0
2
4
10
20
40
100
REVERSE VOLTAGE, (V)
FIG.6 TYPICAL JUNCTION CAPACITANCE
Mounting Pad Layout
.410 Max.
(10.4 Max.)
.205 (5.2)
.195 (5.0)
.042 Min.
(1.10 Min.)
.060 Min.
(1.52 Min.)
Dimensions in inches and (millimeters)
