L312F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> L312F

L312F: DescriptionBipolar Transistors - Pre-Biased PNP -100mA -50V w/bias resistor; CategoryAnalog mixed-signal IC Trigger device; File Size557KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

L312F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L312F	-	-	View	Buy Now

L312F Overview

Bipolar Transistors - Pre-Biased PNP -100mA -50V w/bias resistor

L312F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	FLANGE MOUNT, R-XUFM-X6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2.5 V
Quick connection description	2G-2AK-CA-CK
Description of screw terminals	0
Maximum holding current	100 mA
JESD-30 code	R-XUFM-X6
On-state non-repetitive peak current	150 A
Number of components	2
Number of terminals	6
Maximum on-state current	15000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal surface	COPPER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

DataSheet

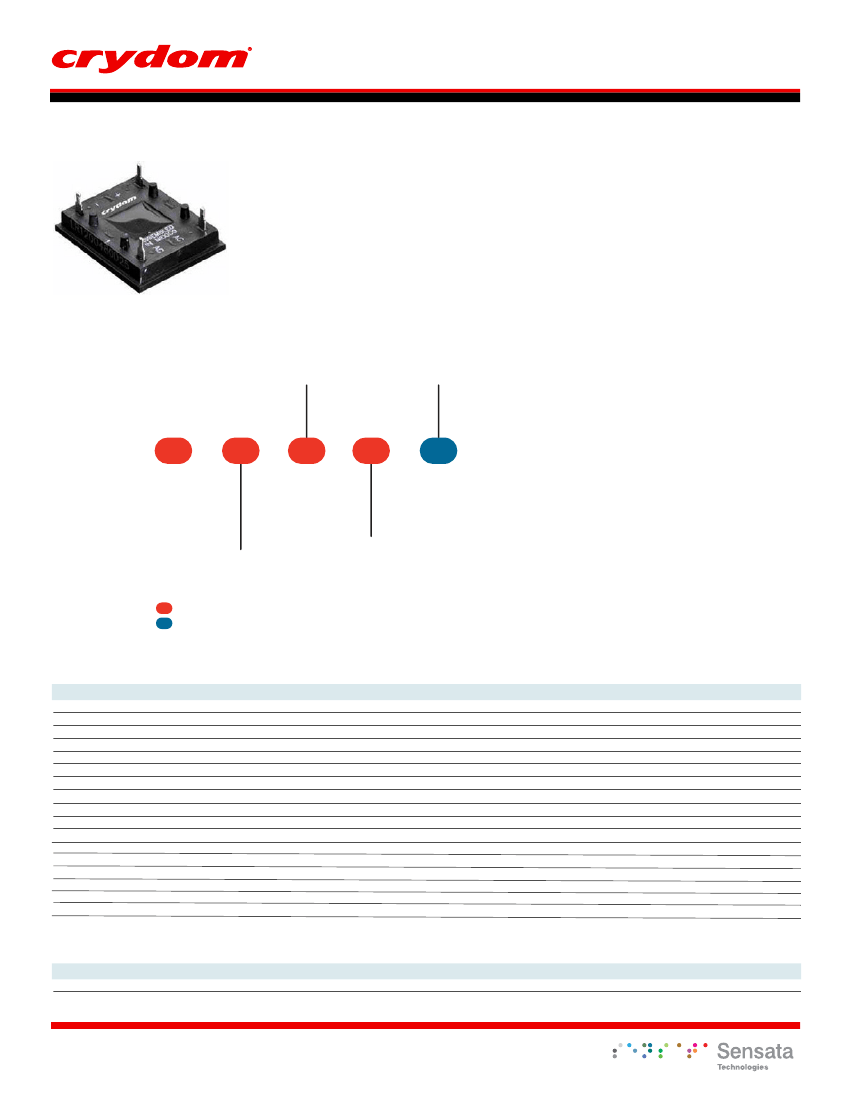

L Series

•

Low Profile

•

4 Different Circuits to Choose from

•

Designed for printed Circuit Board Connections

•

UL Recognized E72445

Power Modules

AVAILABLE OPTIONS

Circuit Type

1245

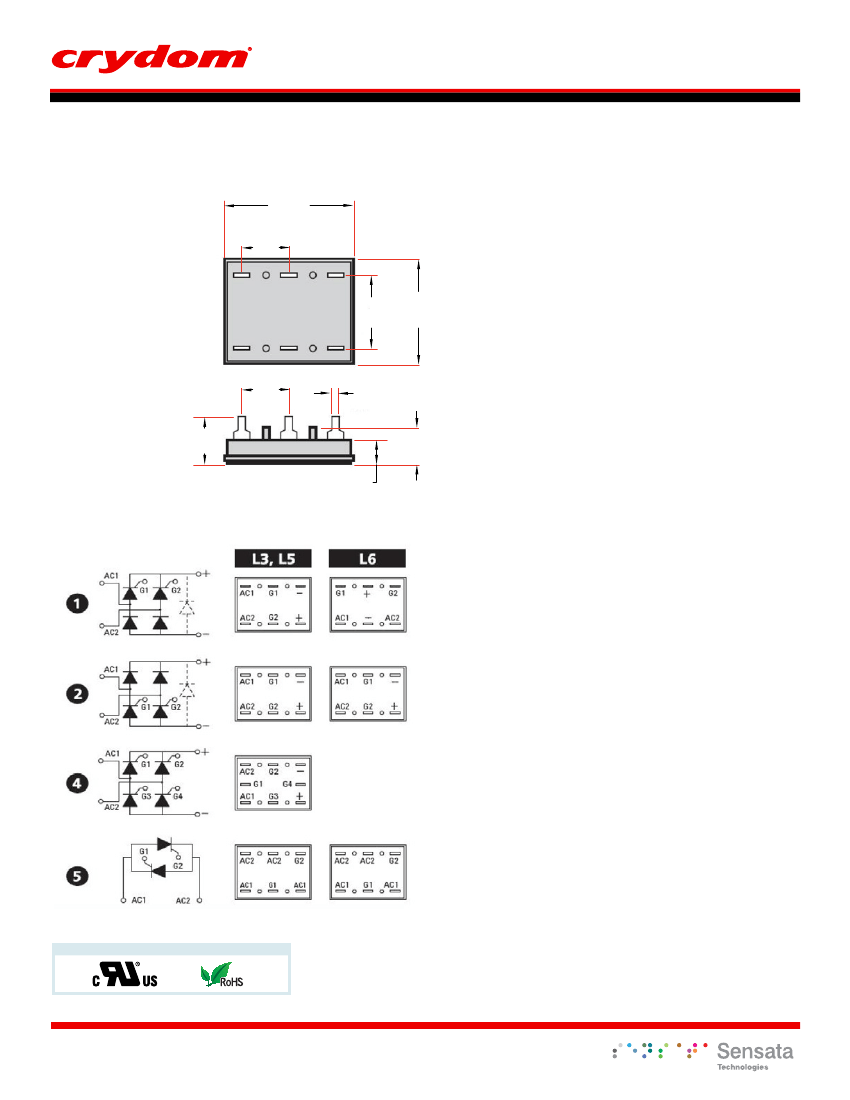

(see schematic

diagrams)

Free Wheeling Diode

Blank:

Not Included

Included

(Circuits 1 & 2 only)

Series

Load Current

15 Amps

20 Amps

25 Amps

42.5 Amps

(Not for Circuit 4)

AC Line Voltage

120 VAC

240 VAC

280 VAC

480 VAC

Required for valid part number

NOTE: Not all Combinations available

For options only and not required for valid part number

ELECTRICAL SPECIFICATIONS

Description

Maximum DC Output Current (Tc= 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Critical Rate of Rise of On-State Current @ TJ=125°C

Critical Rate of Rise of Off-State Voltage [V/µsec]

Symbol

di/dt

dv/dt

15 A

2.2V @ 15A

25 A

1.6V @ 25A

-40 - 125°C

100A/µsec

500A/µsec

120 (400V

RRM

)

240 (400V

RRM

)

280 (400V

RRM

)

480 (400V

RRM

)

300

375

2.5

0.5

5.0

0.9°C/W

2500

42.5 A

1.6V @ 42.5A

AC Line Input Voltage (Repetitive Peak Reverse Voltage)

Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A]

Maximum

I² t for Fusing (t=8.3ms)[A² sec]

Maximum Required Gate Current to Trigger @ 25°C [mA]

Maximum Required Gate Voltage to Trigger @ 25°C [V]

Average Gate Power [W]

Maximum Peak Reverse Gate Voltage [V]

Maximum Thermal Resistance, Junction to Ceramic Base per Chip [°C/W]

Insolation Voltage [Vrms]

RMS

TSM

I² T

G(AV)

ISOL

225

210

2.5

0.5

5.0

1.25°C/W

600

1500

3.0

0.5

5.0

0.7°C/W

ELECTRICAL SPECIFICATIONS

Description

Weight (typical)

0.5 oz (14.4g)

Do not forget to visit us at:

www.crydom.com

L312F Related Products

	L312F	L313F	L611F	L544	L322F	L621F	L541	L344	L321F
Description	Bipolar Transistors - Pre-Biased PNP -100mA -50V w/bias resistor	SCR Modules Power Module, SCR/Diode, L Series	SCR Modules Power Modules,15-42.5 Amp SCR/Diode Module	Discrete Semiconductor Modules 25A 480VAC PCB MODULE SCR/DIODE	SCR Modules Power Modules,15-42.5 Amp SCR/Diode Module	SCR Modules Power Module MODULE SCR/DIODE	Discrete Semiconductor Modules Power Modules,15-42.5 Amp SCR/Diode Module	SCR Modules Power Modules,15-42.5 Amp SCR/Diode Module	Zener Diodes 22V 3W
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	FLANGE MOUNT, R-XUFM-X6	FLANGE MOUNT, R-XUFM-X6	FLANGE MOUNT, R-XUFM-X6	FLANGE MOUNT, R-XUFM-X8	FLANGE MOUNT, R-XUFM-X6	FLANGE MOUNT, R-XUFM-X6	FLANGE MOUNT, R-XUFM-X8	FLANGE MOUNT, R-XUFM-X8	FLANGE MOUNT, R-XUFM-X6
Contacts	6	6	6	8	6	6	8	8	6
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODE	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODE	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODE	BRIDGE	BRIDGE, HALF-CONTROLLED, COMMON ANODE WITH BUILT-IN DIODE	BRIDGE, HALF-CONTROLLED, COMMON ANODE WITH BUILT-IN DIODE	BRIDGE	BRIDGE	BRIDGE, HALF-CONTROLLED, COMMON ANODE WITH BUILT-IN DIODE
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	60 mA	60 mA	80 mA	60 mA	60 mA	80 mA	60 mA	60 mA	60 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	3 V	2.5 V	2.5 V	3 V	2.5 V	2.5 V	2.5 V
Quick connection description	2G-2AK-CA-CK	2G-2AK-CA-CK	2G-2AK-CA-CK	4G-2AK-CA-CK	2G-2AK-CA-CK	2G-2AK-CA-CK	4G-2AK-CA-CK	4G-2AK-CA-CK	2G-2AK-CA-CK
JESD-30 code	R-XUFM-X6	R-XUFM-X6	R-XUFM-X6	R-XUFM-X8	R-XUFM-X6	R-XUFM-X6	R-XUFM-X8	R-XUFM-X8	R-XUFM-X6
On-state non-repetitive peak current	150 A	150 A	600 A	225 A	150 A	600 A	300 A	225 A	150 A
Number of components	2	2	2	4	2	2	4	4	2
Number of terminals	6	6	6	8	6	6	8	8	6
Maximum on-state current	15000 A	15000 A	46000 A	25000 A	15000 A	46000 A	27000 A	15000 A	15000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Repeated peak reverse voltage	600 V	800 V	400 V	1200 V	600 V	400 V	400 V	1200 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Maker	Crydom	Crydom	Crydom	Crydom	Crydom	-	Crydom	Crydom	Crydom
Maximum holding current	100 mA	100 mA	200 mA	-	100 mA	200 mA	100 mA	-	100 mA
Terminal surface	COPPER	COPPER	-	COPPER	COPPER	-	COPPER	COPPER	-
