AUTOMOTIVE GRADE
Features
Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead-Free, RoHS Compliant
Automotive Qualified *
AUIRFZ44VZS
HEXFET
®
Power MOSFET
V
DSS
R
DS(on)
typ.
max.
I
D
D
60V
9.6m
12m
57A
Description
Specifically designed for Automotive applications, this HEXFET
®
Power MOSFET utilizes the latest processing techniques to achieve
extremely low on-resistance per silicon area. Additional features of
this design are a 175°C junction operating temperature, fast
switching speed and improved repetitive avalanche rating . These
features combine to make this design an extremely efficient and
reliable device for use in Automotive applications and a wide variety
of other applications
Base part number
AUIRFZ44VZS
Package Type
D
2
-Pak
S
G
D
2
Pak
AUIRFZ44VZS
G
Gate
D
Drain
S
Source
Standard Pack
Form
Quantity
Tube
50
Tape and Reel Left
800
Orderable Part Number
AUIRFZ44VZS
AUIRFZ44VZSTRL
Absolute Maximum Ratings
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress
ratings only; and functional operation of the device at these or any other condition beyond those indicated in the specifications is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The thermal resistance and
power dissipation ratings are measured under board mounted and still air conditions. Ambient temperature (TA) is 25°C, unless
otherwise specified.
Symbol
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
C
= 25°C
V
GS
E
AS (Thermally Limited)
E
AS (Tested)
I
AR
E
AR
T
J
T
STG
Parameter
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Maximum Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy (Thermally Limited)
Single Pulse Avalanche Energy (Tested Limited)
Avalanche Current
Repetitive Avalanche Energy
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds (1.6mm from case)
Max.
57
40
230
92
0.61
± 20
73
110
See Fig. 12a, 12b, 15, 16
-55 to + 175
Units
A
W
W/°C
V
mJ
A
mJ
°C
300
Thermal Resistance
Symbol
R
JC
R
JA
Parameter
Junction-to-Case
Junction-to-Ambient (PCB Mount), D
2
Pak
Typ.
–––
–––
Max.
1.64
40
Units
°C/W
HEXFET® is a registered trademark of Infineon.
*Qualification
standards can be found at
www.infineon.com
1
2017-10-13
AUIRFZ44VZS
Static @ T
J
= 25°C (unless otherwise specified)
Parameter
V
(BR)DSS
R
DS(on)
V
GS(th)
gfs
I
DSS
I
GSS
Drain-to-Source Breakdown Voltage
Static Drain-to-Source On-Resistance
Gate Threshold Voltage
Forward Trans conductance
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
C
oss
C
oss
C
oss eff.
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Output Capacitance
Output Capacitance
Effective Output Capacitance
V
(BR)DSS
/T
J
Breakdown Voltage Temp. Coefficient
Min.
60
–––
–––
2.0
25
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Min.
–––
–––
–––
–––
–––
Typ. Max. Units
–––
9.6
–––
–––
–––
–––
–––
–––
43
11
18
14
62
35
38
4.5
7.5
1690
270
130
1870
260
510
–––
12
4.0
–––
20
250
200
-200
65
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
V
0.061 –––
Conditions
V
GS
= 0V, I
D
= 250µA
V/°C Reference to 25°C, I
D
= 1mA
m V
GS
= 10V, I
D
= 34A
V
S
µA
nA
V
DS
= V
GS
, I
D
= 250µA
V
DS
= 25V, I
D
= 34A
V
DS
= 60V, V
GS
= 0V
V
DS
= 60V,V
GS
= 0V,T
J
=125°C
V
GS
= 20V
V
GS
= -20V
Dynamic Electrical Characteristics @ T
J
= 25°C (unless otherwise specified)
I
D
= 34A
nC V
DS
= 48V
V
GS
= 10V
V
DD
= 30V
I
D
= 34A
ns
R
G
= 12
V
GS
= 10V
Between lead,
6mm (0.25in.)
nH
from package
and center of die contact
V
GS
= 0V
V
DS
= 25V
ƒ = 1.0MHz
pF
V
GS
= 0V, V
DS
= 1.0V,ƒ = 1.0MHz
V
GS
= 0V, V
DS
= 48V,ƒ = 1.0MHz
V
GS
= 0V, V
DS
= 0V to 48V
Conditions
MOSFET symbol
showing the
A
integral reverse
p-n junction diode.
V T
J
= 25°C,I
S
= 34A,V
GS
= 0V
ns T
J
= 25°C ,I
F
= 34A, V
DD
= 30V
nC di/dt = 100A/µs
Diode Characteristics
Parameter
Continuous Source Current
I
S
(Body Diode)
Pulsed Source Current
I
SM
(Body Diode)
V
SD
Diode Forward Voltage
t
rr
Reverse Recovery Time
Q
rr
Reverse Recovery Charge
t
on
Forward Turn-On Time
Notes:
Typ. Max. Units
–––
–––
–––
23
17
57
230
1.3
35
26
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
+L
D
)
Repetitive rating; pulse width limited by max. junction temperature. (See fig.11)
Limited by T
Jmax,
starting T
J
= 25°C, L = 0.12mH, R
G
= 25, I
AS
= 34A, V
GS
=10V. Part not recommended for use above this value.
Pulse width
400µs;
duty cycle
2%.
C
oss eff.
is a fixed capacitance that gives the same charging time as C
oss
while V
DS
is rising from 0 to 80% V
DSS
.
Limited by T
Jmax
, see Fig.12a, 12b, 15, 16 for typical repetitive avalanche performance.
This value determined from sample failure population. 100% tested to this value in production, starting T
J
= 25°C, L = 0.12mH,
R
G
= 25, I
AS
= 34A, V
GS
=10V. .
This is applied to D
2
Pak, when mounted on 1" square PCB (FR-4 or G-10 Material). For recommended footprint and soldering
techniques refer to application note #AN-994..
2
2017-10-13
AUIRFZ44VZS

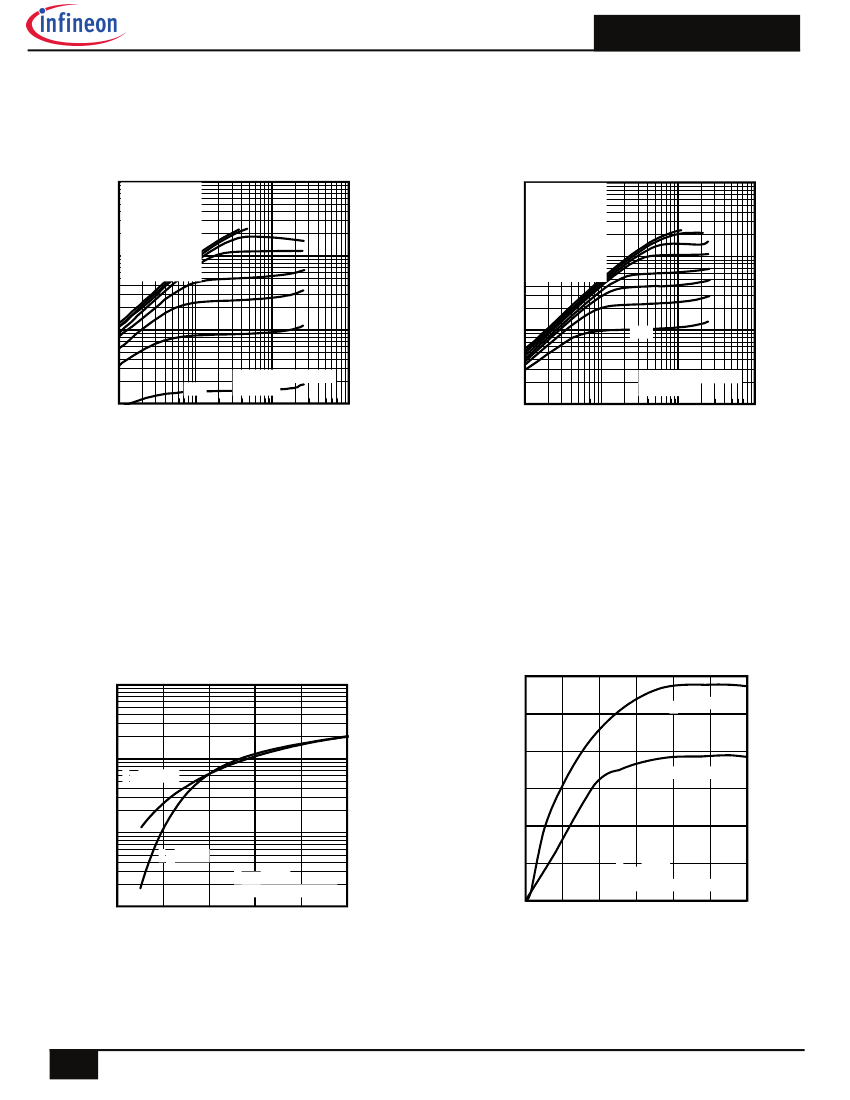

1000
TOP
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
4.5V
1000
TOP
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
4.5V
ID, Drain-to-Source Current (A)
100
BOTTOM
ID, Drain-to-Source Current (A)
100
BOTTOM
10
10
4.5V
4.5V
1
0.1
1
60µs PULSE WIDTH
Tj = 25°C
10
100
60µs PULSE WIDTH
Tj = 175°C
1
0.1
1
10
100
VDS, Drain-to-Source Voltage (V)
VDS, Drain-to-Source Voltage (V)
Fig. 1
Typical Output Characteristics
Fig. 2
Typical Output Characteristics
1000
60
Gfs, Forward Transconductance (S)
ID, Drain-to-Source Current
)
50
40
30
20
10
0
T J = 175°C
100
T J = 175°C
T J = 25°C
10
T J = 25°C
VDS = 25V
60µs PULSE WIDTH
1
4.0
5.0
6.0
7.0
8.0
9.0
VDS = 15V
380µs PULSE WIDTH
0
10
20
30
40
50
60
VGS, Gate-to-Source Voltage (V)
ID, Drain-to-Source Current (A)
Fig. 3
Typical Transfer Characteristics
Fig. 4
Typical Forward Trans conductance
Vs. Drain Current
3
2017-10-13
AUIRFZ44VZS

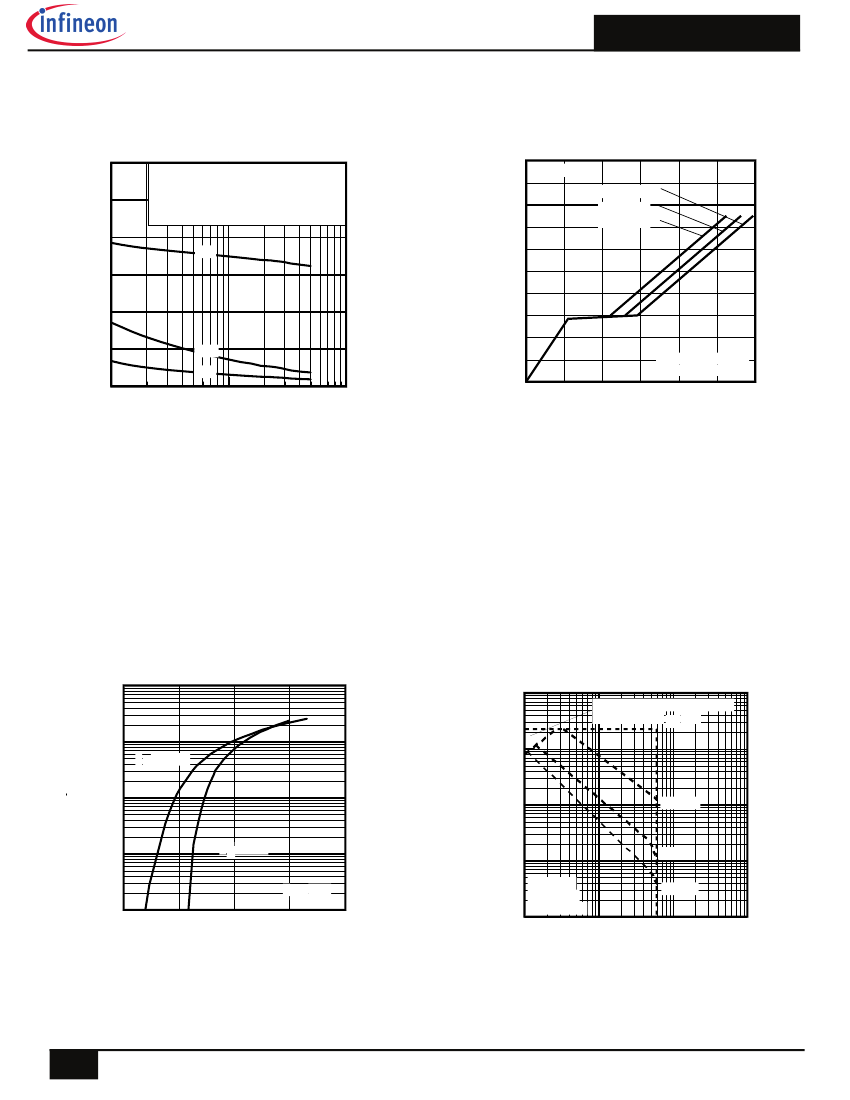

3000
2500
VGS, Gate-to-Source Voltage (V)
VGS = 0V,
f = 1 MHZ
Ciss = C gs + Cgd, C ds SHORTED
Crss = C gd
Coss = Cds + Cgd
20
ID= 34A
VDS= 48V
VDS= 30V
VDS= 12V
16
C, Capacitance (pF)
2000
Ciss
1500
12
8
1000
500
4
FOR TEST CIRCUIT
SEE FIGURE 13
Coss
Crss
0
1
10
100
0
0
10
20
30
40
50
60
VDS, Drain-to-Source Voltage (V)
QG Total Gate Charge (nC)
Fig 5.
Typical Capacitance vs. Drain-to-Source Voltage
Fig 6.
Typical Gate Charge vs. Gate-to-Source Voltage
1000.0
1000
ISD, Reverse Drain Current (A)
OPERATION IN THIS AREA
LIMITED BY R DS (on)
100.0
T J = 175°C
10.0
ID, Drain-to-Source Current (A)
100
10
100µsec
1.0
T J = 25°C
VGS = 0V
1
Tc = 25°C
Tj = 175°C
Single Pulse
1
10
1msec
10msec
0.1
0.2
0.6
1.0
1.4
1.8
VSD , Source-toDrain Voltage (V)
0.1
100
1000
VDS , Drain-toSource Voltage (V)
Fig. 7
Typical Source-to-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
4
2017-10-13
AUIRFZ44VZS
RDS(on) , Drain-to-Source On Resistance
(Normalized)
60
2.5
ID = 34A
2.0
50
VGS = 10V
ID , Drain Current (A)
40
30
1.5
20
1.0
10
0
25
50
75
100
125
150
175
0.5
-60 -40 -20
0
20 40 60 80 100 120 140 160 180
T J , Junction Temperature (°C)
T J , Junction Temperature (°C)
Fig 9.
Maximum Drain Current Vs.
Case Temperature
Fig 10.
Normalized On-Resistance
Vs. Temperature
10
Thermal Response ( Z thJC )
1
D = 0.50
0.20
0.10
0.1
0.05
0.02
0.01
J
R
1
R
1
J
1
2
R
2
R
2
C
C
Ri (°C/W)
0.960
0.680
i
(sec)
0.00044
0.00585
1
2
Ci=
iRi
Ci=
iRi
0.01
SINGLE PULSE
( THERMAL RESPONSE )
0.001
1E-006
1E-005
0.0001
0.001
Notes:
1. Duty Factor D = t1/t2
2. Peak Tj = P dm x Zthjc + Tc
0.01
0.1
t1 , Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
5
2017-10-13
