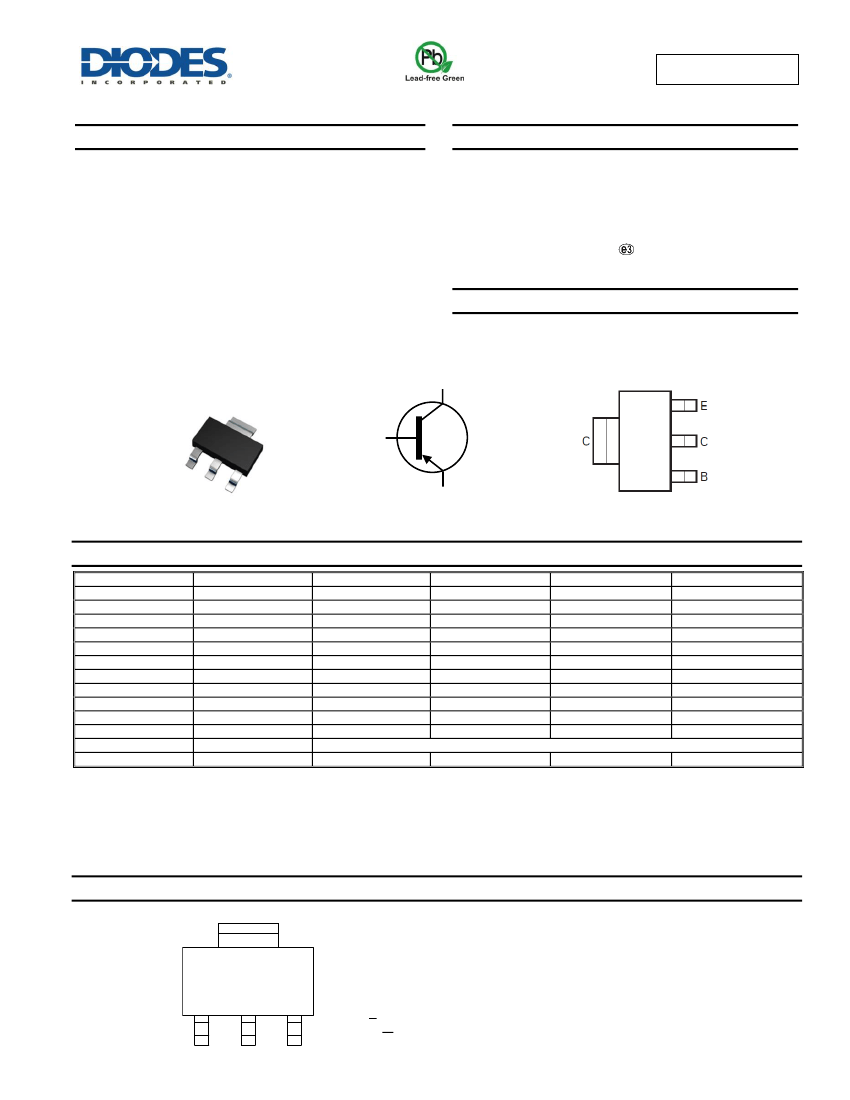

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT223
Case Material: Molded Plastic. “Green” Molding Compound;
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Applications
Medium Power Switching or Amplification Applications
AF Driver and Output Stages
SOT223
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
BCP51TA
BCP5110TA
BCP5116TA
BCP5116TC
BCP52TA
BCP5210TA
BCP5216TA
BCP53TA
BCP53QTA
BCP5310TA
BCP5316TA
BCP5316QTA
BCP5316TC
Notes:
Compliance
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
Marking
BCP 51
BCP 5110
BCP 5116
BCP 5116
BCP 52
BCP 5210
BCP 5216
BCP 53
BCP 53
BCP 5310
BCP 5316
BCP 5316
Reel size (inches)
7
7
7
13
7
7
7
7
7
7
7
13
Tape width (mm)
12
12
12
12
12
12
12
12
12
12
12
12
Quantity per reel
1,000
1,000
1,000
4,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
4,000
Refer to http://diodes.com/datasheets/BCP5316Q.pdf
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT223
BCP = Product Type Marking Code, Line 1
XXXX = Product Type Marking Code, Line 2 as follows:
