TLE6288R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TLE6288R

TLE6288R: DescriptionPower Switch ICs - Power Distribution SWITCH ICS; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size607KB，32 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TLE6288R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TLE6288R	-	-	View	Buy Now

TLE6288R Overview

Power Switch ICs - Power Distribution SWITCH ICS

TLE6288R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	GREEN, PLASTIC, SOP-36
Contacts	36
Reach Compliance Code	not_compliant
ECCN code	EAR99
Built-in protection	OVER CURRENT; OVER VOLTAGE
Number of drives	6
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G36
JESD-609 code	e3
length	15.9 mm
Humidity sensitivity level	3
Number of functions	6
Number of terminals	36
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Output current flow direction	SOURCE
Nominal output peak current	3.6 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SSOP36,.56
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	AEC-Q100
Maximum seat height	3.5 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	16 V
Mains voltage 1-minute	6 V
Supply voltage1-Nom	12 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	20 µs
connection time	10 µs
width	11 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet, Rev. 2.5, Oct. 2010

TLE6288R

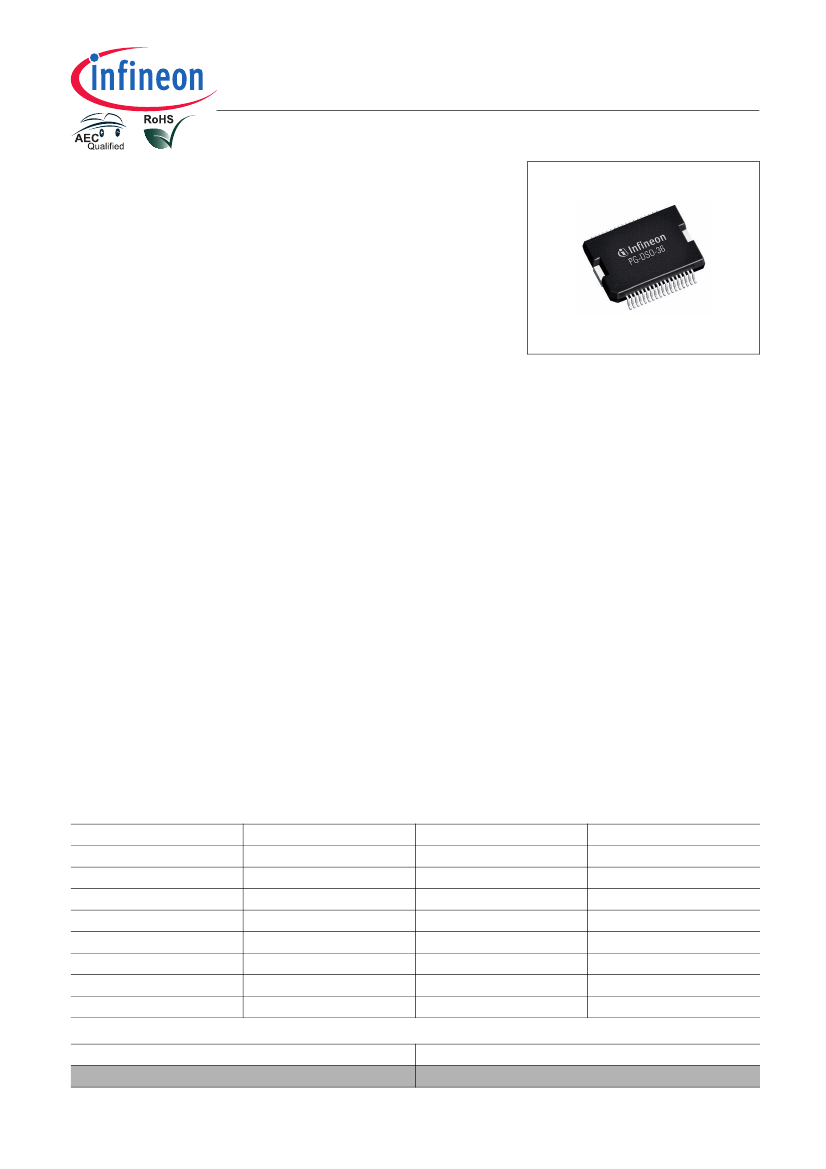

Smart 6 Channel Peak & Hold Switch

Automotive Power

TLE6288R

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.1

2.2

2.3

3.1

3.2

4.1

4.1.1

4.1.2

4.2

4.3

4.3.1

4.3.2

5.1

5.2

5.3

5.4

5.5

5.6

5.7

6.1

6.2

6.3

6.4

7.1

7.2

7.3

Block Diagram

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

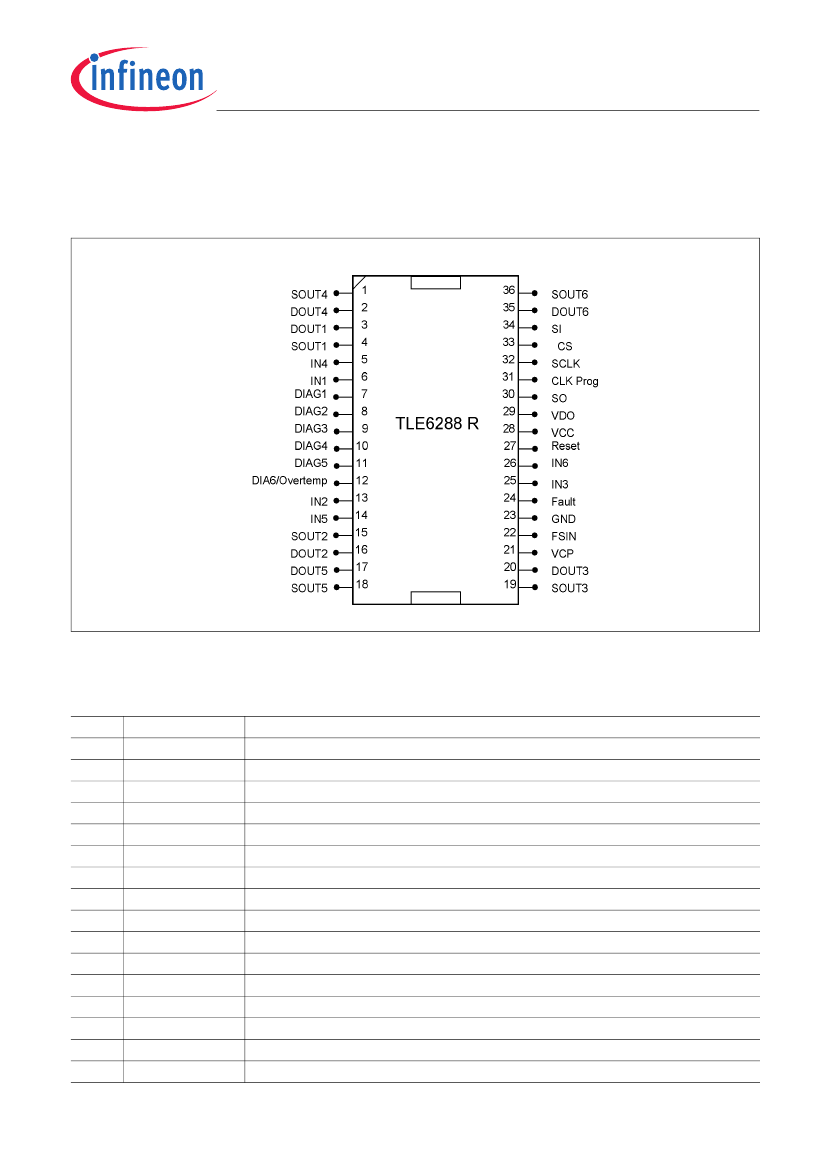

Pin Configuration

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Product Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Gerneral Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output Stage Control: Parallel Control and SPI Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Current Regulator: Peak Current Control with Fixed Off-Time . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parallel Diagnostic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Characteristics: Diagnostic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPI

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPI Signal Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Characteristics: SPI Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPI Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPI Commands, Values and Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bit Assignment and Default Settings for Internal Logic Registers . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPI Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Characteristics Input / Output Pins

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Supply, Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Digital Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Application Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

thjc

Diagram Junction - Case for Single channel operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermal Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overload/Low Inductance Load Detection in Current Regulation Mode . . . . . . . . . . . . . . . . . . . . . . .

Package Outlines

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Revision History

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Data Sheet

Rev. 2.5, 2010-10-11

TLE6288R Related Products

	TLE6288R	TLE6288RAUMA2	TLE6288RNUMA1	TLE6288RAUMA1
Description	Power Switch ICs - Power Distribution SWITCH ICS	IC SW SMART MULTICHAN PDSO36	Buffer/Inverter Based Peripheral Driver, 3.6A, PDSO36, GREEN, PLASTIC, SOP-36	Buffer/Inverter Based Peripheral Driver, 3.6A, PDSO36, GREEN, PLASTIC, SOP-36
package instruction	GREEN, PLASTIC, SOP-36	GREEN, PLASTIC, SOP-36	HSSOP,	HSSOP,
Reach Compliance Code	not_compliant	not_compliant	unknown	unknown
Built-in protection	OVER CURRENT; OVER VOLTAGE	OVER CURRENT; OVER VOLTAGE	OVER CURRENT; OVER VOLTAGE	OVER CURRENT; OVER VOLTAGE
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G36	R-PDSO-G36	R-PDSO-G36	R-PDSO-G36
JESD-609 code	e3	e3	e3	e3
length	15.9 mm	15.9 mm	15.9 mm	15.9 mm
Number of functions	6	6	6	6
Number of terminals	36	36	36	36
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output current flow direction	SOURCE	SOURCE	SOURCE	SOURCE
Nominal output peak current	3.6 A	3.6 A	3.6 A	3.6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	HSSOP	HSSOP	HSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Maximum seat height	3.5 mm	3.5 mm	3.5 mm	3.5 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
Supply voltage 1-max	16 V	16 V	16 V	16 V
Mains voltage 1-minute	6 V	6 V	6 V	6 V
Supply voltage1-Nom	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin (Sn)	Tin (Sn)	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Disconnect time	20 µs	20 µs	20 µs	20 µs
connection time	10 µs	10 µs	10 µs	10 µs
width	11 mm	11 mm	11 mm	11 mm
Base Number Matches	1	1	1	1
