Plug - SPV 2,5/ 1 GNYE - 3061020
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

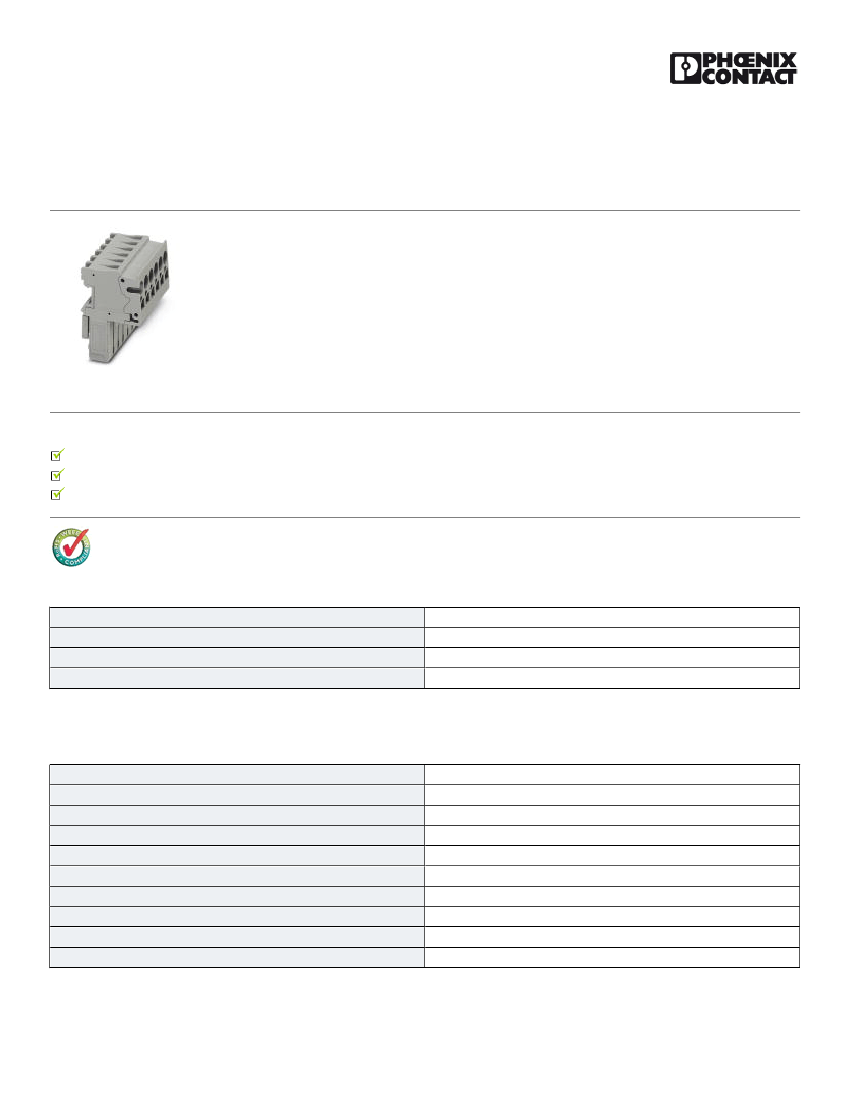

Plug, Connection method: Spring-cage connection, Number of positions: 1, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 5.2 mm, Height: 34 mm, Color: green-yellow
The illustration shows a version of
the product
Product Features
Large-surface labeling option
Tested for railway applications
Practical coding option
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
3.42 GRM
85366990
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Area of application
1
1
green-yellow
PA
V0
Railway industry
Mechanical engineering
Plant engineering
Maximum load current
Rated surge voltage
24 A (with 2.5 mm² conductor cross section)
6 kV
12.11.2013 Page 1 / 8
https://www.phoenixcontact.com/us/products/3061020
Plug - SPV 2,5/ 1 GNYE - 3061020
Technical data
General
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
3
III
I
IEC 61984
24 A
500 V
nein
1
Dimensions
Width
Length
Height
5.2 mm
23.4 mm
34 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded max.
Connection method
Stripping length
Internal cylindrical gage
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.5 mm²
Spring-cage connection
10 mm
A3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
272607xx
27260701
27260701
12.11.2013 Page 2 / 8
https://www.phoenixcontact.com/us/products/3061020
Plug - SPV 2,5/ 1 GNYE - 3061020
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27260701
27141151
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
26-12
B
26-12
C
26-12
D
26-12
12.11.2013 Page 3 / 8
https://www.phoenixcontact.com/us/products/3061020
Plug - SPV 2,5/ 1 GNYE - 3061020
Approvals
Nominal current IN
Nominal voltage UN
20 A
600 V
B
20 A
300 V
C
20 A
300 V
D
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-12
20 A
600 V
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
GOST
GOST
cULus Recognized
Accessories
Accessories

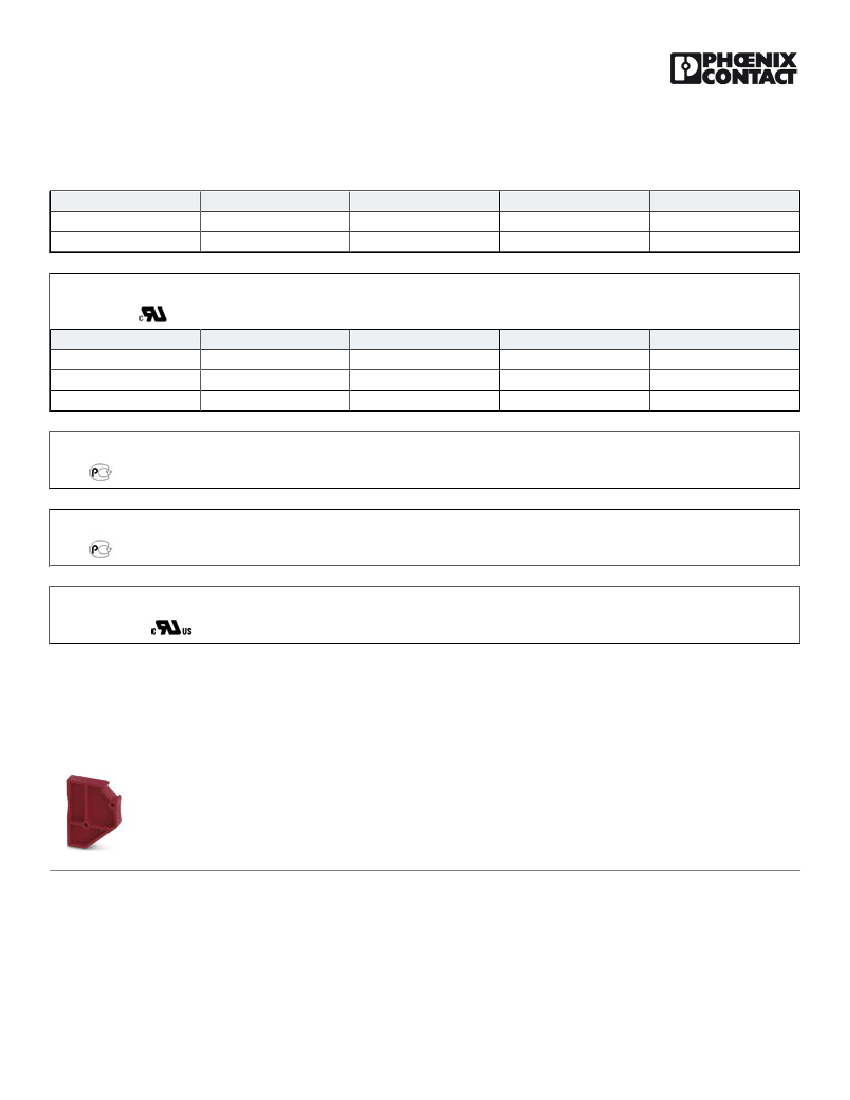

End cover
Spacer plate - DP PS-5 - 3036725
Spacer plate, Color: red
Insulating sleeve
12.11.2013 Page 4 / 8
https://www.phoenixcontact.com/us/products/3061020
Plug - SPV 2,5/ 1 GNYE - 3061020
Accessories

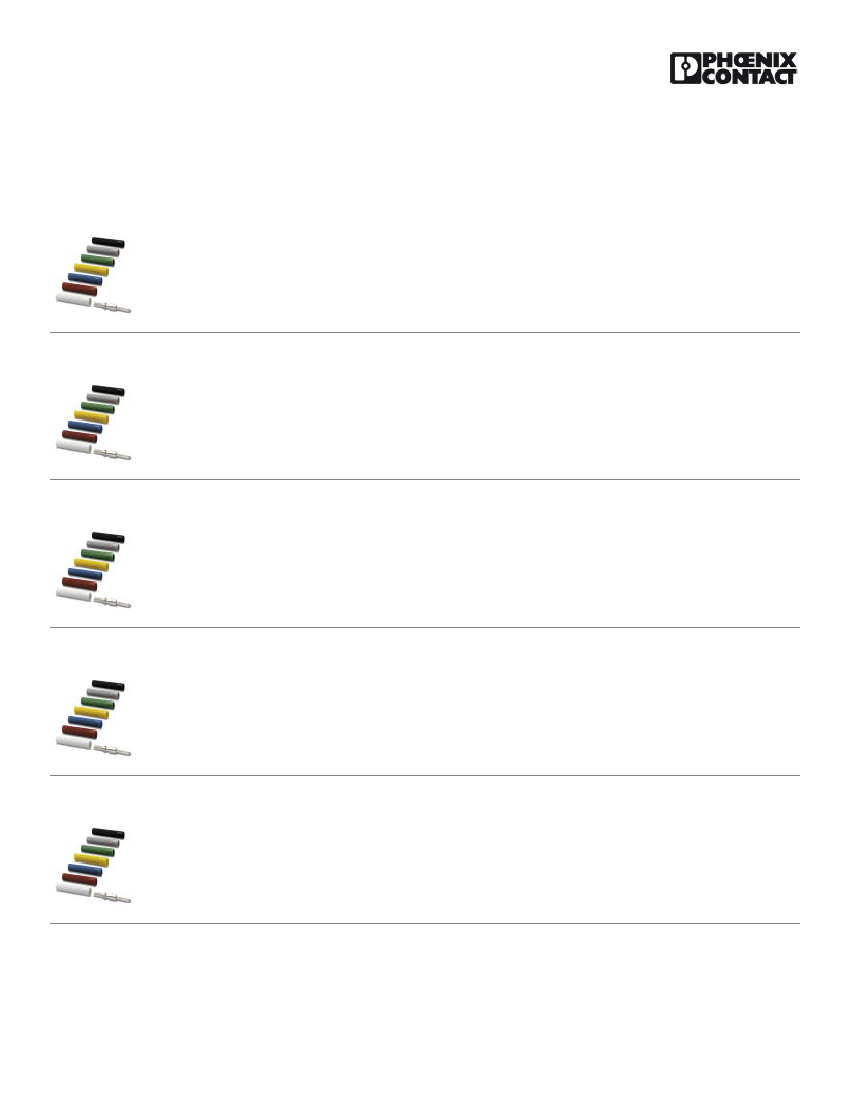

Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
Insulating sleeve - MPS-IH YE - 0201692
Insulating sleeve, Color: yellow
Insulating sleeve - MPS-IH GN - 0201702
Insulating sleeve, Color: green
12.11.2013 Page 5 / 8
