PE-62915NL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> PE-62915NL

Preview

PE-62915NL: DescriptionCommon Mode Chokes / Filters EMI Supprssion Ind 8000uH .12Ohms; CategoryPassive components; File Size310KB，2 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

PE-62915NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-62915NL	-	-	View	Buy Now

PE-62915NL Overview

Common Mode Chokes / Filters EMI Supprssion Ind 8000uH .12Ohms

PE-62915NL Parametric

Parameter Name	Attribute value
Product Category	Common Mode Chokes / Filters
Manufacturer	Pulse A Technitrol Company
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	25

Preview

Download Datasheet

View All

Common Mode EMI

Suppression Inductors

Low profile or vertical mounting available

Windings balanced within one percent

For use in switching power supply input

filter circuits

Dielectric strength 1250 V

RMS

Designed with 3.0mm minimum creep

distance between windings

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Rated

RMS

Current

(AMPs)

1.8

3.5

6.0

2.6

3.2

5.2

7.5

Load

VA at

RMS Line

117 V

210

400

700

300

375

600

875

220 V

420

800

1400

600

750

1200

1750

Leakage

Inductance

130kHz

(µH MIN)

130

35

12

180

90

45

25

DCR

Max. each

WDG

(Ω)

0.240

0.060

0.020

0.160

0.120

0.040

0.020

Lead Diameter

Inches

±.003

Low

Profile

0.032

0.036

0.032

0.036

0.047

Vertical

Mount

0.032

0.036

0.040

0.036

0.047

Low Profile

Part

Number

PE-62891NL

PE-62892NL

PE-62893NL

-

PE-62895NL

PE-62896NL

PE-62897NL

Vertical

Mount Part

Number

PE-62911NL

PE-62912NL

PE-62913NL

PE-62914NL

PE-62915NL

PE-62916NL

PE-62917NL

Inductance

at 1kHz

(mH MIN)

10.0

3.0

1.0

16.0

8.0

4.0

2.0

Test Level

Volts RMS

1.0 kHz

0.50

0.20

0.08

1.00

0.50

0.20

0.08

Package

Number

1

2

Notes:

1. Rated RMS current for 40°C rise at any input voltage.

2.

Caution

do not exceed rated RMS current ratings.

3. To order a RoHS compliant part, add the suffix “NL” to the

part number (i.e. PE-62891 becomes PE-62891NL).

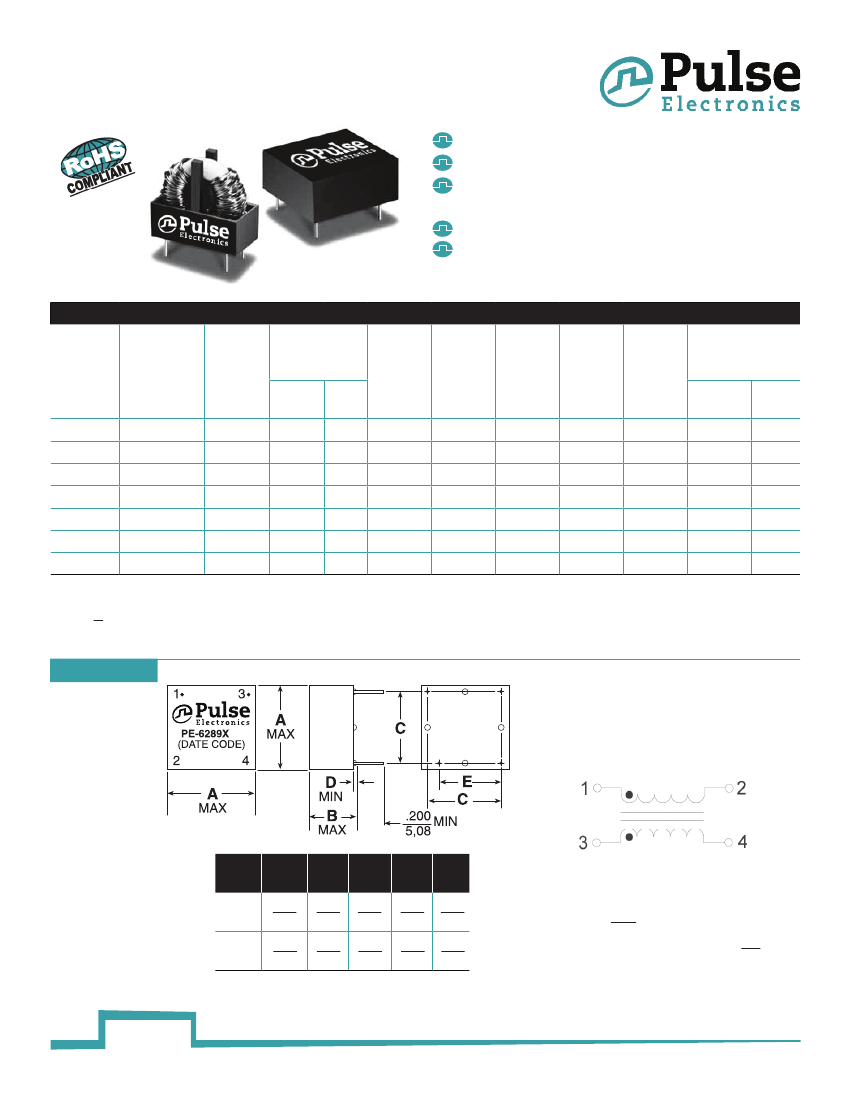

Mechanical

PE-6289XNL

Schematic

NL

Package

Number

1

2

A

1.25

31,75

1.50

38,10

B

.600

15,24

.800

20,32

C

.100

25,40

1.28

32,51

D

.015

0,38

.010

0,25

E

.900

22,86

1.083

27,50

Inches

mm

.010

Unless otherwise specified, all tolerances are

±

0,25

Dimensions:

USA 858 674 8100

1

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P592.B (06/15)

pulseelectronics.com
