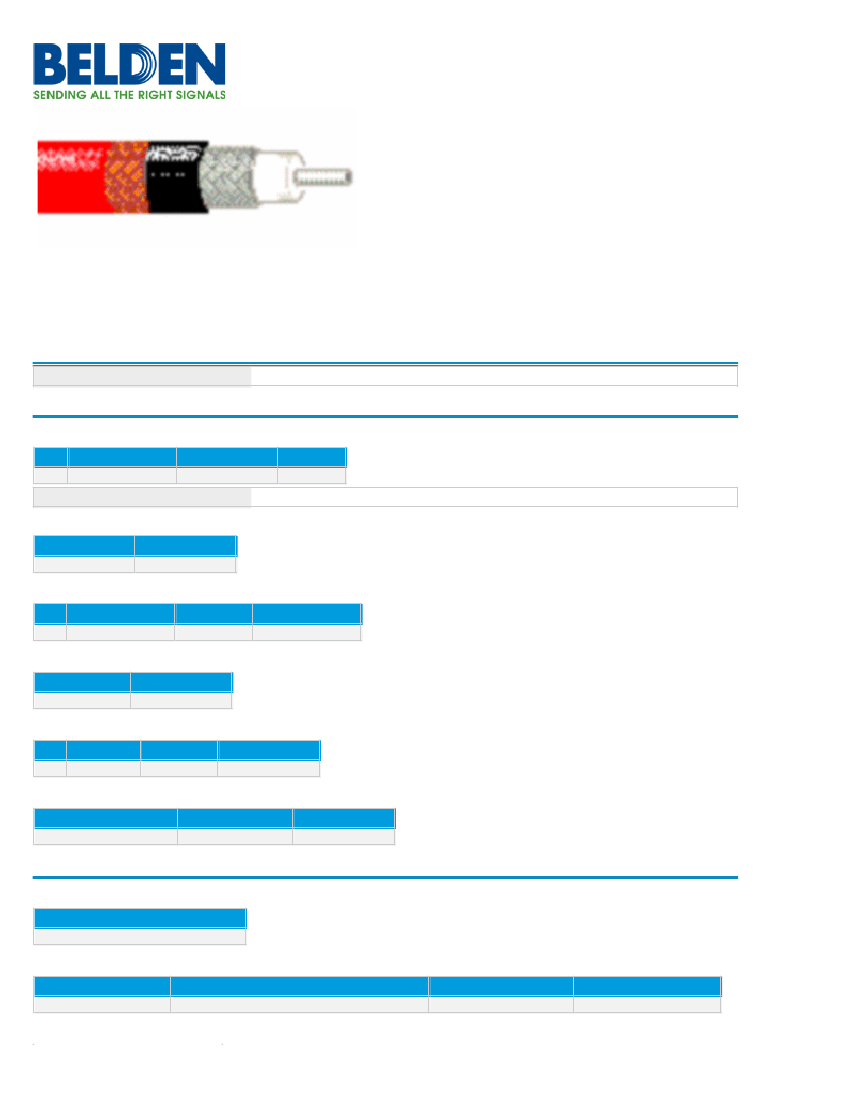

Part Number:
7801A
Metric Video Triax, #19 Solid SPC, SPC Braid, PVC
Jacket, BC Braid, Belflex Jacket
Product Description
19 AWG solid .039" silver-plated copper conductor, gas-injected foam PE insulation, two braids: one silver-plated copper (90%) and one bare copper (80%),
PVC inner jacket between braids, Belflex jacket.
Technical Specifications
Product Overview
Environmental Space:
Physical Characteristics (Overall)
Conductor
AWG
19
Indoor/Outdoor
Material
Nominal Diameter No. of Coax
1
SPC - Silver Plated Copper 0.039 in
Total Number of Conductors:
Insulation
Material
Nominal Diameter
1
FPE - Foam Polyethylene 0.178 in
Inner Shield Material
Type
Braid
Material
Coverage [%] Drainwire Diameter
0.2 mm
SPC - Silver Plated Copper 90 %
Inner Jacket Material
Material
Nominal Diameter
PVC - Polyvinyl Chloride 0.26 in
Outer Shield Material
Type
Braid
Material
Coverage [%] Nominal Diameter
0.282 in
BC - Bare Copper 80 %
Outer Jacket Material
Material
Material Trade Name Nominal Diameter
0.331 in
PVC Blend - Polyvinyl Chloride Blend Belflex®
Electrical Characteristics
Capacitance
Nom. Capacitance Conductor to Shield
16.7 pF/ft
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR Nominal Outer Shield DCR
9.33 Ohm/1000ft
9.33 Ohm/1000ft
3.28 Ohm/1000ft
2.76 Ohm/1000ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Min. Structural Return Loss (SRL)
1-100 MHz
101-300 MHz
26 dB
23 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz
3.58 MHz
5 MHz
7 MHz
10 MHz
67.5 MHz
71.5 MHz
88.5 MHz
100 MHz
135 MHz
143 MHz
180 MHz
270 MHz
360 MHz
540 MHz
720 MHz
750 MHz
1000 MHz
1500 MHz
2000 MHz
2250 MHz
3000 MHz
0.19 dB/100ft
0.36 dB/100ft
0.43 dB/100ft
0.51 dB/100ft
0.61 dB/100ft
1.76 dB/100ft
1.8 dB/100ft
2.1 dB/100ft
2.2 dB/100ft
2.6 dB/100ft
2.7 dB/100ft
3 dB/100ft
3.8 dB/100ft
4.5 dB/100ft
5.6 dB/100ft
6.6 dB/100ft
6.7 dB/100ft
7.9 dB/100ft
9.9 dB/100ft
11.6 dB/100ft
12.4 dB/100ft
14.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.52 ns/ft
81 %
High Freq
Frequency [MHz]
2250 MHz
3000 MHz
Inductance
Nominal Inductance
0.095 µH/ft
Voltage
Non-UL Voltage Rating
600 V RMS
Temperature Range
Non-UL Temp Rating:
Operating Temp Range:
Mechanical Characteristics
Bulk Cable Weight:
Max Recommended Pulling Tension:
Min Bend Radius/Minor Axis:
60(lbs/1000ft)
112(lbs)
3.5(in)
80°C
-50°C To +80°C
Standards
RG Type:
N/A
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV):
EU Directive 2011/65/EU (ROHS II):
EU Directive 2012/19/EU (WEEE):
EU Directive 2015/863/EU:
EU Directive Compliance:
EU CE Mark:
Yes
Yes
Yes
Yes
EU Directive 2003/11/EC (BFR)
No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable):
MII Order #39 (China RoHS):
Suitability
Suitability - Indoor:
Suitability - Outdoor:
Part Number
Plenum (Y/N):
© 2018 Belden, Inc
All Rights Reserved.
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without
notice, and the listing of such information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "ASIS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages
(including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be incompliance with EU RoHS(Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the compliance date may be instock at Belden facilities and in our Distributor's
inventory. The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden's knowledge,
information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product
itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for
determining the applicability of legislation and regulations based on their individual usage of the product.
Belden declares this product to be incompliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended by directive 93/68/EEC.
Yes
Yes
Yes
Yes - Black for permanent outdoor installations; all colors suitable for outdoor field deployable use
