DF63-1618PC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DF63-1618PC

DF63-1618PC: DescriptionHeaders u0026 Wire Housings FEMALE TERM 20-24; CategoryThe connector; File Size816KB，8 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

DF63-1618PC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF63-1618PC	-	-	View	Buy Now

DF63-1618PC Overview

Headers u0026 Wire Housings FEMALE TERM 20-24

DF63-1618PC Parametric

Parameter Name	Attribute value
Product Category	Power to the Board
Manufacturer	Hirose
RoHS	Details
Contact Gender	Pin (Male)
Current Rating	15 A
Voltage Rating	630 V
Number of Positions	-
Mounting Style	-
Termination Style	Crimp
Pitch	-
Contact Material	Copper Alloy
Contact Plating	Tin
Mounting Angle	-
Number of Rows	-
Row Spacing	-
Wire Gauge Range	18 AWG - 16 AWG

Preview

Download Datasheet

View All

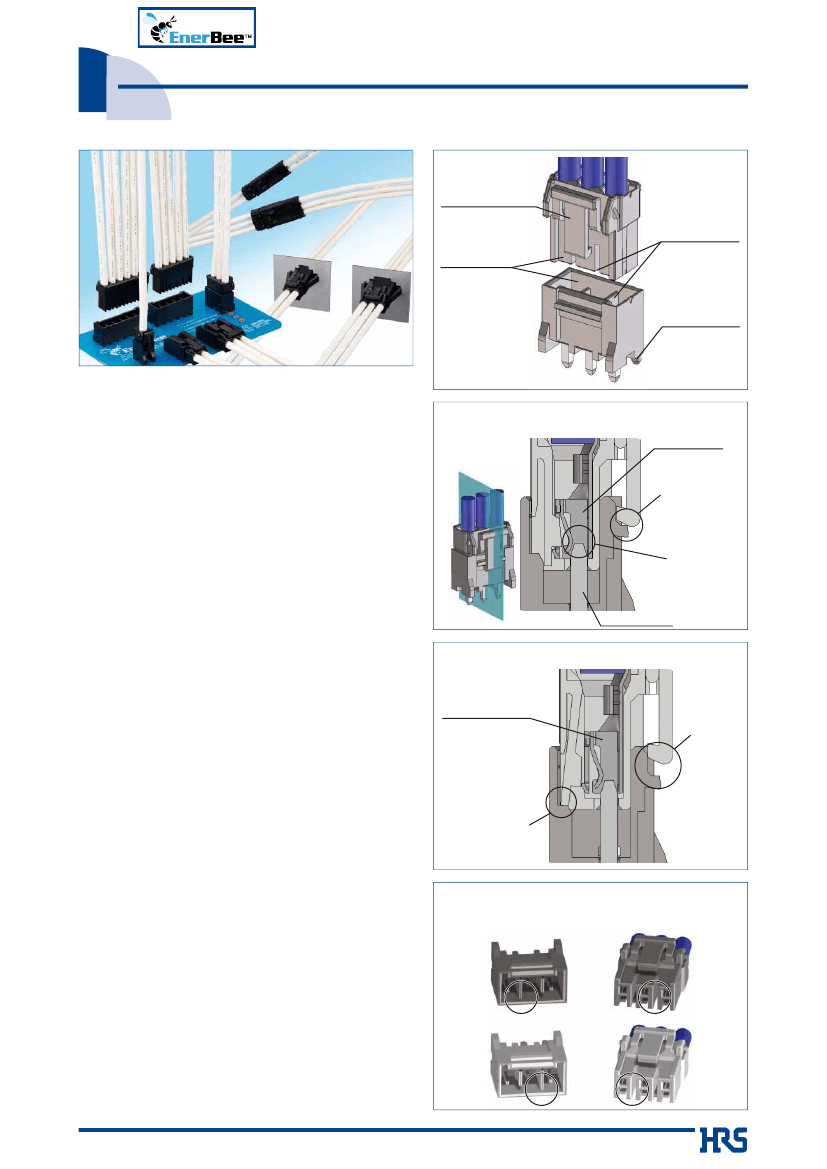

15A 3.96mm pitch Wire-to-Board Connectors for Internal Power Supply

DF63 Series

(UL, C-UL, TÜV, Listed)

Unique locking

mechanism is

contained inside

the header

Socket and header

design avoids

short-circuit between

adjacent contacts.

Guide keys

prevent incorrect

insertion

Guide pins

temporarily hold

and assure proper

orientation of the

connector.

■Features

1. Rated for up to 15A

DF63 has the capacity to handle a max of 15A when

using 16 AWG wire.

(Please refer to the chart for the rated current in other pin counts.)

Fig.1

Lock structure

［

−

Crimp contact

Lock portions of the

plug and the header

start to engage.

→

2. Secure mating and clear tactile click

The locking mechanism delivers a clear and tactile

click, which prevents incomplete mating. (Fig.2)

→

3. Prevents incomplete insertion of the crimp contact

A structure to prevent incomplete insertion of the

crimp contacts is provided. (Fig.3)

No contact yet

4. Prevents incorrect mating

A mechanism has been added to prevent reverse

mating and incorrect mating between different number

of positions. (Fig.4)

Header contact

Fig.2

Prevention of insufficient insertion of the crimp contact

Crimp contact

(insufficiently inserted)

5. Reverse mounting prevention to PCB

The pin header is equipped with a guide post to

prevent reverse insertion on the PCB. (Fig.1)

6. Molded lance design

The lance is actually part of the housing instead of being a part

of the terminal. This prevents tangled wires during assembly.

Lock does

not work.

7. Short-circuit prevention

The wall structure between the contacts helps to isolate the

contacts and prevents short circuits between contacts. (Fig.1)

8. Suitable for potting

Capable of being potted, up to 5mm.

Lance and header

protection mechanism

meet.

Fig.3

9. Solder crack prevention

Glass-reinforced resin is used on the pin header to

prevent solder cracks due to thermal contraction.

Keying options are available to prevent incorrect connections

due to the use of multiple connectors on the same board.

■Standard

type (color : black)

10. Glow Wire compliance (Compliant with IEC 60695-2-11)

＊

Keying options were provided to prevent incorrect connections.

Keying options prevent incorrect connections due to the use of multiple

connectors on the same board. When using identical pin counts, two

versions are available with different keying options.(Fig.4)

■R-type

(color : white)

＊

Supports 7.92mm pitch

Also supports 7.92mm pitch with 2 or 3 pos. without pins

Note 1 :

means the product will be available upon request.

Please contact Hirose representative.

Fig.4

2017.1e
