D70L4L-2.50KHZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> D70L4L-2.50KHZ

D70L4L-2.50KHZ: DescriptionActive Filter, 1 Func, Bessel, Lowpass, PDIP8,; CategoryAnalog mixed-signal IC filter; File Size753KB，14 Pages; ManufacturerFrequency Devices

Download Datasheet Parametric View All

D70L4L-2.50KHZ Overview

Active Filter, 1 Func, Bessel, Lowpass, PDIP8,

D70L4L-2.50KHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Frequency Devices
package instruction	DIP, DIP8,.6
Reach Compliance Code	unknown
Other features	LG-MAX, WD-MAX
JESD-30 code	R-PDIP-T8
length	16.51 mm
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	7.874 mm
Maximum supply current (Isup)	10 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	12.954 mm
Base Number Matches	1

Preview

Download Datasheet

View All

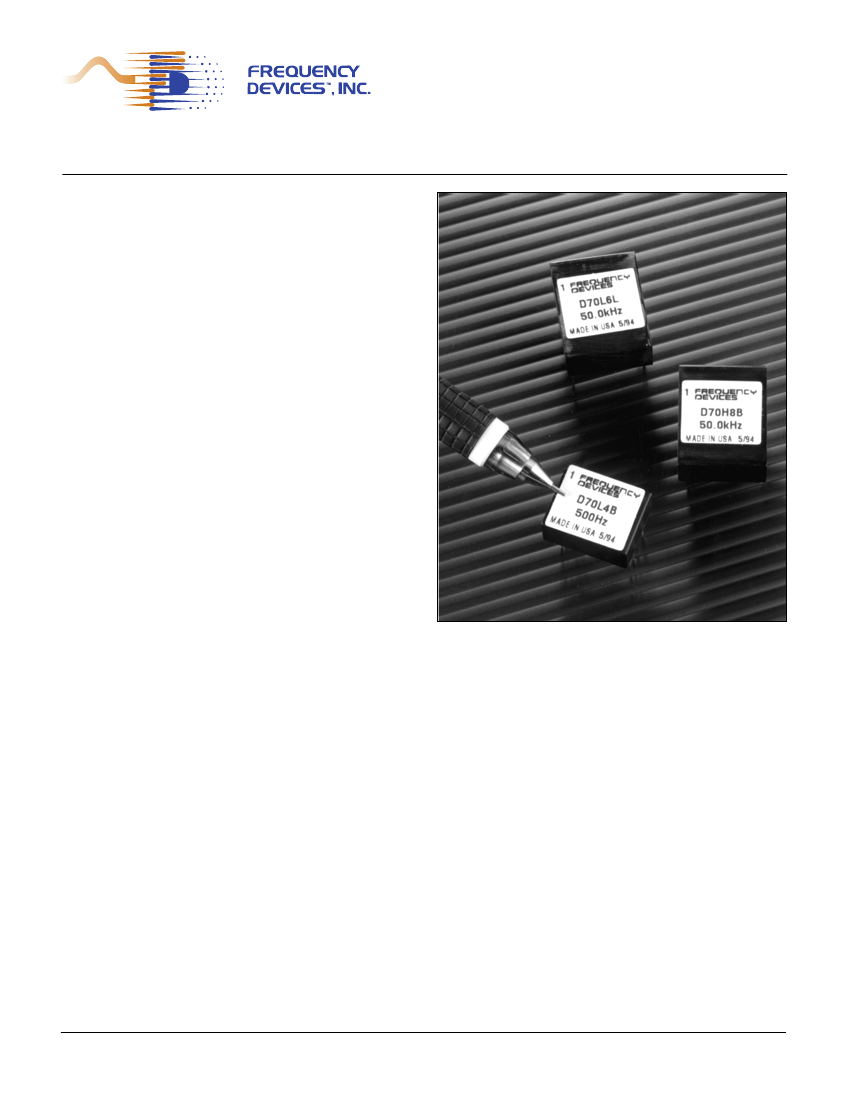

D70 Series

100 Hz to 50 kHz

Fixed Frequency

Description

The D70 Series of small, fixed-frequency, linear

active DIP filters provide high performance linear,

multi-pole filtering in a compact package, with a

broad range of pole configurations. These

Butterworth and Bessel low-pass and Butterworth

high-pass filters combine the excellent performance

of linear multi-pole filter design with the space sav-

ing of the dual in-line package (DIP). Each model

comes factory tuned to a user-specified corner fre-

quency between 100Hz and 50kHz. These fully

self-contained units require no external compo-

nents or adjustments. They operate with dynamic

input voltage range from non-critical ±5V to ±18V

power supplies.

Features/Benefits:

• Compact DIP design minimizes board space

requirements

• Plug-in ready-to-use, reducing engineering

design and manufacturing time

• Factory tuned, no external clocks or adjustments

needed

• Low harmonic distortion and wide signal-to-noise

ratio to 14 bit resolution

• Broad range of pole configurations and corner fre-

quencies to meet a wide range of applications

Applications

• Anti-alias filtering

• Data acquisition systems

• Communication systems and electronics

• Medical electronics equipment and research

• Aerospace, navigation and sonar applications

• Sound and vibration testing

• Real and compressed time data analysis

• Noise elimination

• Signal reconstruction

DIP Filters

8-, 6-, 4-Pole Filters

Available Low-Pass Models:

. . . . . . . . . . .Page

D70L8B

D70L6B

D70L4B

D70L8L

D70L6L

D70L4L

8-pole

6-pole

4-pole

8-pole

6-pole

4-pole

Butterworth

Bessel . . . .

Available High-Pass Models:

D70H8B

D70H6B

D70H4B

8-pole Butterworth . . . . . . . . . . . . . . .4

6-pole Butterworth . . . . . . . . . . . . . . .4

4-pole Butterworth . . . . . . . . . . . . . . .4

General Specifications:

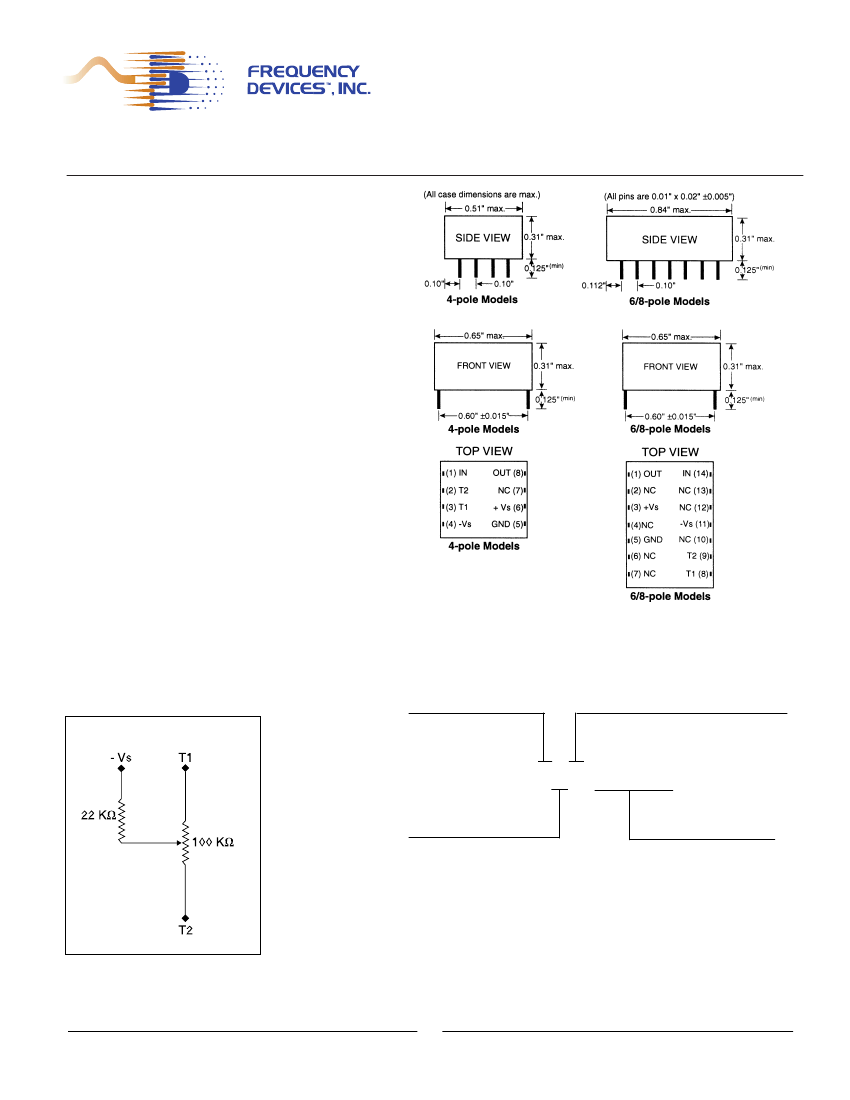

Pin-out/package data & ordering information . . . .5

25 Locust St, Haverhill, Massachusetts 01830 • Tel: 800/252-7074, 978/374-0761 • FAX: 978/521-1839

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com
