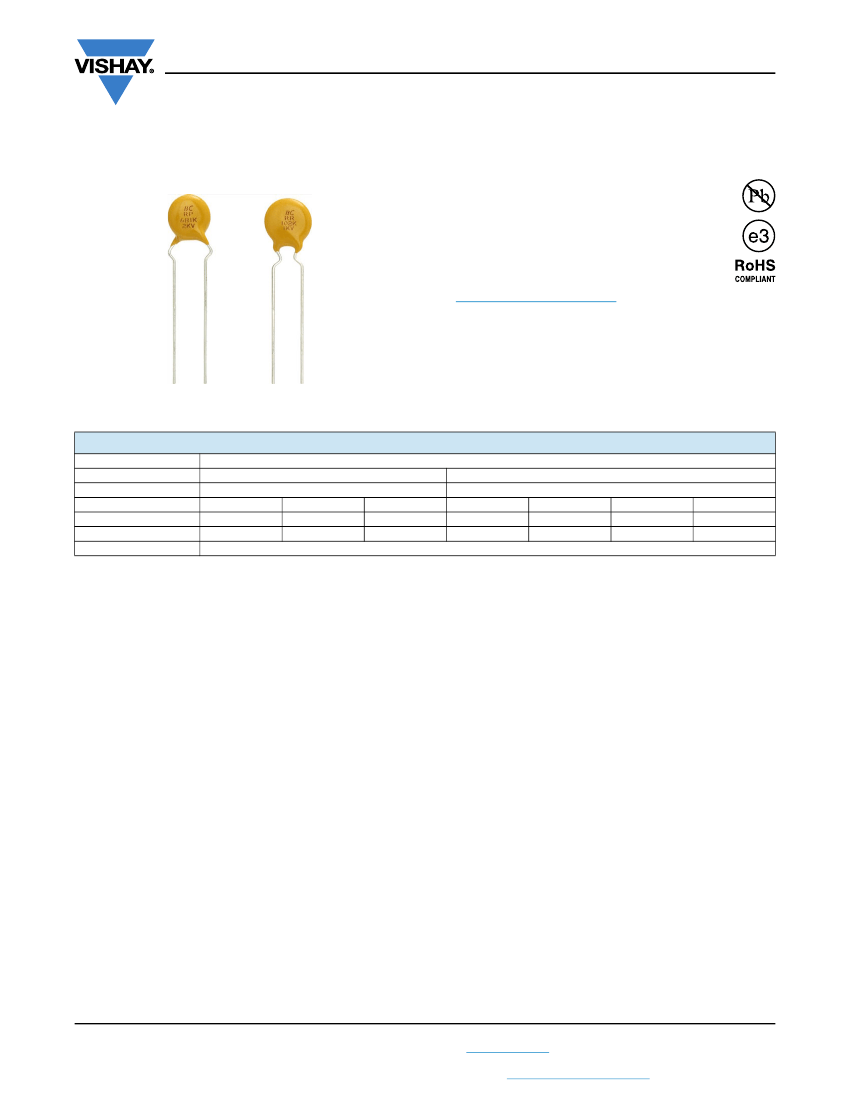

F Series
www.vishay.com
Vishay BCcomponents
Ceramic Disc Capacitors, Class 1, Class 2,
Low Loss (0.2 %), 500 V
DC
, 1 kV
DC
, 2 kV
DC
, and 3 kV
DC
FEATURES
•
•
•
•
•
High reliability
Low losses
High capacitance in small size
Kinked leads
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
In electronic circuits where low losses and high capacitance
per volume are essential, for example:
• SMPS
• HF ballast
• Snubber and high voltage circuits
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
VALUE
1
S3N
2000
100
4700
2
Y5R
3000
100
2700
500
100
2700
Radial
1000
100
4700
2000
100
4700
3000
100
2700
1000
100
2200
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198” and voltage marks.
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm or 0.8 mm.
The capacitors are supplied with kinked leads and lead
spacings of 5 mm or 7.5 mm and 10 mm. Encapsulation is
made of epoxy-resin, flammable resistant in accordance
with “UL 94 V-0”
OPERATING TEMPERATURE RANGE
-30 °C to +125 °C
TEMPERATURE CHARACTERISTICS
Class 1: S3N
Class 2: Y5R
CAPACITANCE RANGE
100 pF to 4700 pF
SECTIONAL SPECIFICATION
IEC 60384-9, EIA 198
RATED DC VOLTAGE
500 V; 1 kV; 2 kV; 3 kV
EXAMPLES OF MARKING CODE
Disc size (D
max.
)
6.5 mm:
RR = low loss with T.C. Y5R
101K
2 kV
Note
• Remark: no TC marking for S3N
Disc size (D
max.
)
7.5
mm:
BC
RR
102K
3 kV
DIELECTRIC STRENGTH
200 % of rated voltage
INSULATION RESISTANCE AT 500 V
DC
10 000 M min.
TOLERANCE ON CAPACITANCE
± 10 %; ± 20 %
AGING
Typical 0.5 % per time decade
DISSIPATION FACTOR
0.2 % max.
Note
• The capacitors meet the essential requirements of “IEC 60384-9 and EIA 198”. Unless stated otherwise all electrical values apply at an
ambient temperature of 25 °C ± 3 °C, at normal atmospheric conditions
Revision: 07-Oct-16
Document Number: 28500
1
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
F Series
www.vishay.com
ORDERING CODES
DIELECTRIC S3N
(1000 V
DC
/ 2000 V
DC
)
CAP.
(pF)
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
1000 V
DC
ORDERING CODE
F101K25S3NN6###R
F121K25S3NN6###R
F151K25S3NN6###R
F181K25S3NN6###R
F221K25S3NN6###R
F271K25S3NN6###R
F331K25S3NN6###R
F391K25S3NN6###R
F471K25S3NN6###R
F561K29S3NN6###R
F681K29S3NN6###R
F821K33S3NN6###R
F102K33S3NN6###R
F122K39S3NN6###R
F152K39S3NN6###R
F182K43S3NN6###R
F222K47S3NN6###R
/
/
/
/
DIAMETER
(mm max.)
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
7.5
7.5
8.5
8.5
10.0
10.0
11.0
12.0
/
/
/
/
THICKNESS
(mm max.)
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
/
/
/
/
ORDERING CODE
F101K25S3NP6###R
F121K25S3NP6###R
F151K25S3NP6###R
F181K25S3NP6###R
F221K25S3NP6###R
F271K25S3NP6###R
F331K29S3NP6###R
F391K29S3NP6###R
F471K33S3NP6###R
F561K39S3NP6###R
F681K39S3NP6###R
F821K39S3NP6###R
F102K43S3NP6###R
F122K47S3NP63K7R
F152K53S3NP63K7R
F182K53S3NP63K7R
F222K63S3NP63K7R
F272K63S3NP63K7R
F332K69S3NP63K7R
F392K75S3NP83K0R
F472K84S3NP83K0R
2000 V
DC
DIAMETER
(mm max.)
6.5
6.5
6.5
6.5
6.5
6.5
7.5
7.5
8.5
10.0
10.0
10.0
11.0
12.0
13.5
13.5
16.0
16.0
17.5
19.0
21.5
THICKNESS
(mm max.)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
Vishay BCcomponents
DIELECTRIC S3N
(3000 V
DC
)
CAP.
(pF)
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3000 V
DC
ORDERING CODE
F101K25S3NR6###R
F121K25S3NR6###R
F151K29S3NR6###R
F181K29S3NR6###R
F221K29S3NR6###R
F271K29S3NR6###R
F331K33S3NR6###R
F391K39S3NR6###R
F471K39S3NR6###R
F561K39S3NR6###R
F681K43S3NR6###R
F821K53S3NR6###R
F102K53S3NR6###R
F122K59S3NR6###R
F152K63S3NR6###R
F182K69S3NR6###R
F222K75S3NR83K0R
F272K75S3NR83K0R
DIAMETER
(mm max.)
6.5
6.5
7.5
7.5
7.5
7.5
8.5
10.0
10.0
10.0
11.0
13.5
13.5
15.0
16.0
17.5
19.0
19.0
THICKNESS
(mm max.)
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
Notes
• Lead diameter is 0.6 mm
• # 5
th
digit is capacitance tolerance code: ± 10 % = K; ± 20 % = M
• # 13
th
digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14
th
digit is lead style code: L; J; K (J is valid for 1 kV only)
• # 15
th
digit is lead spacing code: 5.0 mm = 5; 6.4 mm = 6; 7.5 mm = 7; 10.0 mm = 0
Revision: 07-Oct-16
Document Number: 28500
2
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
F Series
www.vishay.com
Vishay BCcomponents
1000 V
DC
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
/
/
/
ORDERING CODE
F101K25Y5RN6###R
F121K25Y5RN6###R
F151K25Y5RN6###R
F181K25Y5RN6###R
F221K25Y5RN6###R
F271K29Y5RN6###R
F331K29Y5RN6###R
F391K29Y5RN6###R
F471K29Y5RN6###R
F561K33Y5RN6###R
F681K33Y5RN6###R
F821K39Y5RN6###R
F102K39Y5RN6###R
F122K43Y5RN6###R
F152K43Y5RN6###R
F182K47Y5RN6###R
F222K53Y5RN6###R
F272K53Y5RN6###R
F332K69Y5RN6###R
F392K69Y5RN83K0R
F472K75Y5RN83K0R
DIAMETER
(mm max.)
6.5
6.5
6.5
6.5
6.5
7.5
7.5
7.5
7.5
8.5
8.5
10.0
10.0
11.0
11.0
12.0
13.5
13.5
17.5
17.5
19.0
THICKNESS
(mm max.)
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
DIELECTRIC Y5R
(500 V
DC
/ 1000 V
DC
)
CAP.
(pF)
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
500 V
DC
ORDERING CODE
F101K20Y5RL6###R
F121K20Y5RL6###R
F151K20Y5RL6###R
F181K20Y5RL6###R
F221K20Y5RL6###R
F271K20Y5RL6###R
F331K20Y5RL6###R
F391K25Y5RL6###R
F471K25Y5RL6###R
F561K25Y5RL6###R
F681K25Y5RL6###R
F821K29Y5RL6###R
F102K29Y5RL6###R
F122K33Y5RL6###R
F152K33Y5RL6###R
F182K39Y5RL6###R
F222K43Y5RL63J7R
F272K47Y5RL63J7R
/
/
/
DIAMETER
(mm max.)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.5
6.5
6.5
6.5
7.5
7.5
8.5
8.5
10.0
11.0
12.0
/
/
/
DIELECTRIC Y5R
(2000 V
DC
/ 3000 V
DC
)
CAP.
(pF)
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
2000 V
DC
ORDERING CODE
F101K25Y5RP6###R
F121K25Y5RP6###R
F151K25Y5RP6###R
F181K29Y5RP6###R
F221K29Y5RP6###R
F271K29Y5RP6###R
F331K29Y5RP6###R
F391K33Y5RP6###R
F471K33Y5RP6###R
F561K39Y5RP6###R
F681K39Y5RP6###R
F821K43Y5RP6###R
F102K43Y5RP6###R
F122K47Y5RP6###R
F152K53Y5RP6###R
F182K59Y5RP6###R
F222K69Y5RP83K0R
F272K75Y5RP83K0R
F332K75Y5RP83K0R
F392K75Y5RP83K0R
F472K96Y5RP83K0R
DIAMETER
(mm max.)
6.5
6.5
6.5
7.5
7.5
7.5
7.5
8.5
8.5
10.0
10.0
11.0
11.0
12.0
13.5
15.0
17.5
19.0
19.0
19.0
24.5
THICKNESS
(mm max.)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
ORDERING CODE
F101K33Y5RR6###R
F121K33Y5RR6###R
F151K33Y5RR6###R
F181K33Y5RR6###R
F221K33Y5RR6###R
F271K33Y5RR6###R
F331K33Y5RR6###R
F391K39Y5RR6###R
F471K39Y5RR6###R
F561K43Y5RR6###R
F681K43Y5RR6###R
F821K53Y5RR6###R
F102K53Y5RR6###R
F122K59Y5RR6###R
F152K59Y5RR6###R
F182K75Y5RR6###R
F222K75Y5RR83K0R
F272K84Y5RR83K0R
/
/
/
3000 V
DC
DIAMETER
(mm max.)
8.5
8.5
8.5
8.5
8.5
8.5
8.5
10.0
10.0
11.0
11.0
13.5
13.5
15.0
15.0
19.0
19.0
21.0
/
/
/
THICKNESS
(mm max.)
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
/
/
/
Notes
• Lead diameter is 0.6 mm
• # 5
th
digit is capacitance tolerance code: ± 10 % = K; ± 20 % = M
• # 13
th
digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14
th
digit is lead style code: L; J; K (J is valid for 1 kV only)
• # 15
th
digit is lead spacing code: 5.0 mm = 5; 6.4 mm = 6; 7.5 mm = 7; 10.0 mm = 0
Revision: 07-Oct-16
Document Number: 28500
3
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
F Series
www.vishay.com
Vishay BCcomponents
LEAD SPACE
(mm)
VOLTAGE
(V
DC
)
BOX DIMENSIONS
LxWxH
PACKAGING
PACKAGING TYPE
SIZE CODE
20 to 25
29 to 39
Bulk
(long lead L
25.4
mm)
43 to 47
53 to 75
84 to 96
< 500
47
Tape and reel
7.5
53
all
6.4
500
WV
2000
3000
all
all
< 500
47
Ammopack
7.5
53
all
6.4
500
WV < 2000
2000 and 3000
all
all
all
all
SPQ
1000
1000
1000
500
250
2500
2000
1000
1000
1000
2000
2000
335 x 290 x 50
1500
1500
1500
360 x 330 x 55
335 x 290 x 50
335 x 240 x 50
370 x 370 x 60
245 x 120 x 65
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack
D
P
2
P
Δ
s
ΔP
Δs
ΔP
Δh
Δh
H
1
H
0
L
W
1
W
2
W
0
W
A
e

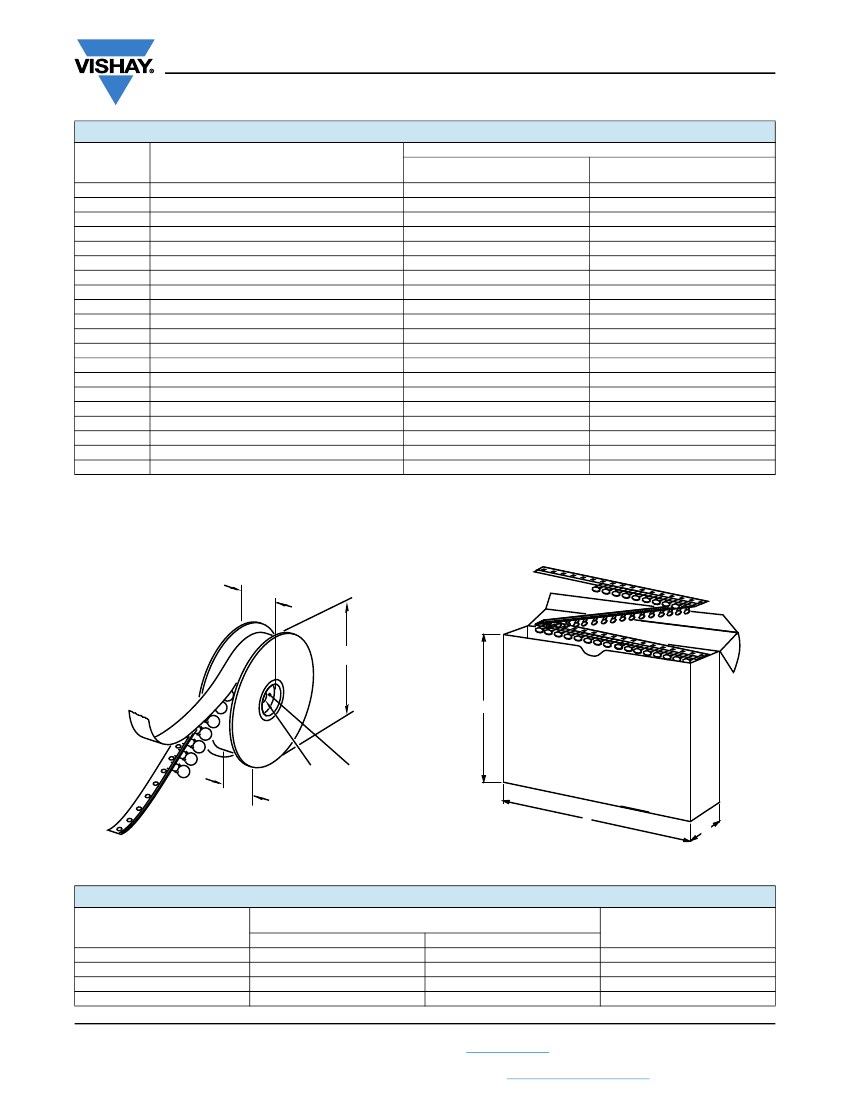

Direction of unreeling
Ød
P
1
F
P
0
D
0
t
1
detail A
t
Kinked capacitors on tape, lead spacing 5.0 mm (0.2) or 7.5 mm (0.3)
Revision: 07-Oct-16
Document Number: 28500
4
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
F Series
www.vishay.com
Vishay BCcomponents
DIMENSIONS (mm)
FEED-HOLE PITCH
FEED-HOLE PITCH
P
0
= 15.0
P
0
= 12.7
11.0 max.
14.0 max.
0.6
0.05
0.6
0.05
12.7
1.0
15.0
1.0
12.7
0.3
15.0
0.3
1.0 max.
1.0 max.
3.85
0.7
3.75
0.7
6.35
1.3
7.5
1.5
5.0 + 0.6/0.4
7.5
0.6/-
0.4
0
1.0
0
1.0
18.0 + 1.0/0.5
18.0 + 1.0/ 0.5
5.0 min.
5.0 min.
9.0 + 0.75/0.5
9.0 + 0.75/ 0.5
3.0 max.
3.0 max.
16.0
0.5
16.0
0.5
32.0
40.0
1.0 max.
1.0 max.
11.0
11.0
4.0
0.2
4.0
0.2
0.9 max.
0.9 max.
1.5 max.
1.5 max.
DIMENSIONS OF TAPE
SYMBOL
D
d
P
(1)
P
0
P
P
1 (2)
P
2 (2)
F
h
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
PARAMETER
Body diameter
Lead diameter
Pitch between capacitors
Feed-hole pitch
Plane deviation
Feed-hole center to lead center
Feed-hole center to component center
Lead spacing
Component alignment
Tape width
Hold-down tape width
Hole position
Hold-down tape margin
Height to seating plane
Maximum component height
Lead end protrusion
Maximum length of snipped lead
Feed-hole diameter
Total tape thickness
Maximum thickness of tape and wires
Notes
(1)
Cumulative pitch error:
1
mm/20 pitches
(2)
Obliquity maximum 3°
REEL AND TAPE DATA
in millimeters
51 max.
355.6 ± 2.0
W
28 ± 1.5
8.0
45 max.
L
H
Reel with capacitors on tape
Ammopack with capacitors on tape
DIMENSIONS OF AMMOPACK
PARAMETER
Taping pitch
L
W
H
Revision: 07-Oct-16
6.5 mm to 11.0 mm
12.7
335
290
50
DISC SIZE
(D
MAX.
)
12.0 mm to 13.5 mm
15.0
360
330
55
UNIT
mm
mm
mm
mm
Document Number: 28500
5
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
