VY1 Compact Series
www.vishay.com
Vishay BCcomponents
AC Line Rated Ceramic Disc Capacitors
Class X1, 760 V
AC
, Class Y1, 500 V
AC
FEATURES
•
•
•
•
•
•
•
•
Complying with IEC 60384-14 4
th
edition
Can pass 10 kV pulses (10 per polarity)
Withstands 85 / 85 / 1000 h test
Reduced size (compact design)
High reliability
Vertical (inline) kinked or straight leads
Singlelayer AC disc safety capacitors
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
•
•
•
•
X1, Y1 according to IEC 60384-14.4
Across-the-line
Line by-pass
Antenna coupling
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
Y5U
500
470
4700
Radial
VALUE
2
Y5U
760
DESIGN
The capacitor consists of a ceramic disc which is copper
plated on both sides. Connection leads are made of tinned
copper clad steel having a diameter of 0.6 mm.
The capacitors may be supplied with vertical (inline) kinked
leads having a lead spacing of 10.0 mm, or 12.5 mm.
Encapsulation is made of flame retardant epoxy resin in
accordance with UL 94 V-0.
CAPACITANCE RANGE
470 pF to 4700 pF
OPERATING TEMPERATURE RANGE
-40 °C to +125 °C
RATED VOLTAGE U
R
IEC 60384-14.4:
(X1): 760 V
AC,
50 Hz
(Y1): 500 V
AC
, 50 Hz
1500 V
DC
TEMPERATURE CHARACTERISTICS
Y5U
SECTIONAL SPECIFICATIONS
Climatic category (according to EN 60058-1)
40/125/21
TEST VOLTAGE
Component test (100 %):
4000 V
AC
, 50 Hz, 2 s
Random sampling test (destructive test):
4000 V
AC
, 50 Hz, 60 s
Voltage proof of coating (destructive test):
4000 V
AC
, 50 Hz, 60 s
COATING
According to UL 94 V-0
Epoxy resin, isolating, flame retardant
Halogen-free
Reinforced insulation
APPROVALS
IEC 60384-14.4
UL 60384-14
DIN EN 60384-14
CSA E60384-1:03, CSA E60384-14:09
CQC11-471112-2009
INSULATION RESISTANCE
10 000 M
CAPACITANCE TOLERANCE
± 20 %
PACKAGING
Bulk, tape and reel, taped ammopack
DISSIPATION FACTOR
Max. 2.5 % (1 kHz)
Revision: 29-Mar-18
Document Number: 28555
1
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Compact Series
www.vishay.com
Vishay BCcomponents

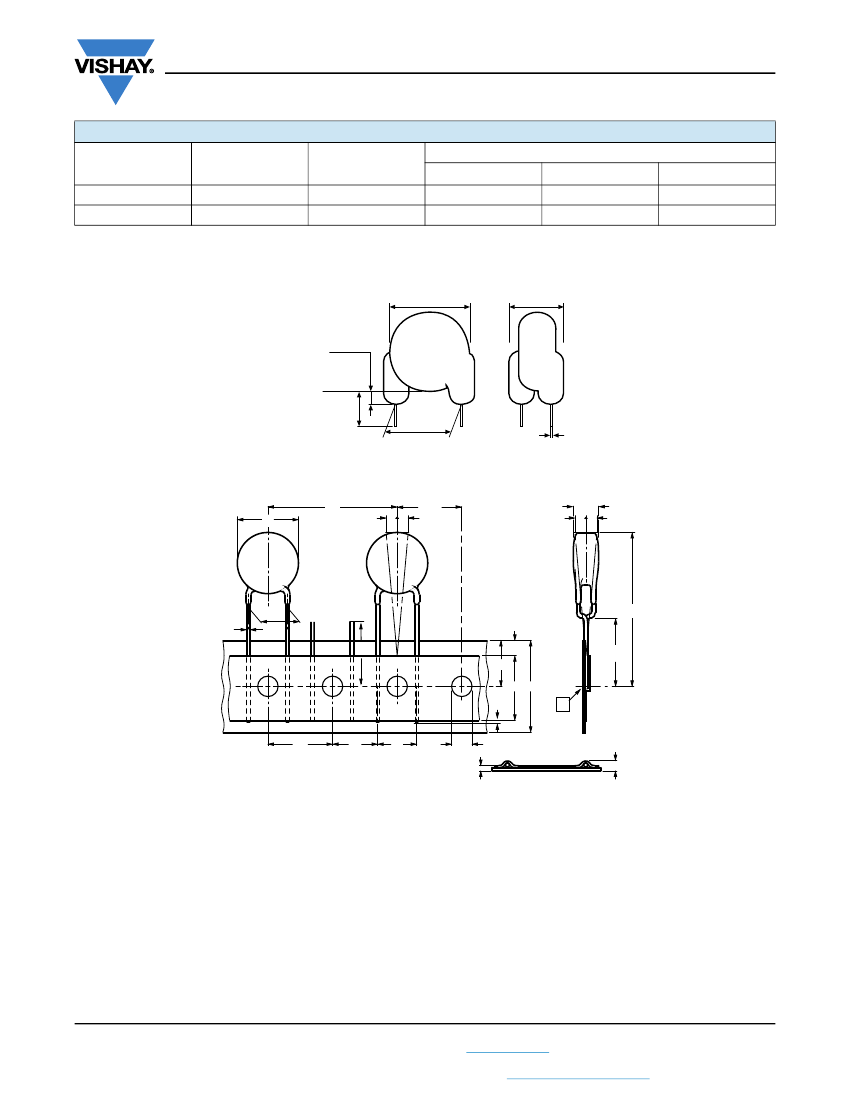

DIMENSIONS
in millimeters
F
e = 3.0 max.
SH
= 4.0 max.
Ø 0.6 ± 0.05
D
max.
T
max.
L = 30.0 ± 5.0
Capacitors with 10.0 mm or 12.5 mm lead
spacing
TECHNICAL DATA
CAPACITANCE
C (pF)
470
680
1000
1500
2200
2700
3300
3900
4700
Notes
• Straight leads available on request
• Coating extension DR valid for straight leads only
± 20
CAPACITANCE
TOLERANCE
(%)
BODY
DIAMETER
D
max.
(mm)
7.5
8.0
9.0
11.0
12.0
13.0
15.0
15.5
5.0
10.0 or 12.5
BODY
THICKNESS
T
max.
(mm)
LEAD SPACING
F (mm) ± 1 mm
PART NUMBER
MISSING DIGITS SEE
ORDERING CODE BELOW
VY1471M29Y5UC6###
VY1681M29Y5UC6###
VY1102M31Y5UC6###
VY1152M35Y5UC6###
VY1222M43Y5UC6###
VY1272M47Y5UC6###
VY1332M51Y5UC6###
VY1392M59Y5UC6###
VY1472M61Y5UC6###
ORDERING CODE
#
###
Example
7
th
digit
15
th
to
17
th
digit
471
Capacitance
value
VY1
Series
Capacitance tolerance
Lead configuration
M
29
Y5U
Temperature
coefficient
Tolerance Size code
code
± 20 % = M
Available configurations see below
C
Rated
voltage
Compact
size
6
T
V
Lead
style
L=
straight
V = inline
kinked
0
Lead
spacing
0 = 10.0
X = 12.5
Lead wire Packaging /
diameter lead length
3 = bulk
T = tape
and reel
U=
ammopack
Revision: 29-Mar-18
Document Number: 28555
2
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Compact Series
www.vishay.com
Vishay BCcomponents
BODY DIAMETER
D
max.
(mm)
12.0
15.5
PACKAGING
CAPACITANCE
VALUE
470 pF to 2700 pF
3300 pF to 4700 pF
PACKAGING QUANTITIES
BULK
1000
500
REEL
500
500
AMMO
750
750
SIZE CODE
29 to 47
51 to 61
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack
STRAIGHT LEADS
D
max.
T
max.
coating
extension
e
3.0 max.
30 mm to 3.0 mm (ΔR)
F
d = 0.6 mm
P
D
ΔP
P
2
ΔP
Δh
T
Δh
F
Ød
L
W
1
W
0
W
L
1
A
W
2
H
0
H
1
P
0
P
1
F
D
0
t
detail A
t
1
The sprocket hole pitch (P
0
) is 12.7 mm for lead spacing 10.0 mm and 12.5 mm
Revision: 29-Mar-18
Document Number: 28555
3
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Compact Series
www.vishay.com
Vishay BCcomponents
DIMENSIONS
(mm)
16.0 max.
0.6 ± 0.05
25.4 ± 1
12.7 ± 0.3
7.7 or 6.4 ± 1.0
12.7 ± 1.5
10.0 or 12.5 + 0.6/- 0.4
± 1.0 max.
± 1.0 max.
18.0 + 1/- 0.5
5.0 min.
9.0 + 0.75/- 0.5
3.0 max.
40.0
16.0 ± 0.5
20.0 ± 0.5
11.0 max.
1.0 max.
4.0 ± 0.2
0.9 max.
t+d
DIMENSIONS OF TAPE
SYMBOL
D
(1)
d
P
P
0 (2)
P
1
(3)
PARAMETER
Body diameter
Lead diameter
Pitch of component
Pitch of sprocket hole
Distance, hole center to lead
Distance, hole to center of component
Lead spacing
Average deviation across tape
Average deviation in direction of reeling
Carrier tape width
Hold-down tape width
Position of sprocket hole
Distance of hold-down tape
Maximum component height
Height to seating plane (for kinked leads)
Height to seating plane (for straight leads)
Length of cut leads
Length of lead protrusion
Diameter of sprocket hole
Total tape thickness
Total tape thickness with lead wire
P
2 (3)
F
h
P
W
W
0
W
1
W
2
H
1
H
0
H
0
L
L
1
D
0
t
t
1
Notes
(1)
See “Technical Data” table
(2)
Cumulative pitch error: ± 1 mm/20 pitches
(3)
Obliquity maximum 3°

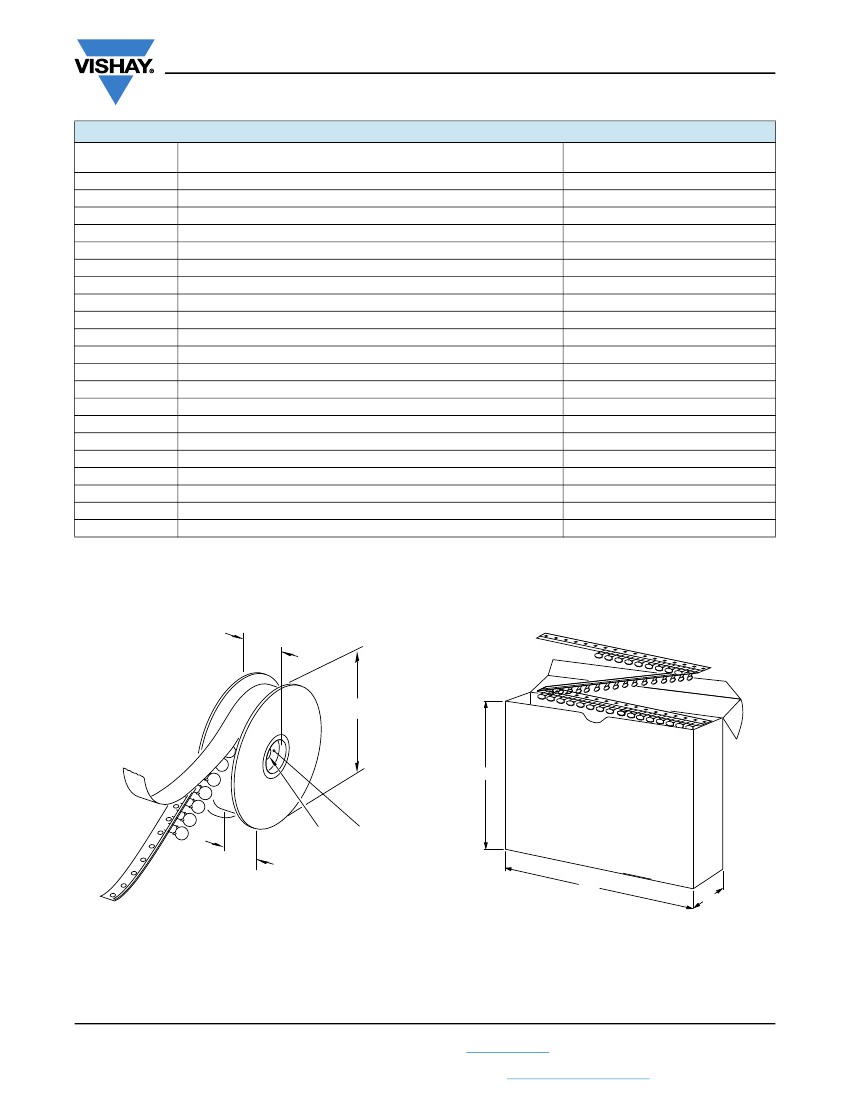

REEL AND TAPE DATA
in millimeters
51 max.
355.6 ± 2.0
330
28 ± 1.5
45 max.
8.0
360
55
Reel with capacitors on tape
Ammopack with capacitors on tape
Revision: 29-Mar-18
Document Number: 28555
4
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Compact Series
www.vishay.com
Vishay BCcomponents

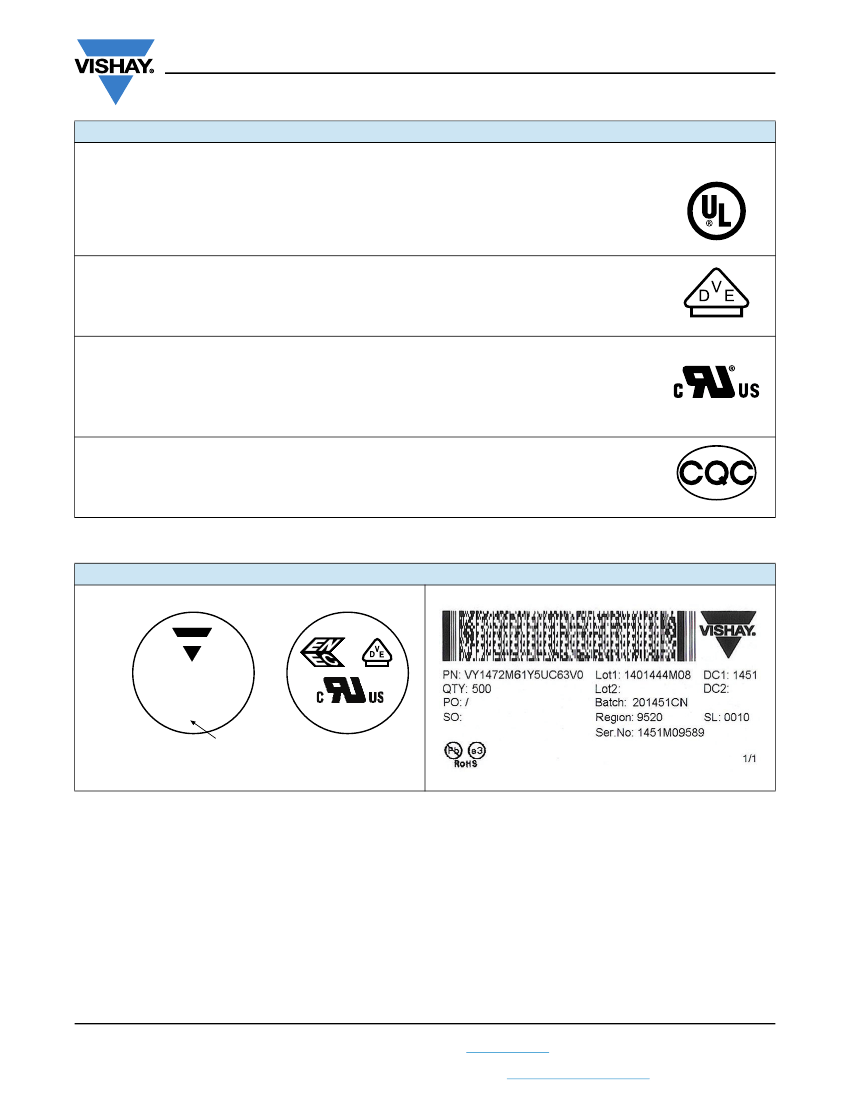

APPROVALS
IEC 60384-14.4 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y1-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
US-26561-UL
US-26561-UL
470 pF to 4.7 nF
470 pF to 4.7 nF
500 V
AC
760 V
AC
VDE
Y1-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Underwriters Laboratories Inc./Canadian Standards Association
Y1-capacitor: CSA test certificate:
X1-capacitor: CSA test certificate:
UL 60384-14, CSA E60384-1:03, CSA E60384-14:09
Fixed capacitors for electromagnetic interference suppression and connection to the supply mains.
CQC
Y1-capacitor: CQC test certificate:
X1-capacitor: CQC test certificate:
CQC05001015032
CQC05001015032
470 pF to 4.7 nF
470 pF to 4.7 nF
500 V
AC
760 V
AC
E183844
E183844
470 pF to 4.7 nF
470 pF to 4.7 nF
500 V
AC
760 V
AC
40012673
40012673
470 pF to 4.7 nF
470 pF to 4.7 nF
500 V
AC
760 V
AC
MARKING
Sample
(2 sides)
10
VY1 472 M
Y1 500 ~
X1 760 ~
xxxxC
4 digit date code
(year / week)
Revision: 29-Mar-18
Document Number: 28555
5
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
