• Positioning the electrodes along the length of the chip device,
reduces ESR and ESL components over conventional products.
• Provides high frequency noise suppression effect because the
resonating frequency is high.
• Flipped geometry provides low inductance (less than 400 pH).
• Provides stabilization of power line voltage.
• Suitable for IC decoupling application.
Applications
•
•
•
•
Decoupling CPU power line
Bias line in CPU
High speed digital IC/decoupling
PC, cell phones, camcorders, etc.

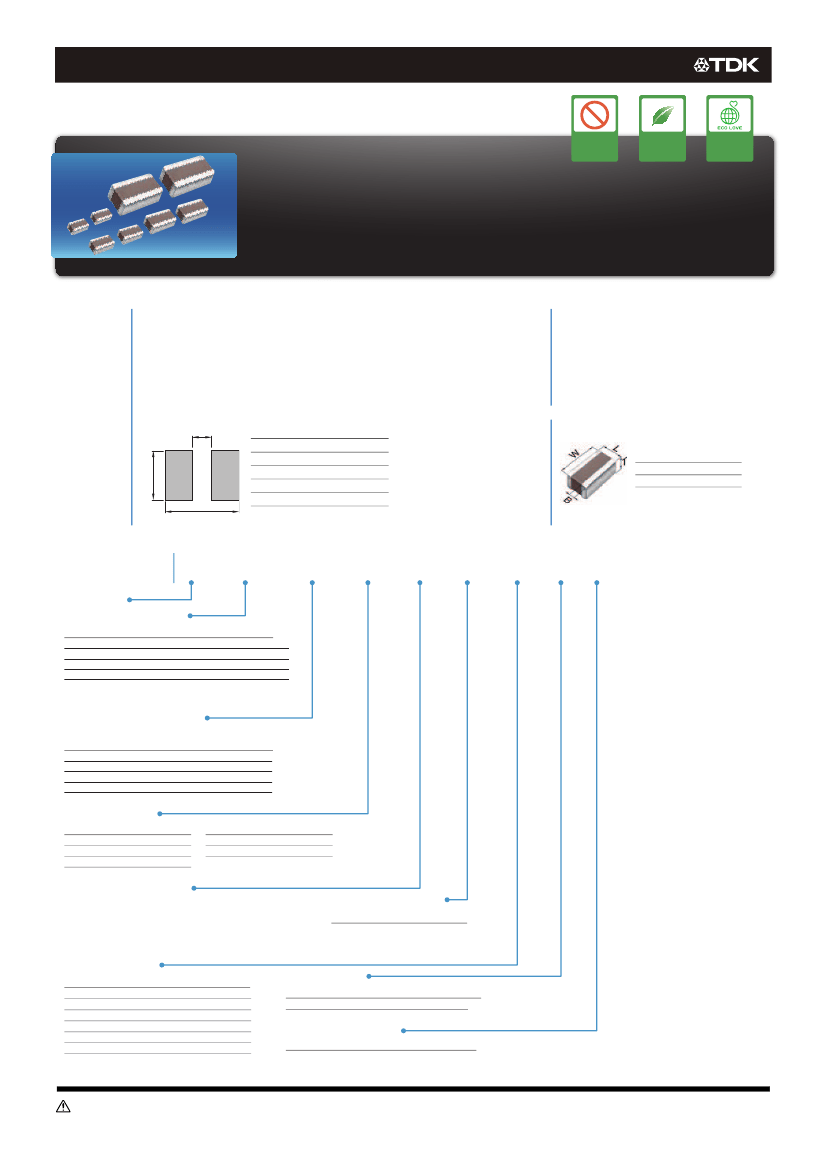

PC Board
Pattern
c
a
Size
C0510
CGBD
C0816
C1220
C1632
b
Dimensions (mm)
a
b
c
0.2
0.6
1.0
0.2
0.6
1.0
0.3
1.0
1.6
0.5
1.6
2.0
0.75
2.2
3.2
Shape &
Dimensions
L
W
T
B
Body Length
Body Width
Body Height
Terminal Width
Catalog Number
Construction
Series Name
Dimensions L x W (mm)
Code
C0510
CGBD
∗
C0816
C1220
C1632
Length
0.52 ± 0.05
0.52 ± 0.05
0.80 ± 0.10
1.25 ± 0.20
1.60 ± 0.20
C • 1632 • X5R • 0J • 106 • M • 130 • A • C
Width
1.00 ± 0.05
1.00 ± 0.05
1.60 ± 0.10
2.00 ± 0.20
3.20 ± 0.20
Terminal
0.10 min.
0.10min.
0.10 min.
0.20 min.
0.20 min.
∗
CGBD: Thickness 0.22mm max.
∗ ∗
Dimension tolerance are typical values
Temperature Characteristics
Temperature
Characteristics
X5R
X6S
X7R
X7S
X7T
Capacitance
Change
±15%
±22%
±15%
±22%
+22, -33%
Temperature
Range
-55 to +85°C
-55 to +105°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
Rated Voltage (DC)
Code
0E
0G
0J
1A
Voltage (DC)
2.5V
4.0V
6.3V
10V
Code
1C
1E
1H
Voltage (DC)
16V
25V
50V
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and in units of
pico Farads (pF). The first and second digits identify the first
and second significant figures of the capacitance. The third digit
identifies the multiplier.
Ex. 103 = 10,000pF; 105 = 1,000,000pF = 1μF
Capacitance Tolerance
Code
M
Tolerance
± 20%
Nominal Thickness
Code
022
030
050
070
085
115
130
Thickness
0.22 mm
0.30 mm
0.50 mm
0.70 mm
0.85 mm
1.15 mm
1.30 mm
Packaging Style
Code
A
B
Style
178 mm Reel, 4 mm Pitch
178 mm Reel, 2 mm Pitch
Special Reserved Code
Code
C
Description
TDK Internal Code
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160822 / mlcc_commercial_lwreverse_en.fm
(3/6)
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: X5R (±15%), X6S (±22%), X7S (±22%)
Temperature Characteristics: X5R (±15%), X6S (±22%), X7T (+22%,-33%)
Rated Voltage 4V (0G), 2.5V (0E)
：
Capacitance
Tolerance
(pF)
1,000,000
X5R
0G
(4V)
X6S
0G
(4V)
X7T
0E
(2.5V)
Standard Thickness
0.22 mm max.
Code
105
M: ± 20%
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: X5R (±15%), X6S (±22%), X7R (±15%), X7S (±22%)
Rated Voltage 16V (1C), 10V (1A), 6.3V (0J), 4V (0G)
：
Capacitance
Tolerance
(pF)
10,000
22,000
47,000
100,000
220,000
470,000
1,000,000
2,200,000
4,700,000
EIA CC0306 [C0816]
X5R
1C
(16V)
1A
(10V)
0J
(6.3V)
X6S
0G
(4V)
X7R
1C
(16V)
0J
(6.3V)
X7S
0G
(4V)
Code
103
223
473
104
224
474
105
225
475
M: ± 20%
Standard Thickness
0.50 mm
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160822 / mlcc_commercial_lwreverse_en.fm
(4/6)
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: X5R (±15%), X7R (±15%)
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
