Molding Type Power Inductor
ASPI-0530HI
• High saturation current.
• Low loss due to low DC resistance.
• Frequency application up to 3MHz.
• Low profile with max thickness 3.0mm.
•100% lead free and meeted RoHS standard.
• Suitable for reflow soldering.
• High reliable SMD package
FEATURES:
APPLICATIONS:
Pb
RoHS
Compliant
5.6 x 5.2 x 3.0 mm
| | | | | | | | | | | | | |
|
• DC/DC converters in Notebook, Netbook, desktop and server
• Low profile, high current power supplies.
STANDARD SPECIFICATIONS
Abracon P/N:
Operating Temperature & Humidity:
Storage Temperature & Humidity:
ASPI-0530HI Series
-55˚C to +125˚C (Including self generated heat)
+25˚C to +35˚C, 45% to 85% RH
Tolerance
%
M
M
M
M
DCR Typ
m
13.0
20.0
29.0
DCR Max
m
14.0
25.0
35.0
Saturation
Current
A
Isat*
11.0
10.0
9.0
Temperature
Rise Current
A
Irms*
7.0
6.0
5.5
Part Number
Units
Symbol
ASPI-0530HI-1R0
ASPI-0530HI-1R5
ASPI-0530HI-2R2
Inductance
H
L
1.0
1.5
2.2
Test Conditions
Inductance is measured in HP-4284A Precision
LCR
Meter.
RDC is measured in HP-4338B milli ohm meter.(or equivalent).
Isat: Based on inductance change (△
L/Lo
:
≤
-20%)
Irms: Based on temperature rise (△ : 40
o
C TYP. )
T

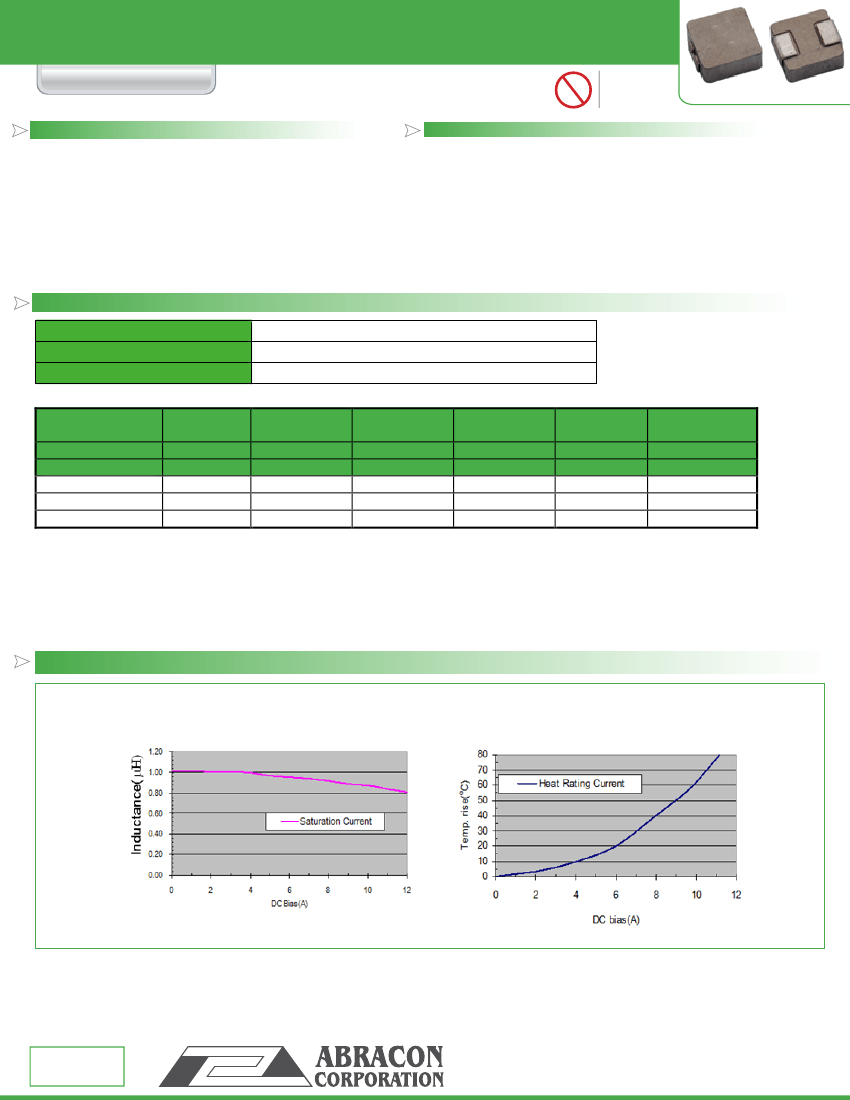

ELECTRICAL CHARACTERISTIC CURVES
ASPI-0530HI-1R0
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 11.17.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Molding Type Power Inductor
ASPI-0530HI

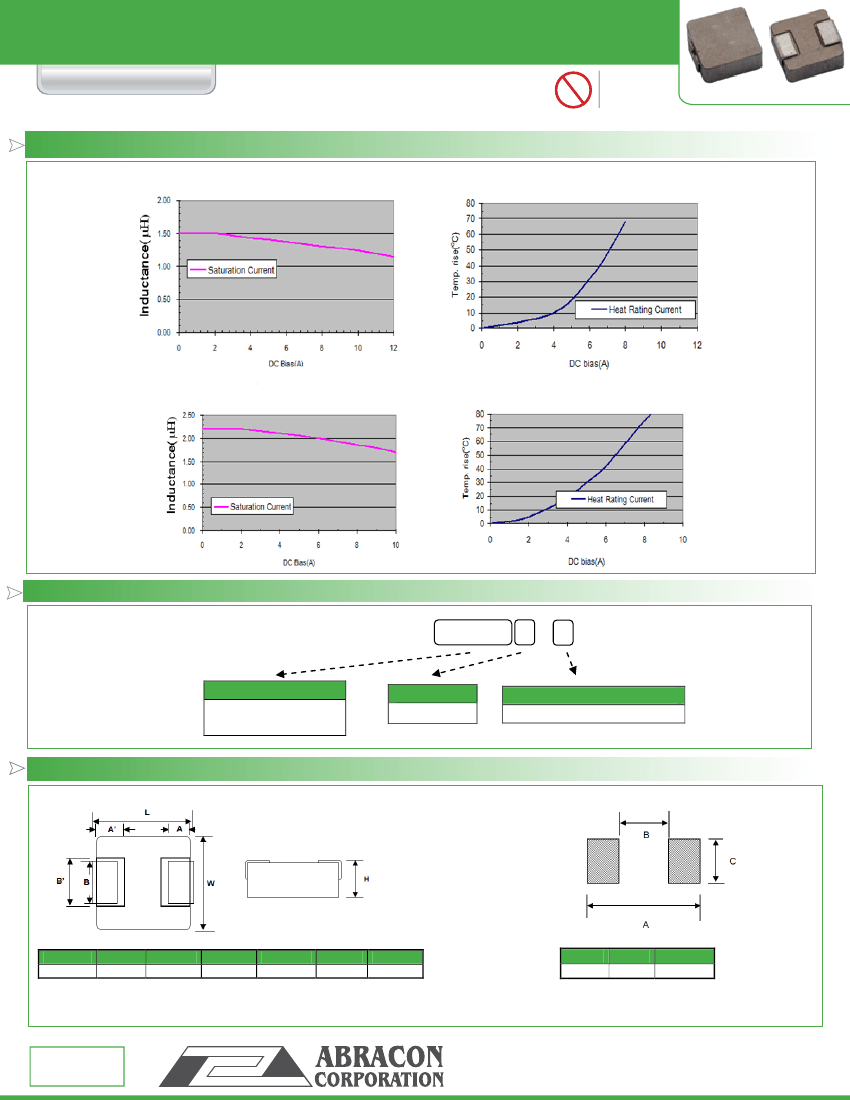

ELECTRICAL CHARACTERISTIC CURVES
ASPI-0530HI-1R5
Pb
RoHS
Compliant
5.6 x 5.2 x 3.0 mm
| | | | | | | | | | | | | |
|
ASPI-0530HI-2R2
PART NUMBER IDENTIFICATION
ASPI-0530HI-
Inductance Code
Please refer to the
Electrical Spec Table
Tolerance
M: ±20%
-
Packaging
T2: Tape and Reel (2kpcs / reel)
OUTLINE DRAWING:
Recommended Land Pattern
A
1.0 ±0.4
A'
1.5 ±0.1
B
2.0 ±0.3
B'
2.5 ±0.2
L
5.60 ±0.35
W
5.2 ±0.2
H max
3.0
A
5.99
B
2.2
C
2.5
Dimension: mm
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 11.17.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Molding Type Power Inductor
ASPI-0530HI

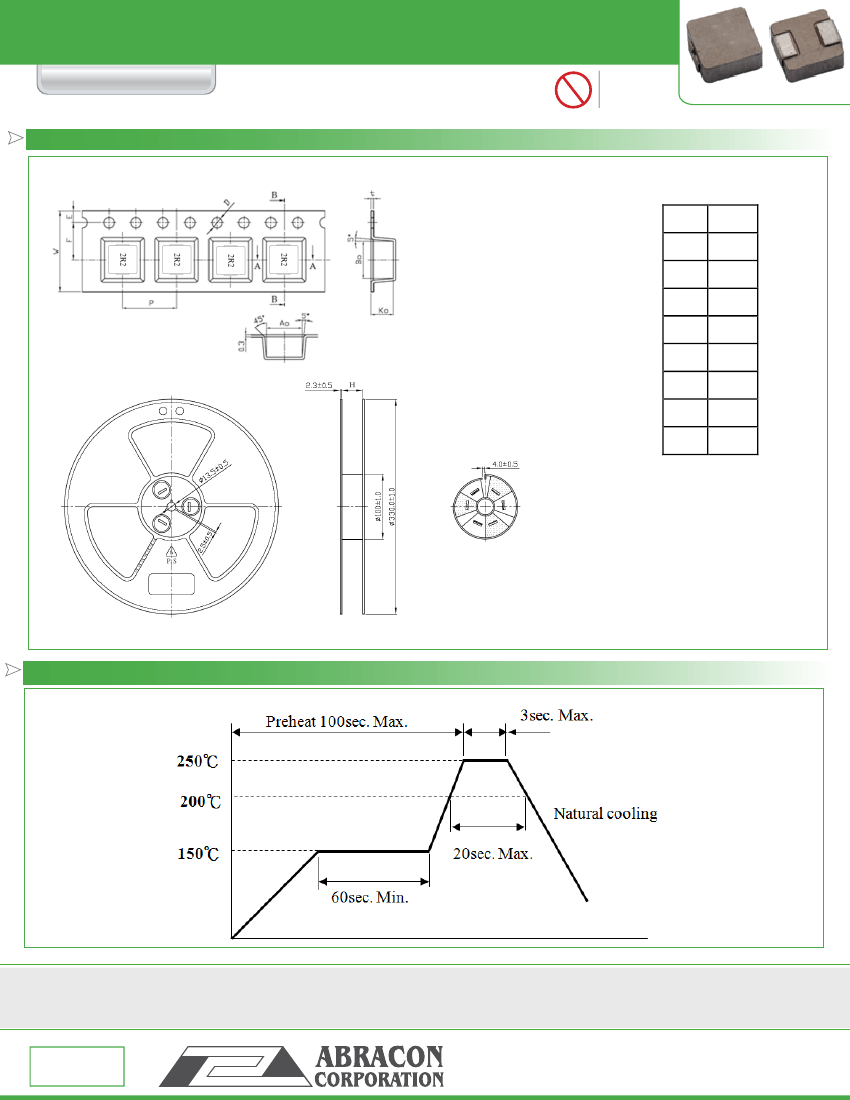

TAPE & REEL:
T2: 2,000pcs / reel
A0
B0
K0
P
t
W
E
F
D
5.3
5.5
3.3
8.0
0.4
12
1.75
5.5
1.5
Pb
RoHS
Compliant
5.6 x 5.2 x 3.0 mm
| | | | | | | | | | | | | |
|
Dimension: mm
REFLOW PROFILE:
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 11.17.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
