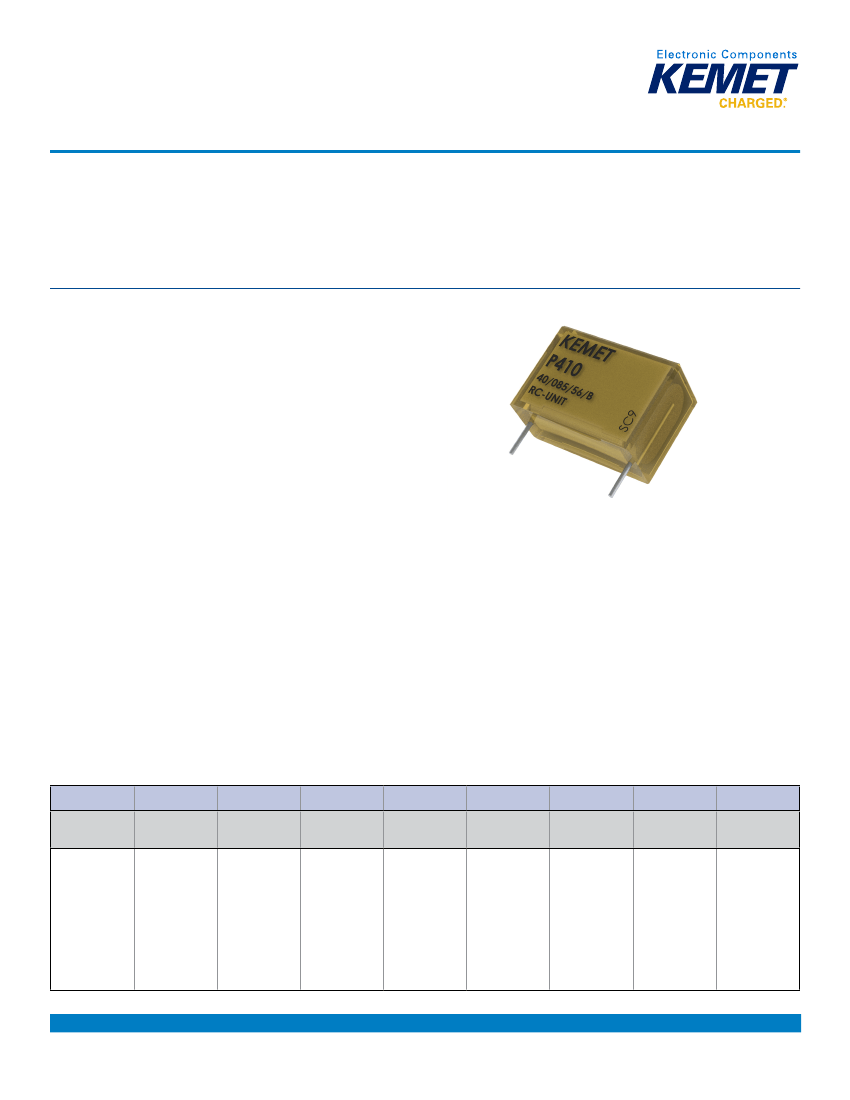

AC Line EMI Suppression and RC Networks
P410 Series, Integrated Resistor,
Metallized Impregnated Paper, Class X1, 300 VAC
Overview
The P410 Series is constructed of multilayer metallized
paper encapsulated and impregnated in self-extinguishing
material meeting the requirements of UL 94 V–0.
Applications
Typical applications include worldwide use in contact
protection, contact interference suppression and transient
suppression.
Benefits
• Approvals: ENEC, UL, cUL
• Rated voltage: 300 VAC 50/60 Hz
• Capacitance range: 0.022 – 0.1 µF
• Capacitance tolerance: ± 20%
• Resistance range: 100 Ω
• Resistance tolerance: ± 30%
• Lead spacing: 15.2 – 25.4 mm
• Climatic category: 40/085/56/B, IEC 60068-1
• Tape and reel packaging in accordance with IEC 60286-2
• RoHS Compliant and lead-free terminations
• Operating temperature range of −40˚C to +85˚C
• Excellent self-healing properties which ensure long life
even when subjected to frequent over-voltages
• Good resistance to ionization due to impregnated paper
dielectric
• High dV/dt capability
• Impregnated paper ensures excellent stability and
reliability properties, particularly in applications with
continuous operation
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
P
Capacitor Class
P= Metallized
Paper
410
Series
RC Snubber
Q
Lead Spacing
(mm)
Q = 15.2
C = 20.3
E = 25.4
M
Size Code
See
Dimension
Table
223
Capacitance
Code (pF)
First two
digits
represent
significant
figures. Third
digit specifies
number of
zeros.
M
Capacitance
Tolerance
M = ±20%
300
Rated Voltage
(VAC)
300 = 300
A
Packaging
See Ordering
Options Table
H101
Resistance (Ω)
H plus first
two digits
represent
significant
figures. Third
digit specifies
number of
zeros.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3090_P410_X1_300 • 10/31/2017
1
Film Capacitors – AC Line EMI Suppression and RC Networks
P410 Series Metallized Impregnated Paper, Class X1, 300 VAC
Ordering Options Table
Lead
Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk – Short Leads
Bulk – Maximum Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
Tray – Short Leads
Bulk – Maximum Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
H
0
= 18.5 +/−0.5
P
6 +0/−1
30 +5/−0
H
0
= 18.5 +/−0.5
C
A
L
H
0
= 18.5 +/−0.5
P
6 +0/−1
30 +5/−0
H
0
= 18.5 +/−0.5
C
A
L
Lead Length
(mm)
Part Number
(Insert at 14th
character)
15.2
20.3
25.4
Bulk – Short Leads
Bulk – Maximum Length Leads
6 +0/−1
30 +5/−0
C
A
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
B
H
d
p
LL
Size Code
QM
QS
CJ
CP
EE
p
Nominal
15.2
15.2
20.3
20.3
25.4
Tolerance
+/−0.4
+/−0.4
+/−0.4
+/−0.4
+/−0.4
Nominal
7.3
8.5
9.0
11.3
10.6
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
13.0
14.3
15.0
16.5
16.1
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
18.5
18.5
24.0
24.0
30.5
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.8
0.8
0.8
0.8
1.0
d
Tolerance
+/−0.05
+/−0.05
+/−0.05
+/−0.05
+/−0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3090_P410_X1_300 • 10/31/2017
2
Film Capacitors – AC Line EMI Suppression and RC Networks
P410 Series Metallized Impregnated Paper, Class X1, 300 VAC
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Resistance Range
Resistance Tolerance
Temperature Range
Climatic Category
Approvals
Peak Pulse Voltage
Series Resistance
Insulation Resistance
Pulse Current
Test Voltage Between Terminals
In DC Applications
Power Ratings
300 VAC 50/60 Hz
0.022 – 0.1 µF
±20%
100 Ω
±30%
−40°C to +85°C
40/085/56/B
ENEC, UL, cUL
1,000 V
The series resistance is defined at 1 kHz for RC ≥ 50 µs and at
100 kHz for RC < 50 µs
Minimum Values Between Terminals
≥ 1,000 MΩ
Maximum 12 A repetitive. Maximum 20 A peak for occasional
transients.
The 100% screening factory test is carried out at 3,000 VDC. The
voltage level is selected to meet the requirements in applicable
equipment standards. All electrical characteristics are checked
after the test.
Recommended voltage ≤ 1,000 VDC
The average losses may reach 0.5 W provided the surface
temperature does not exceed + 85°C. For maximum permitted
power dissipation vs. temperature, see Derating Curves.
Maximum Allowable Power Dissipation vs. Ambient
Temperature and Case Sizes.
Derating Curves
Curve
1
1
2
3
4
Dimension B (mm)
7.3
8.5
9
11.3
10.6
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3090_P410_X1_300 • 10/31/2017
3
Film Capacitors – AC Line EMI Suppression and RC Networks
P410 Series Metallized Impregnated Paper, Class X1, 300 VAC
Environmental Test Data
Test
Endurance
Vibration
Bump
Change of Temperature
Active Flammability
Passive Flammability
Damp Heat Steady State
IEC Publication
IEC 60384-14
IEC 60068–2–6 Test Fc
IEC 60068–2–29 Test Eb
IEC 60068-2-14 Test Na
IEC 60384–14
IEC 60384–14
IEC 60068–2–78 Test Cab
Procedure
1.25 x V
R
Vac 50Hz, once every hour increase to 1,000 Vac for 0.1
second, 1,000 hours at upper rated temperature.
3 directions at 2 hours each, 10 – 500 Hz at 0.75 mm or 98 m/s
2
4,000 bumps at 390 m/s
2
Upper and lower temperature 5 cycles
V
R
+ 20 surge pulses at 4.0 kV (pulse every 5 seconds)
IEC 60384–1, IEC 60695–11–5 Needle-flame test
+40°C and 93% RH, 56 days
Approvals
Certification Body
Intertek Semko AB
Mark
Specification
EN/IEC 60384-14
UL 60384-14
CAN/CSA-E60384-14-09
File Number
SE/0140–36A
UL
E73869
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
Table 1 – Ratings & Part Number Reference
Lead
Spacing (p)
15.2
15.2
20.3
20.3
25.4
Capacitance
Value (µF)
0.022
0.033
0.047
0.068
0.1
Resistance (Ω)
100
100
100
100
100
Maximum Dimensions in mm
B
7.3
8.5
9.0
11.3
10.6
H
13.0
14.3
15.0
16.5
16.1
L
18.5
18.5
24.0
24.0
30.5
KEMET
Part Number
P410QM223M300(1)H101
P410QS333M300(1)H101
P410CJ473M300(1)H101
P410CP683M300(1)H101
P410EE104M300(1)H101
(1) Insert lead and packaging code. See Ordering Options Table for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3090_P410_X1_300 • 10/31/2017
4
Film Capacitors – AC Line EMI Suppression and RC Networks
P410 Series Metallized Impregnated Paper, Class X1, 300 VAC
Soldering Process
The implementation of the RoHS directive has resulted in the selection of SnAgCu (SAC) alloys or SnCu alloys as primary solder.
This has increased the liquidus temperature from that of 183ºC for SnPb eutectic alloy to 217 – 221ºC for the new alloys. As a
result, the heat stress to the components, even in wave soldering, has increased considerably due to higher pre-heat and wave
temperatures. Polypropylene capacitors are especially sensitive to heat (the melting point of polypropylene is 160 – 170ºC). Wave
soldering can be destructive, especially for mechanically small polypropylene capacitors (with lead spacing of 5 mm to 15 mm),
and great care has to be taken during soldering. The recommended solder profiles from KEMET should be used. Please consult
KEMET with any questions. In general, the wave soldering curve from IEC Publication 61760-1 Edition 2 serves as a solid guideline
for successful soldering. Please see Figure 1.
Reflow soldering is not recommended for through-hole film capacitors. Exposing capacitors to a soldering profile in excess of the
above the recommended limits may result to degradation or permanent damage to the capacitors.
Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert
through-hole parts after the curing of surface mount parts. Consult KEMET to discuss the actual temperature profile in the oven,
if through-hole components must pass through the adhesive curing process. A maximum two soldering cycles is recommended.
Please allow time for the capacitor surface temperature to return to a normal temperature before the second soldering cycle.
Manual Soldering Recommendations
Following is the recommendation for manual
soldering with a soldering iron.
Temperature (°C)
Recommended Soldering Temperature
400
Wave Soldering Recommendations
300
260°C
2+3s max
250
First wave
Second wave
200
ΔT
<150°C
Cooling
ca 2°C/s
ca 3.5°C/s typical
Soldering iron bit temperature (deg C)
350
150
Preheating
300
100
T
preheat
115°C max
ca 5°C/s
250
100°C
Typical
200
50
150
100
0
0
40
80
120
160
200
240
50
Time (s)
0
1
2
3
4
5
6
7
8
0
Soldering time (sec)
The soldering iron tip temperature should
be set at 350°C (+10°C maximum) with the
soldering duration not to exceed more than 3
seconds.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3090_P410_X1_300 • 10/31/2017
5
