"High Frequency Ceramic Solutions"
5.5 GHz Band Pass Filter
Detail Specification 04/24/03
P/N 5515BP15C975
Page 1 of 2

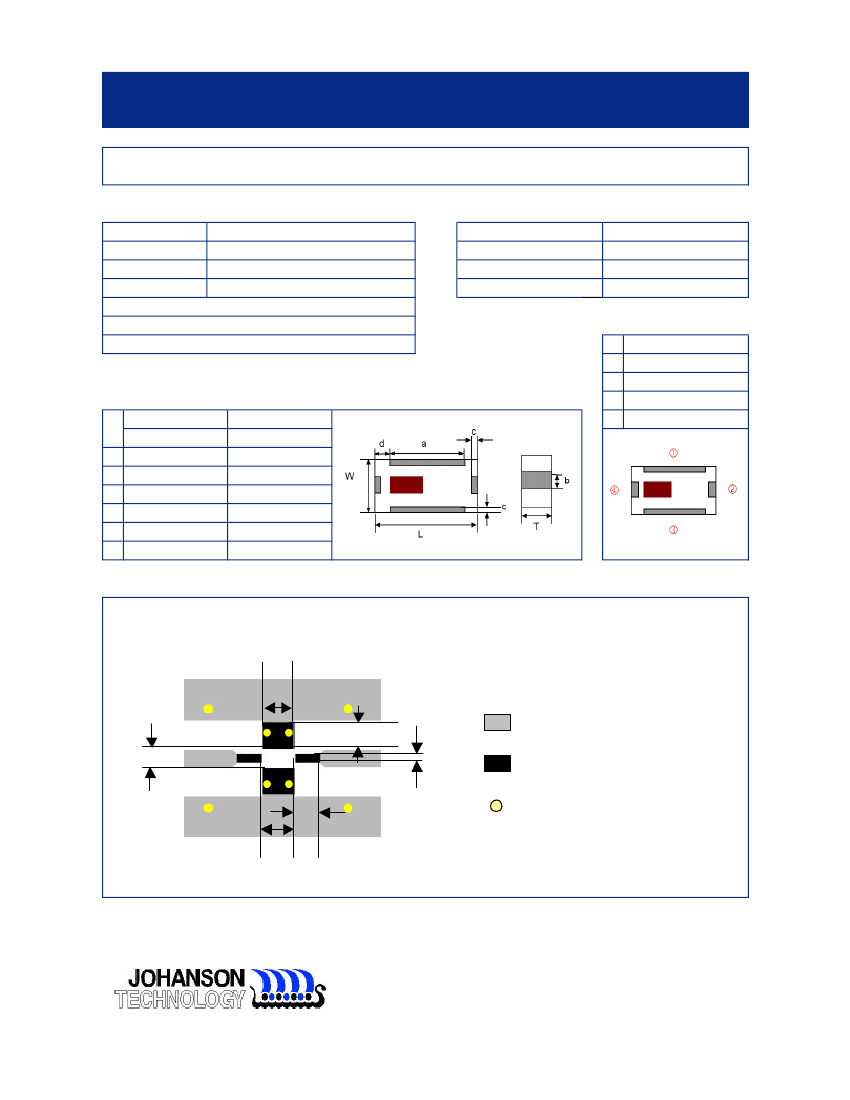

General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
5515BP15C975
4900~5875
2.0 dB max.
8.5 dB min.
30 dB @ 500~4000MHz
20 dB @ 4200MHz
15 dB @ 9800~11750MHz
Input Power
Impedance
Operating Temperature
Reel Quanity
500mW max.
50
Ω
-40 to +85°C
4,000
Terminal Configuration
No.
Function
1
GND
2
OUT
3
GND
4
IN
Mechanical Dimensions
L
W
T
a
b
c
d
0.079
0.049
0.037
0.051
0.012
0.010
0.014
In
±
±
±
±
±
±
±
0.006
0.004
0.004
0.006
0.006
0.006
0.006
2.00
1.25
0.95
1.30
0.30
0.25
0.35
mm
± 0.15
± 0.10
± 0.10
± 0.15
± 0.15
± 0.15
± 0.15
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50Ω impedance matching characteristics.
Units: mm
1.30
Solder Resist
1.00
0.80
0.35
Land
Through-hole (φ 0.35)
1.00
1.40
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
©2003 Johanson Technology, Inc. All rights reserved.
"High Frequency Ceramic Solutions"
5.5 GHz Band Pass Filter
Detail Specification 04/24/03
P/N 5515BP15C975
Page 2 of 2

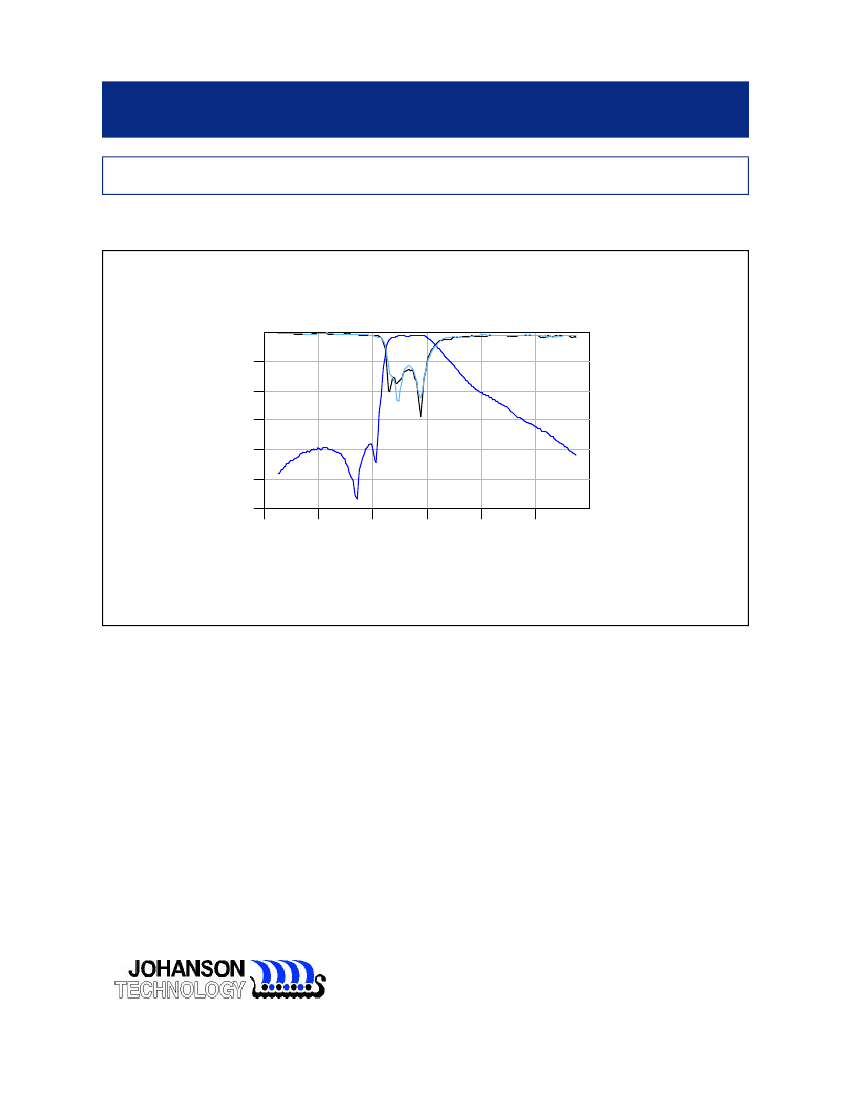

Typical Electrical Performance (T=25°C)
)
)
)
Insertion/Return Loss
)
)
)
)
)
0
(dB)
S_22
S_11
S_21
-10
-20
-30
-40
-50
-60
0
2
4
6
)
8
10
12
freq, GHz
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
©2003 Johanson Technology, Inc. All rights reserved.
