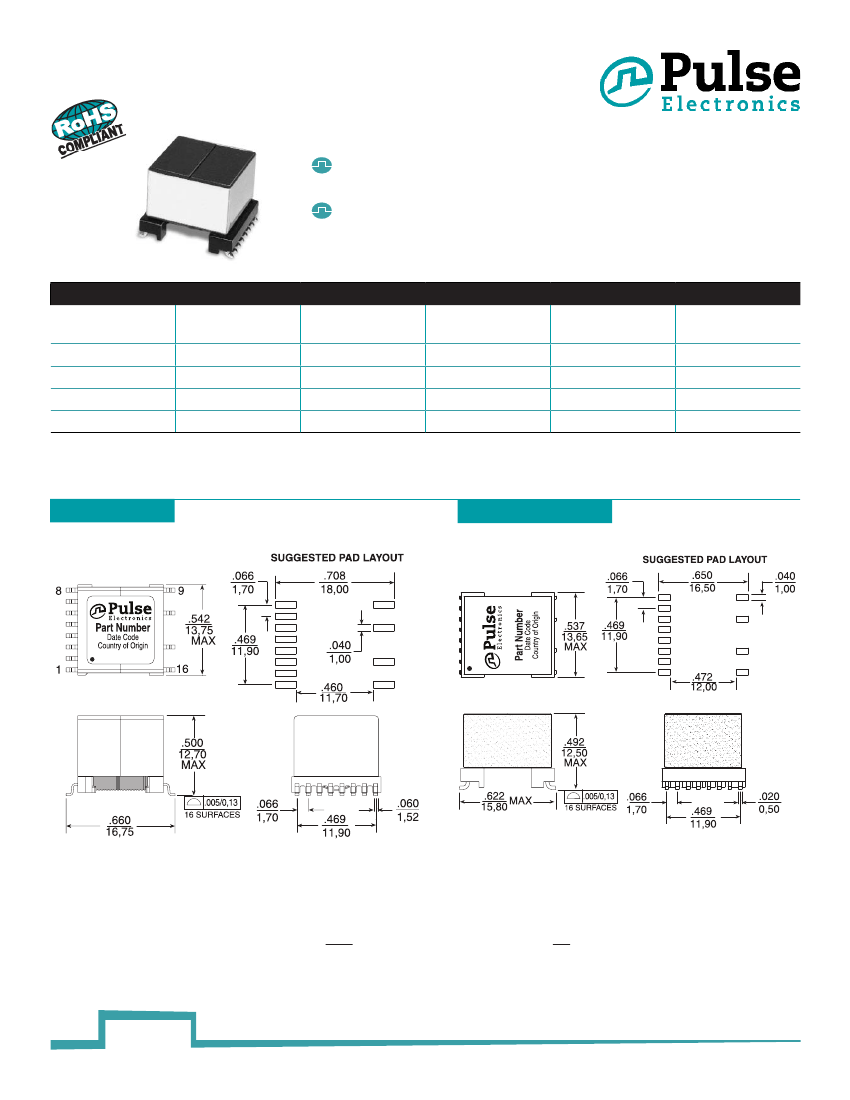

ADSL Line Transformer
For Broadcom ADSL CPE Chipsets
Matched to Broadcom 6335 and 6338 chipsets with
5V line driver (BCM6301)
Designed to meet UL1950 and EN60950 supplementary
insulation requirements
Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C
Standard Part
Number
BX2542W
BX2542L
BX2606W
BX2606L
RoHs-6 Compliant
Part Number
-
BX2542LNL
-
BX2606LNL
Turns Ratio
(Line:TX
±5%)
4.25:1
4.25:1
4.25:1
4.25:1
Turns Ratio
(Line:RX)
1:1
1:1
1:1
1:1
OCL Line
(μH
±5%)
400
400
100
100
Isolation Voltage
(Vrms)
1500
1500
1500
1500
Notes:
Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix “T” to the part number (BX2516WT)
Mechanicals
BX2542W / BX2606W
BX2542L/NL / BX2606L/NL
Weight
......................6.2 grams
Tape & Reel
................300/reel
Tray
...............................95/tray
Dimensions:
Inches
Unless otherwise specified, all tolerances are
±
.010
mm
0,25
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
B848.B (02/12)
pulseelectronics.com
ADSL Line Transformers
For Broadcom ADSL CPE Chipsets
Schematic
BX2542W / BX2542L/NL / BX2606W / BX2606 L/NL
For More Information
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technol-
Super Ocean Finance
#03-02
Zhongyuan Road
ogy Bldg.
Ctr.
PM Industrial Bldg.
Zhongli City
10th Kejinan Road
2067 Yan An Road
Singapore 368363
Taoyuan County 320
High-Tech Zone
West
Taiwan R. O. C.
Nanshan District
Shanghai 200336
Tel: 886 3 4356768
Shenzen, PR China
China
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Tel: 858 674 8100
Tel: 49 7032 78060
518057
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
Fax: 858 674 8262
Fax: 49 7032 7806 135
Tel: 86 755 33966678
Tel: 86 21 62787060
Fax: 86 755 33966700
Fax: 86 2162786973
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
trademarks or registered trademarks of their respective owners. © Copyright, 2012. Pulse Electronics, Inc. All rights reserved.
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA
92128
U.S.A.
Pulse Europe
Einsteinstrasse 1
D-71083 Herren-
berg
Germany
2
pulseelectronics.com
B848.B (02/12)
