BNX012H01

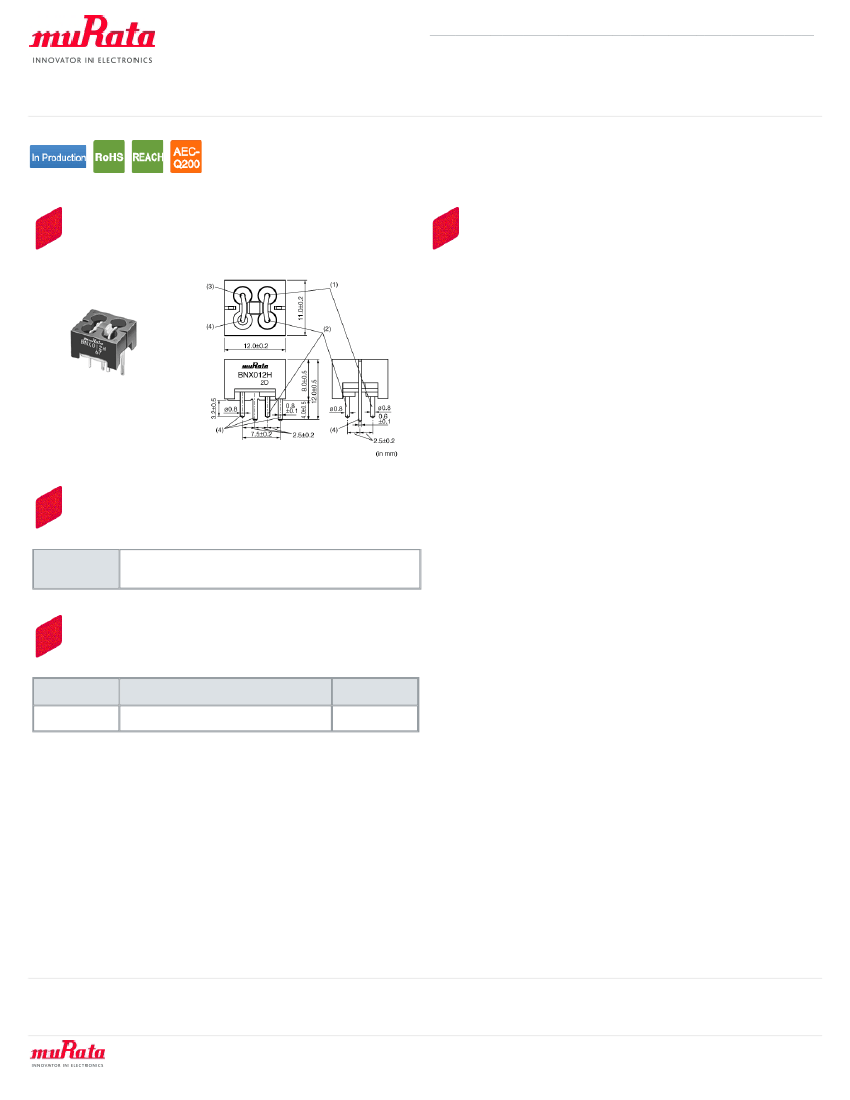

Appearance & Shape

Features

BNX012H series is noise suppression filter and ESD

surge protection filter for Automotive.

Suitable for the power supply circuits which is large

current and wide frequency range.

Features

1. Large rated current(15A) and Low DC Resistance

(0.8m ohm-Typ.)

2. High insertion loss characteristic over a wide

frequency range of 1MHz to 1GHz.

3. Low profile (height: 8.0mm except lead terminal)

Applications

Noise suppression and ESD surge protection for power

lines such as ECU, DC-DC Converters , and Inverter

circuits.

Applications

Automotive

Usage

Powertrain/Safety

Packaging Information

Packaging

-

Specifications

Box

Minimum

Order Quantity

150

1 of 3

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2018/11/09
