CDRH12D58-ANP-331MC datasheet, PDF

Datasheet> All Categories > Passive components> CDRH12D58-ANP-331MC

CDRH12D58-ANP-331MC: DescriptionFixed Inductors 330uH 0.69A SMD PWR INDUCTOR; CategoryPassive components; File Size200KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Parametric Compare View All

CDRH12D58-ANP-331MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH12D58-ANP-331MC	-	-	View	Buy Now

CDRH12D58-ANP-331MC Overview

Fixed Inductors 330uH 0.69A SMD PWR INDUCTOR

CDRH12D58-ANP-331MC Parametric

Parameter Name	Attribute value
Product Category	Fixed Inductors
Manufacturer	SUMIDA
RoHS	Details
Inductance	330 uH
Tolerance	20 %
Maximum DC Current	690 mA
Maximum DC Resistance	623 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Test Frequency	100 kHz
Product	Power Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Package / Case	12.5 mm x 12.5 mm
Length	12.5 mm
Width	12.5 mm
Height	6 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	Power Inductor
Core Material	Ferrite
Factory Pack Quantity	500
Unit Weight	0.102294 oz

Preview

Download Datasheet

View All

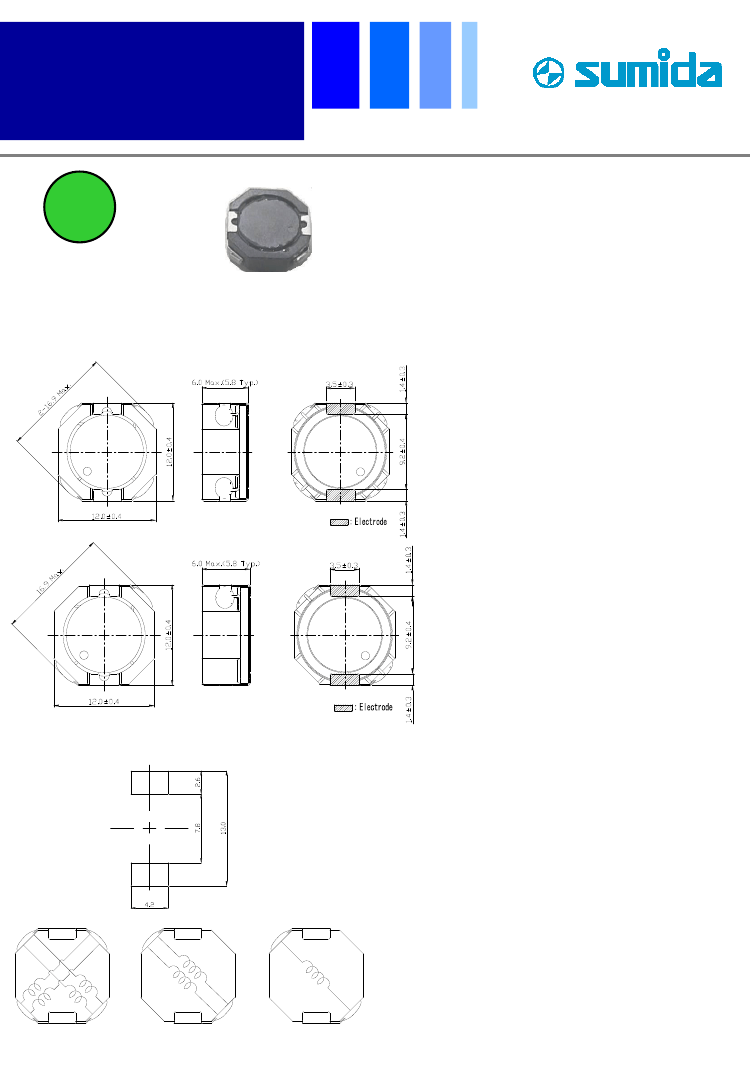

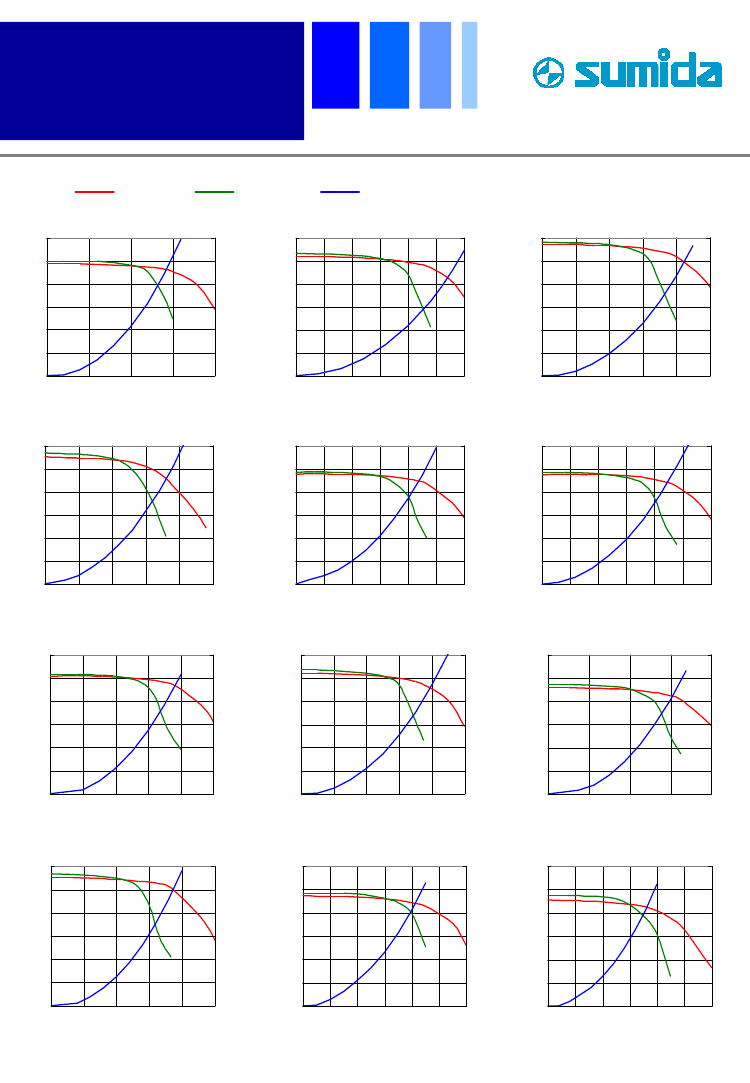

SMD Power Inductor

CDRH12D58R

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L×W×H: 12.4×12.4×6.0 mm Max.

• Product weight: 2.9 g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

Environmental Data

• Operating temperature range: -40℃½+105℃

• Storage temperature range: -40℃½+105℃

• Solder reflow temperature: 260

℃

peak.

Packaging

• Carrier tape and reel packaging

• 12”diameter reel

• 500pcs per reel

Applications

• Ideally used in Game machine, Notebook PC,

LCD TV,DVD, STB ,Projector etc as DC-DC

converter inductors.

RoHS

Dimension - [mm]

(10μH½33μH)

(47μH½1000μH)

Land pattern and Schematics - [mm]

(10μH½33μH)

(47μH½150μH)

(220μH½1.0mH)

Page 1 of 4

Revised: 10-Jan-17

CDRH12D58-ANP-331MC Related Products

	CDRH12D58-ANP-331MC	CDRH12D58-ANP-560MC	CDRH12D58-ANP-270MC
Description	Fixed Inductors 330uH 0.69A SMD PWR INDUCTOR	Fixed Inductors SMD Power Inductor Shielded	Fixed Inductors SMD Power Inductor Shielded
Product Category	Fixed Inductors	Fixed Inductors	Fixed Inductors
Manufacturer	SUMIDA	SUMIDA	SUMIDA
Inductance	330 uH	56 uH	27 uH
Tolerance	20 %	20 %	20 %
Maximum DC Current	690 mA	1.7 A	2.4 A
Maximum DC Resistance	623 mOhms	108 mOhms	57 mOhms
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C
Test Frequency	100 kHz	100 kHz	100 kHz
Product	Power Inductors	Power Inductors	Power Inductors
Shielding	Shielded	Shielded	Shielded
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	12.5 mm x 12.5 mm	12.5 mm x 12.5 mm	12.5 mm x 12.5 mm
Length	12.5 mm	12.5 mm	12.5 mm
Width	12.5 mm	12.5 mm	12.5 mm
Height	6 mm	6 mm	6 mm
Type	Power Inductor	Power Inductor	Power Inductor
Core Material	Ferrite	Ferrite	Ferrite
