IRF9532 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRF9532

IRF9532: Description10A, 100V, 0.4ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB; CategoryDiscrete semiconductor The transistor; File Size162KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

IRF9532 Overview

10A, 100V, 0.4ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB

IRF9532 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Reach Compliance Code	not_compliant
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	500 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (Abs) (ID)	10 A
Maximum drain current (ID)	10 A
Maximum drain-source on-resistance	0.4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Maximum power consumption environment	75 W
Maximum power dissipation(Abs)	75 W
Maximum pulsed drain current (IDM)	40 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	280 ns
Maximum opening time (tons)	200 ns
Base Number Matches	1

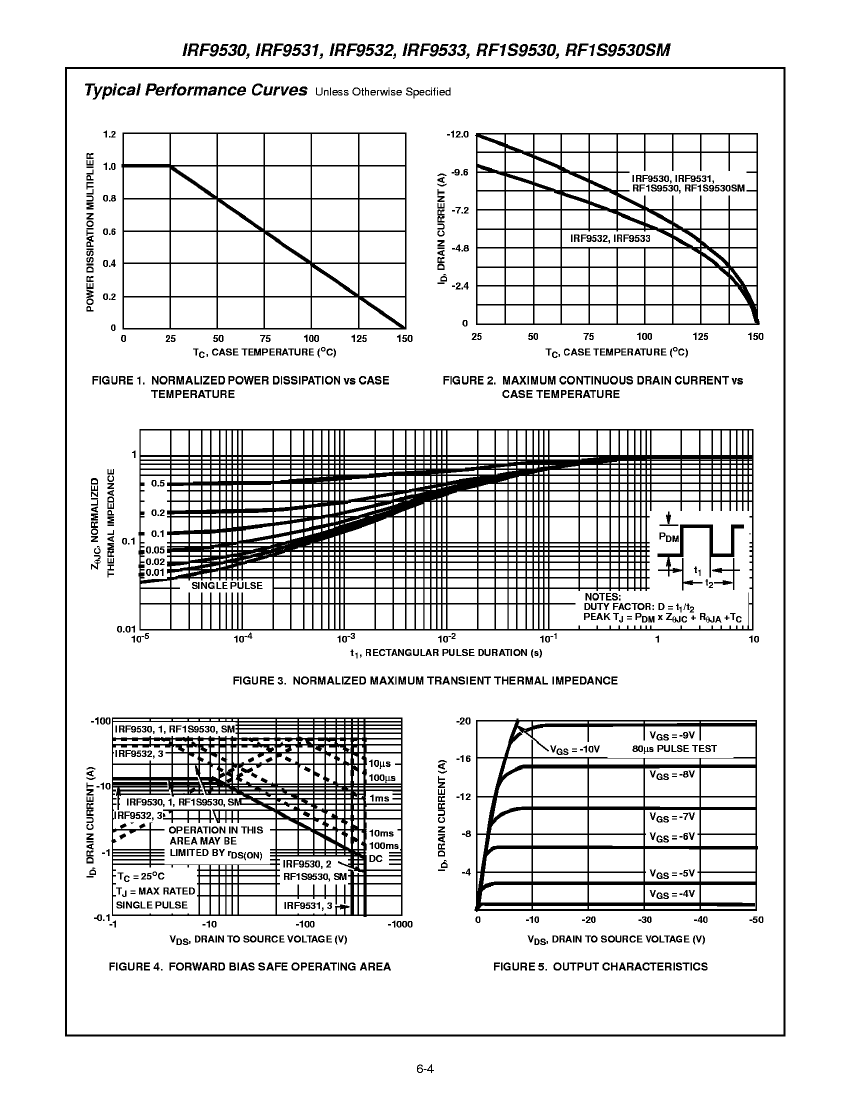

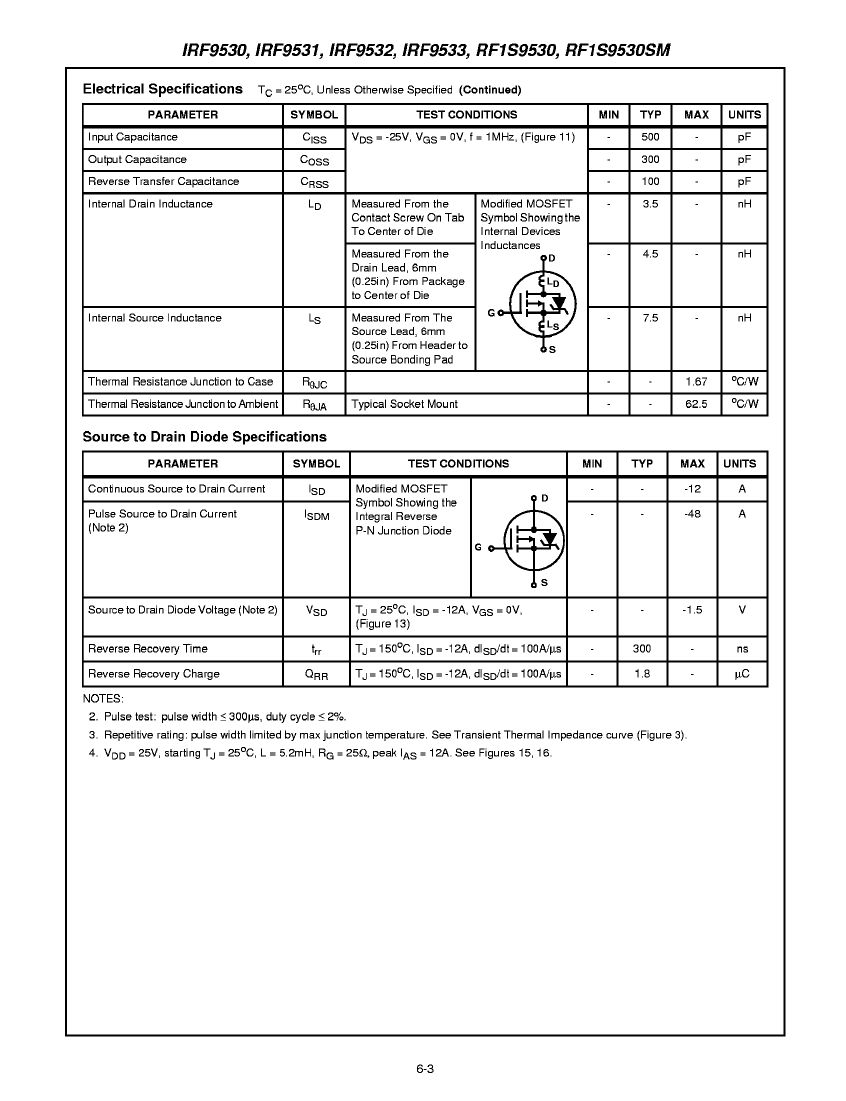

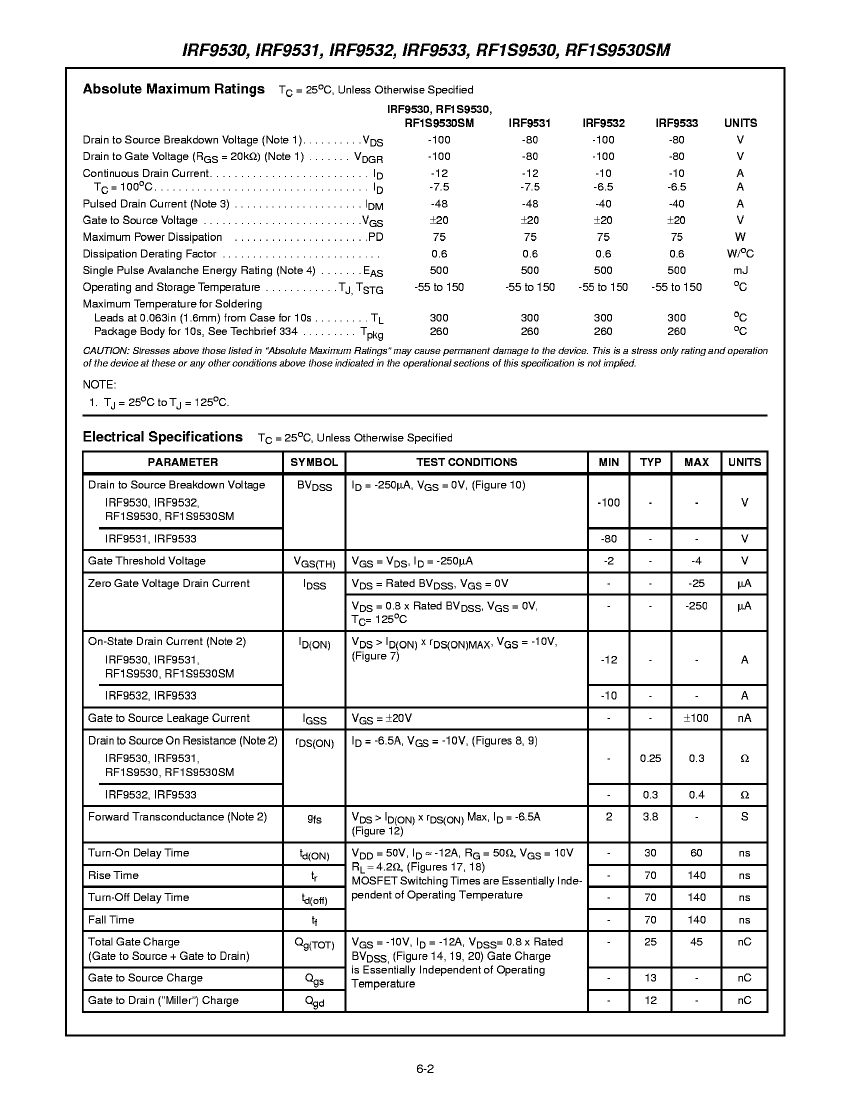

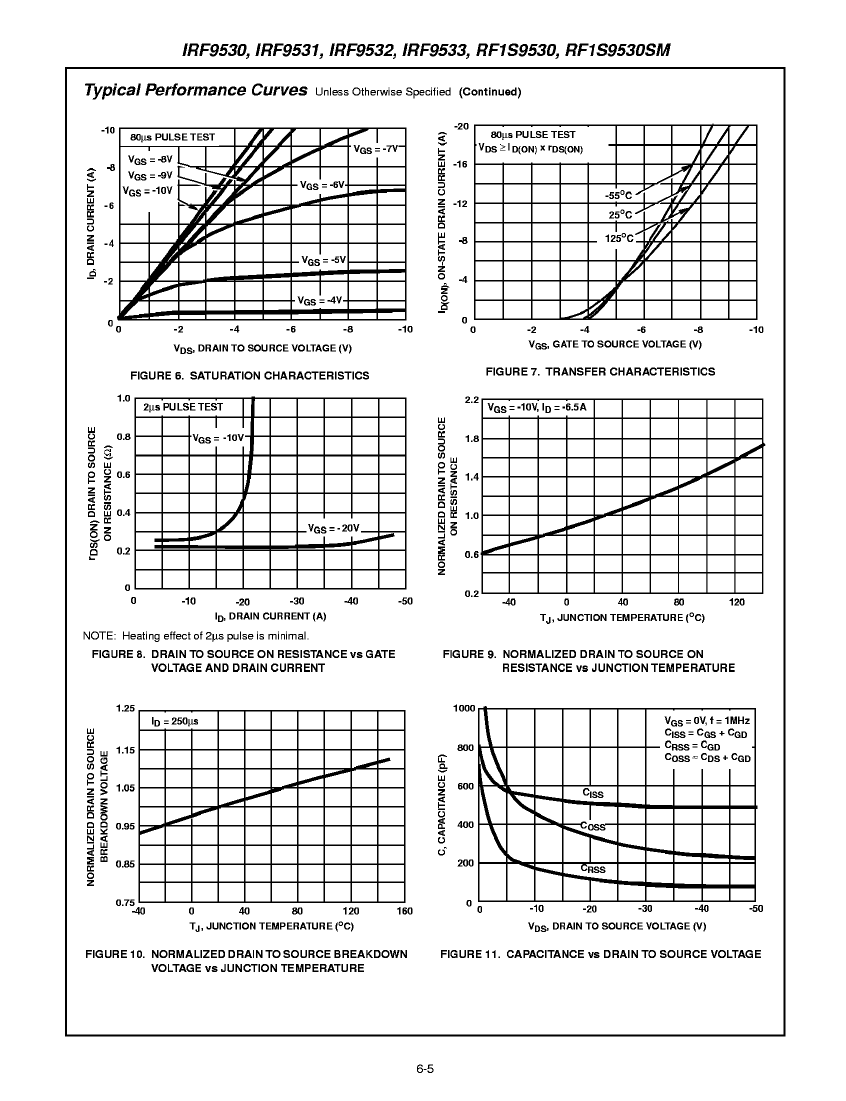

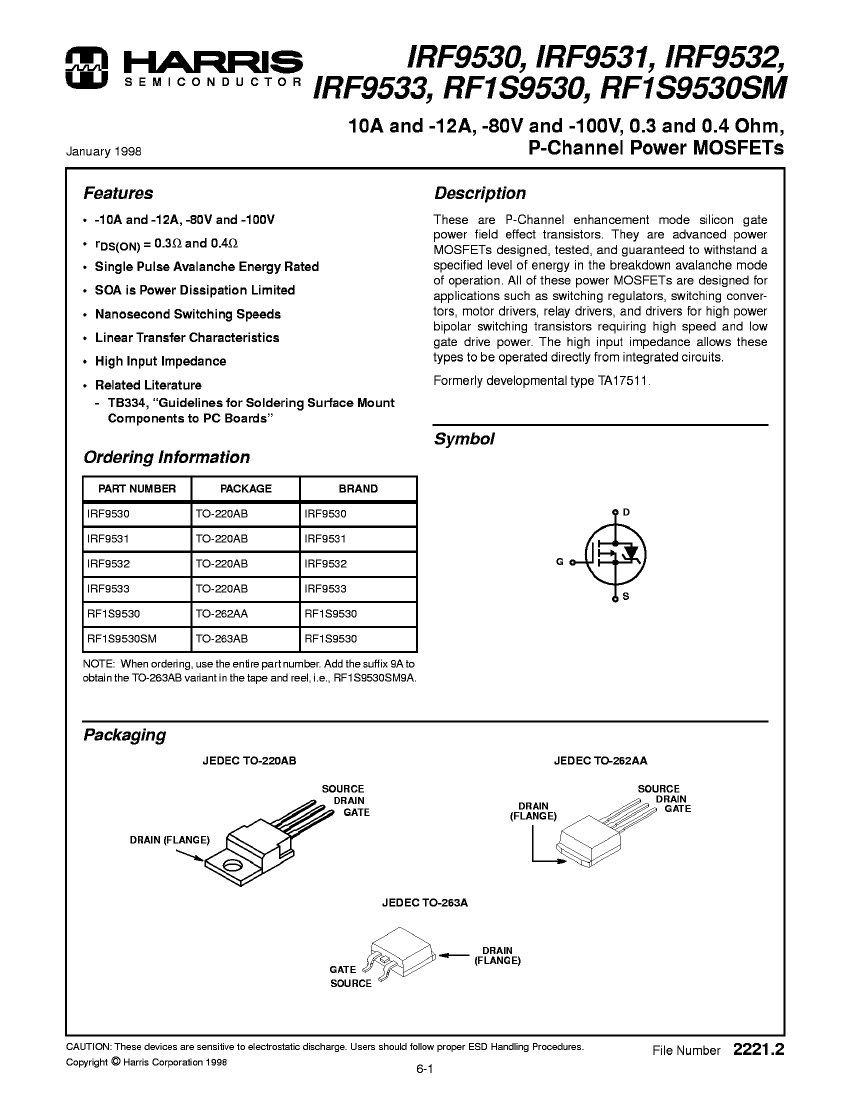

Preview

Download Datasheet

View All

IRF9532 Related Products

	IRF9532	IRF9533	IRF9531
Description	10A, 100V, 0.4ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB	10A, 80V, 0.4ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB	12A, 80V, 0.3ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	500 mJ	500 mJ	500 mJ
Shell connection	DRAIN	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V	80 V	80 V
Maximum drain current (Abs) (ID)	10 A	10 A	12 A
Maximum drain current (ID)	10 A	10 A	12 A
Maximum drain-source on-resistance	0.4 Ω	0.4 Ω	0.3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0	e0
Number of components	1	1	1
Number of terminals	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	P-CHANNEL	P-CHANNEL	P-CHANNEL
Maximum power consumption environment	75 W	75 W	75 W
Maximum power dissipation(Abs)	75 W	75 W	75 W
Maximum pulsed drain current (IDM)	40 A	40 A	48 A
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Maximum off time (toff)	280 ns	280 ns	280 ns
Maximum opening time (tons)	200 ns	200 ns	200 ns
Base Number Matches	1	1	-
