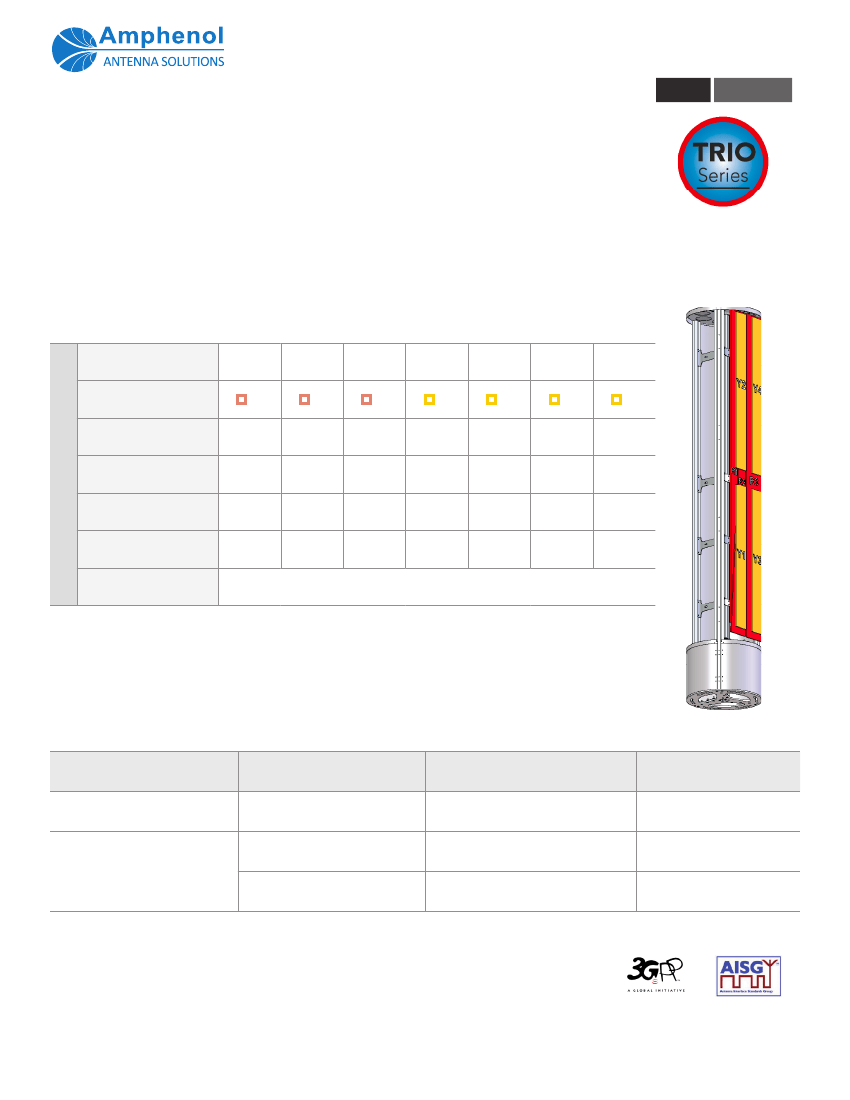

7-Band, 14-Port, 65°, XPOL, One-Sector Antenna, Variable Tilt, 3053 mm
Hepta band, One-sector antenna, 14 connectors
Independent tilt on each band 2-10° / 2-10° / 2-12° / 2-12° / 2-12° / 2-12° / 2-12°
Independent azimuth panning ±5° on each sector
MET and RET versions, 3GPP/AISG2.0, in multiple single RET (multiple device type1) or in Multi-RET (device type 17, with firmware above MD3.10).
Our patented RET module to control all tilt angles, fully inserted inside the antenna (field replaceable)
Frequency Range (MHz)
Array
698-803
R1
1-2
XPOL
65°
2-10°
880-960
R2
3-4
XPOL
65°
2-10°
698-960
R3
5-6
XPOL
65°
2-12°
1427-2690
Y1
7-8
XPOL
65°
2-12°
1427-2690
Y2
9-10
XPOL
65°
2-12°
1427-2690
Y3
11-12
XPOL
65°
2-12°
1427-2690
Y4
13-14
XPOL
65°
2-12°
PRODUCT OVERVIEW
Connector
Polarization
Azimuth Beamwidth
(avg)
Electrical Downtilt
Dimensions
3053 x Ø750 mm
ORDERING OPTIONS
Select from the different options listed below
SELECT ELECTRICAL DOWNTILT
CONTROL & AISG PROTOCOL
Manual Electrical Tilt (MET)
SELECT
ACTUATOR
---
Multi-Device Control Unit
(MDCU)
Multi-Device Dual Unit
(MDDU)
SELECT CONNECTOR
TYPE
4.3-10 Female
4.3-10 Female
4.3-10 Female
ANTENNA MODEL
NUMBER
5980470P-1
5980470PG-1
5980470PDx*-1
Remote Electrical Tilt (RET)
AISG v2.0 / 3GPP
*Pre-commissioned configuration; Contact Amphenol for further details.
Quoted performance parameters are provided to offer typical, peak or range values only and may vary as a result of normal testing, manufacturing and operational conditions. Extreme
operational conditions and/or stress on structural supports is beyond our control. Such conditions may result in damage to this product. Improvements to products may be made without notice.
7-Band, 14-Port, 65°, XPOL, One-Sector Antenna, Variable Tilt, 3053 mm
ELECTRICAL SPECIFICATIONS
Frequency Range
Polarization
Gain
Over all Tilts
Low Band
R1
698-803
±45°
15.5 ± 0.5
71.5° ± 3.5°
8.6° ± 0.6°
2°-10°
50
< 1.5
< -110
> 20.8
> 13.7
> 15.7
> 6.3
250
> 25
Standard values based on NGMN-P-BASTA version 10.0 recommendation.
MHz
---
dBi
degrees
degrees
degrees
Ohms
---
dBm
dB
Azimuth Beamwidth
Elevation Beamwidth
Electrical Downtilt
Impedance
VSWR
Passive Intermodulation
3rd Order for 2 x 20W Carriers
Front-to-Back Ratio, Total Power, ±30°
Upper Sidelobe Suppression, Peak to 20° dB
Cross Polar Ratio
Main Direction (0°)
dB
Sector Edges (±60°) dB
Watts
dB
Maximum Effective Power Per Port
Inter/Intra Band Isolation
ELECTRICAL SPECIFICATIONS
Frequency Range
Polarization
Gain
Over all Tilts
Low Band
R2
880-960
±45°
16.7 ± 0.5
66.5° ± 2.6°
6.8° ± 0.5°
2°-10°
50
< 1.5
< -110
> 22.5
> 15.4
> 16.4
> 6.8
250
> 25
Standard values based on NGMN-P-BASTA version 10.0 recommendation.
MHz
---
dBi
degrees
degrees
degrees
Ohms
---
dBm
dB
Azimuth Beamwidth
Elevation Beamwidth
Electrical Downtilt
Impedance
VSWR
Passive Intermodulation
3rd Order for 2 x 20W Carriers
Front-to-Back Ratio, Total Power, ±30°
Upper Sidelobe Suppression, Peak to 20° dB
Cross Polar Ratio
Main Direction (0°)
dB
Sector Edges (±60°) dB
Watts
dB
Maximum Effective Power Per Port
Inter/Intra Band Isolation
Quoted performance parameters are provided to offer typical, peak or range values only and may vary as a result of normal testing, manufacturing and operational conditions. Extreme
operational conditions and/or stress on structural supports is beyond our control. Such conditions may result in damage to this product. Improvements to products may be made without notice.
7-Band, 14-Port, 65°, XPOL, One-Sector Antenna, Variable Tilt, 3053 mm
ELECTRICAL SPECIFICATIONS
Frequency Range
Ultra
Low Band
R3
698-960
698-806
790-862
±45°
15.1 ± 0.5
74.9° ± 2.8°
8.5° ± 0.7°
16.1 ± 0.4
69.2° ± 5.5°
7.6° ± 0.6°
2°-12°
50
< 1.5
< -110
> 26.3
> 17.3
> 18.7
> 8.6
> 27.0
> 17.0
> 21.3
> 5.8
250 W
> 25 dB
Standard values based on NGMN-P-BASTA version 10.0 recommendation.
MHz
MHz
824-894
880-960
Polarization
Gain
Over all Tilts
---
dBi
degrees
degrees
degrees
Ohms
---
dBm
dB
16.4 ± 0.5
67.7° ± 2.9°
7.5° ± 0.6°
16.7 ± 0.4
66.1° ± 3.0°
6.9° ± 0.6°
Azimuth Beamwidth
Elevation Beamwidth
Electrical Downtilt
Impedance
VSWR
Passive Intermodulation
3rd Order for 2 x 20W Carriers
Front-to-Back Ratio, Total Power, ±30°
> 26.3
> 16.9
> 20.6
> 6.0
> 26.4
> 14.5
> 16.9
> 7.4
Upper Sidelobe Suppression, Peak to 20° dB
Cross Polar
Ratio
Main Direction (0°)
Sector Edges (±60°)
dB
dB
Watts
dB
Maximum Effective Power Per Port
Inter/Intra Band Isolation
ELECTRICAL SPECIFICATIONS
Frequency Range
MEGA Wide Band
Y1
1427-2690
1427-1518
1695-1880
1850-1990
±45°
16.0 ± 0.2
73.2° ± 3.1°
8.8° ± 0.4°
16.4 ± 0.4
69.0° ± 3.8°
7.5° ± 0.4°
16.8 ± 0.4
66.7° ± 2.4°
6.9° ± 0.4°
17.2 ± 0.4
64.3° ± 5.0°
6.4° ± 0.6°
16.8 ± 0.5
63.6° ± 4.8°
5.6° ± 0.2°
17.0 ± 0.4
59.1° ± 4.3°
5.1° ± 0.3°
1920-2180
2300-2500
2490-2690
MHz
MHz
Polarization
Gain
Over all Tilts
---
dBi
degrees
degrees
degrees
Ohms
---
dBm
dB
> 25.2
> 13.6
> 14.4
> 10.0
> 29.9
> 19.3
> 18.2
> 6.6
> 30.9
> 18.8
> 17.0
> 7.1
Azimuth Beamwidth
Elevation Beamwidth
Electrical Downtilt
Impedance
VSWR
Passive Intermodulation
3rd Order for 2 x 20W Carriers
Front-to-Back Ratio, Total Power, ±30°
2°-12°
50
< 1.5
< -110
> 30.6
> 17.2
> 16.0
> 7.7
200 W
> 25
Standard values based on NGMN-P-BASTA version 10.0 recommendation.
> 28.1
> 15.5
> 19.9
> 6.6
> 29.4
> 14.9
> 13.8
> 6.9
Upper Sidelobe Suppression, Peak to 20° dB
Cross Polar
Ratio
Main Direction (0°)
Sector Edges (±60°)
dB
dB
Watts
dB
Maximum Effective Power Per Port
Inter/Intra Band Isolation
Quoted performance parameters are provided to offer typical, peak or range values only and may vary as a result of normal testing, manufacturing and operational conditions. Extreme
operational conditions and/or stress on structural supports is beyond our control. Such conditions may result in damage to this product. Improvements to products may be made without notice.
7-Band, 14-Port, 65°, XPOL, One-Sector Antenna, Variable Tilt, 3053 mm
ELECTRICAL SPECIFICATIONS
Frequency Range
MEGA Wide Band
Y2
1427-2690
1427-1518
1695-1880
1850-1990
±45°
16.1 ± 0.1
72.3° ± 3.7°
8.8° ± 0.5°
16.4 ± 0.4
67.8° ± 3.7°
7.4° ± 0.4°
16.8 ± 0.5
66.2° ± 2.6°
6.9° ± 0.3°
17.2 ± 0.4
64.5° ± 4.2°
6.5° ± 0.6°
16.8 ± 0.4
63.5° ± 3.9°
5.5° ± 0.3°
17.2 ± 0.4
58.8° ± 4.6°
5.1° ± 0.3°
1920-2180
2300-2500
2490-2690
MHz
MHz
Polarization
Gain
Over all Tilts
---
dBi
degrees
degrees
degrees
Ohms
---
dBm
dB
> 25.2
> 15.9
> 13.3
> 8.8
> 29.3
> 19.4
> 17.3
> 7.2
> 30.6
> 21.3
> 15.6
> 7.1
Azimuth Beamwidth
Elevation Beamwidth
Electrical Downtilt
Impedance
VSWR
Passive Intermodulation
3rd Order for 2 x 20W Carriers
Front-to-Back Ratio, Total Power, ±30°
2°-12°
50
< 1.5
< -110
> 30.1
> 19.7
> 15.6
> 7.2
200 W
> 25
Standard values based on NGMN-P-BASTA version 10.0 recommendation.
> 27.1
> 15.5
> 21.1
> 7.4
> 29.4
> 15.3
> 17.4
> 6.9
Upper Sidelobe Suppression, Peak to 20° dB
Cross Polar
Ratio
Main Direction (0°)
Sector Edges (±60°)
dB
dB
Watts
dB
Maximum Effective Power Per Port
Inter/Intra Band Isolation
ELECTRICAL SPECIFICATIONS
Frequency Range
MEGA Wide Band
Y3
1427-2690
1427-1518
1695-1880
1850-1990
±45°
16.0 ± 0.2
72.7° ± 3.1°
8.8° ± 0.5°
16.3 ± 0.4
68.3° ± 4.3°
7.5° ± 0.4°
16.7 ± 0.4
67.2° ± 3.0°
6.9° ± 0.4°
17.1 ± 0.5
65.3° ± 4.4°
6.4° ± 0.6°
16.8 ± 0.4
65.2° ± 4.3°
5.7° ± 0.2°
17.1 ± 0.4
58.5° ± 5.0°
5.1° ± 0.3°
1920-2180
2300-2500
2490-2690
MHz
MHz
Polarization
Gain
Over all Tilts
---
dBi
degrees
degrees
degrees
Ohms
---
dBm
dB
> 26.4
> 14.0
> 14.2
> 9.9
> 30.1
> 20.0
> 16.4
> 6.8
> 29.7
> 19.3
> 16.0
> 7.7
Azimuth Beamwidth
Elevation Beamwidth
Electrical Downtilt
Impedance
VSWR
Passive Intermodulation
3rd Order for 2 x 20W Carriers
Front-to-Back Ratio, Total Power, ±30°
2°-12°
50
< 1.5
< -110
> 29.0
> 17.8
> 15.2
> 7.7
200 W
> 25
Standard values based on NGMN-P-BASTA version 10.0 recommendation.
> 28.9
> 16.7
> 18.5
> 7.4
> 28.6
> 15.7
> 15.4
> 7.1
Upper Sidelobe Suppression, Peak to 20° dB
Cross Polar
Ratio
Main Direction (0°)
Sector Edges (±60°)
dB
dB
Watts
dB
Maximum Effective Power Per Port
Inter/Intra Band Isolation
Quoted performance parameters are provided to offer typical, peak or range values only and may vary as a result of normal testing, manufacturing and operational conditions. Extreme
operational conditions and/or stress on structural supports is beyond our control. Such conditions may result in damage to this product. Improvements to products may be made without notice.
7-Band, 14-Port, 65°, XPOL, One-Sector Antenna, Variable Tilt, 3053 mm
ELECTRICAL SPECIFICATIONS
Frequency Range
MEGA Wide Band
Y4
1427-2690
1427-1518
1695-1880
1850-1990
±45°
16.0 ± 0.1
72.2° ± 4.6°
8.8° ± 0.6°
16.4 ± 0.4
68.9° ± 4.9°
7.4° ± 0.4°
16.7 ± 0.5
66.5° ± 2.7°
7.0° ± 0.4°
17.1 ± 0.5
65.0° ± 4.4°
6.5° ± 0.7°
16.8 ± 0.4
64.4° ± 2.8°
5.6° ± 0.3°
17.1 ± 0.5
59.9° ± 4.0°
5.0° ± 0.3°
1920-2180
2300-2500
2490-2690
MHz
MHz
Polarization
Gain
Over all Tilts
---
dBi
degrees
degrees
degrees
Ohms
---
dBm
dB
> 25.1
> 13.8
> 13.1
> 9.6
> 29.2
> 20.1
> 17.5
> 7.4
> 30.9
> 20.5
> 15.0
> 7.5
Azimuth Beamwidth
Elevation Beamwidth
Electrical Downtilt
Impedance
VSWR
Passive Intermodulation
3rd Order for 2 x 20W Carriers
Front-to-Back Ratio, Total Power, ±30°
2°-12°
50
< 1.5
< -110
> 29.3
> 19.5
> 16.1
> 7.9
200 W
> 25
Standard values based on NGMN-P-BASTA version 10.0 recommendation.
> 29.6
> 15.9
> 19.9
> 8.7
> 27.1
> 16.2
> 14.6
> 7.1
Upper Sidelobe Suppression, Peak to 20° dB
Cross Polar
Ratio
Main Direction (0°)
Sector Edges (±60°)
Maximum Effective Power Per Port
Inter/Intra Band Isolation
dB
dB
Watts
dB
Quoted performance parameters are provided to offer typical, peak or range values only and may vary as a result of normal testing, manufacturing and operational conditions. Extreme
operational conditions and/or stress on structural supports is beyond our control. Such conditions may result in damage to this product. Improvements to products may be made without notice.
:loveliness: xingmiao moderator came to share with you an experience: [url=https://bbs.eeworld.com.cn/thread-94704-1-1.html]PLC I/O port input line improper selection causes IO damage[/url] Welcome! I...
There are two points A and B, 12 cm apart. If there is a spacer in between, a high (low) level is output, and if there is no spacer, a low (high) level is output.
What components are good to use, pref...
The flashed esp and openmv sold by others on Taobao will display the file directory when plugged into the computer. How can I make the micropython firmware I flashed the same as theirs? At first I tho...
Currently common practices:In AS mode, one piece of memory configures one piece of FPGA, and there is no problem with configuration and operation.If AS method is used, is it feasible to configure mult...
[i=s] This post was last edited by lidonglei1 on 2019-5-7 17:02[/i] [align=center][align=center][b]NEW EQUIPMENT FOR LIFE[/align] [align=left][b]First post photos:[/b][/align][align=left]Recent photo[...
While
the solid-state battery
industry is still engaged in a long technological marathon for
the "ultimate solution" for
electric vehicles
, some companies have begun looking for mor...[Details]
In recent years, the government has increasingly supported electric vehicles, and the number of electric vehicles has increased. Observant drivers will notice that there are many more green license...[Details]
Current Development Status of DVR Market
A DVR, or digital video recorder, uses a hard disk for recording, unlike traditional analog video recorders. It's often called a DVR because it's a com...[Details]
When discussing autonomous driving technology, there are often two extremes: on the one hand, there's the vision of "fully autonomous driving," while on the other, there's concern about potential s...[Details]
1 Source of creativity
With the further development of electronic technology, electronic pets have gradually entered people's family life. At present, there are two main categories of relative...[Details]
In June 2014, the Ministry of Industry and Information Technology issued 4G FD-LTE licenses to China Unicom and China Telecom. Together with the 4G TD-LTE licenses issued to China Mobile, China Uni...[Details]
With the development of science, the use of variable frequency technology is becoming more and more widespread, and it is used in both industrial equipment and household appliances. Inverter air co...[Details]
Laird Thermal Systems has introduced the HiTemp ET series Peltier cooler modules, which can operate at high temperatures and provide on-site cooling for sensitive electronic devices.
Dig...[Details]
Previously, Positive Motion Technology shared with you the firmware upgrade of motion controller, ZBasic program development, ZPLC program development, communication with touch screen and input/out...[Details]
Common methods for troubleshooting roller press bearing wear include repair welding, thermal spraying, brush plating, and scrapping and replacement. However, these methods are often subject to asse...[Details]
Plug-in hybrid vehicles (PHEVs) utilize two powertrains. Their pure electric range is typically inferior to that of pure electric vehicles, often reaching less than half that. Currently, mainstream...[Details]
There are more and more electric vehicles. Recently, I have heard some news about electric vehicles performing poorly in winter. I would like to briefly introduce whether heat pump technology is mo...[Details]
introduction
In recent years, multi-touch has emerged as a new alternative to traditional human-computer interaction. It eliminates the need for keyboards and mice, enabling simultaneous inter...[Details]
Analog Devices held a third-quarter fiscal 2025 earnings conference call. Vincent T. Roche, CEO and Chairman of the Board, and Richard C. Puccio, Executive Vice President and Chief Financial Office...[Details]
Industrial Control Electronics
京公网安备 11010802033920号
EEWORLD
