5084615-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5084615-9

5084615-9: Description0.8FH,P06H.5,180,30/Sn,TU; CategoryThe connector The connector; File Size84KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5084615-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5084615-9	-	-	View	Buy Now

5084615-9 Overview

0.8FH,P06H.5,180,30/Sn,TU

5084615-9 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1863297670
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	20 weeks
Samacsys Description	0.8FH,P06H.5,180,30/Sn,TU
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
YTEOL	8.7
Board mount options	BOARD LOCK
body width	0.236 inch
subject depth	0.236 inch
body length	3.063 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	2000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Power Connector Ratings	.5A
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3942 mm
Panel mounting	NO
Plating thickness	30u inch
polarization key	POLARIZED
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	180
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N

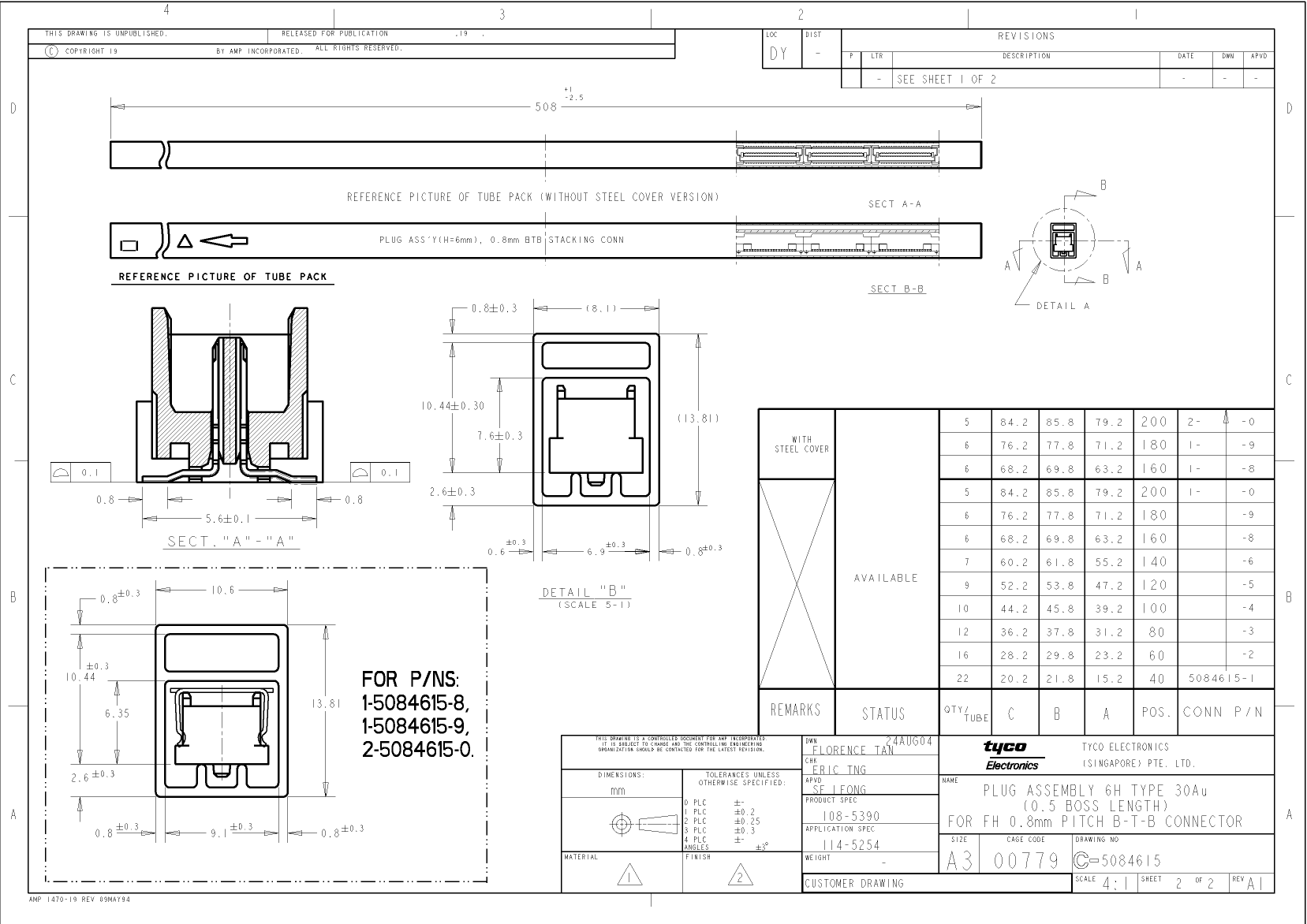

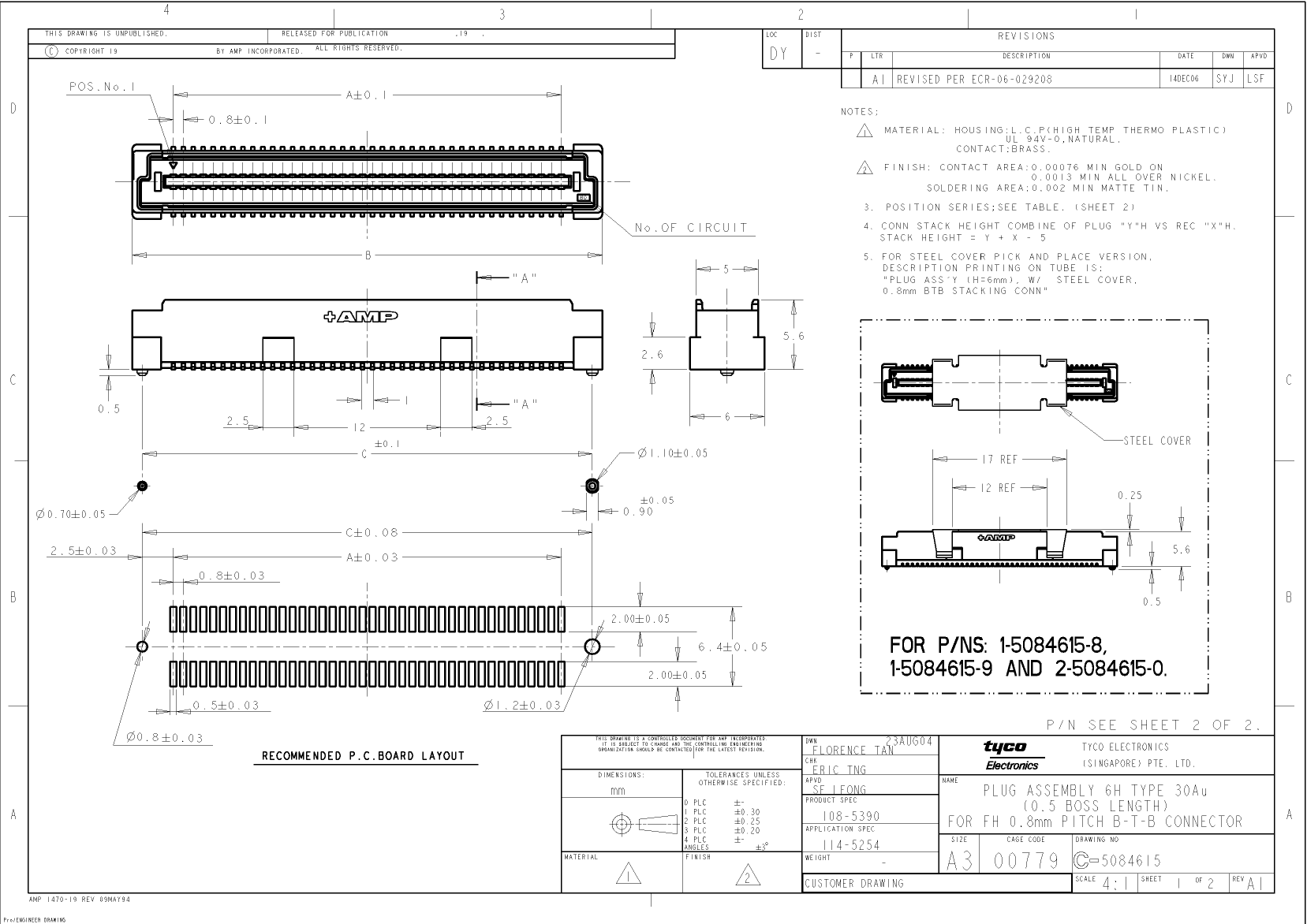

Preview

Download Datasheet

View All
