15-38-9022 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 15-38-9022

15-38-9022: DescriptionWire Stripping u0026 Cutting Tools RIBBON CABLE CUTTER; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

15-38-9022 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15-38-9022	-	-	View	Buy Now

15-38-9022 Overview

Wire Stripping u0026 Cutting Tools RIBBON CABLE CUTTER

15-38-9022 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	SL
body width	0.139 inch
subject depth	0.6 inch
body length	0.199 inch
Body/casing type	PLUG
Connector type	FFC/FPC CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	150u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

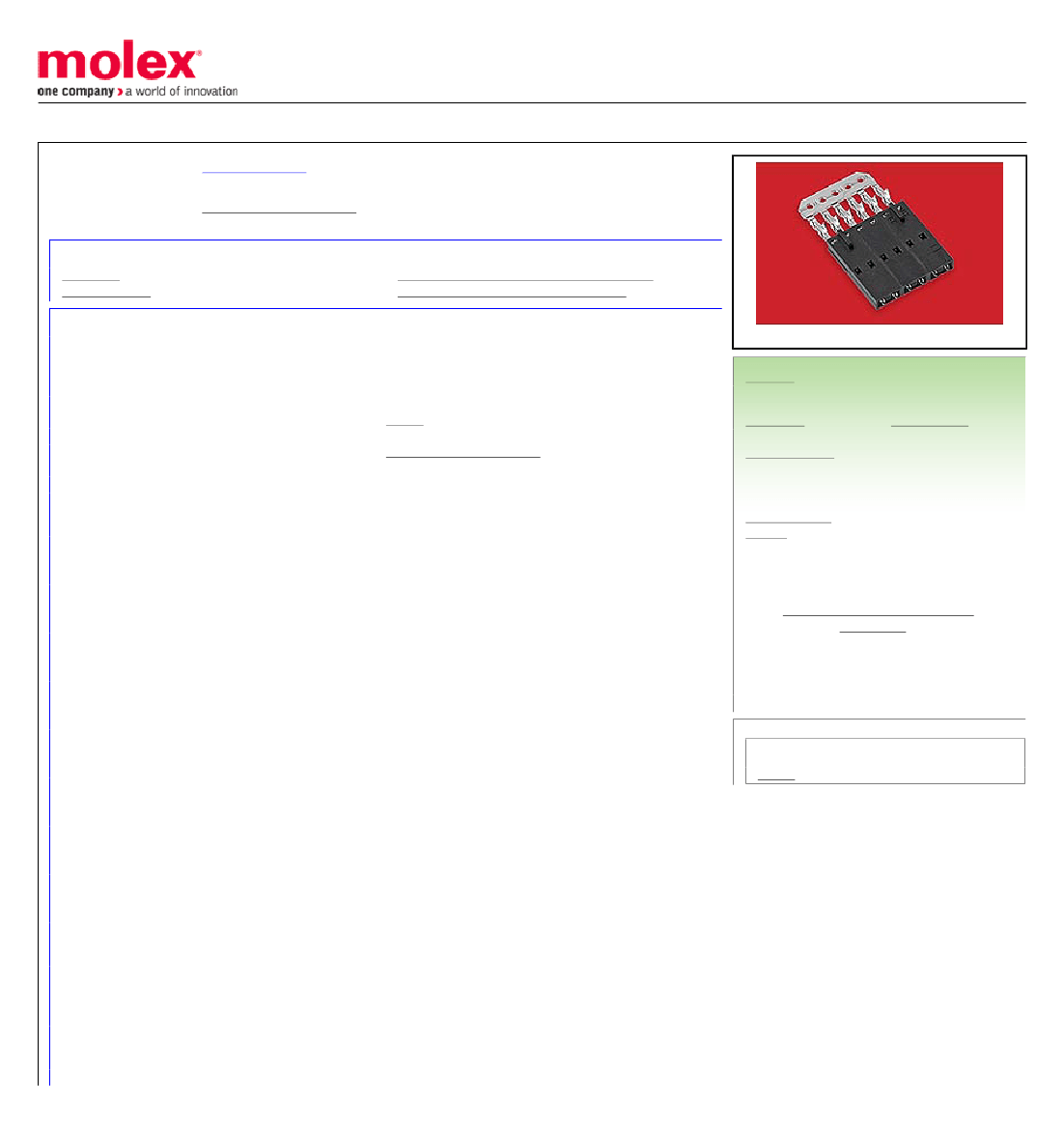

Preview

Download Datasheet

View All

This document was generated on 12/05/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

General

Product Family

Series

Comments

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

0015389022

Active

SL™ Modular Connectors

SL FFC/FPC Connector - Single Row Male Version D, 2 Circuits

Product Specification PS-70430-001 (PDF)

RoHS Certificate of Compliance (PDF)

LR19980

E29179

FFC/FPC Connectors

70431

Male

SL™ Modular Connectors

800754219068

Black

N/A

Vertical

94V-0

Phosphor Bronze

Tin

Polyester Alloy

0.315/g

Vertical

None

Tube

2.54mm

3.810µm

Yes

N/A

-40°C to +105°C

IDT or Pierce

FFC/FPC

2.0A

250V

N/A

704310071

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

70431 Series
