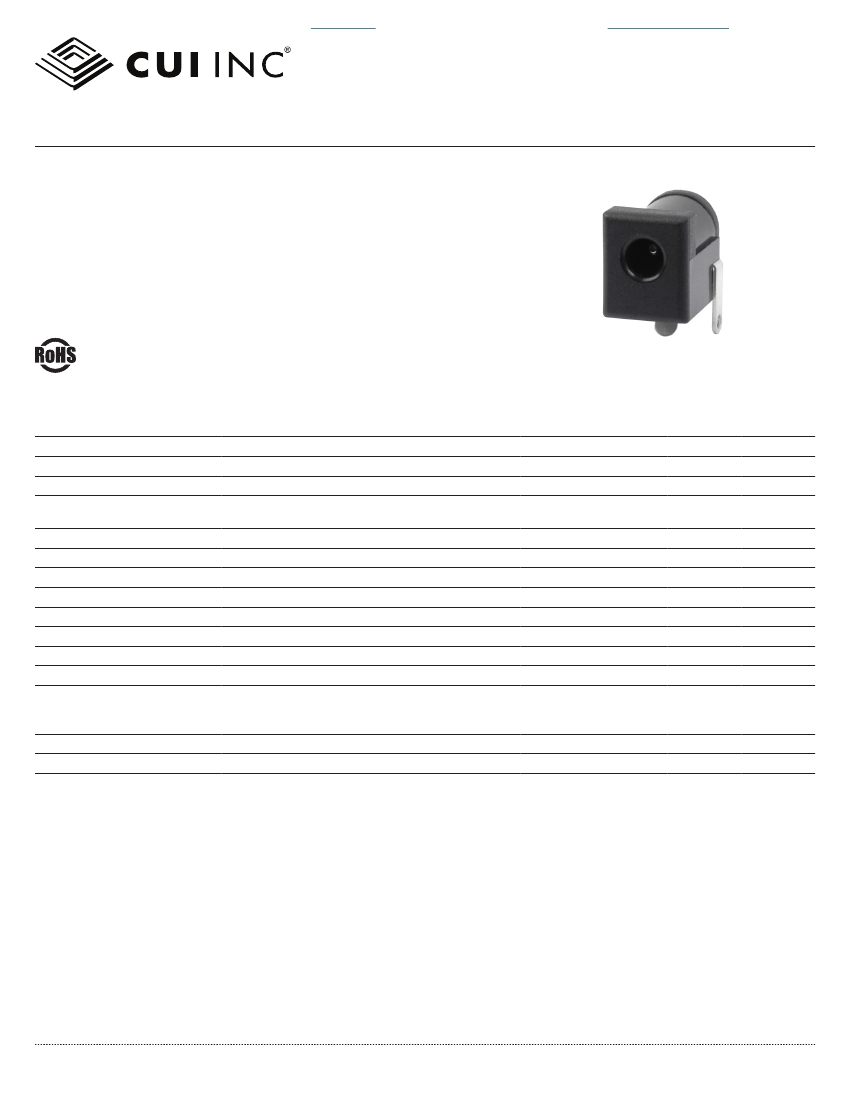

1. When measured at a current of less than 100 mA/1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-017DH
│
DESCRIPTION:
DC POWER JACK
date
05/04/2016│
page
2 of 3

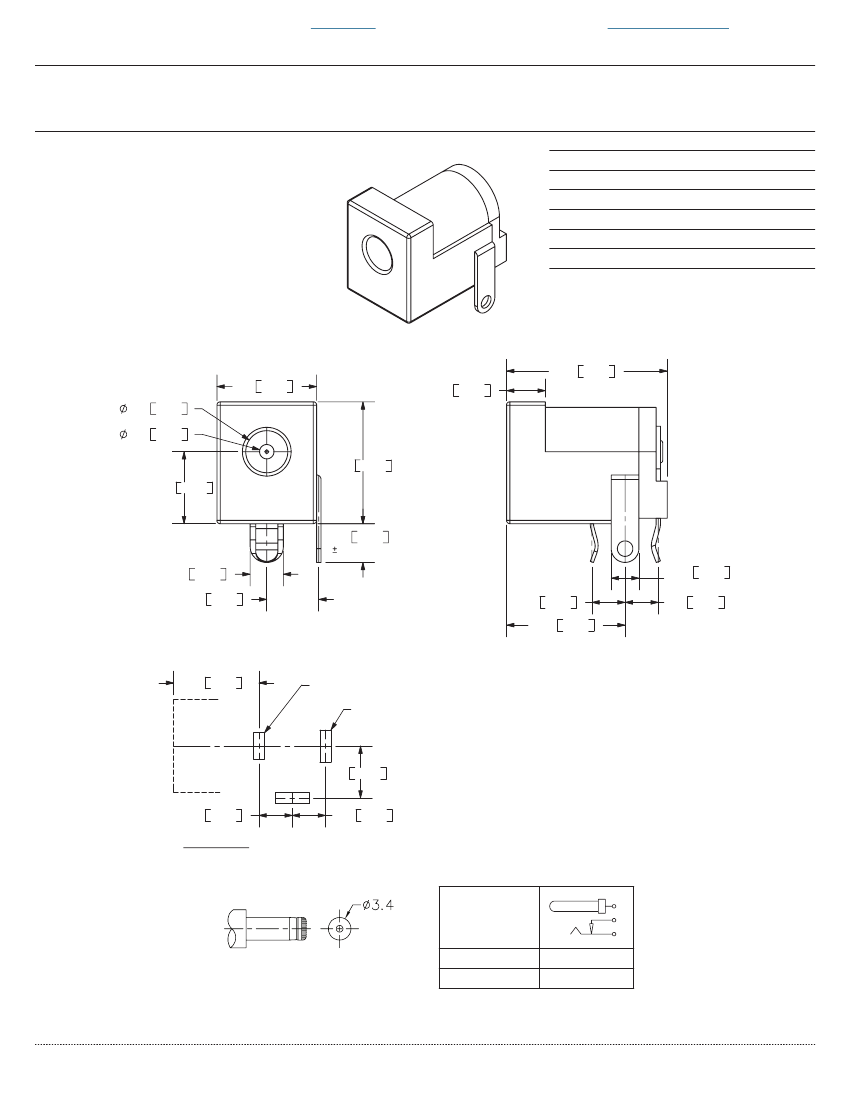

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
copper
brass
copper alloy
brass
PBT
PLATING
nickel
silver
silver
silver
14.5 0.571
9.0 0.354
3.80 0.150
1.30 0.051
11.0 0.433
6.50 0.256
3.50 0.138
3.5 0.138
0.3 (3 PLCS)
3.00 0.118
4.7 0.185
3.0 0.118
2
3
1
2.50 0.098
(2 PLCS)
3.0 0.118
10.7 0.421
7.7 0.303
1.00X3.00
(2 PLCS)
1.00X3.50
2
3
3.0 0.118
PCB LAYOUT
TOP VIEW
1
4.7 0.185
3.0 0.118
SCHEMATIC
Model
Center Pin
PJ-017DH
Ø1.3 mm
1
3
2
MATING PLUG
Jack Insertion Depth: 9.15 mm
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-017DH
│
DESCRIPTION:
DC POWER JACK
date
05/04/2016│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
applied new spec template
increased voltage rating
date
07/30/2007
06/29/2015
05/04/2016
The revision history provided is for informational purposes only and is believed to be accurate.
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
techsupport@cui.com
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a
life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
