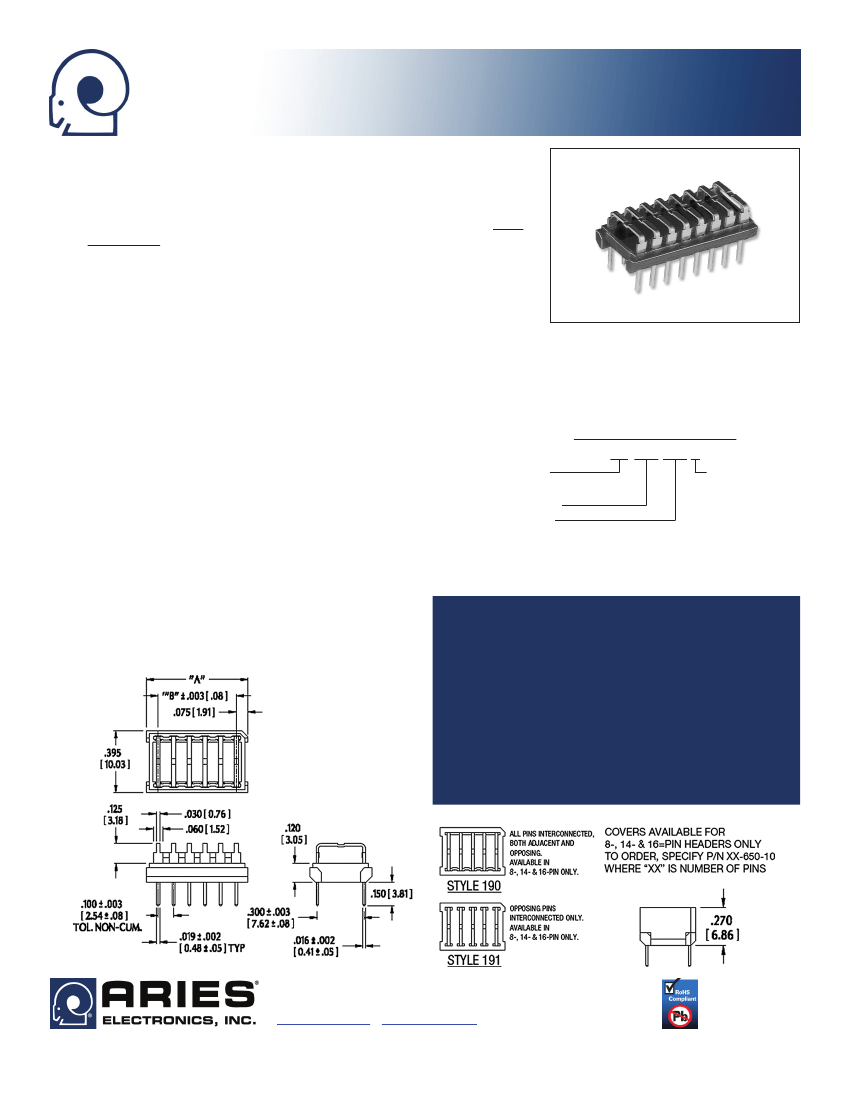

Series 675
DIP Program Headers
FEATURES
• Aries DIP programmable headers offer unusual versatility for programming within
the header itself
• They can be individually programmed using cutters or Aries programming tool, P/N
T-675, available separately, to remove the interconnecting sections. Consult
Data
Sheet 22002
for Aries programming tool
• Adjacent and/or opposing pins are interconnected until the pre-slotted section is
programmed out. An almost infinite number of programs can be attained by merely
leaving or removing interconnecting sections
• A low profile, snap-on cover protects header from dirt or accidental damage, and
can be marked to identify the program within the header
CUSTOMIZATION:
In addition to the standard products shown
GENERAL SPECIFICATIONS
on this page, Aries specializes in custom design and production.
• STANDARD HEADER BODY AND COVER: black UL 94V-0 4/6 Nylon
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• PINS: Brass 3/4-hard
right to change product general specifications without notice.
• PIN PLATING: “-T” 200µ [5.08µ] min. matte Sn per ASTM B545-97 2004e1
over 50µ [1.27µ] min. Ni per QQ-N-290; “-G” 10µ [0.25µ] Au per MIL-
G-45204 over 50µ [1.27µ] min. Ni per QQ-N-290; “-TL” 200µ [5.08µ]
ORDERING INFORMATION
90/10 Sn/Pb per MIL-T-10727 Type I over 50µ [1.27µ] min. Ni per QQ-N-
XX-675-19X X
290
Plating
Pins
• CURRENT RATING: 2 amps
None = Au
8, 14 & 16 only*
• OPERATING TEMPERATURE: 221°F [105°C] Sn or Sn/Pb plating; 257°F
Series
T = Sn
[125°C] Au plating
Style
TL = Sn/Pb
MOUNTING CONSIDERATIONS
190 or 191 (see dwg)
* Consult factory for other sizes
• SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = (NO. OF PINS PER ROW x 0.100 [2.54]) + 0.050 [1.27]
“B” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]
COVERS AVAILABLE FOR 8-, 14- AND 16-PIN HEADERS. TO ORDER,
SPECIFY P/N XX-650-10, WHERE “XX” DENOTES THE NUMBER OF
PINS. CONSULT DATA SHEET 12033 FOR ADDITIONAL INFORMA-
TION.
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
16004
Rev. AA
