828430-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 828430-5

828430-5: Description2X 5P AMPMODU II STIFTLEI; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

828430-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	828430-5	-	-	View	Buy Now

828430-5 Overview

2X 5P AMPMODU II STIFTLEI

828430-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks
Other features	W/O STANDOFF & MOUNTING EARS
body width	0.2 inch
subject depth	0.1 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	828430
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	31u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.104 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

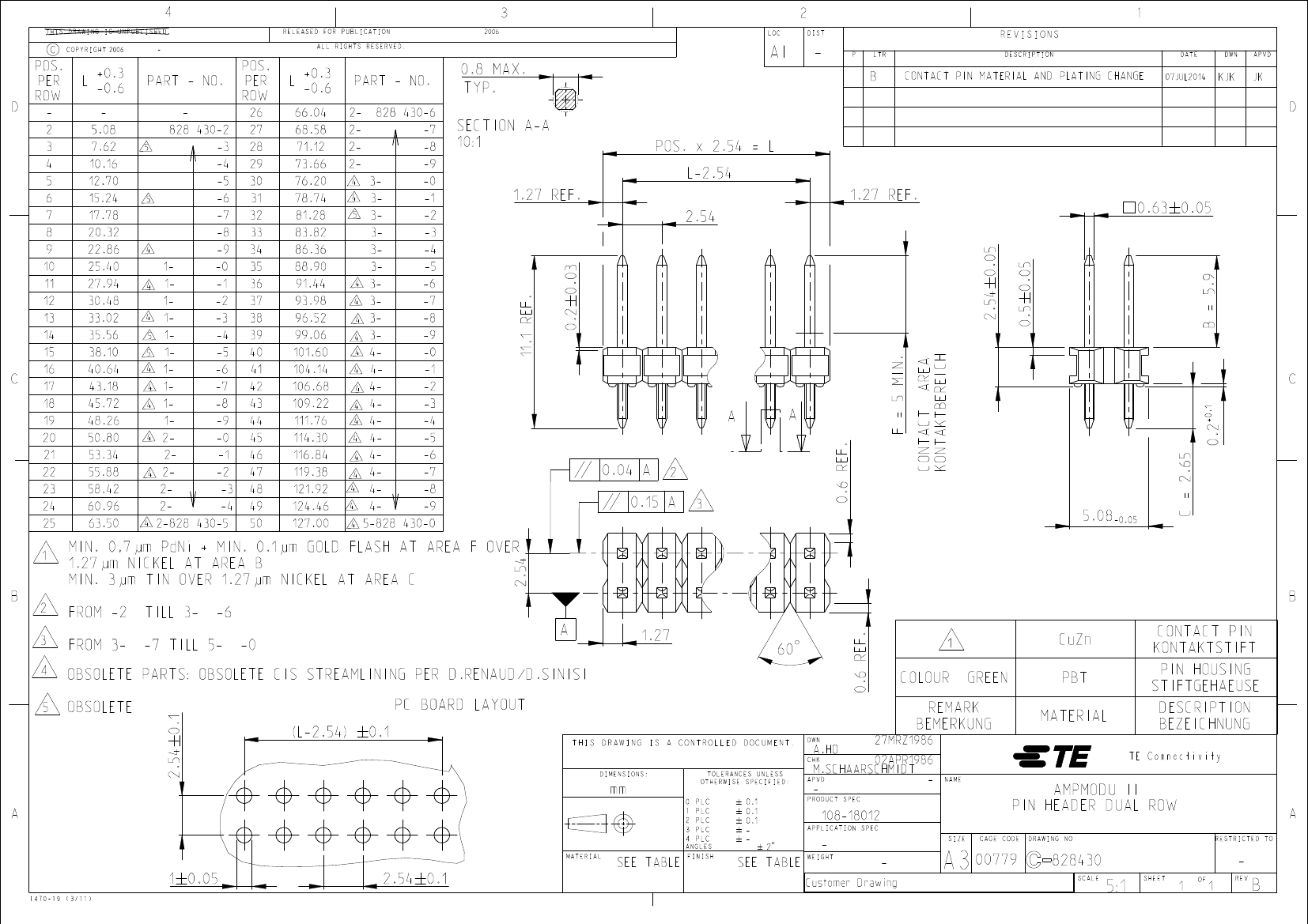

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2006

LOC

DIST

POS.

PER

ROW

2006

+0.3

-0.6

5.08

10.16

12.70

15.24

17.78

20.32

22.86

7.62

PART - NO.

828 430-2

POS.

PER

ROW

+0.3

-0.6

PART - NO.

0.8 MAX.

TYP.

SECTION A-A

10:1

1.27 REF.

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

CONTACT PIN MATERIAL AND PLATING CHANGE

07JUL2014

KJK

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

101.60

99.06

828 430-6

-7

-8

-9

-0

-1

-2

-3

-4

-5

-7

-8

-9

-0

-1

-3

-4

-5

POS. x 2.54 = L

L-2.54

2.54

1.27 REF.

2.54 0.05

-6

-7

-8

0.63 0.05

0.5 0.05

0.2 0.03

30.48

33.02

35.56

38.10

40.64

-2

-3

-4

-5

-6

-7

11.1REF.

27.94

-1

-6

F = 5 MIN.

55.88

58.42

60.96

-2

63.50

2-828 430-5

-3

-4

119.38

121.92

-7

-8

-9

124.46

127.00

5-828 430-0

5.08

-0.05

2.54

MIN. 0,7µm PdNi + MIN. 0.1µm GOLD FLASH AT AREA F OVER

1.27µm NICKEL AT AREA B

MIN. 3µm TIN OVER 1.27µm NICKEL AT AREA C

FROM -2

FROM 3-

TILL 3-

-6

-0

C = 2.65

53.34

-1

116.84

-6

0.6 REF.

48.26

50.80

-9

-0

111.76

114.30

-4

-5

0.2

+0.1

43.18

45.72

-8

104.14

CONTACT AREA

KONTAKTBEREICH

B = 5.9

25.40

-9

-0

106.68

109.22

-2

-3

0.6 REF.

-7 TILL 5-

1.27

60 $

CuZn

GREEN

PBT

MATERIAL

OBSOLETE PARTS: OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI

2.54 0.1

OBSOLETE

PC BOARD LAYOUT

(L-2.54)

# 0.1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

COLOUR

A.HO

27MRZ1986

REMARK

BEMERKUNG

PIN HOUSING

STIFTGEHAEUSE

DESCRIPTION

BEZEICHNUNG

CONTACT PIN

KONTAKTSTIFT

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

02APR1986

M.SCHAARSCHMIDT

TE Connectivity

NAME

MATERIAL

ANGLES

PLC

0.1

PRODUCT SPEC

APPLICATION SPEC

108-18012

AMPMODU II

PIN HEADER DUAL ROW

CAGE CODE

DRAWING NO

RESTRICTED TO

1 0.05

1470-19 (3/11)

2.54 0.1

SEE TABLE

FINISH

SEE TABLE

2 $

WEIGHT

Customer Drawing

SIZE

00779

828430

SCALE

5:1

SHEET

REV
