51338-4473 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51338-4473

51338-4473: DescriptionBoard to Board u0026 Mezzanine Connectors 0.4 B-TO-B REC ASSY EMBSTP PKG; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51338-4473 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51338-4473	-	-	View	Buy Now

51338-4473 Overview

Board to Board u0026 Mezzanine Connectors 0.4 B-TO-B REC ASSY EMBSTP PKG

51338-4473 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN AND ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	23 weeks
Other features	SLIMSTACK
Board mount options	FITTING NAIL
body width	0.134 inch
subject depth	0.053 inch
body length	0.469 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.016 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	44
Base Number Matches	1

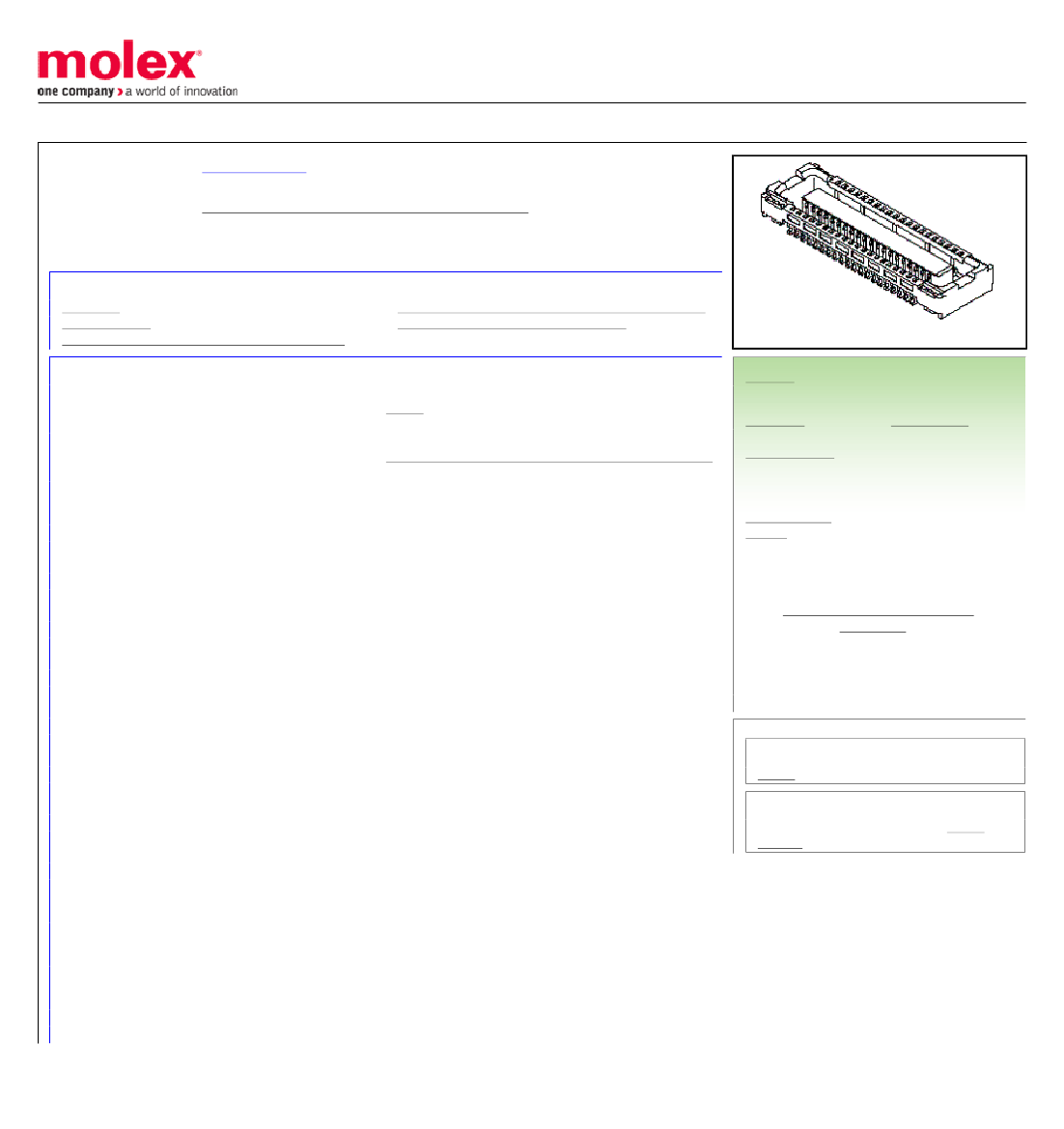

Preview

Download Datasheet

View All

This document was generated on 10/26/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0513384473

Active

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

0.40mm Pitch Board-to-Board SlimStack Receptacle, Surface Mount, Dual Row,

Vertical Stacking, 1.50mm Stacking Height, with Space Saving J-Bend Leads, 44

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51338-005-001 (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-51338-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PCB Receptacles

51338

Board-to-Board, Signal

Solder Tab Plating: Tin (Sn) over Nickel

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

SlimStack

884982137622

Black

Yes

1.50mm

Phosphor Bronze

Gold

78.586/mg

Vertical

None

Embossed Tape on Reel

0.40mm

Yes

-25°C to +85°C

Surface Mount

0.3A

50V AC (RMS)/DC

Search Parts in this Series

51338 Series

Mates With

SlimStack Board-to-Board Plug 55909 ,

501745

SPK-51338-002-001

PS-51338-005-001

SD-51338-005, SD-51338-006

Recommended Resources
