97 series solder type
how to order
Example of part number for solder type connectors is given below.
97
–
3101
A – 28 – 21
S
Y (847) (639)
Series Number
97 - Like MS but
Amphenol
®
Shell Type
3100 Wall Receptacle
3101 Cable Receptacle
3102 Box Receptacle
3106 Straight Plug

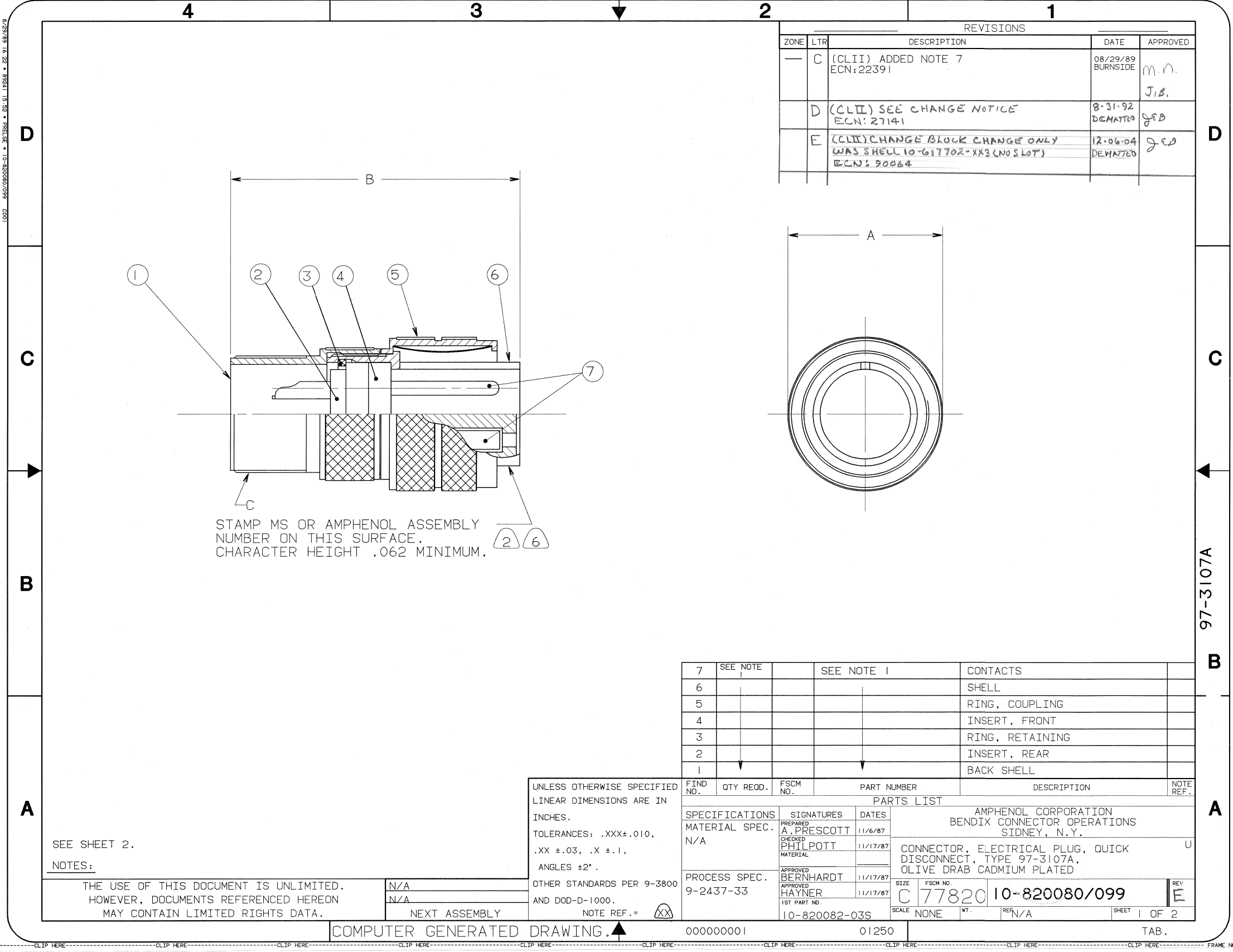

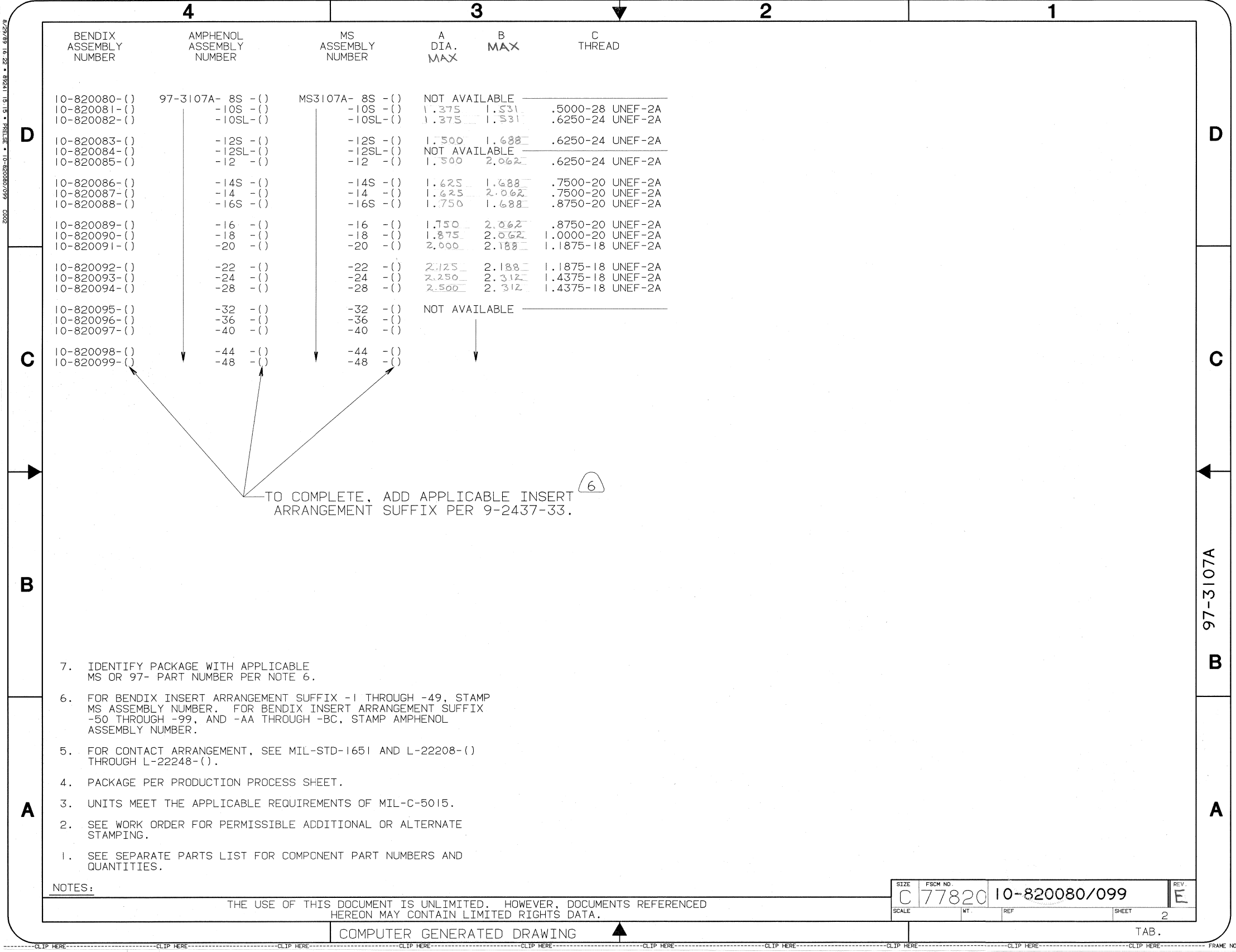

3107 Quick Disconnect Plug
3108 Angle Plug
Shell Finish Suffix
Omit for standard O.D.
cadmium finish
(604) Gray anodized
(608) Black anodized
(621) Black zinc alloy
(624) Green zinc alloy
(639) Clear cadmium
(640) Conductive black zinc alloy
(689) Electroless nickel
OR
l
A
RoHS Compliant
oHS
R
Suffix
(946) Black zinc alloy
U
E
/2
002
/
95
/
plating plus solder
contact less pre-filled cup
E
mpheno
Shell Construction
A - Solid Backshell
B - Split Backshell
Shell Size
8S, 10SL, 12S, 14S, 14, 16S, 16
18, 20, 22, 24, 28, 32, 36
Insert Configuration Number
See insert availability listing - pages 4 & 5,
and see insert arrangement illustrations -
pages 6-11.
Deviation from standard A&B
construction
Omit this suffix if standard construction is
desired
(115) Small flange receptacle
(426) Gold over silver plating on contacts
(438) Construction for potting (see page 30
for additional deviations)
(936) Connector plug with safety wire holes
in coupling nut
Consult Amphenol, Sidney, NY for
other deviations.
Alternate Insert Positions
Omit for standard position
W, X, Y or Z for alternate positions, depend-
ing on insert (see page 12 for positions
available)
Note: Accessories for 97 Series Connectors
should be ordered with matching connec-
tor plating. See accessory pages 33-39.
Contact Type
P = Pin
S = Socket
19
