5962-8971101JX datasheet, PDF - EEWORLD Datasheet

5962-8971101JX: DescriptionCorrelator, 1-Bit, CMOS, CDIP24, CERAMIC, DIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size259KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

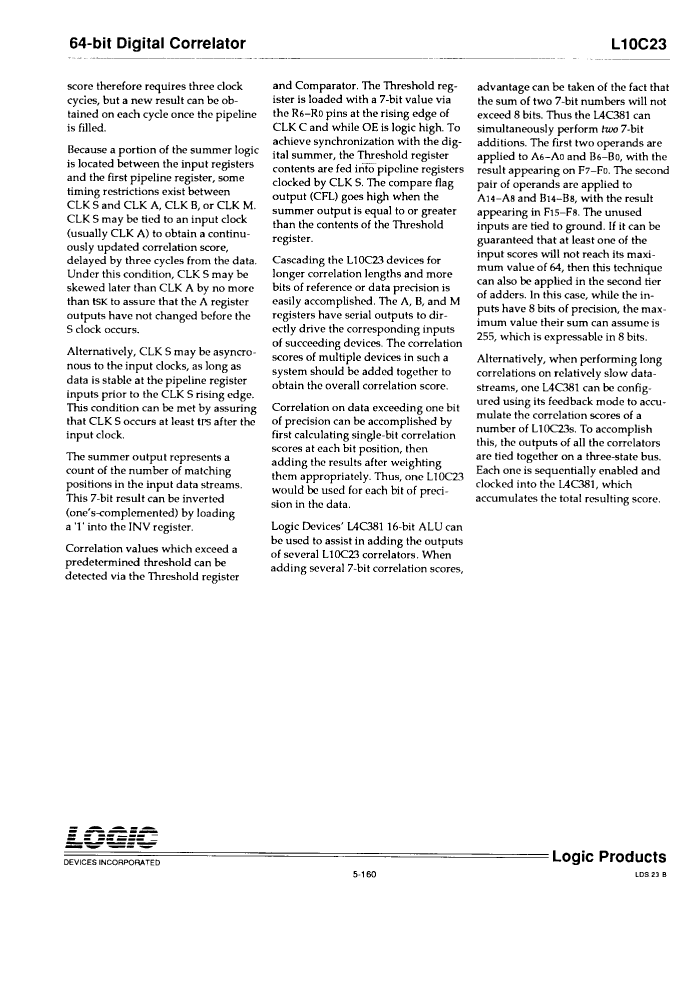

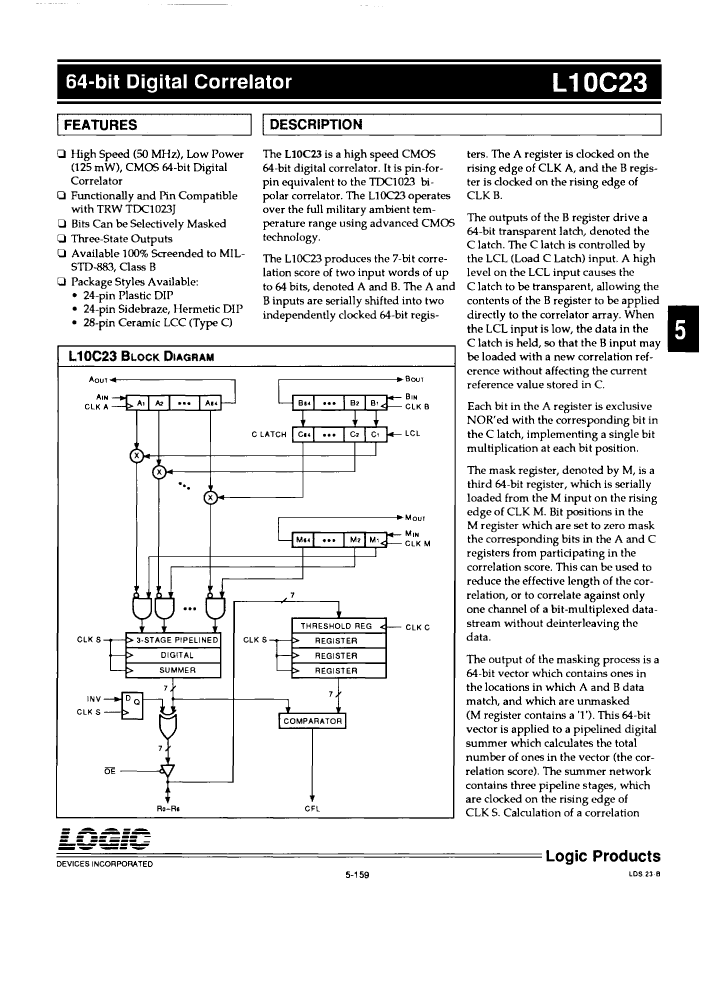

5962-8971101JX Overview

Correlator, 1-Bit, CMOS, CDIP24, CERAMIC, DIP-24

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
boundary scan	NO

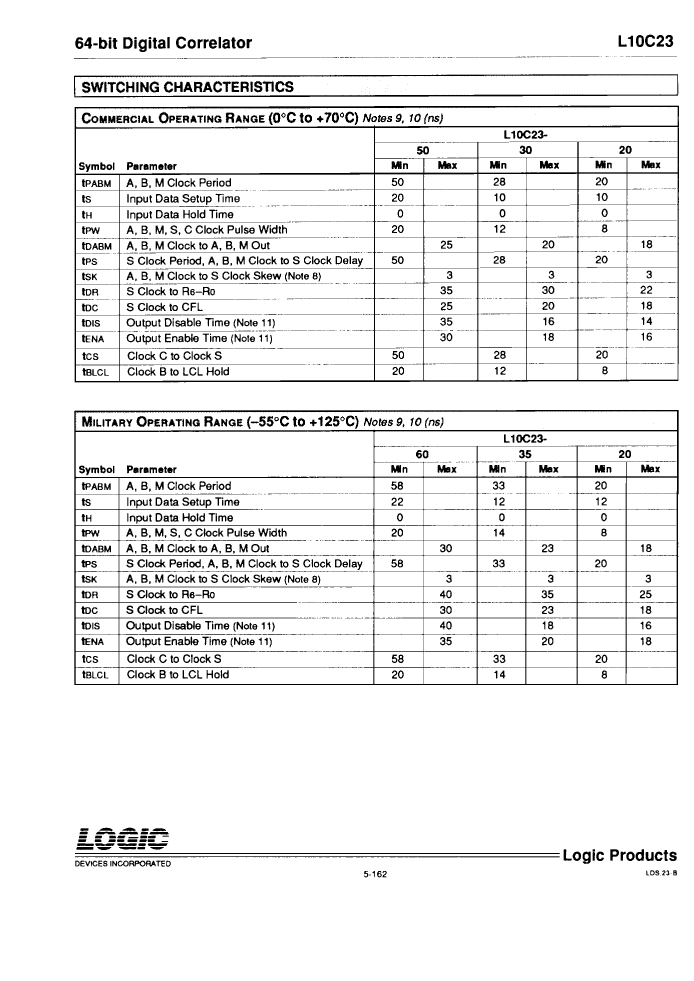

maximum clock frequency	25 MHz
External data bus width	1
JESD-30 code	R-CDIP-T24
low power mode	NO
Number of terminals	24

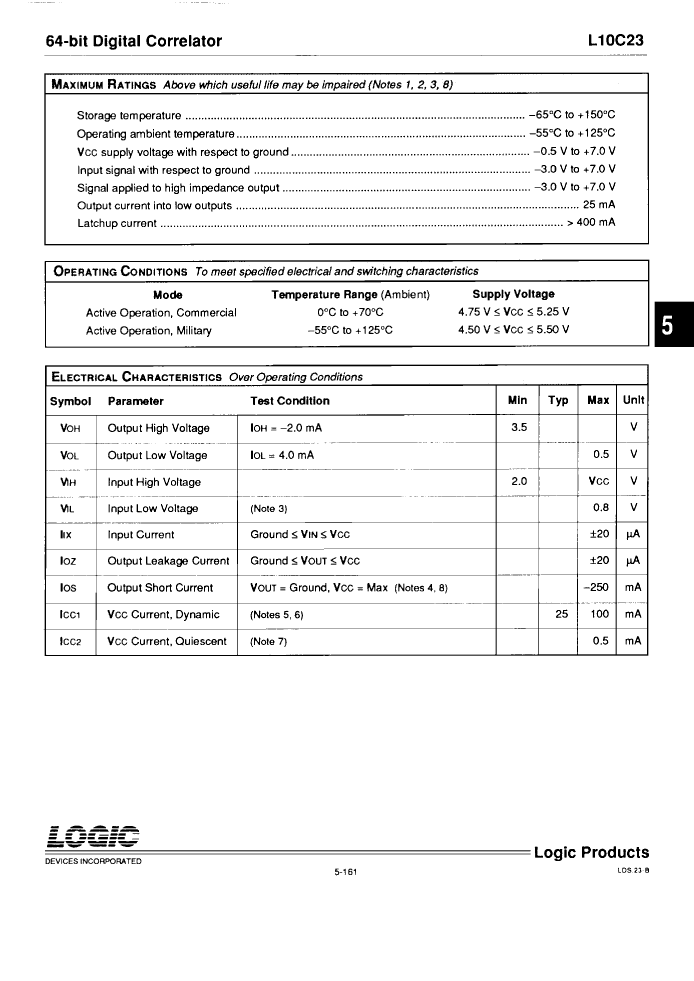

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	1
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CORRELATOR
Base Number Matches	1
