HCC/HCF4035B
4-STAGE PARALLEL IN/PARALLEL OUT SHIFT REGISTER
.
.
.
.
.
.
.
.
.
.
.
.
.
4-STAGE CLOCKED SHIFT OPERATION
SYNCHRONOUS PARALLEL ENTRY ON ALL 4
STAGES
JK INPUTS ON FIRST STAGE
ASYNCHRONOUS TRUE/COMPLEMENT CON-
TROL ON ALL OUTPUTS
STATIC FLIP-FLOP OPERATION ; MASTER-
SLAVE CONFIGURATION
BUFFERED INPUTS AND OUTPUTS
HIGH SPEED 12MHz (typ.) AT V
DD
= 10V
QUIESCENT CURRENT SPECIFIED TO 20V
FOR HCC DEVICE
STANDARDIZED SYMMETRICAL OUTPUT
CHARACTERISTICS
5V, 10V, AND 15V PARAMETRIC RATINGS
INPUT CURR 100nA AT 18V AND 25°C FOR
HCC DEVICE
100% TESTED FOR QUIESCENT CURRENT
MEETS ALL REQUIREMENTS OF JEDEC TEN-
TATIVE STANDARD N°. 13A, ”STANDARD
SPECIFICATIONS FOR DESCRIPTION OF ”B”
SERIES CMOS DEVICES”
Whith JK inputs connected together, the first stage
becomes a D flip-flop. An asynchronous common
RESET is also provided.
EY
(Plastic Package)
F
(Ceramic Frit Seal Package)
M1
(Micro Package)
C1
(Plastic Chip Carrier)
ORDER CODES :
HCC4035BF
HCF4035BM1
HCF4035BEY
HCF4035BC1
DESCRIPTION
The
HCC4035B
(extended temperature range) and
HCF4035B
(intermediate temperature range) are
monolithic integrated circuit, available in 16-lead
dual in-line plastic or ceramic package and plastic
micro package. The
HCC/HCF4035B
is a four-
stage clocked signal serial register with provision for
synchronous PARALLEL inputs to each stage and
SERIAL inputs to the first stage via JK logic. Regis-
ter stages 2, 3, and 4 are coupled in a serial D flip-
flop configuration when the register is in the serial
mode (PARALLEL/SERIAL control low). Parallel
entry into each register stage is permitted when the
PARALLEL/SERIAL control is high. In the parallel or
serial mode information is transferred on positive
clock transitions. When the TRUE/COMPLEMENT
control is high, the true contents of the register are
available at the output terminals. When the
TRUE/COMPLEMENT control is low, the outputs
are the complements of the data in the register. The
TRUE/COMPLEMENT control functions asyn-
chronously with respect to the CLOCK signal. JK
input logic is provided on the first stage SERIAL
input to minimize logic requirements particularly in
counting and sequence-generation applications.
July 1989
PIN CONNECTIONS
1/14
HCC/HCF4035B

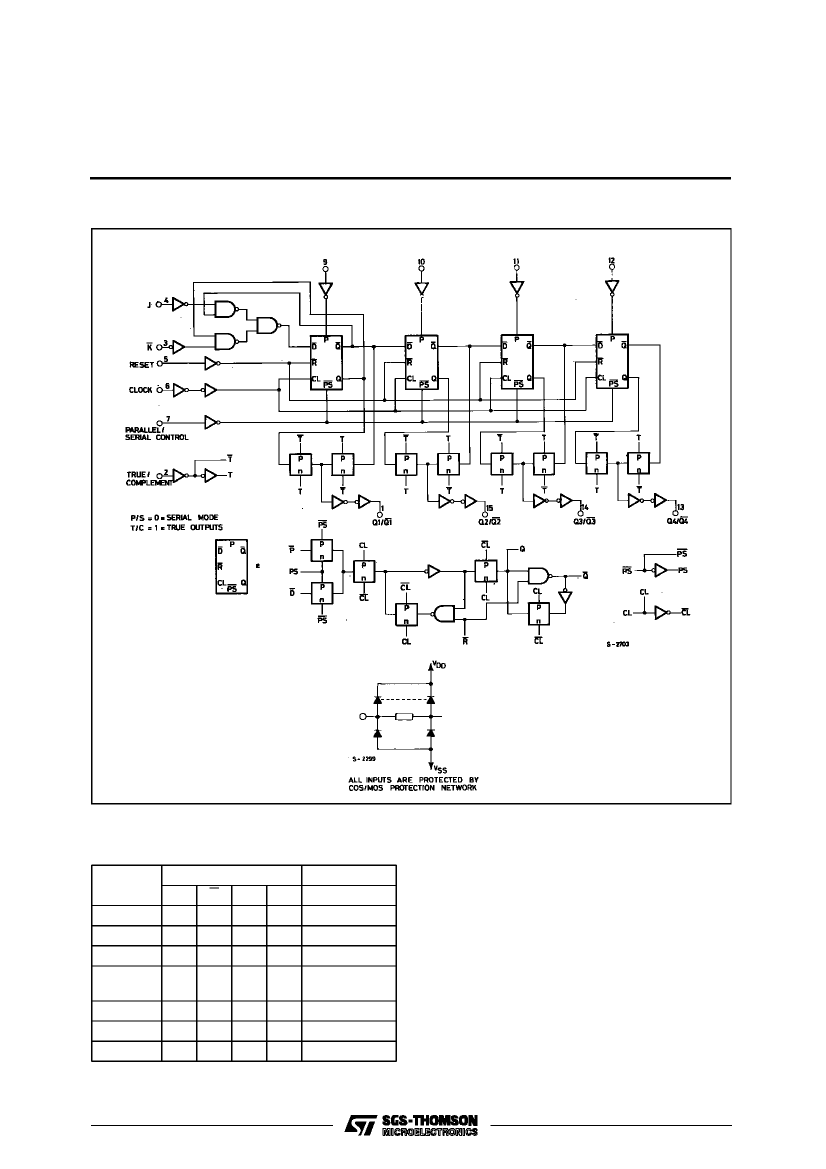

FUNCTIONAL DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
V
DD
*
V
i
I
I
P
t ot
Parameter
Supply Voltage :
HC C
Types
H C F
Types
Input Voltage
DC Input Current (any one input)
Total Power Dissipation (per package)
Dissipation per Output Transistor
for T
o p
= Full Package-temperature Range
Operating Temperature :
HCC
Types
H CF
Types
Storage Temperature
Value
– 0.5 to + 20
– 0.5 to + 18
– 0.5 to V
DD
+ 0.5
±
10
200
100
– 55 to + 125
– 40 to + 85
– 65 to + 150
Unit
V
V
V
mA
mW
mW
°C
°C
°C
T
op
T
stg
Stresses above those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not
implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltage values are referred to V
SS
pin voltage.
RECOMMENDED OPERATING CONDITIONS
Symbol
V
DD
V
I
T
op
Parameter
Supply Voltage:
HCC
Types
HCF
Types
Input Voltage
Operating Temperature:
HCC
Types
HCF
Types
Value
3 to 18
3 to 15
0 to V
DD
-55 to +125
-40 to +85
Unit
V
V
V
o
C
o
