39-01-2021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-01-2021

39-01-2021: DescriptionHeaders u0026 Wire Housings SOCKET 24-18AWG BULK; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-01-2021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-2021	-	-	View	Buy Now

39-01-2021 Overview

Headers u0026 Wire Housings SOCKET 24-18AWG BULK

39-01-2021 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks 3 days
Is Samacsys	N
Other features	MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0081; 44478-3111; 30490-2002
body width	0.46 inch
subject depth	0.94 inch
body length	0.425 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	NYLON
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-2
Evacuation force-minimum value	.4448 N
Base Number Matches	1

Preview

Download Datasheet

View All

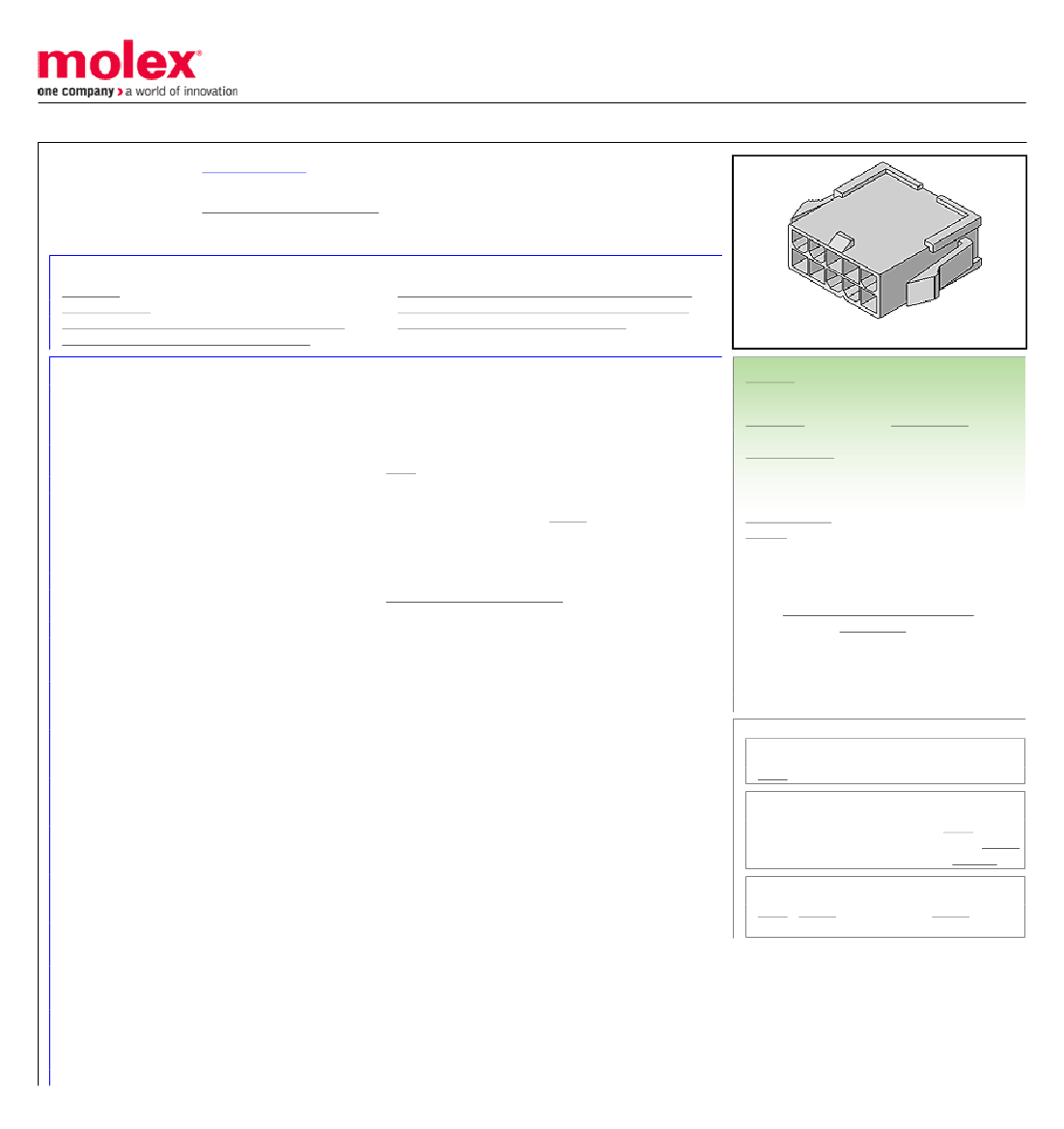

This document was generated on 12/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039012021

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-2, with Panel Mounting Ears,

Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5559-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Crimp Housings

5559

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.

Yes

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800753584266

Natural

94V-2

Plug

Nylon

1.237/g

Bag

Yes

4.20mm

Yes

-40°C to +105°C

13.0A

5559-02P

AS-5557-001-001

PK-5559-001-001

PS-45750-001-001, PS-5556-001

MolexKits

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Material Info

Engineering Number

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Search Parts in this Series

5559 Series

Mates With

Dual Row Receptacle Housing 5557

<br>Mini-Fit Jr. TPA Cable Assembly 45135

<br>Mini-Fit Jr. Cable Assembly 245135

Use With

5558 , 30490 Male Terminal, 46012 Mini-Fit

Plus Crimp Terminal

39-01-2021 Related Products

	39-01-2021	0039012021
Description	Headers u0026 Wire Housings SOCKET 24-18AWG BULK	Headers u0026 Wire Housings MINI-FIT JR PLG 02P 94V-2 PNL
