050-301 PRODUCT BRIEF
SIZE 8 ELECTRO-OPTICAL CONTACT TRANSMITTER OR RECEIVER, MULTI-MODE,
1.25MM FERRULE, ARINC 801
FRONT INSERT – FRONT RELEASE

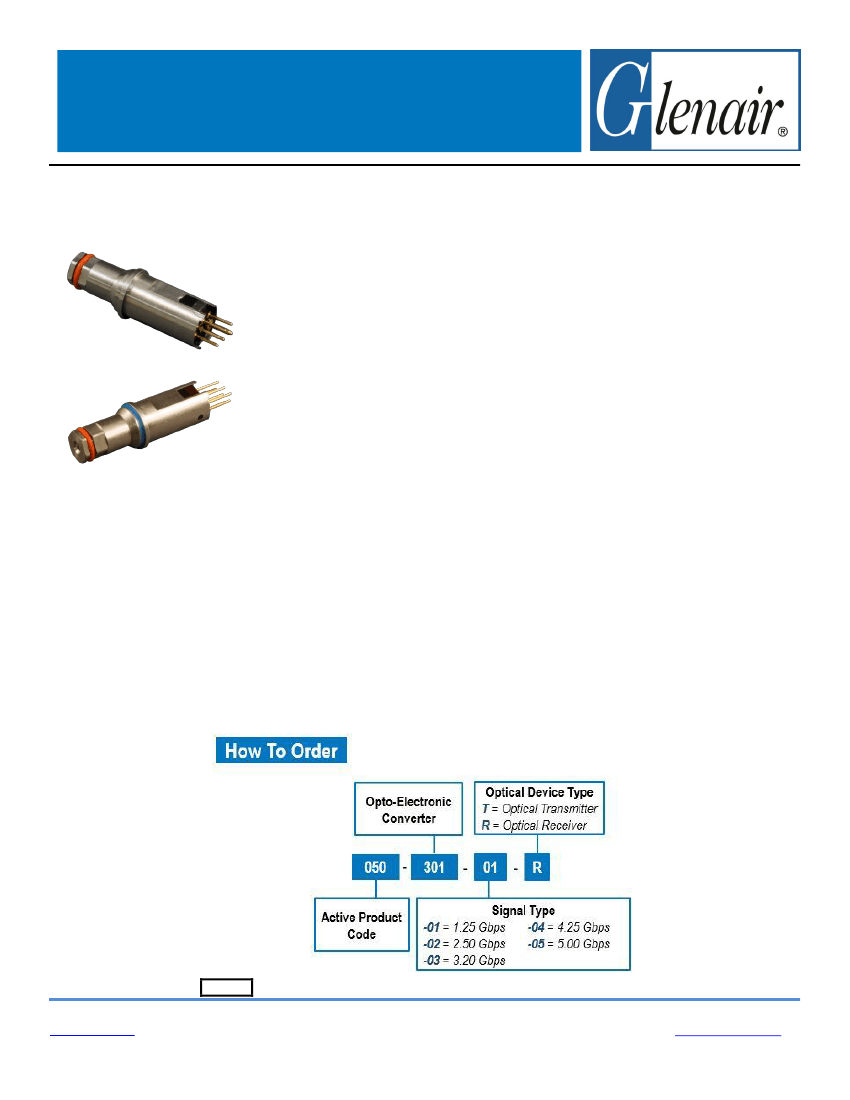

Size 8 Cavity Opto-Electronic Contacts, 100Mbps to 5Gbps, MMF, 3.3V
Size 8 Cavity Opto-electronic contacts transmit and receive differential CML electrical
signals over Multimode fiber optic cable. Transmitters consist of a laser driver with a
temperature compensation circuit to maintain optical power over the entire operating
temperature range, and an 850nm VCSEL laser. Receivers consist of an 850nm PIN
Photo Detector, a Transimpedance Amplifier with automatic gain control circuit, and a
Limiting Amplifier. Differential output data signals are CML compatible. The transmitter
has a Tx Disable pin to turn off transmitter output and a Tx Fault pin to signal a fault
condition. Receiver includes a CMOS compatible Loss of Signal Indicator to prevent
invalid data.
KEY FEATURES/BENEFITS
Front-release, front-insert, front-removable Size
#8 OE converter designed for ARINC 600
ARINC 664, 801, 803, 804, and 818 Standard
Compliant
Data rates from 100Mbps to 5.00Gbps
Supports Fast and Gigabit Ethernet, AFDX, 1x/2x
Fibre Channel, DVI, DHMI, SFPDP, Serial Rapid
I/O (sRIO)
100 ohms differential CML inputs with Tx Fault
and Tx Disable
Link distances up to 550 meters with multimode
50/125µm or 62.5/125 µm fiber
Single 3.3V power supply
ARINC 801 1.25mm ceramic fiber ferrule
Solutions available in 38999 style connectors
-40°C to +85°C Operating Case Temperature
Evaluation fixtures available
APPLICATIONS
Harsh Environment such as: Airborne, Tactical,
Railway, Industrial, Oil and Gas and Shipboard
applications
©2012 Glenair, Inc.
REV: K
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 2 of 8
050-301 PRODUCT BRIEF
SIZE 8 ELECTRO-OPTICAL CONTACT TRANSMITTER OR RECEIVER, MULTI-MODE,
1.25MM FERRULE, ARINC 801
FRONT INSERT – FRONT RELEASE
Ratings and Specifications
T
ABLE
2 A
BSOLUTE
M
AXIMUM
R
ATINGS
Parameter
Storage Temperature
Supply Voltage
Symbol
Ts
V
cc
Min
-55
-0.4
Typ
Max
+100
3.8
Units
°C
V
Notes
T
ABLE
3 O
PERATING
C
ONDITIONS
Parameter
Operating Temperature, Case
Supply Voltage
Supply Current
Power Supply Noise (Peak-Peak)
Symbol
T
op
V
cc
Icc
V
cc_ripple
Min
-40
3.135
3.3
Typ
Max
+85
3.465
100
150
Units
°C
V
mA
mV
Typical @ +85°C
Notes
T
ABLE
4 E
LECTRO
-O
PTICAL
C
HARACTERISTICS
– T
RANSMITTER
Parameter
Optical Output Power
Extinction Ratio
Extinction Ratio
Optical Wavelength
Spectral Width, rms
Total Jitter
Transmitter Differential Input Impedance
Differential Input Voltage
Symbol
P
OUT
Er
Er
λ
OUT
Δλ
TJ
p-p
Zin
Vin_d
250
100
2200
Min
-6.5
6
5
830
10
8
850
860
0.85
60
Typ
Max
-1.5
Units
dBm
dB
dB
nm
nm
ps
Ohms
mV
p-p
DC coupled Internally
CML, 100 ohm
Notes
850nm VCSEL,
1.25 Gbps – 2.5 Gbps
3.2 Gbps – 5 Gbps
T
ABLE
5 E
LECTRO
-O
PTICAL
C
HARACTERISTICS
- R
ECEIVER
Parameter
Sensitivity, BER 10
-12
, PRBS 2
7
-1, Er 9 dB
Sensitivity, BER 10 , PRBS 2 -1, Er 9 dB
Sensitivity, BER 10
-12
, PRBS 2
7
-1, Er 9 dB
Sensitivity, BER 10 , PRBS 2 -1, Er 9 dB
Sensitivity, BER 10
-12
, PRBS 2
7
-1, Er 9 dB
Overload, BER 10 , PRBS 2 -1
Optical Wavelength
Receiver Differential Output Impedance
Differential Output Voltage Swing
LOS Assert Level
LOS Hysteresis
-12
7
-12
7
-12
7
Symbol
P
IN
P
IN
P
IN
P
IN
P
IN
P
IN
λ
IN
Zout
Vout_d
LOS
LOS
HYS
Min
Typ
Max
-17
-17
-15
-15
-14
0
Units
dBm
dBm
dBm
dBm
dBm
dBm
nm
Ohms
Notes
PIN PD @ .125 Gbps
PIN PD @ 1.25 Gbps
PIN PD @ 2.50 Gbps
PIN PD @ 3.20 Gbps
PIN PD @ 4.25 Gbps, 5.00 Gbps
830
100
600
1.5
2.3
860
1200
-20
DC coupled internally
CML, 100 ohm
@1.25 Gbps
@1.25 Gbps
mV
p-p
dBm
dB
©2012 Glenair, Inc.
REV: K
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 3 of 8
050-301 PRODUCT BRIEF
SIZE 8 ELECTRO-OPTICAL CONTACT TRANSMITTER OR RECEIVER, MULTI-MODE,
1.25MM FERRULE, ARINC 801
FRONT INSERT – FRONT RELEASE
Ratings and Specifications (continued)
T
ABLE
6 C
OMPLIANCE
S
PECIFICATIONS
CHARACTERISTIC
ESD
Eye Safety
Standard
MIL-STD-883
CDRH and IEC-825
Class 1 Laser Product
Condition
Notes
1000V HBM
Input/Output Definition
T
ABLE
7 T
RANSMITTER
E
LECTRICAL
P
IN
A
RRANGEMENT
Pin Number
1
2
3
4
5
6
Symbol
TX DISABLE
Vcc
GND
TX FAULT
TX-
TX+
Description
Transmit Disable (Input), Normally Disabled
Logic “1” Input
Disable
Transmitter Output
Power Supply
Signal Ground
Transmitter Fault Indicator (Output)
Logic “1” Output
Transmitter Fault Condition
Transmitter Inverted Data (Input)
Transmitter Non-Inverted Data (Input)
CMOS
Open Drain
CML (Current Mode Logic)
CML (Current Mode Logic)
Logic
CMOS
Internal 5k-10k Ohm Pullup
T
ABLE
8 R
ECEIVER
E
LECTRICAL
P
IN
A
RRANGEMENT
Pin Number
1
2
3
4
5
6
Symbol
GND
Vcc
GND
LOS
RX-
RX+
Description
Signal Ground
Power Supply
Signal Ground
Loss of Signal (Output)
Loss of Valid Optical Signal
Logic “1” Output
Receiver Inverted Data (Output)
Receiver Non-Inverted Data (Output)
CMOS
Open Drain
CML (Current Mode Logic)
CML (Current Mode Logic)
Logic
©2012 Glenair, Inc.
REV: K
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 4 of 8
050-301 PRODUCT BRIEF
SIZE 8 ELECTRO-OPTICAL CONTACT TRANSMITTER OR RECEIVER, MULTI-MODE,
1.25MM FERRULE, ARINC 801
FRONT INSERT – FRONT RELEASE
FIGURE 1 - OUTLINE DRAWING CONTINUED (MARKING)
LABELING:
Each unit will be shipped in an antistatic bag. The label on the antistatic bag shall be at a minimum Arial size 10
black font and contain at a minimum the following information:
ANTISTATIC BAG LABEL:
Glenair
Cage Code: 06324
PN: 050-301-XX-X
Rev: X
QTY: X
J/N: X
D/C:X
S/N*: XXXXXX
*If QTY is more than 1, there is no S/N
