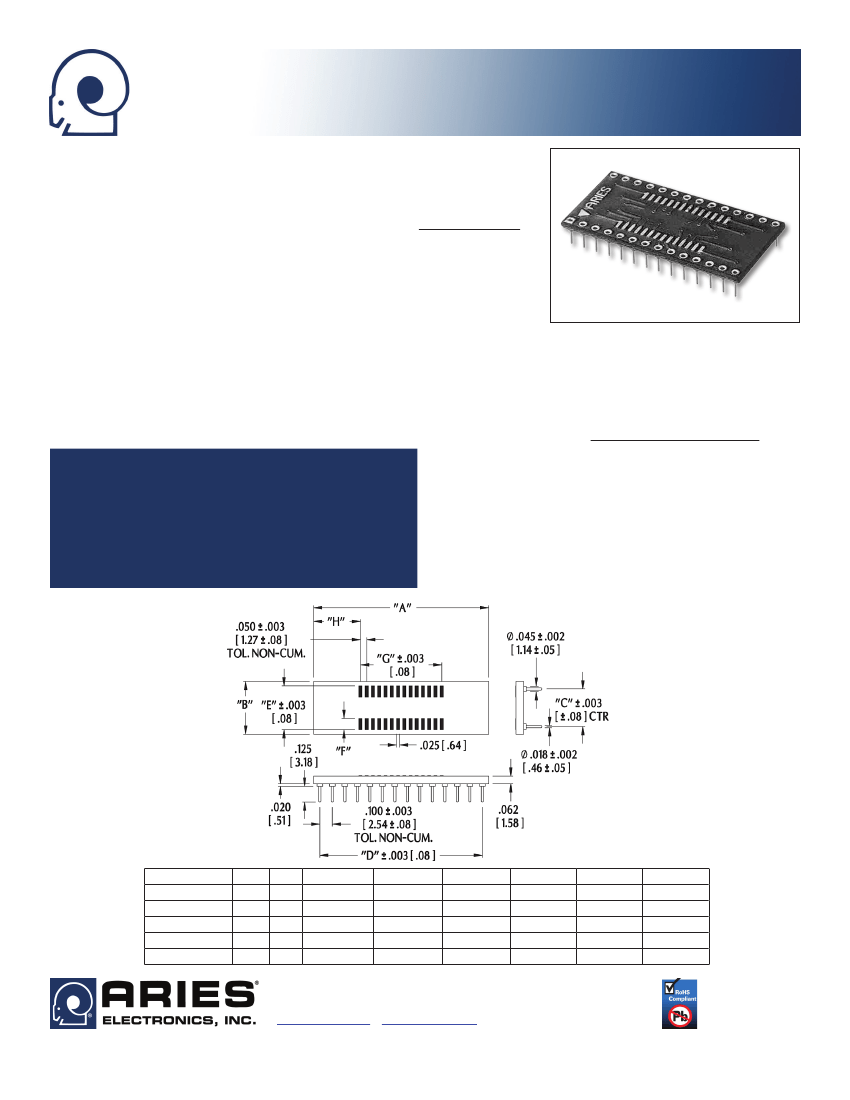

Series 45000X-11-RC and 65000X-11-RC
SOIC & SOJ-to-DIP Adapter RoHS/WEEE-Compliant
FEATURES
• Pb-Free RoHS/WEEE-compliant
• A cost-effective means of upgrading to SOJ or SOIC without changing your PCB
layout.
• Available on 0.400 [10.16] and 0.600 [15.24] centers. Consult
Data Sheet 18010
for Adapters on 0.300 [7.62] centers.
GENERAL SPECIFICATIONS
• BOARD MATERIAL: 0.062 [1.58] thick FR-4 or IS410 per IPC4101A/26 with
1-oz. Cu traces, both sides
• PADS: finished with ENIG (Immersion Au over Electroless Ni)
• PINS: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
• PIN PLATING: 10µ [0.254µ] min. Au per MIL-G-4524 over 100µ [2.54µ] min. Ni
per SAE-AMS-QQ-N-290
• OPERATING TEMPERATURE: 221°F [105°C]
MOUNTING CONSIDERATIONS
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
• SUGGESTED PCB HOLE SIZE: 0.028 ±0.002 [0.71 ±0.05] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = NO. OF PINS PER ROW x 0.100 [2.54]
“D” = (NO. OF PINS PER ROW - 1) x 0.100 [2.54]
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
ORDERING INFORMATION
(See Table below)
P/N
28-450001-11-RC
32-450001-11-RC
32-650000-11-RC
24-650000-11-RC
28-650000-11-RC
Pins
28
32
32
24
28
Type
SOJ
SOJ
SOJ
SOIC
SOIC
Dim. “B”
0.480 [12.19]
0.530 [13.46]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
Centers “C”
0.400 [10.16]
0.400 [10.16]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
Dim. “E”
0.460 [11.68]
0.500 [12.70]
0.650 [16.51]
0.455 [11.56]
0.450 [11.43]
Dim. “F”
0.080 [2.03]
0.090 [2.29]
0.200 [5.08]
0.150 [3.81]
0.075 [1.91]
Dim. “G”
0.650 [16.51]
0.750 [19.05]
0.750 [19.05]
0.550 [13.97]
0.650 [16.51]
Dim. “H”
0.325 [8.26]
0.425 [10.80]
0.425 [10.80]
0.180 [4.57]
0.375 [9.53]
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18011RC
Rev. AB
