BAW75/D7 datasheet, PDF - EEWORLD Datasheet

BAW75/D7: DescriptionRectifier Diode, 1 Element, 0.15A, 35V V(RRM),; CategoryDiscrete semiconductor diode; File Size117KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

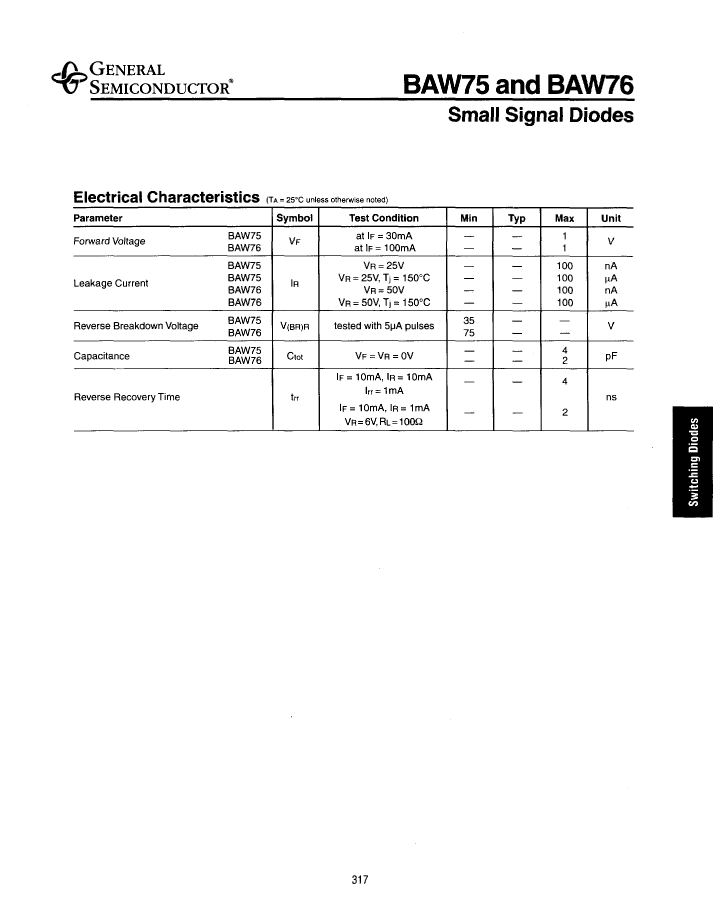

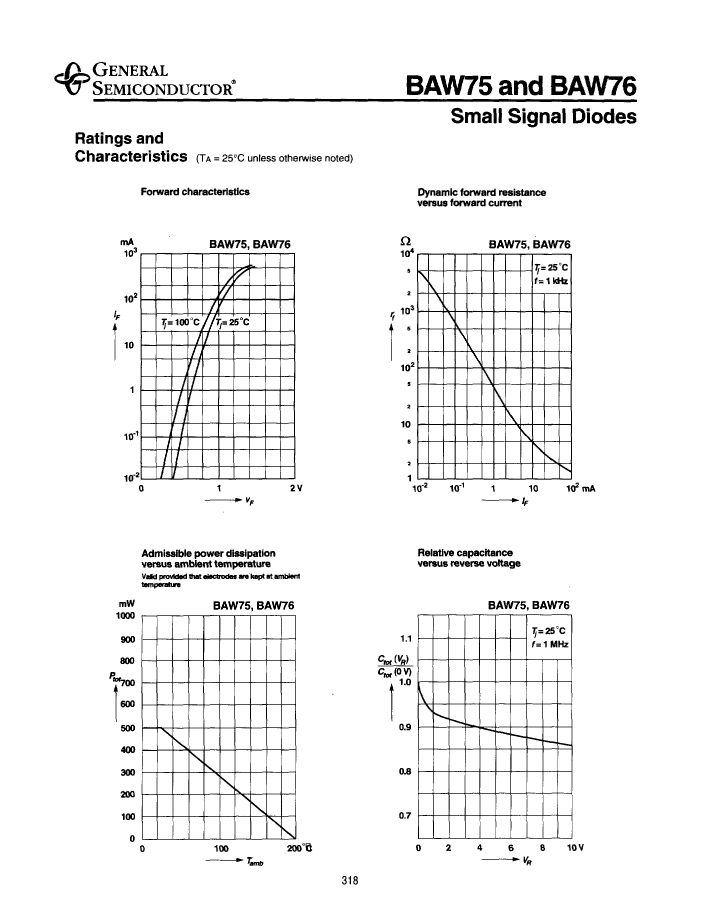

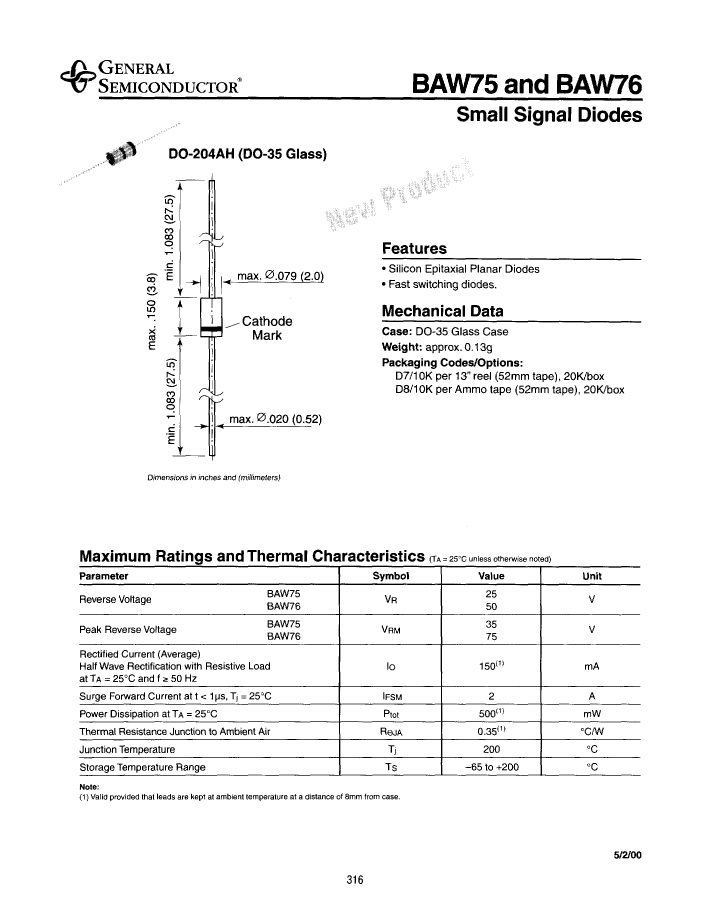

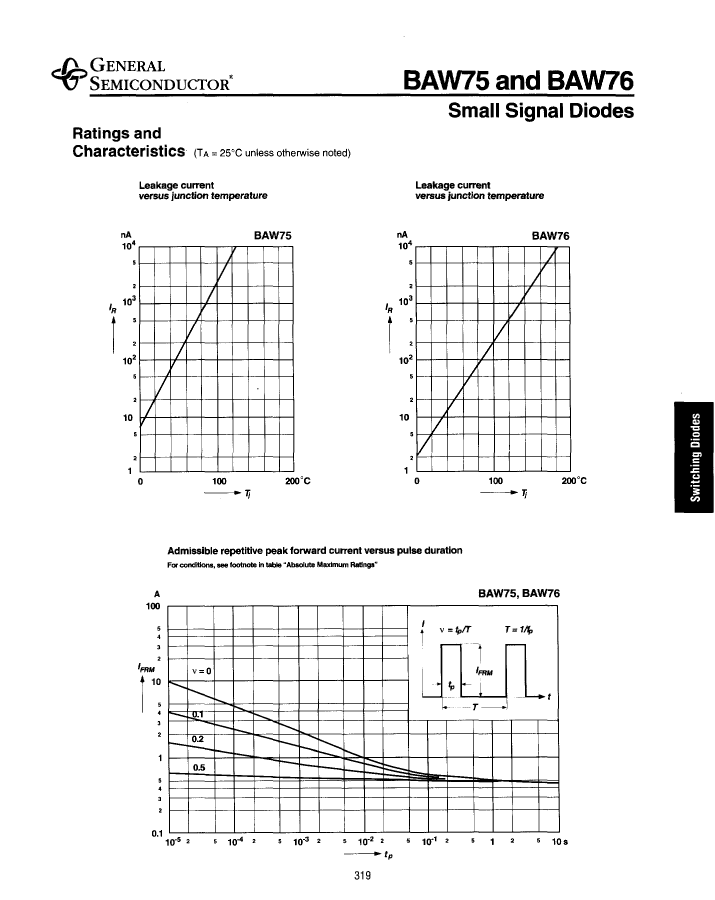

BAW75/D7 Overview

Rectifier Diode, 1 Element, 0.15A, 35V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	2 A
Number of components	1
Maximum operating temperature	200 °C
Maximum output current	0.15 A
Maximum repetitive peak reverse voltage	35 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	BAW75/D7	BAW75/D8	BAW76/D8	BAW76/D7
Description	Rectifier Diode, 1 Element, 0.15A, 35V V(RRM),	Rectifier Diode, 1 Element, 0.15A, 35V V(RRM),	Rectifier Diode, 1 Element, 0.15A, 75V V(RRM),	Rectifier Diode, 1 Element, 0.15A, 75V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V
JESD-609 code	e0	e0	e0	e0
Maximum non-repetitive peak forward current	2 A	2 A	2 A	2 A
Number of components	1	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C
Maximum output current	0.15 A	0.15 A	0.15 A	0.15 A
Maximum repetitive peak reverse voltage	35 V	35 V	75 V	75 V
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
