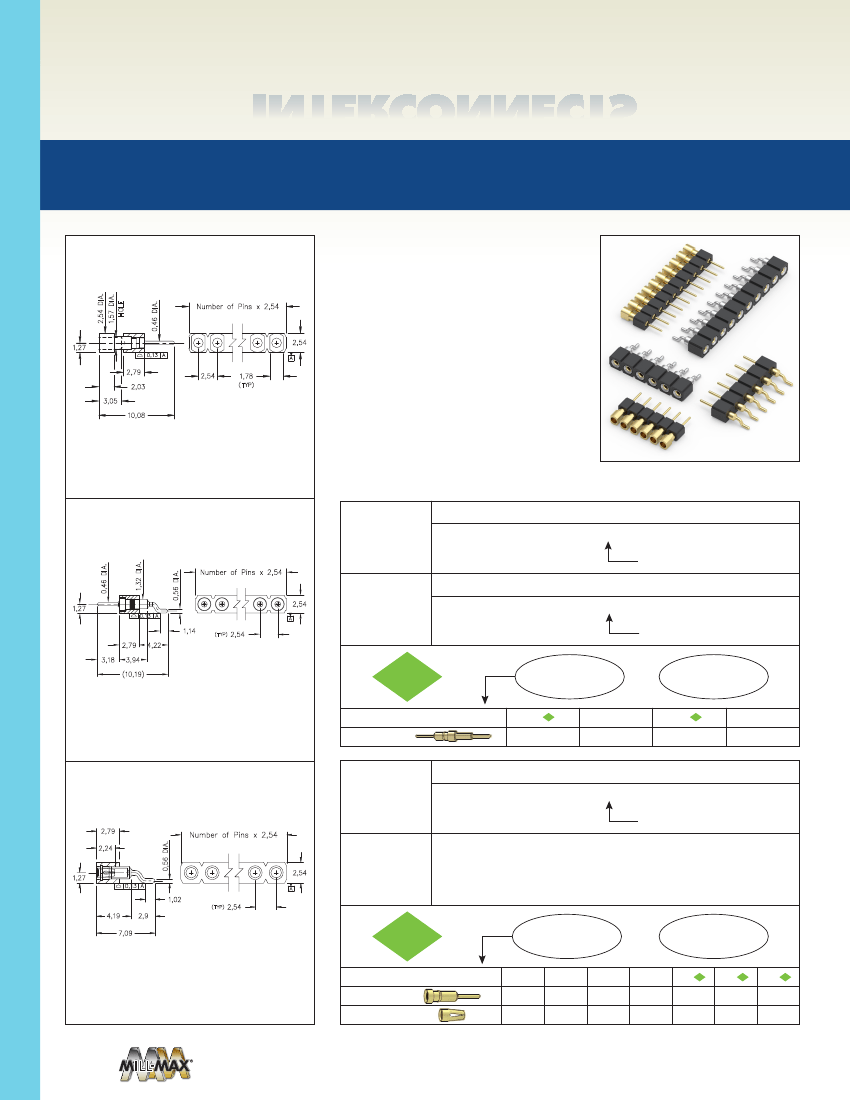

INTERCONNECTS

SERIES 310, 330, 351• 2,54 GRID (0,46 DIA. PINS),

SURFACE MOUNT HEADERS AND SOCKETS • SINGLE ROW STRIPS

Mates with Series 310...023 Surface Mount

Z-Bend Socket (See Fig. 3)

2,54 DIA.

1,57 DIA.

HOLE

0,46 DIA.

•

Series 351 horizontal surface mount headers

are availble with 0,46 dia. pluggable pins

(MM #5102). Series 330 horizontal surface

mount z-bend headers use MM #3027 pins.

See page 224 for details

Number of Pins x 2,54

•

Series 310 horizontal surface mount Z-Bend

2,54

1,27

0,13 A

2,79

2,03

2,54

1,78

(TYP)

sockets uses MM #1023 receptacles that accept

pin diameters from 0,38 - 0,64. See pages 171

for details

suitable for all soldering operations

3,05

10,08

•

Insulators are high temperature thermoplastic,

•

Ideal for daisy chaining parallel boards

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

FIG. 1

Mates with Series 310...023 Surface Mount

Z-Bend Socket (See Fig. 3)

0,46 DIA.

1,32 DIA.

ORDERING INFORMATION

Series 351...002

0,46 Dia. Surface Mount Header

351-10-1_ _-40-002000

Specify number of pins

02-10

FIG. 1

Series 330...027

0,56 DIA.

Number of Pins x 2,54

0,46 Dia. Surface Mount Z-Bend Header

330-XX-1_ _-40-027000

02-10

For

Electrical, Mechanical

& Enviromental Data,

See page 264

1,27

0,13 A

2,54

FIG. 2

RoHS - 2

1,14

2,79

3,18

3,94

(10,19)

4,22

(TYP)

2,54

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2011/65/EU

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Pin Plating

5,08μm Sn

FIG. 2

Mates with Series 351...002 and 330...027

Surface Mount Header (See Fig. 1 & 2)

2,79

2,24

0,56 DIA.

Series 310...023

0,46 Dia. Surface Mount Z-Bend Socket

310-XX-1_ _-40-023000

02-10

FIG. 3

Specify number of pins

Number of Pins x 2,54

PAGE 50 | INTERCONNECTS

1,27

0,13 A

2,54

1,02

(TYP)

2,54

4,19

7,09

2,9

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

FIG. 3

5,08μm Sn/Pb 5,08μm Sn/Pb 5,08μm Sn/Pb

5,08μm Sn 5,08μm Sn 5,08μm Sn

0,25μm Au 0,76μm Au

2,54μm Sn/Pb

0,25μm Au 0,76μm Au 2,54μm Sn
