Feed-through terminal block - UK 3-MVSTB-5,08-2DIO 3POL - 3048784
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, with integrated diode, Nominal current: 12 A, Nominal voltage: 250 V, Cross
section: 0.2 mm² - 4 mm², AWG: 24 - 12, Mounting type: NS 32, NS 35/15, NS 35/7,5, Number of positions: 3,
Pitch: 5.08 mm, Width: 15.3, Color: gray

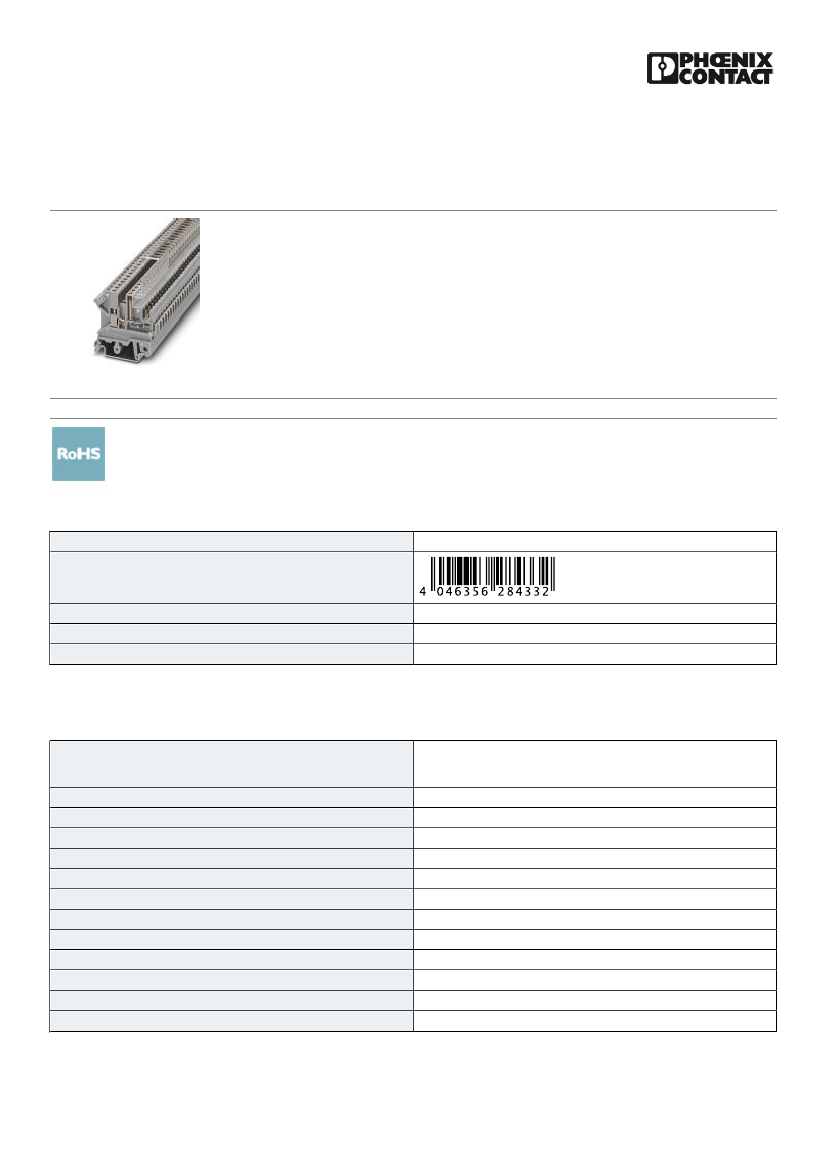

The figure shows a similar product
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356284332
85369010
Made to Order (non-returnable)
50 STK
Technical data
General
Note
Number of levels
Number of connections
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Connection method
Maximum load current
Nominal current I
N
3 x UK 3-MVSTB-5,08 terminal blocks blocked and with two diodes
(9162949) soldered in the bridge shaft. Middle terminal block has
negative potential.
1
6
gray
PA
V2
4 kV
3
III
I
Special and hybrid connection
12 A (with 4 mm² conductor cross section)
12 A
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/3048784
Feed-through terminal block - UK 3-MVSTB-5,08-2DIO 3POL - 3048784
Technical data
General
Nominal voltage U
N
250 V
Dimensions
Width
Length
Height NS 35/7,5
End cover width
15.3 mm
48 mm
47 mm
2.5 mm
Connection data
Connection method
Screw thread
Tightening torque, min
Tightening torque max
Stripping length
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Nominal current I
N
Maximum load current
Nominal voltage U
N
Internal cylindrical gage
Special and hybrid connection
M3
0.5 Nm
0.6 Nm
8 mm
0.2 mm²
4 mm²
24
12
0.2 mm²
2.5 mm²
24
14
0.25 mm²
0.25 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1 mm²
0.25 mm²
0.5 mm²
0.5 mm²
1 mm²
12 A
12 A (with 4 mm² conductor cross section)
250 V
A3
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/3048784
Feed-through terminal block - UK 3-MVSTB-5,08-2DIO 3POL - 3048784
Technical data
Standards and Regulations
Flammability rating according to UL 94
V2
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC EAC-Zulassung
