Description
Body
Socket
Insulation
Crimp Ring
Heat Shrink
Material
Brass
BE CU
PTFE
Brass
Polyolefin
Finish
Gold
Gold
N/A
Gold
Black
REVISIONS
REV
DESCRIPTION
Added new title block and heat shrink; updated instructions
Updated Assembly Instruction 4 and Note 3
DATE
11-JUL-12
2-NOV-17
APPV
SAH
CLL
B
C
SIDE VIEW
SOCKET
0.2x2x2 GROOVE
CRIMP RING
Ø0.154
[3.90]
PIN CHUCK
Ø0.173
[4.40]
Ø0.138
[3.50]
Ø0.102
[2.60]
Ø0.028
[0.70]
0.200
[5.10]
Ø0.039
[1.00]
0.276
[7.00]
0.197
[5.00]
0.335
[8.50]
0.476
[12.10]
HEAT SHRINK
Ø0.197
[5.00]
CONMMCX011 ASSEMBLY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
Strip cable to recommended dimensions.
Slip heat shrink and crimp ring onto stripped cable.
Solder the socket to the center conductor.
Insert the socket and center conductor into the body
until the socket snaps in.
Wrap the braid around the tail of the body and crimp the ring with a
0.128” hex crimp tool (or one labeled for use with RG-174 cable).
Use heat shrink to cover crimp.
0.787
[20.00]
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. ALL DIMENSIONS ARE IN INCHES [mm].
2. DIMENSIONS APPLY AFTER FINISHING.
3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE, USE
MATERIALS THAT DO NOT CONTAIN REACH SUBSTANCES OF VERY
HIGH CONCERN >1000ppm, AND USE DRC CONFLICT-FREE
SOURCED MATERIALS.
4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.083 0.047
[2.10] [1.20]
0.228
[5.80]
RG-174 Cable
MATERIAL:
:
THIS DRAWING CONTAINS PROPRIETARY INFORMATION
THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE
TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS
DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE
EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS
DESIGNATED AGENTS.
FINISH:
PROJECTION:
TOLERANCES:
.020 [0.50]-.200 [5.00]= .008 [0.20]
.200 [5.00]-1.200 [30.00]= .016 [0.40]
1.20 [30.0]-4.75 [120.0]= .024 [0.60]
4.75 [120.0]-12.40 [315.0]= .040 [1.0]
ANGLES: 1
TITLE:

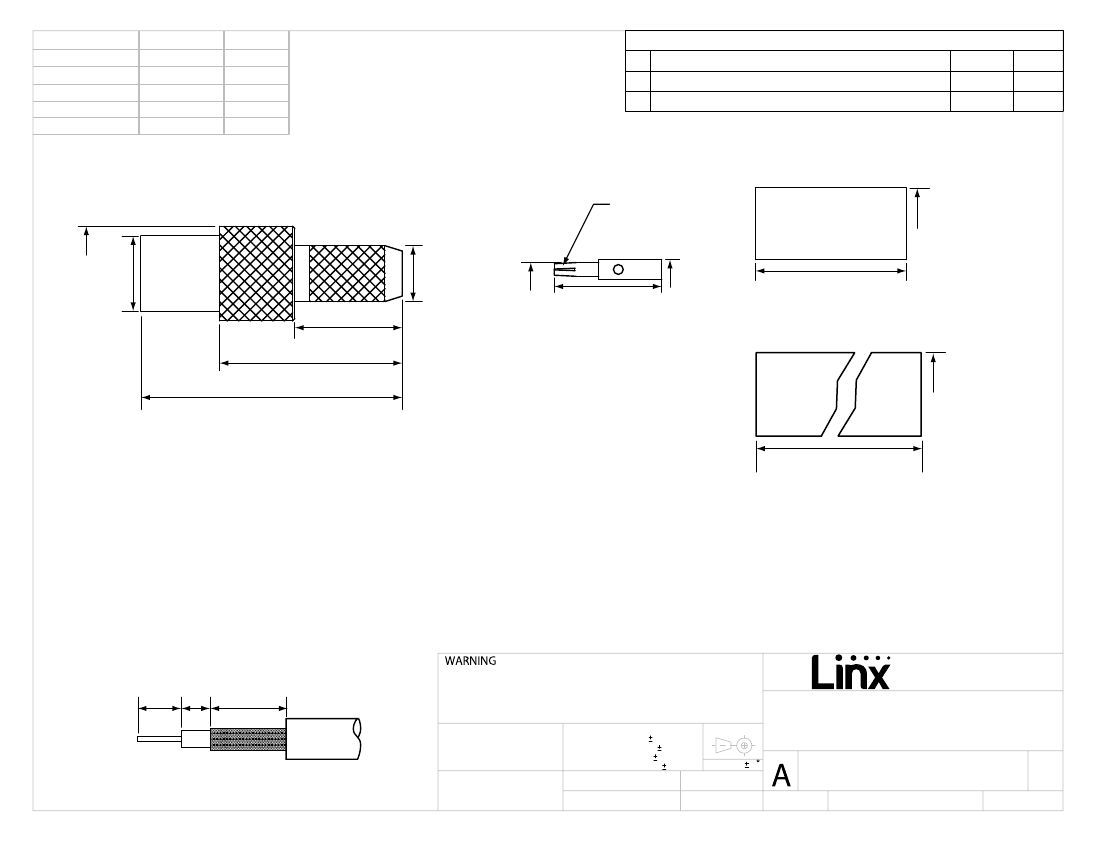

MMCX FEMALE CABLE END CRIMP
FOR RG174 CABLE
159 ORT LANE
MERLIN, OR 97532
SIZE
DWG. NO.
REV
DRAWN: B.MURPHY DT:
11-JUL-12
ENGR: S.HOGAN
DT:
11-JUL-12
SCALE: 2:1
CONMMCX011
DO NOT SCALE DRAWING
C
LDCFDLT_A
SHEET 1 OF 1
