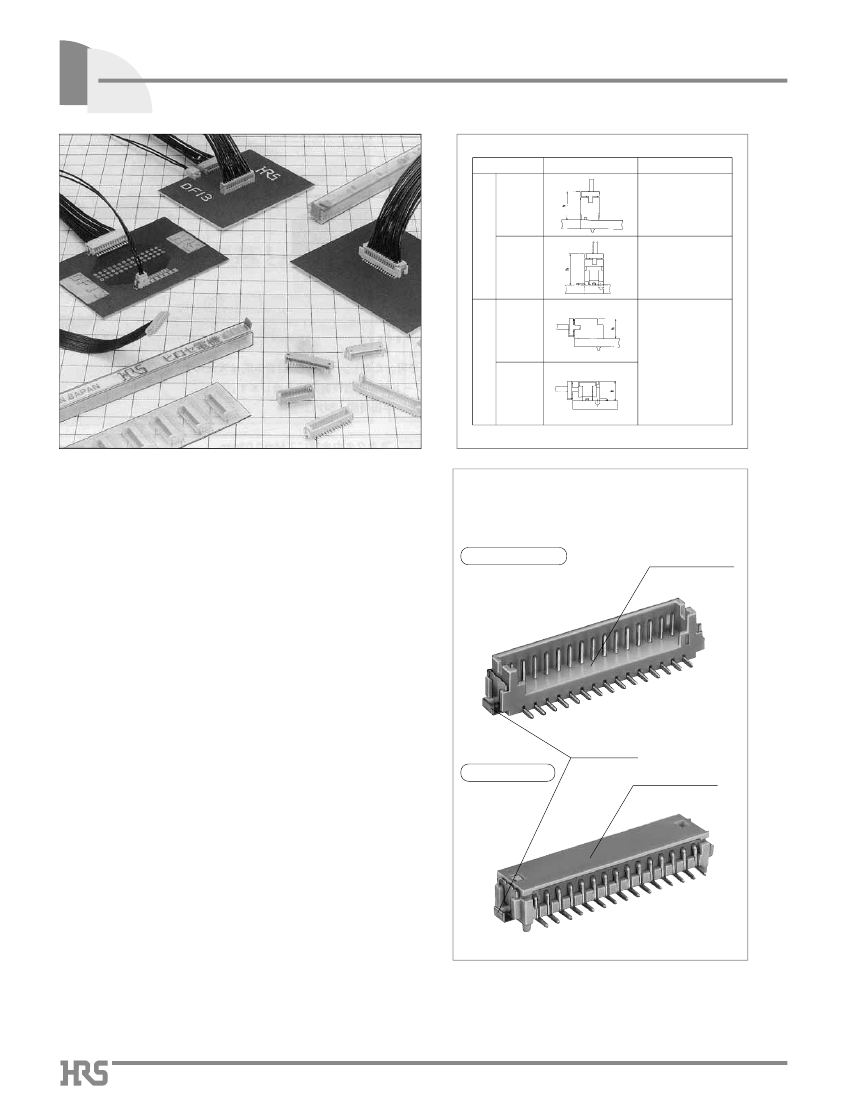

1.25mm Pitch Miniature Crimping Connector (UL Listed)
DF13 Series
Type
DIP
Mounting Type
Mounting Height(h)
5.3mm
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Straight Type
SMT
5.8mm
Right Angle Type
DIP
3.6mm
SMT
■Features
1. Miniature Size
Designed in the low profile at mounting height 5.8mm.
(SMT mounting straight type)
(For DIP type, the mounting height is to 5.3mm to the
straight and 3.6mm at the right angle)
Correspond to Automatic Mounting
Secure the automatic plain area for the absorption
type automatic mounting machine.
Straight Type
Absorption area
2. Multi-contact
The double row type achieves the multi-contact up to 40
contacts, and secures 30% higher density in the mounting
area, compared with the single row type.
3. Correspond to Automatic Mounting
The header provides the grade with the vacuum absorption
area, and secures automatic mounting by the embossed
tape packaging.
In addition, the tube packaging can be selected. (Fig.1)
4. Integral Basic Function Despite Miniature Size
The header is designed in a scoop-proof box structure, and
completely prevents mis-insertion.
In addition, the surface mounting (SMT) header is equipped
with the metal fitting to prevent solder peeling. (Fig.1)
Right Angle Type
Metal fitting
Absorption area
5. UL Certifled
6. Glow wire compliance (Compliant with IEC 60695-2-11)
■Applications
Note PC, mobile terminal, miniature type business equipment,
and other various consumer equipment, including video
camera
Fig.1
B242
DF13 Series●1.25mm Pitch Miniature Crimping Connector (UL Listed)
■Product
Specifications
Current rating
Rating
Specification
1A
UL
Specification AC 150V
Voltage rating
UL
AC/DC 29.9V
Specification
500M
ø
min.
No flashover or insulation breakdown.
30m
ø
max.
No electrical discontinuity of 1μs or more
Contact resistance : 30m
ø
max. Insulation resistance : 500M
ø
min.
100V DC
500V AC/1 minute
100mA
Measured at the square steel pin of 0.35±0.002mm
Frequency : 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç : 30 minutes➝ 5
to
35ç : 10 minutes➝ 85ç : 30 minutes➝ 5
to
35ç : 10 minutes) 5 cycles
Tin plating : 30 cycles
Gold plating : 50 cycles
9.Resistance to Soldering heat
No deformation of components affecting performance.
Flow : 250ç for 10 seconds
Manual soldering : 300ç for 3 seconds
Reflow : At the recommended temperature profile
Manual soldering : 300ç for 3 seconds
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3 : Use without condensation on parts.
Operating Temperature Range :
-35 to
+85ç
(Note 1)
Storage Temperature Range :
-10 to
+60ç
(Note 2)
Operating Moisture Range : 20
to
80%
(Note 3)
Storage Moisture Range : 40
to
70%
(Note 2)
Condition
Item
1.Insulation Resistance
2.Withstanding voltage
3.Contact Resistance
4.Single Insertion/Extraction Force 0.3N (30gf) min., 3N (300gf) max.
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5.Vibration
7.Temperature Cycle
6.Humidity
(Steady state)
Contact resistance : 30m
ø
max. Insulation resistance : 500M
ø
min.
8.Durability (Mating/un-mating) Contact resistance : 30m
ø
max.
■UL
File No. and Recognition No. UL : E52653
■Materials/Finish
Product
Crimping Socket
Crimping Contact for Socket
Pin Header (Through hole)
Pin Header (SMT Single row)
Part
Insulator
Contact
Insulator
Contact
Insulator
Contact
Metal Fitting
Insulator
Contact
Metal Fitting
Material
Polyamide
Phosphor copper
Polyamide
Brass
Polyamide
Brass
Phosphor copper
Polyamide
Brass
Phosphor copper
Finish
Beige
Tin plated or gold plated
Beige
Tin plated
Beige
Tin plated or gold plated
Tin plated
Beige
Tin-copper plated or gold plated
Tin plated
Remarks
UL94V-0
--
--
UL94V-0
--
--
UL94V-0
--
--
--
--
UL94V-0
--
--
--
--
Pin Header (SMT Double row)
■
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Connector
q
Series Name
w
Style Symbol
DF13
q
: DF13
: Blank : With boss
#
-
*
S - 1.25 C
w
e
r
t
y
t
Contact Pitch: 1.25mm
y
Connection Form / Contact Style.
C : Crimping socket / DSA : Straight through hole
DS : Right angle through hole / V : Straight SMT
H : Right angle SMT
e
Number of Contacts
r
Single row : 2
to
12, 14, 15
r
Double row : 10, 20, 30, 40
r
Connector Type
t
S : Single row socket / P : Single row pin header
t
DS : Double row socket / DP : Double row pin header
(
●Contact
A : Without boss
C : Without boss
DF13 # - 2630 SCF A
q
w
e
r
q
Style Symbol
Blank: Standard
e
Packaging Type SCF : Socket Contact/Reel
Blank : Tin plated
A : Gold plated
G: Low insertion / extraction
r
Plating Type
w
Applicable Cable Size 2630 : 26
to
30 AWG
3032 : 30
to
32 AWG
B243
DF13 Series●1.25mm Pitch Miniature Crimping Connector (UL Listed)
■Single
Row Socket
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Photo: Contact insertion
Part No.
HRS No. No. of Contacts
536-0001-4
DF13-2S-1.25C
2
536-0002-7
DF13-3S-1.25C
3
536-0003-0
DF13-4S-1.25C
4
536-0004-2
DF13-5S-1.25C
5
536-0005-5
DF13-6S-1.25C
6
536-0006-8
DF13-7S-1.25C
7
536-0007-0
DF13-8S-1.25C
8
Note 1. The quantity is delivered per bag (100
A
1.25
2.50
3.75
5.00
6.25
7.50
8.75
pcs.).
B
RoHS
Part No.
HRS No. No. of Contacts
4.15
536-0008-3
DF13- 9S-1.25C
9
536-0009-6
5.40
DF13-10S-1.25C
10
6.65
536-0010-5
DF13-11S-1.25C
11
Yes
7.90
536-0011-8
DF13-12S-1.25C
12
9.15
536-0012-0
DF13-13S-1.25C
13
10.40
536-0013-3
DF13-14S-1.25C
14
11.65
536-0014-6
DF13-15S-1.25C
15
If needed, please select and order the products per bag.
A
10.00
11.25
12.50
13.75
15.00
16.25
17.50
Unit : mm
B
RoHS
12.90
14.15
15.40
16.65 Yes
17.90
19.15
20.40
■Double
Row Socket
Photo: Contact insertion state
Part No.
DF13-10DS-1.25C
DF13-20DS-1.25C
DF13-30DS-1.25C
DF13-40DS-1.25C
Note : The quantity
HRS No. No. of Contacts
A
B
536-0550-2
10
10.40
5.00
536-0555-6
20
16.65
11.25
Yes
536-0560-6
30
22.90
17.50
536-0565-0
40
29.15
23.75
is delivered per bag (100pcs). If needed, please select and order the products per bag.
Unit : mm
RoHS
B244
DF13 Series●1.25mm Pitch Miniature Crimping Connector (UL Listed)
■Single
Row Straight Pin Header (Through hole)
[Specific No.] (**),
**
Blank : Tin plated
(20) : Tin plated, tube packaging
BTube
Dimensions
5
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●Board
Through-hole Diameter:Ø0.6±0.03
10
Part No.
HRS No. No. of Contacts A
B Tube Packaging Quantity RoHS
Part No.
HRS No. No. of Contacts A
B
115
37
DF13-2P-1.25DSA(**) 536-0101-9 **
2
1.25 4.15
DF13- 9P-1.25DSA(**)
536-0108-8 **
9
10.00 12.90
89
34
DF13-3P-1.25DSA(**) 536-0102-1 **
3
2.50 5.40
DF13-10P-1.25DSA(**)
536-0109-0 **
10
11.25 14.15
72
31
DF13-4P-1.25DSA(**) 536-0103-4 **
4
3.75 6.65
DF13-11P-1.25DSA(**)
536-0110-0 **
11
12.50 15.40
61
29
Yes DF13-12P-1.25DSA(**)
536-0111-2 **
Yes
DF13-5P-1.25DSA(**) 536-0104-7 **
5
5.00 7.90
12
13.75 16.65
52
27
DF13-6P-1.25DSA(**) 536-0105-0 **
6
6.25 9.15
DF13-13P-1.25DSA(**)
536-0112-5 **
13
15.00 17.90
46
25
DF13-7P-1.25DSA(**) 536-0106-2 **
7
7.50 10.40
DF13-14P-1.25DSA(**)
536-0113-8 **
14
16.25 19.15
41
23
DF13-8P-1.25DSA(**) 536-0107-5 **
8
8.75 11.65
DF13-15P-1.25DSA(**)
536-0114-0 **
15
17.50 20.40
Note 1. The quantity at the specific No."None" is delivered per bag (100 pcs.). If needed, please select and order the products per bag.
Note 2. Order the tube packaging product, multiplying the tube packaging quantity.
Unit: mm
Tube Packaging Quantity RoHS
■Single
Row Right Angle Pin Header (Through hole)
[Specific No.] (**),
**
(20) : Tin plated tube packaging
BTube
Dimensions
●Board
Through-hole Diameter:Ø0.6±0.03
Part No.
HRS No. No. of Contacts A
B Tube Packaging Quantity RoHS
Part No.
2
1.25 4.15
115
DF13-2P-1.25DS(20) 536-0151-7
20
DF13- 9P-1.25DS(20)
3
2.50 5.40
89
DF13-3P-1.25DS(20) 536-0152-0
20
DF13-10P-1.25DS(20)
4
3.75 6.65
72
DF13-4P-1.25DS(20) 536-0153-2
20
DF13-11P-1.25DS(20)
Yes DF13-12P-1.25DS(20)
5
5.00 7.90
61
DF13-5P-1.25DS(20) 536-0154-5
20
6
6.25 9.15
52
DF13-6P-1.25DS(20) 536-0155-8
20
DF13-14P-1.25DS(20)
7
7.50 10.40
46
DF13-7P-1.25DS(20) 536-0156-0
20
DF13-15P-1.25DS(20)
8
8.75 11.65
41
DF13-8P-1.25DS(20) 536-0157-3
20
Note 1.Order the tube packaging product, multiplying the tube packaging quantity.
HRS No.
536-0158-6
20
536-0159-9
20
536-0160-8
20
536-0161-0
20
536-0163-6
20
536-0164-9
20
Unit : mm
No. of Contacts A
B Tube Packaging Quantity RoHS
9
10.00 12.90
37
10
11.25 14.15
34
11
12.50 15.40
31
Yes
12
13.75 16.65
29
14
16.25 19.15
25
15
17.50 20.40
23
B245
DF13 Series●1.25mm Pitch Miniature Crimping Connector (UL Listed)
■Single
Row Straight Pin Header (SMT)
■(Three-Wall/Correspond
to Vacuum Absorption)
BPCB
mounting pattern
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note 1.Shaded area must be free of any
electrically conductive traces to
avoid contact with soldered pin
header terminations.
This pin header is a three-wall type, header has sufficiently large flat areas to allow
pick-up with vacuum nozzles of automatic placement equipment.
[Specific No.] (**),
**
(21) : Tin plated embossed tape packaging
(51) : Gold plated embossed tape packaging
Unit : mm
Part No.
HRS No.
No. of Contacts
A
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
12.90
14.15
15.40
16.65
19.15
20.40
C
7.15
8.40
9.65
10.90
12.15
13.40
14.65
15.90
17.15
18.40
19.65
22.15
23.40
D
5.65
6.90
8.15
9.40
10.65
11.90
13.15
14.40
15.65
16.90
18.15
20.65
21.90
E
1.95
3.20
4.45
5.70
6.95
8.20
9.45
10.70
11.95
13.20
14.45
16.95
18.20
F
2.20
3.45
3.10
4.35
5.60
6.85
8.10
9.35
10.60
11.85
13.10
15.60
16.85
Emboss
Width
16
16
24
24
24
24
24
24
24
32
32
32
44
RoHS
1.25
2
536-0401-2
**
DF13C- 2P-1.25V(**)
2.50
3
536-0402-5
**
DF13C- 3P-1.25V(**)
3.75
4
536-0403-8
**
DF13C- 4P-1.25V(**)
5.00
5
536-0404-0
**
DF13C- 5P-1.25V(**)
6.25
6
536-0405-3
**
DF13C- 6P-1.25V(**)
7.50
7
536-0406-6
**
DF13C- 7P-1.25V(**)
8.75
8
536-0407-9
**
DF13C- 8P-1.25V(**)
10.00
9
536-0408-1
**
DF13C- 9P-1.25V(**)
11.25
10
536-0409-4
**
DF13C-10P-1.25V(**)
12.50
11
536-0410-3
**
DF13C-11P-1.25V(**)
13.75
12
536-0411-6
**
DF13C-12P-1.25V(**)
16.25
14
536-0413-1
**
DF13C-14P-1.25V(**)
17.50
15
536-0414-4
**
DF13C-15P-1.25V(**)
Note 1.Please order the embossed tape packaging product according
Yes
to reel number. (1000pcs/reel)
B246
1.8
NXP MCU
京公网安备 11010802033920号
EEWORLD
