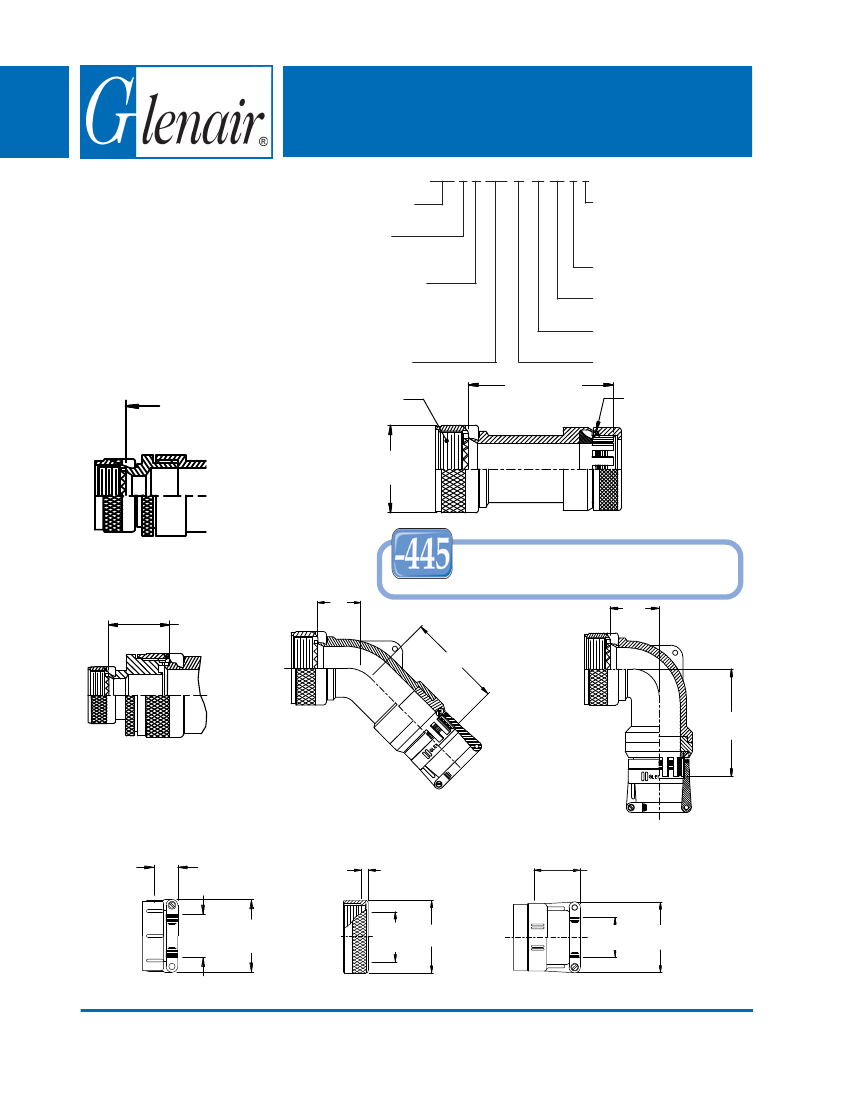

400-001
TAG
®
Ring Backshell
with Strain Relief
Rotatable Coupling - Low Profile
400 F S 001 M 16 06 L 6
40
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (F, G, L)
Cable Entry (Table IV, V)
Shell Size (Table I)
Finish (Table II)
Length *
Ground
Spring
* Length
± .060 (1.52)
Minimum Order
Length 1.0 Inch
(See Note 4)
Shown with Style G Nut
Length ± .060 (1.52)
Minimum Order Length 1.5 Inch
(See Note 4)
A Thread
(Table I)
C Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
E
.88 (22.4)
Max
(Table III)
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE F
Light Duty
(Table V)
.416 (10.5)
Approx.
Cable
Range
Shown with Style L
Strain Relief
STYLE G
Light Duty
(Table IV)
.072 (1.8)
Approx.
STYLE L
Light Duty
(Table V)
.850 (21.6)
Approx.
L
Cable
Entry
K
Cable
Range
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 40 - Page 4
with Strain Relief
Rotatable Coupling - Low Profile
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.660 (42.2)
1.720 (43.7)
1.780 (45.2)
1.870 (47.5)
1.980 (50.3)
2.170 (55.1)
2.170 (55.1)
2.320 (58.9)
2.320 (58.9)
2.370 (60.2)
2.470 (62.7)
2.560 (65.0)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.670 (42.4)
1.790 (45.5)
1.810 (46.0)
1.880 (47.8)
1.970 (50.0)
2.140 (54.4)
2.140 (54.4)
2.250 (57.2)
2.250 (57.2)
2.420 (61.5)
2.670 (67.8)
2.670 (67.8)
TABLE IV: CABLE ENTRY
Dash
K
Cable Entry
No.
Max
Max
.545 (13.8)
02
.250 (6.4)
03
.670 (17.0)
.375 (9.5)
04
.795 (20.2)
.500 (12.7)
05
.920 (23.4)
.625 (15.9)
06
1.045 (26.5)
.750 (19.1)
07
1.170 (29.7)
.875 (22.2)
08
1.295 (32.9)
1.000 (25.4)
09
1.420 (36.1)
1.125 (28.6)
10
1.670 (42.4)
1.250 (31.8)
Dash
No.
02
03
04
05
06
07
08
09
10
TABLE V: CABLE ENTRY
Cable
L
Max
Min
.125 (3.2)
.968 (24.6)
.250 (6.4)
1.046 (26.6)
1.156 (29.4)
.250 (6.4)
1.218 (30.9)
.375 (9.5)
1.343 (34.1)
.500 (12.7)
1.468 (37.3)
.625 (15.9)
1.593 (40.5)
.625 (15.9)
1.718 (43.6)
.750 (19.1)
.875 (22.2)
1.843 (46.8)
Range
Max
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 40 - Page 5
